Description

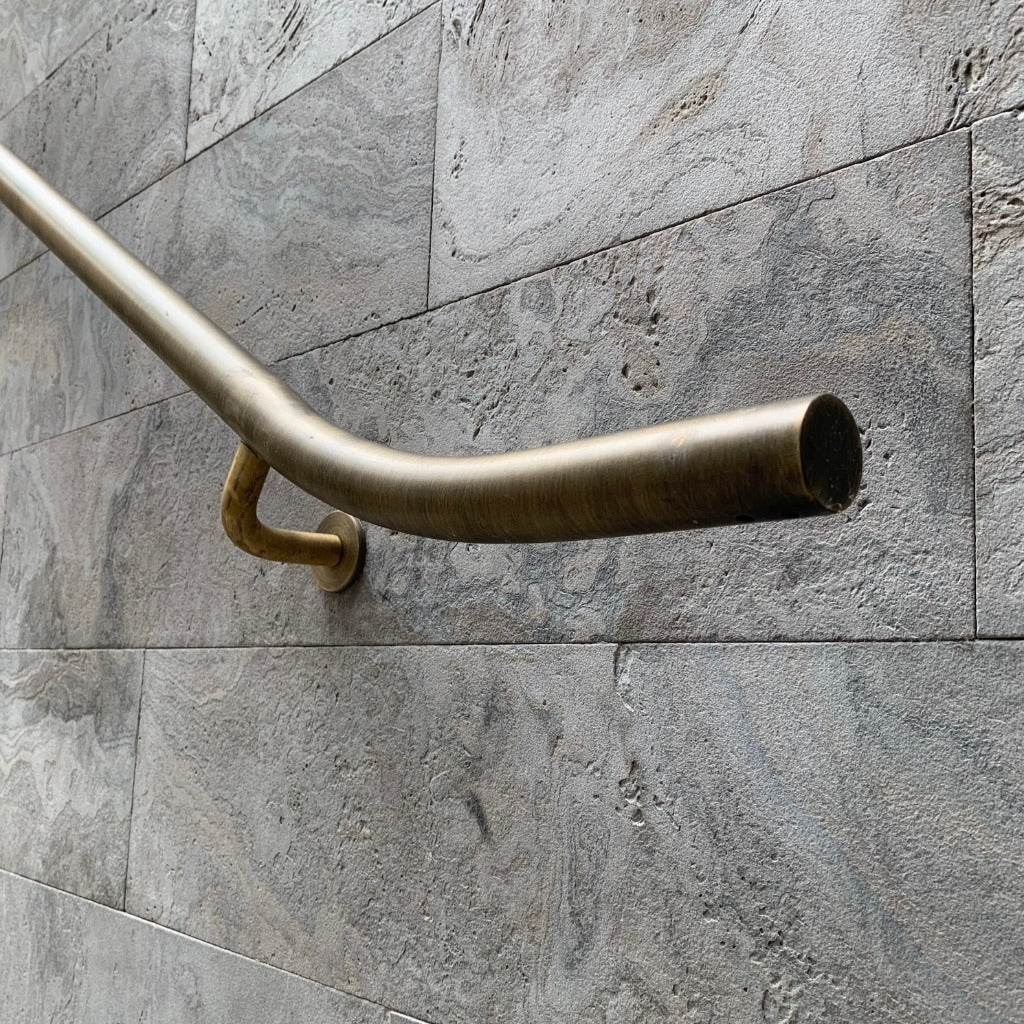

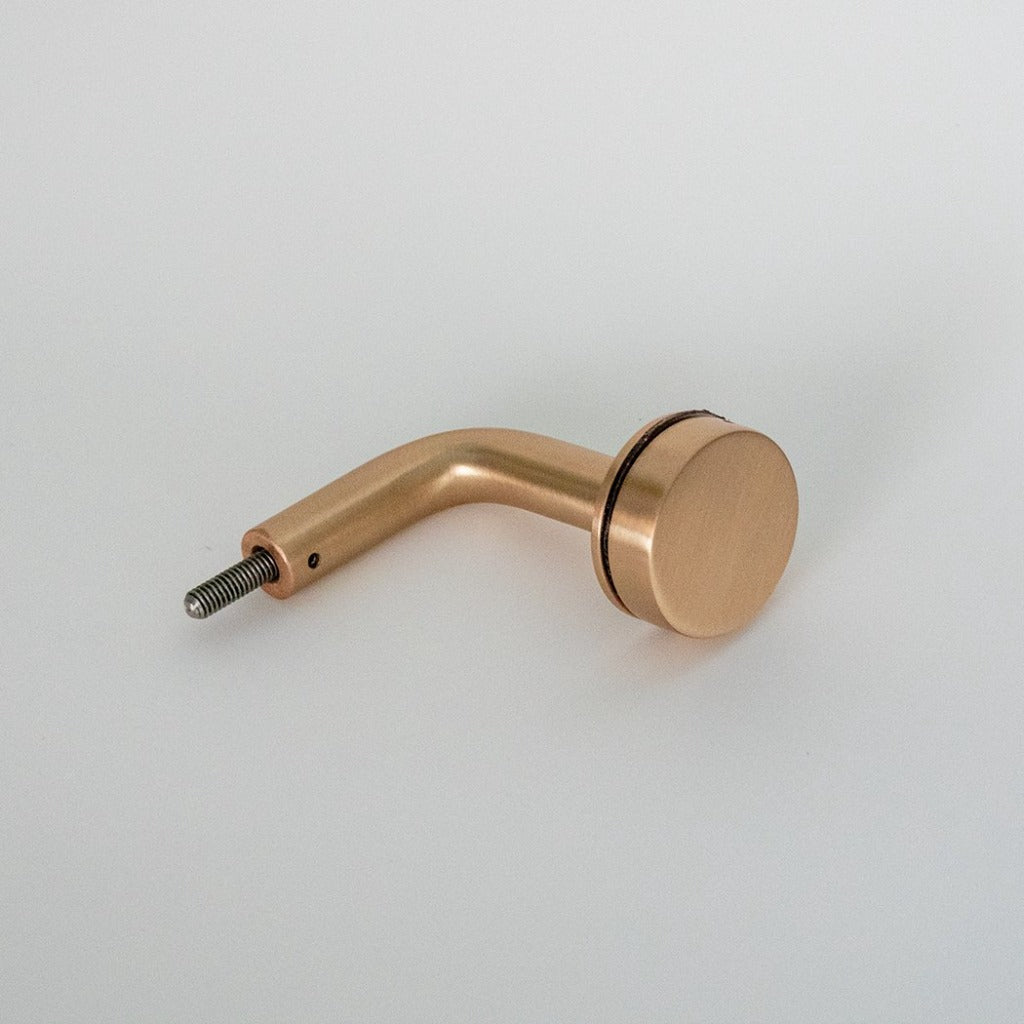

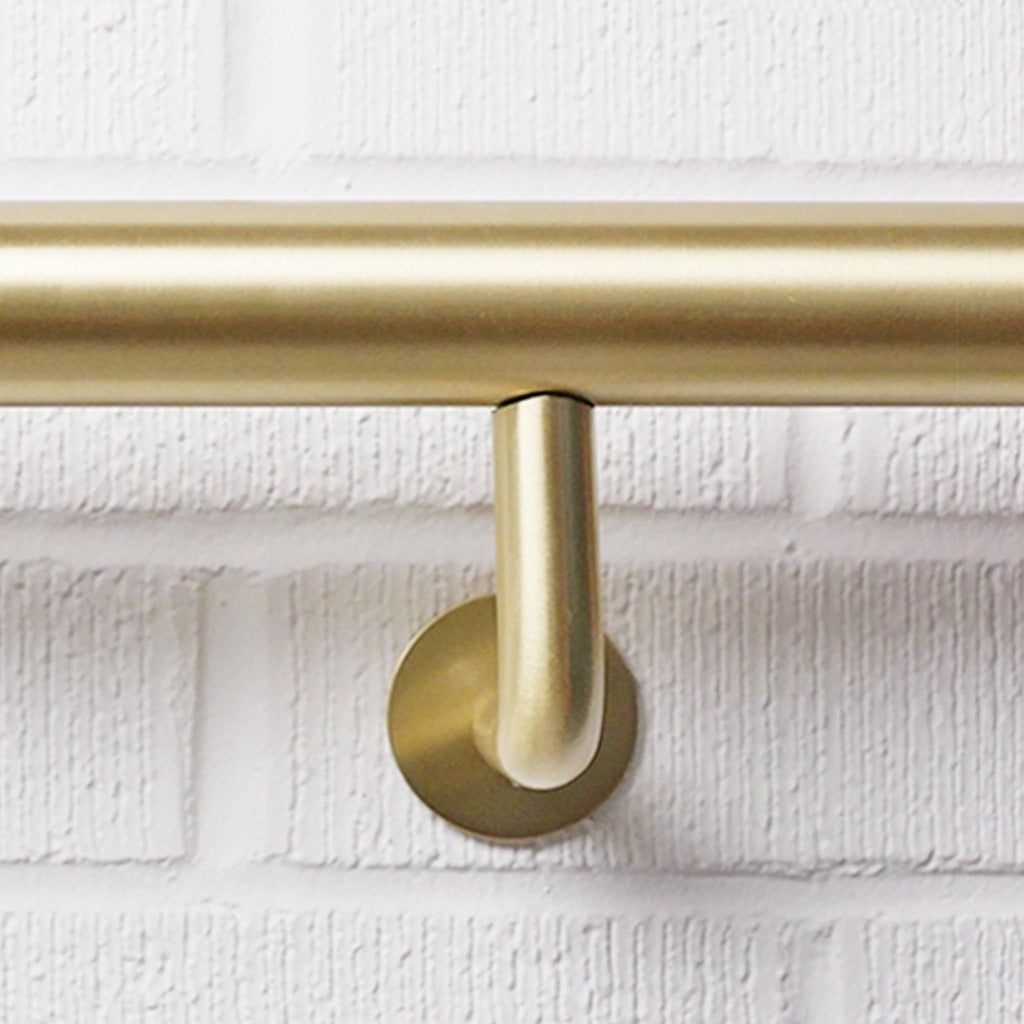

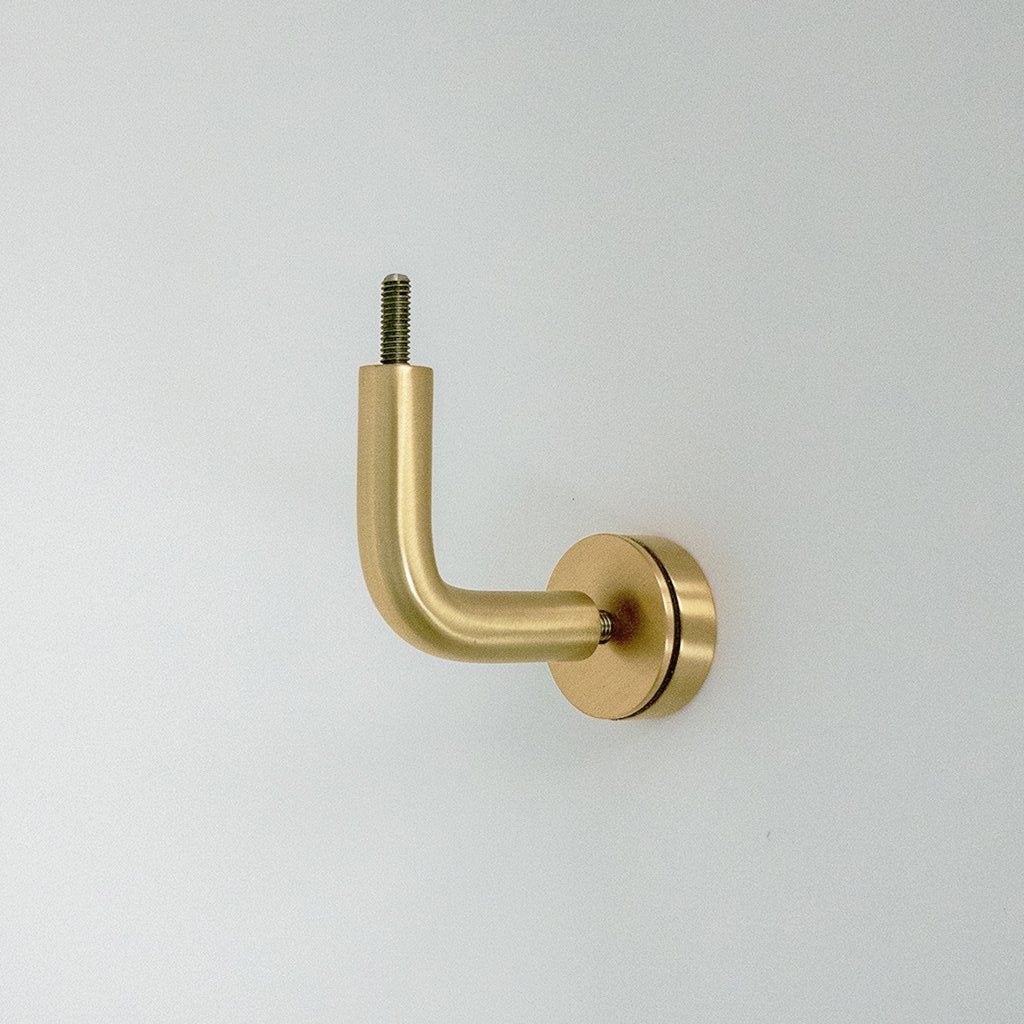

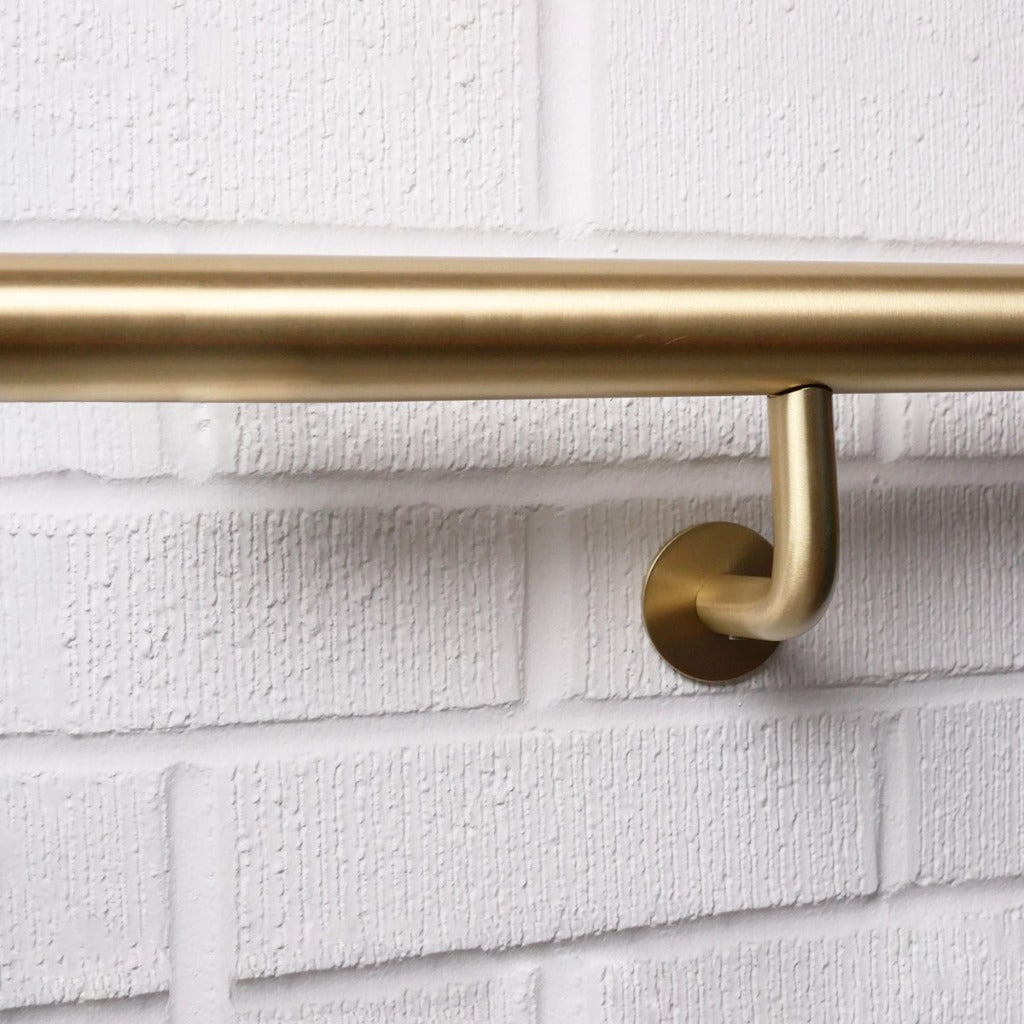

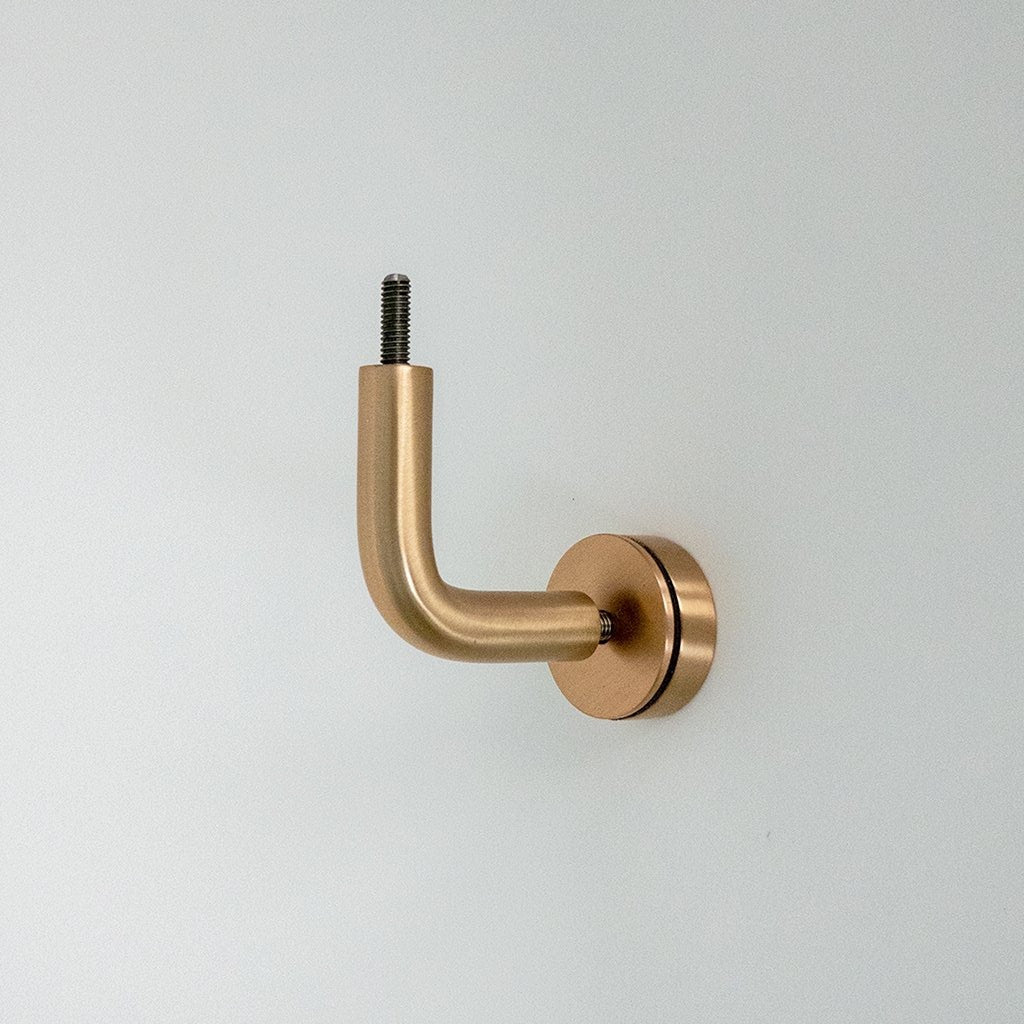

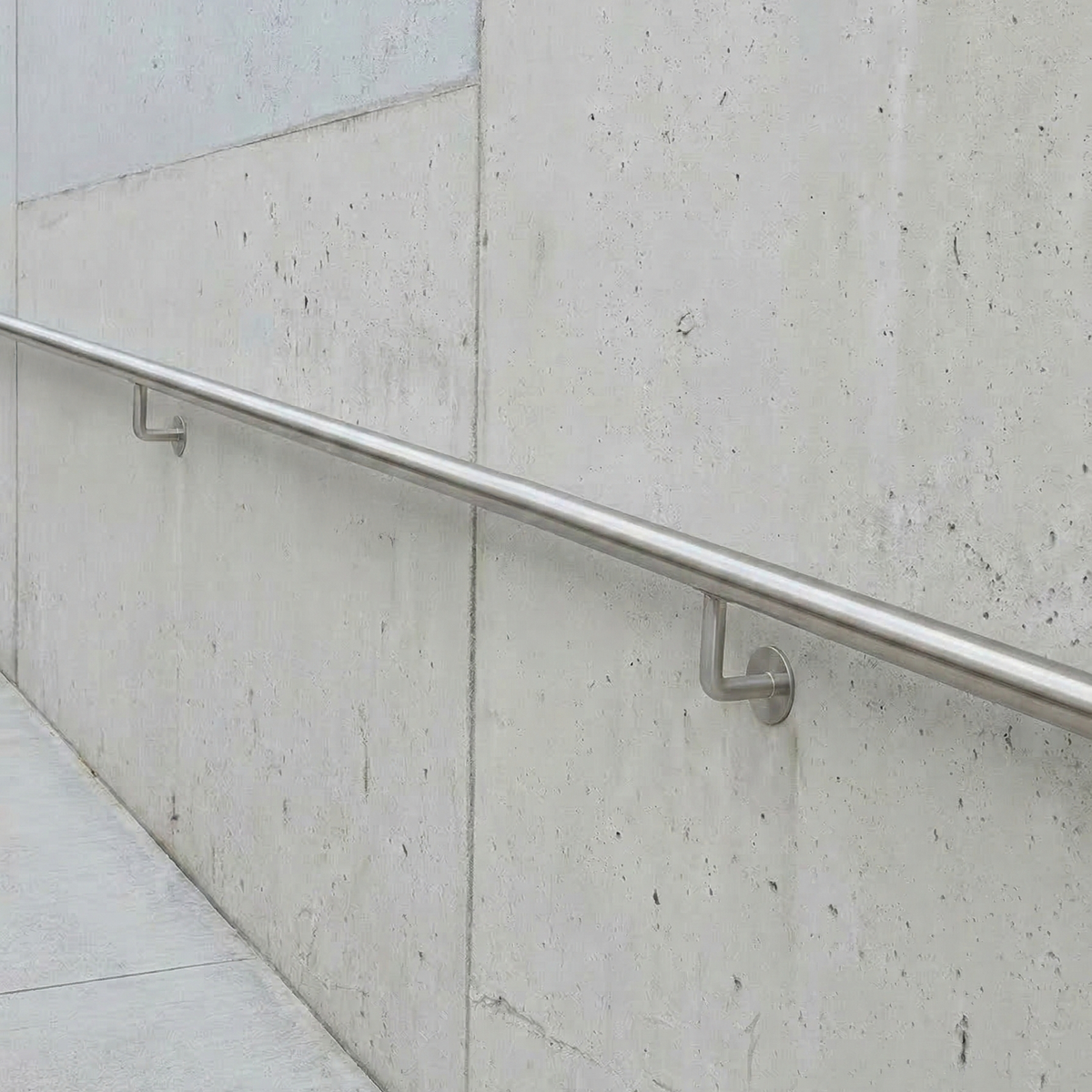

The Orla Handrail Bracket by CBH is a wall-mounted handrail bracket in brass or stainless steel with a sleek, minimalist profile. Designed to securely anchor handrails for both residential and commercial applications. Concealed mounting rose included.
Made in Canada.
Specifications
- Dimensions: H 76 mm (3") x D 76 mm (3") x Ø 19 mm (0.75")
- Standoff: 2-3/4" from wall to center of handrail (custom depths available on request)
- Mounting hardware included
- Mounting rose included — recommended to protect the wall surface
- Handrail profile machined to order (see options): concave seat for round rails, flat seat for square or rectangular rails
- Handrail not included
Wood Installation

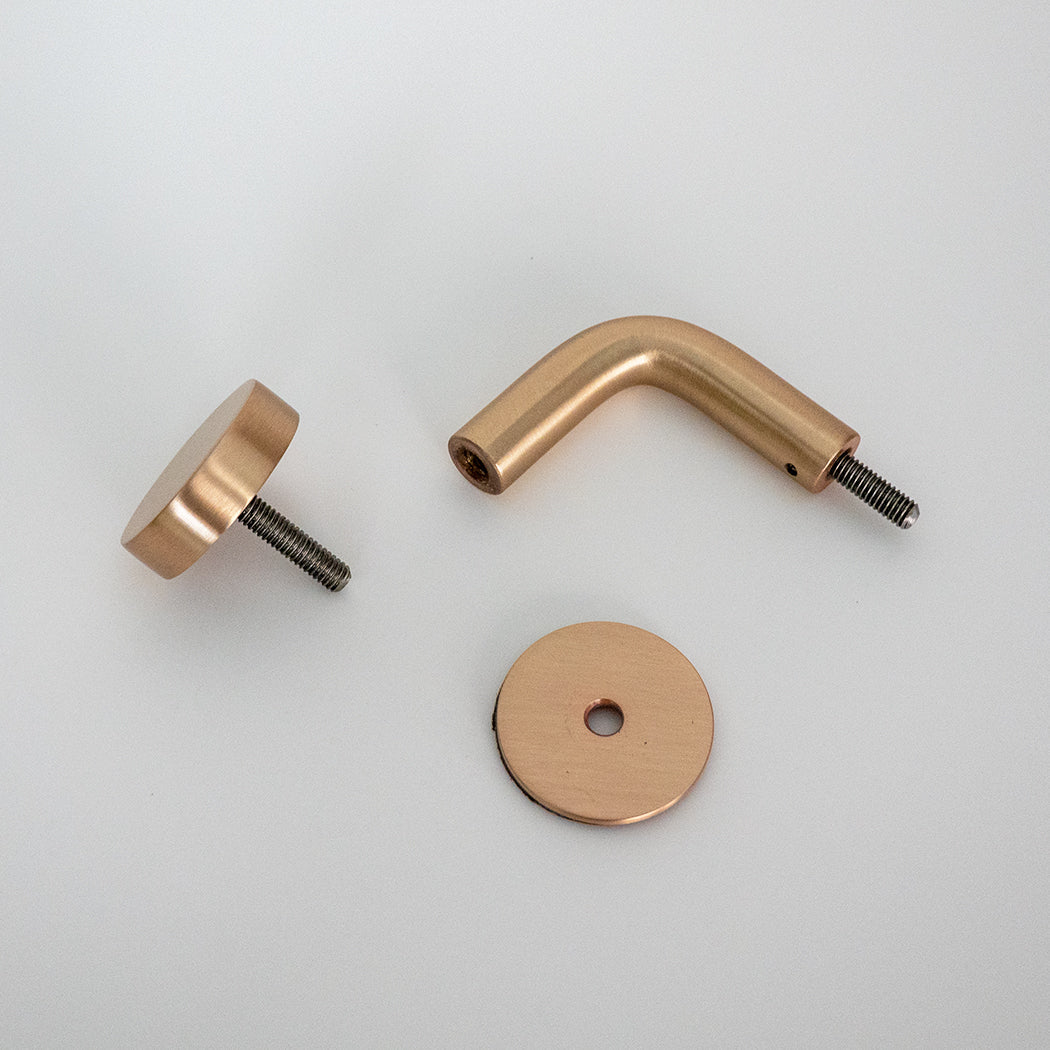

Fasten threaded stud into wood, thread rod into stud, slide bracket and secure with set screw.
Handrail Profile Options
The top of the bracket is machined to match the underside of your handrail. Select the option that corresponds to the rail you are installing:
- Round Ø 1-1/4" / 1-1/2" / 1-3/4" / 2" / 2-1/2" — concave seat matching the diameter of a round handrail
- Square or Rectangular Rail — flat seat for any square or rectangular profile
Materials
Available Finishes
- Satin Stainless Steel
- Polished Stainless Steel
- Satin Chrome
- Polished Chrome
- Satin Aluminum
- Satin Nickel
- Polished Nickel
- Lacquered Satin Brass
- Unlacquered Satin Brass
- Lacquered Polished Brass
- Unlacquered Polished Brass
- Satin Bronze
- Polished Bronze
- Oxidized Bronze
- Antique Brass
- Antique Bronze
- Antique Nickel
- Antique Copper
- Gloss White
- Matte Black
Material Notes
- Antique and oxidized finishes are hand-applied, resulting in unique, organic surface variations.
- Lacquered finishes maintain a consistent appearance over time. Unlacquered finishes will naturally age and develop a patina.
- Most finishes are lacquered by default. Satin Nickel, Satin Chrome, and Satin Stainless Steel are unlacquered. Oxidized Bronze is lacquered unless requested otherwise.
- See the Care & Maintenance Guide.
Product Downloads
See more about CBH Charlie finishes
CBH offers a range of finishes as part of their standard Charlie collection. Most finishes are coatings applied over a base material, such as brass, bronze, stainless steel, or aluminum. Base material may vary by product type.
See Base Material Chart
| Finish | Base Material |
|---|---|
| Satin Stainless Steel | Stainless Steel |
| Polished Stainless Steel | Stainless Steel |
| Satin Aluminum | Aluminum |
| Satin Chrome | Brass |
| Polished Chrome | Brass |
| Satin Nickel | Brass |
| Polished Nickel | Brass |
| Lacquered Satin Brass | Brass |
| Unlacquered Satin Brass | Brass |
| Lacquered Polished Brass | Brass |
| Unlacquered Polished Brass | Brass |
| Satin Bronze | Bronze / Brass |
| Polished Bronze | Bronze / Brass |
| Oxidized Bronze | Bronze / Brass |
| Antique Brass | Brass / Bronze |
| Antique Bronze | Bronze / Brass |
| Antique Nickel | Brass |
| Antique Copper | Brass |
| Gloss White | Stainless Steel |
| Matte Black | Stainless Steel |
Antique finishes are hand-applied and may show variation in tone and texture. Finish availability may vary by item — refer to the product variant selection for details.
Most finishes are sealed with a clear protective coat. To maintain finish quality, clean with a soft cloth and water or mild ammonia-based cleaner. Avoid acid-based cleaners. For full care details, visit our Finish Care Guide.
Installation Notes
Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
