FAT Door Lever

The FAT Door Lever is enduringly crafted in the highly resilient AISI 316 stainless steel and is part of the FAT collection, a collaboration between British designer Tom Dixon and d line.

To achieve the collection’s aesthetic, Tom Dixon has magnified the silhouette of each piece’s ‘normal’ aesthetic, to create softer edges and a generous profile. The studio uses the word ‘fat’ to imply generosity and softness of form. The result lacks any trace of sharpness or angularity and is a collection of pumped-up pieces that are simply ‘fatter’ than the norm.

The full FAT range includes a door knocker, key escutcheon, thumb turn, pull handle, flush pull, and door stop. All echoing the same distinctive, magnified design language.

The collection is available in charcoal, electric blue, polished brass and satin stainless steel.

Made in Europe.

Ø 35 mm (1.3") X L153 mm (6") X W 82 mm (3.2") X H 70 mm (2.7")

Spindle: 8x8
Bore Hole: Ø25 mm
Certifications: Tested and certified according to EN1906 and EN1634-1

Notes: Spacing between door hardware components, such as levers and escutcheons or thumb turns, have varied spacing depending on the paired latches. Tubular latch pairings allow for custom spacing between components, whereas euro mortise hardware has fixed positioning. Please review all dimensions before ordering.

Stainless Steel AISI 316

Finishes:

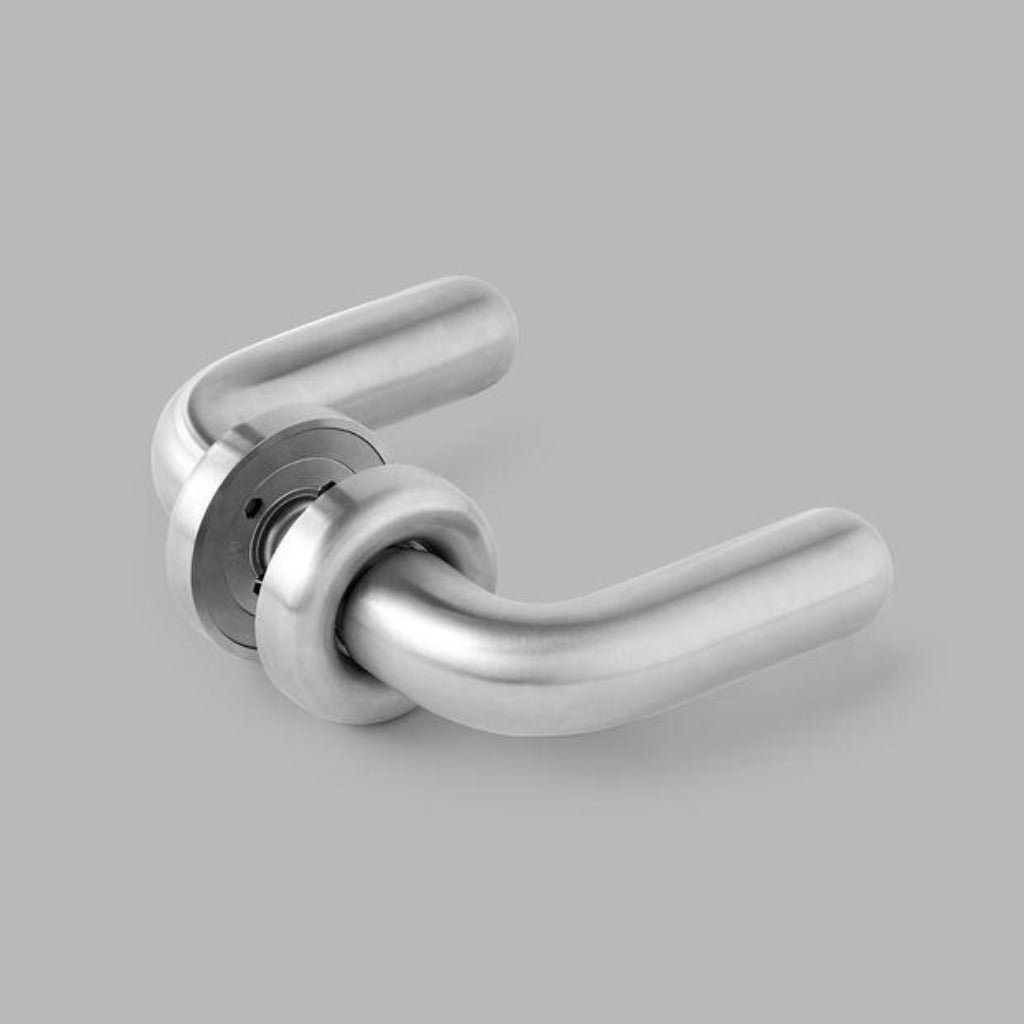

• Satin Stainless Steel

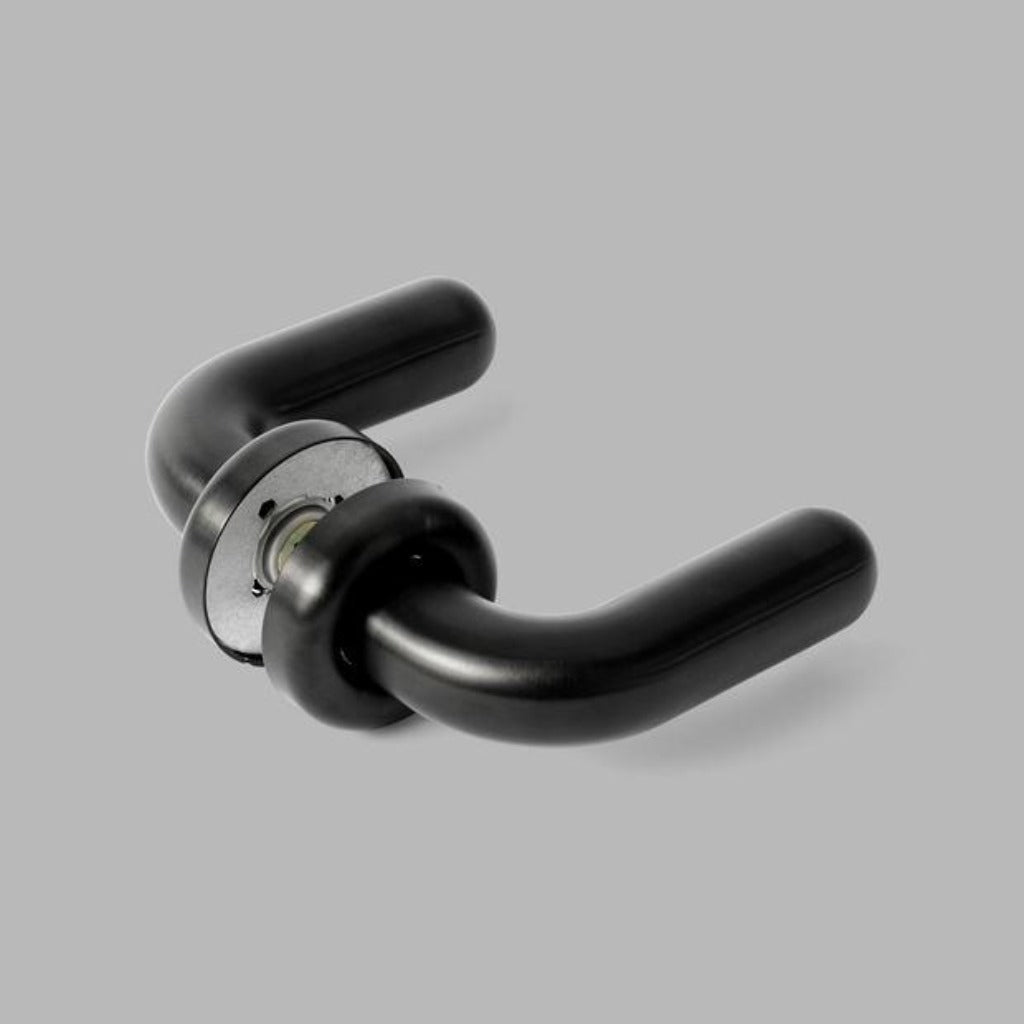

• PVD Satin Black

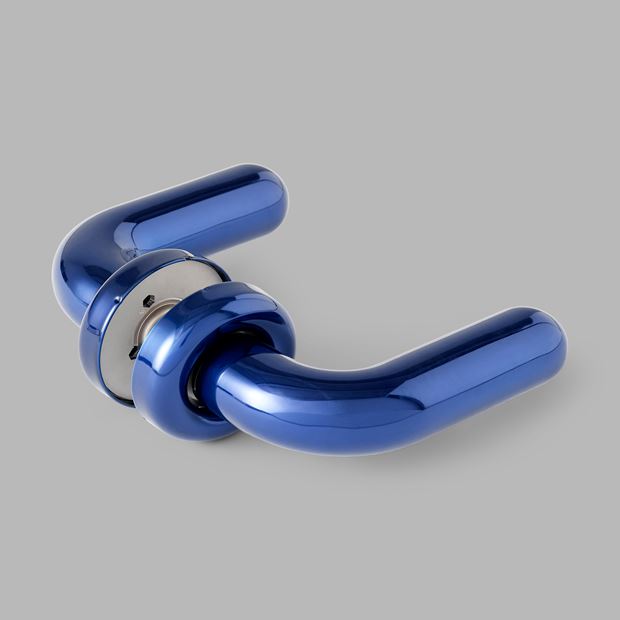

• Electric Blue

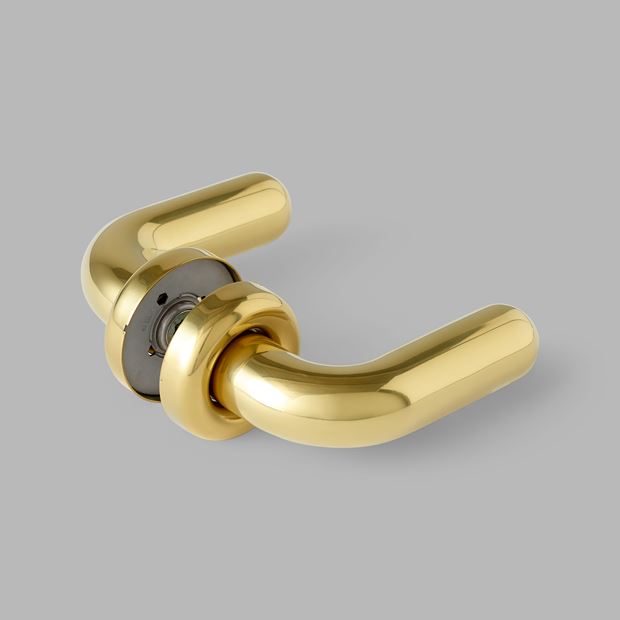

• Polished Brass

X-BAC antimicrobial coating and finishes available upon request.

FAT Door Lever Product Sheet
FAT Door Lever Drawing
Tom Dixon FAT Collection Booklet
