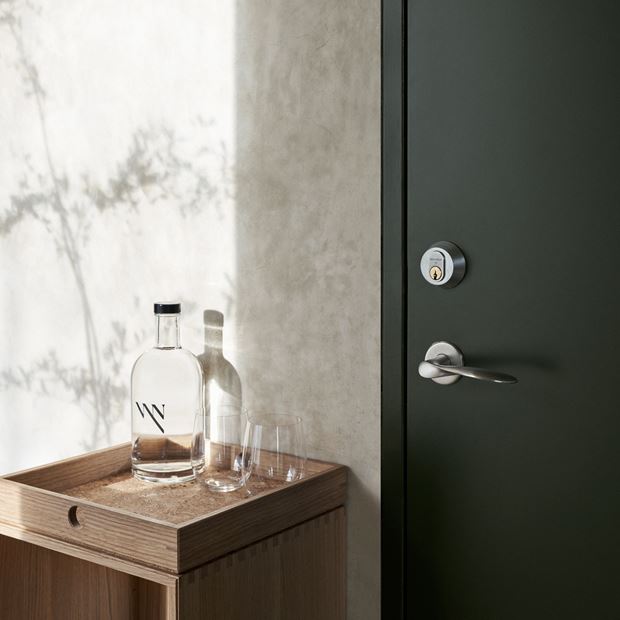

Arne Jacobsen Door Lever
CONTACT TO REQUEST QUOTE
Indicate finish, size, quantity, function or mounting type, and shipping address to receive a quote.
- Estimated Ship Date: Stainless Steel 5-8 weeks | Other finishes 8-12 weeks
Optional Accessories
- Description
- Specifications
- Material(s)
- Product Downloads
- Finish Swatches
- Finish Samples
- Additional Components by Function

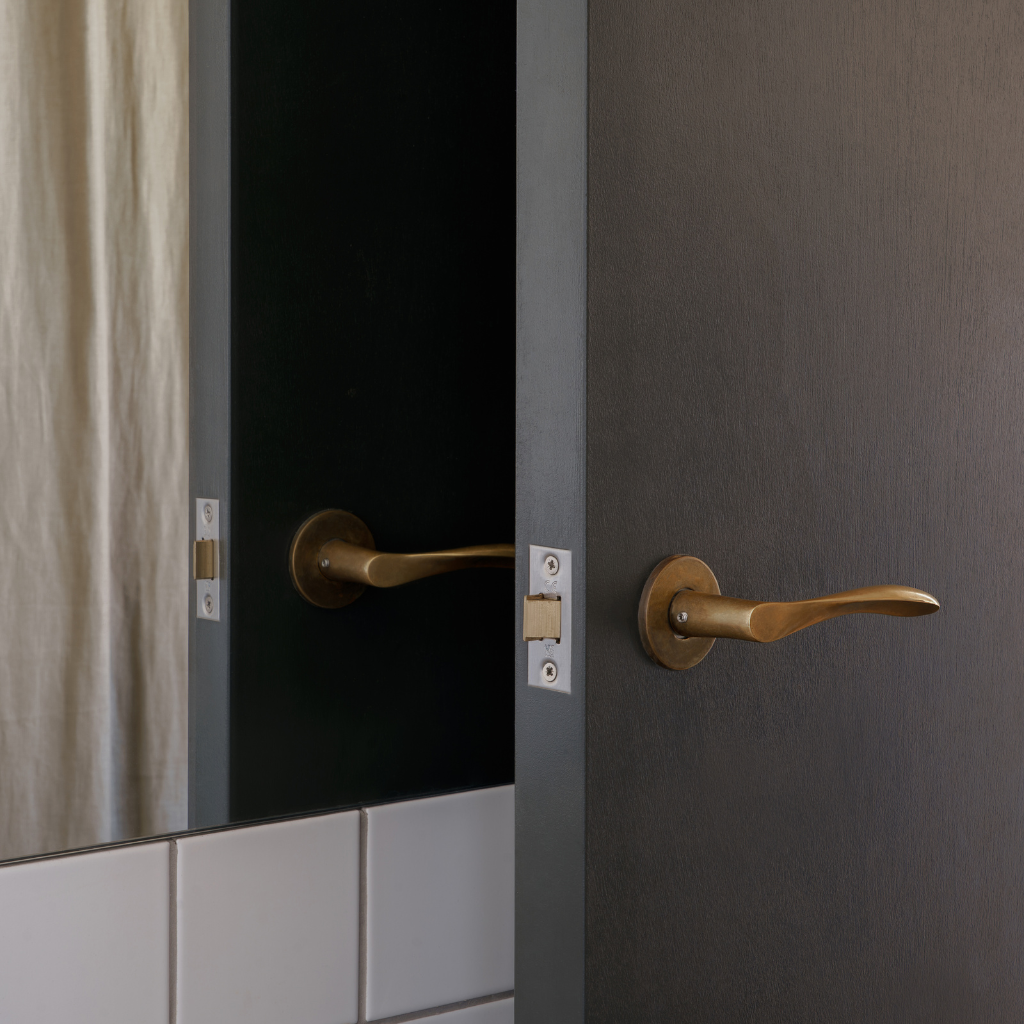

These beautiful and iconic door levers were designed by Danish architect and designer Arne Jacobsen. Designed around the shape of a palm’s grip, this modern and sculptural lever is a must for the design aficionado and those who simply love a good feel each time they go to open/ close a door.
d line levers are designed for constant use. They are rigorously tested and use the most cutting-edge machinery in the field. Each piece is expertly crafted by hand.
Made in Europe.
Size:
Small lever length 97 mm (3.8")
Large lever length 111 mm (4.37")
Door Thickness: 35 mm (1.37") - 65 mm (2.6")
Rose: Available with or without
Cover Plate for rose: Available with or without
Bore Hole: Ø25 mm
Certifications: Tested and certified according to EN1906 and EN1634-1
Privacy/Lock Options:

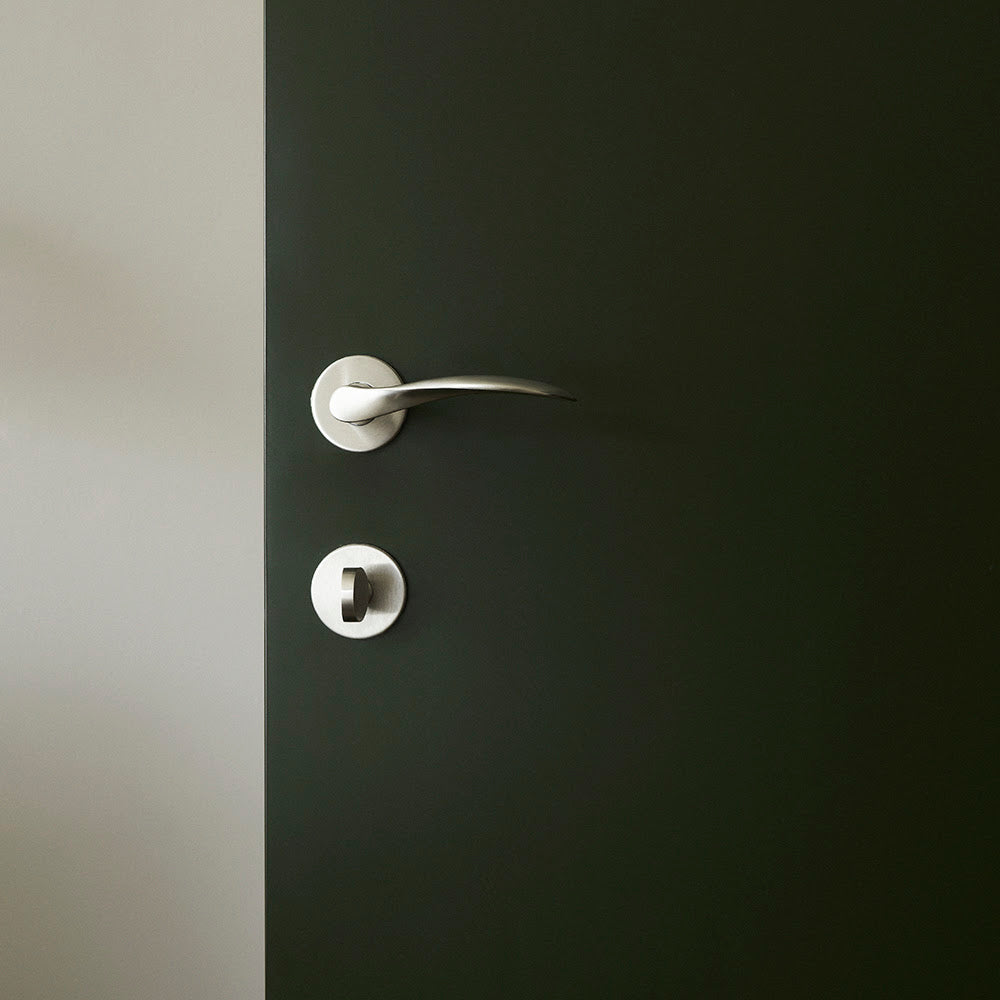

Arne Jacobsen Thumb Turn

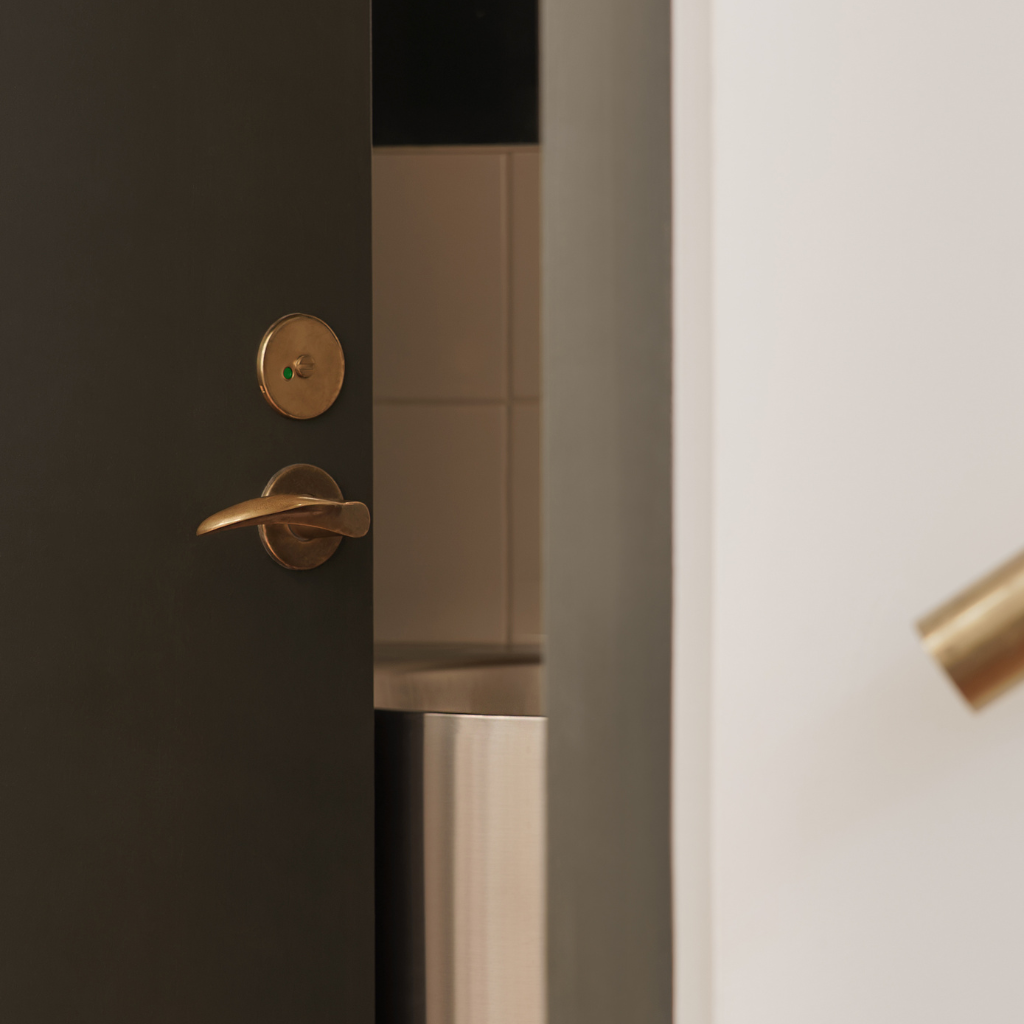

Arne Jacobsen Toilet Indicator
Areas of application: Commercial, Residential
NOTE: European roses are smaller than standard North American models. Please ensure all dimensions are carefully reviewed as these may not fit existing or pre-bored door holes.

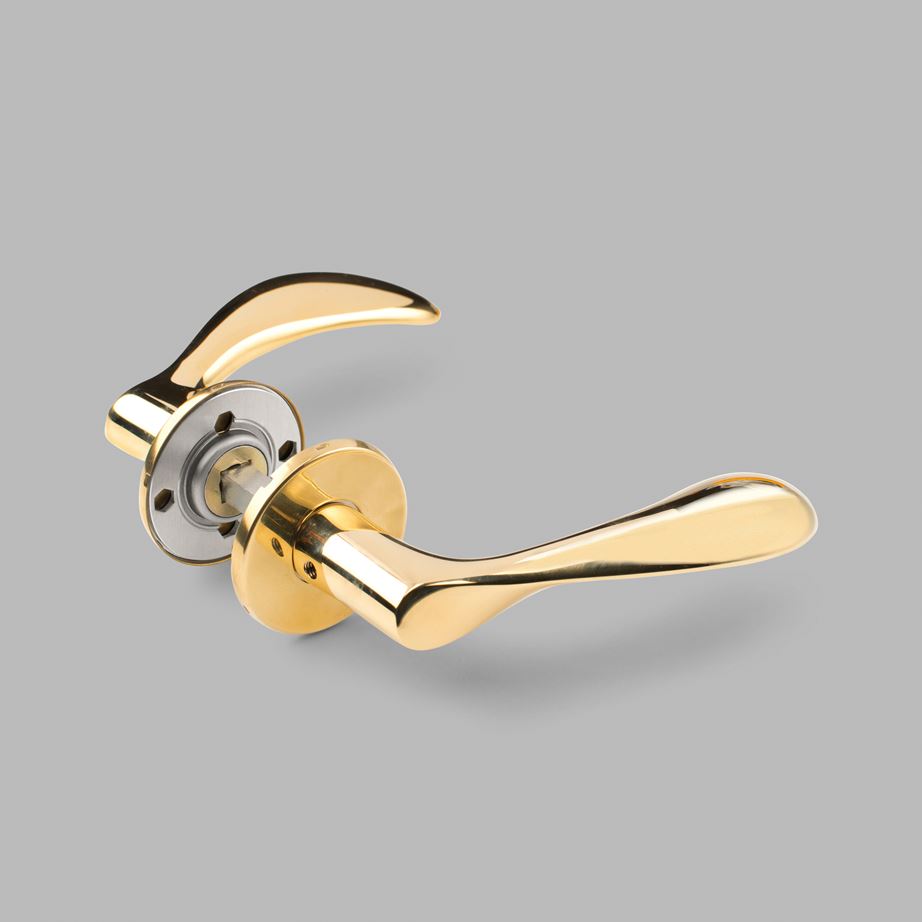

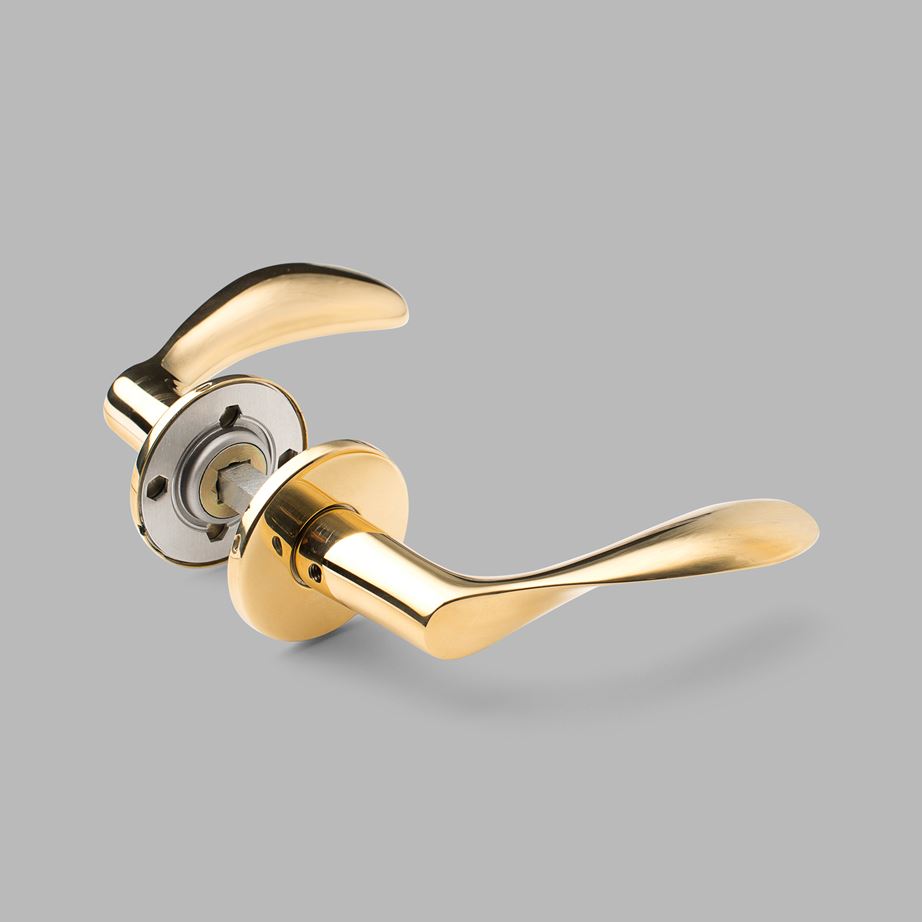

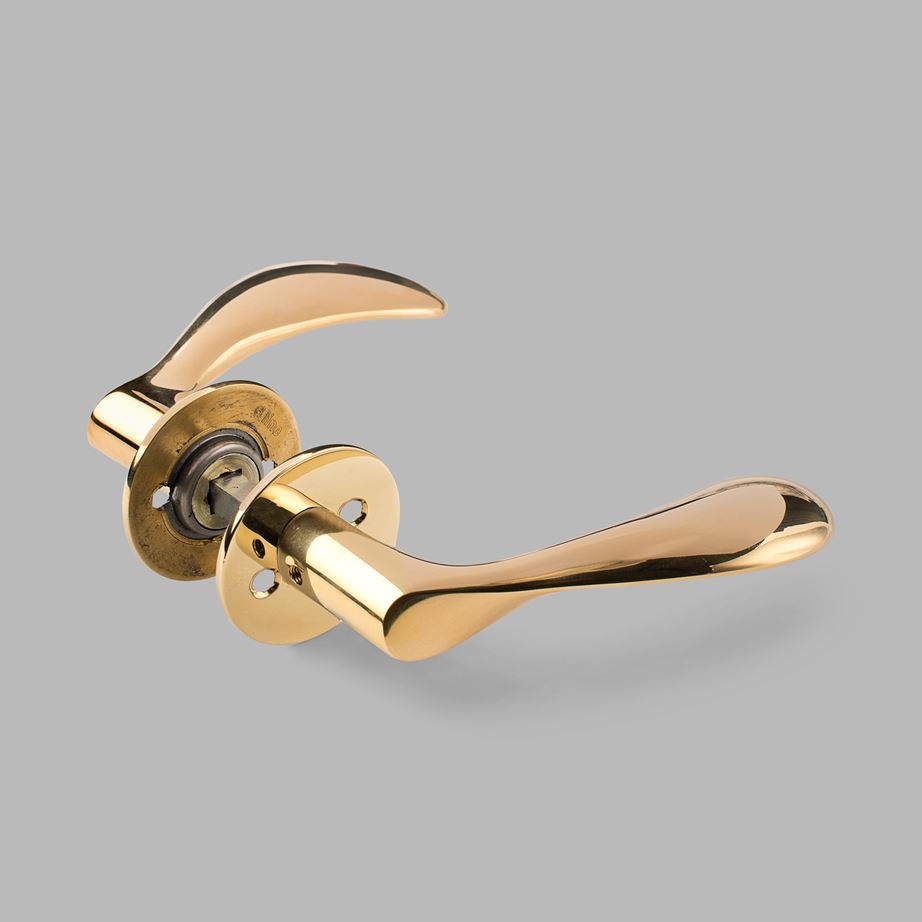

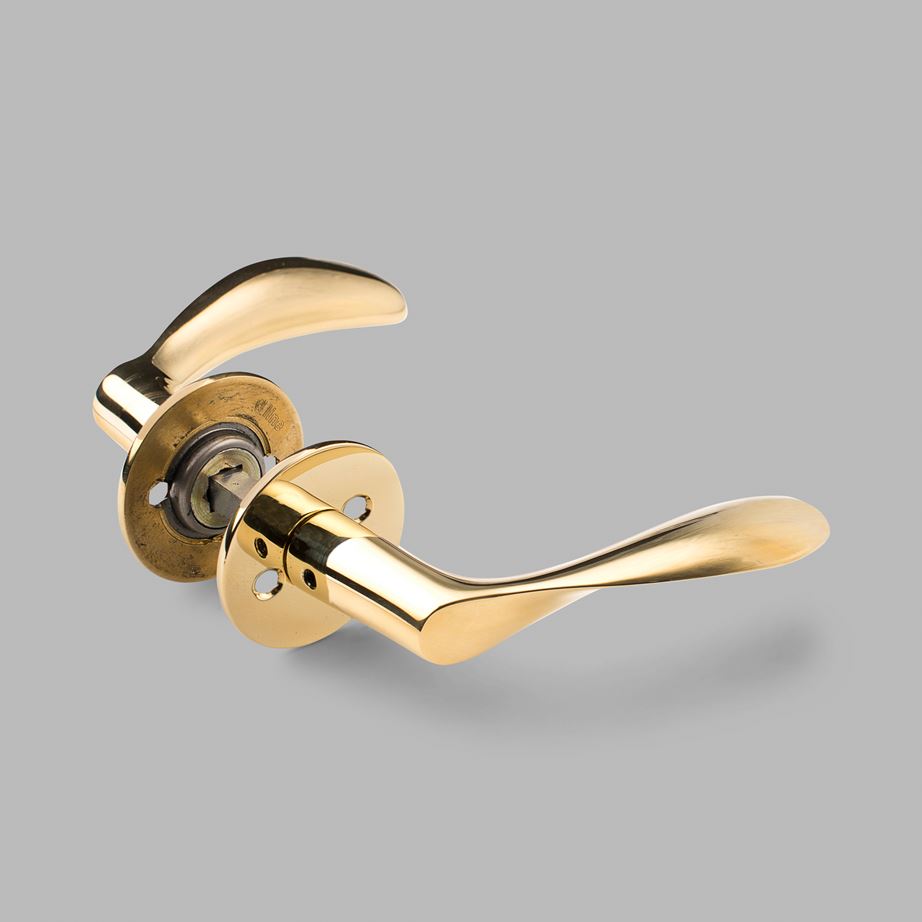

- Standard: Polished Brass

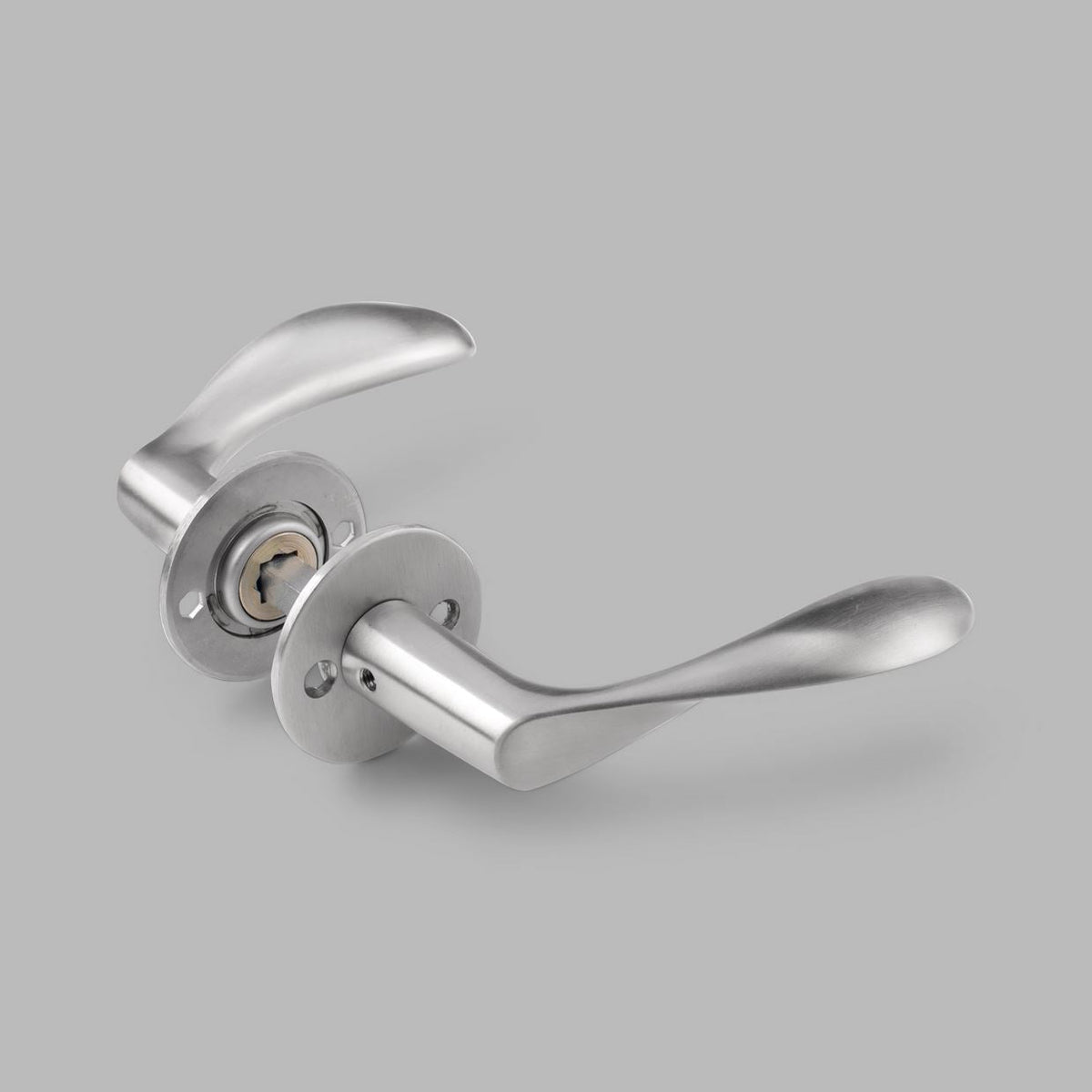

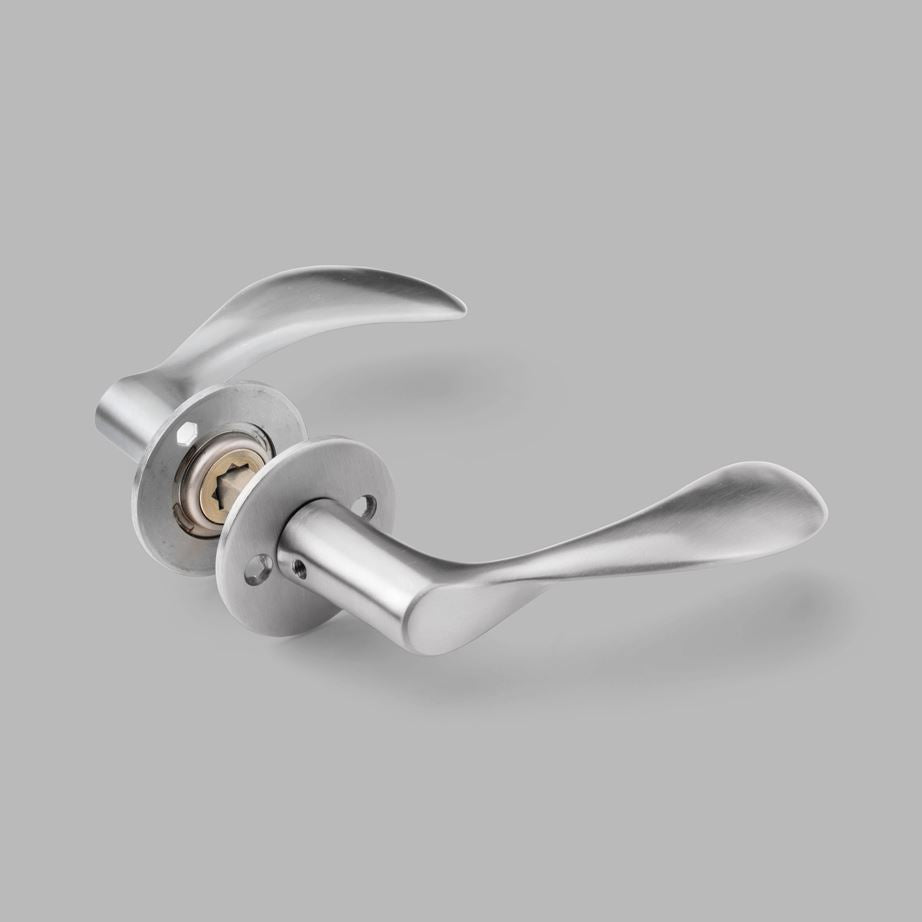

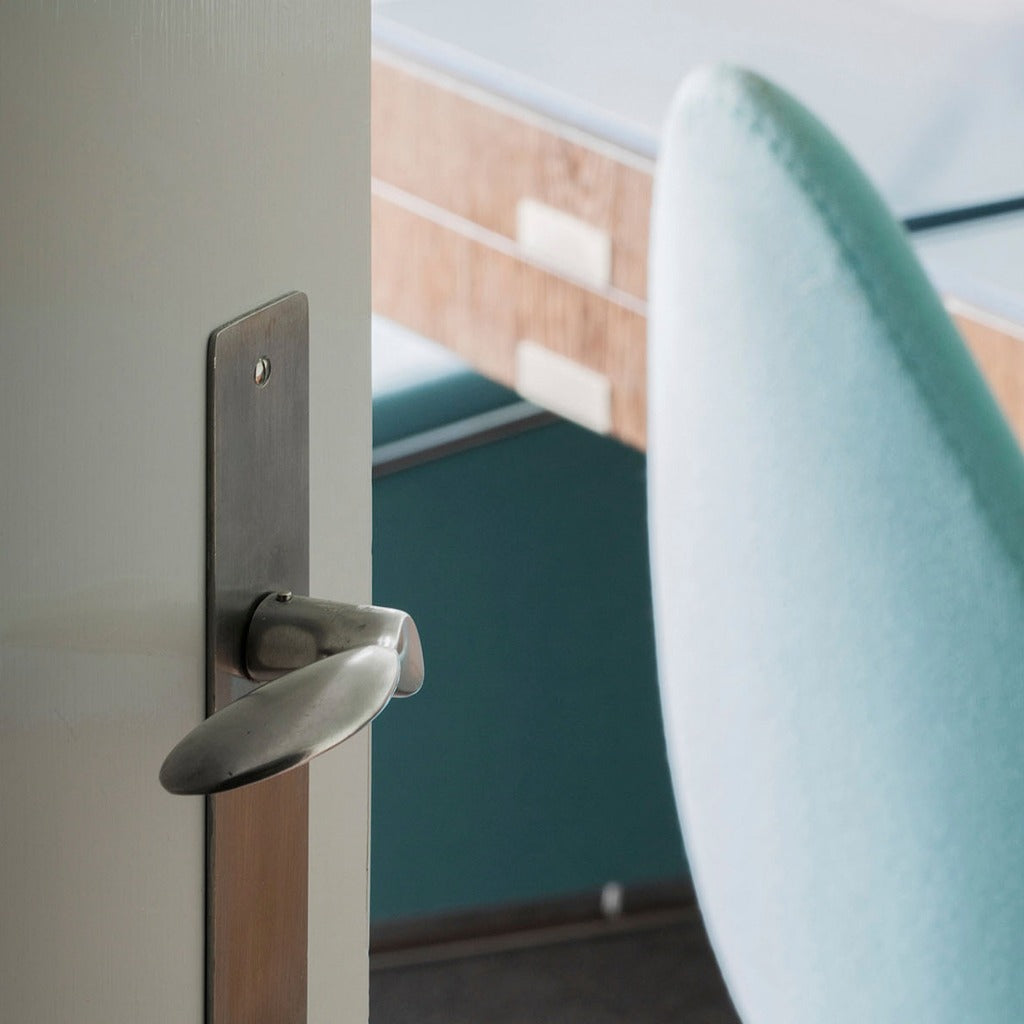

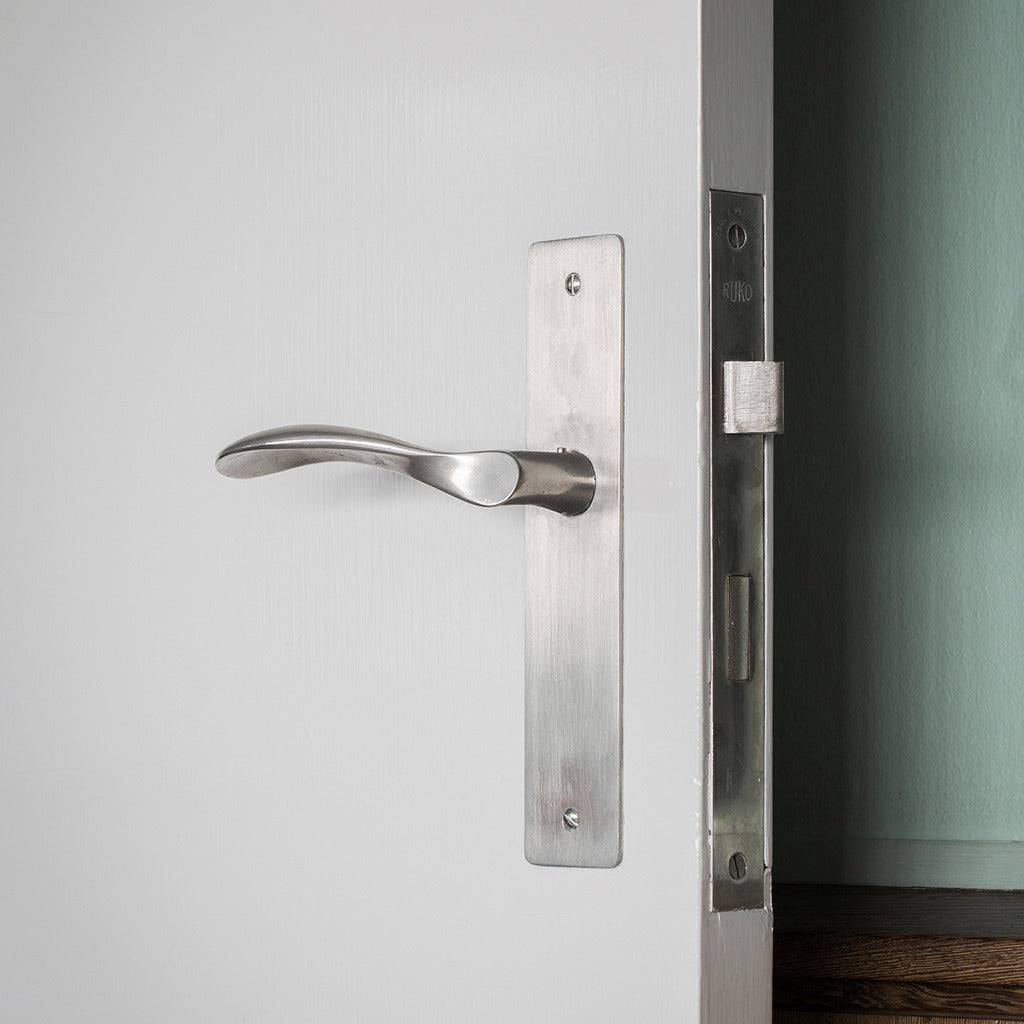

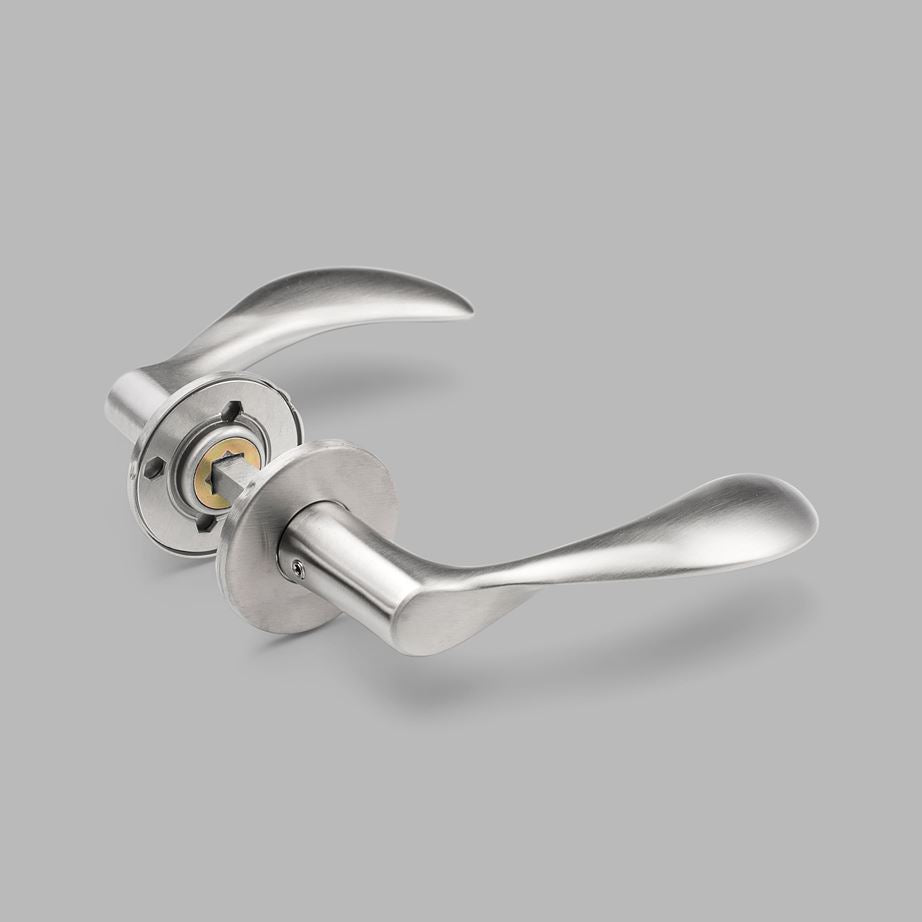

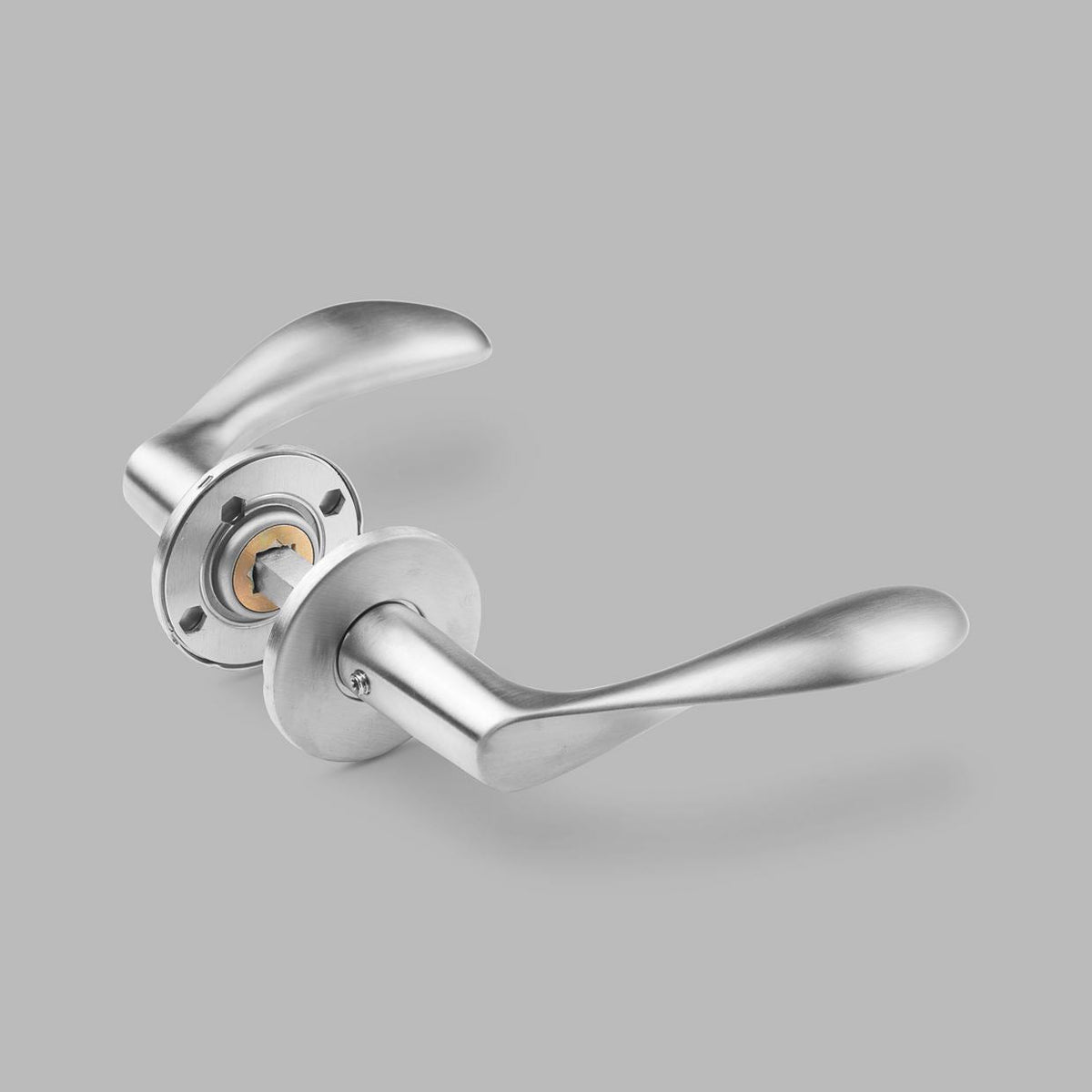

- Standard: Brushed Stainless Steel

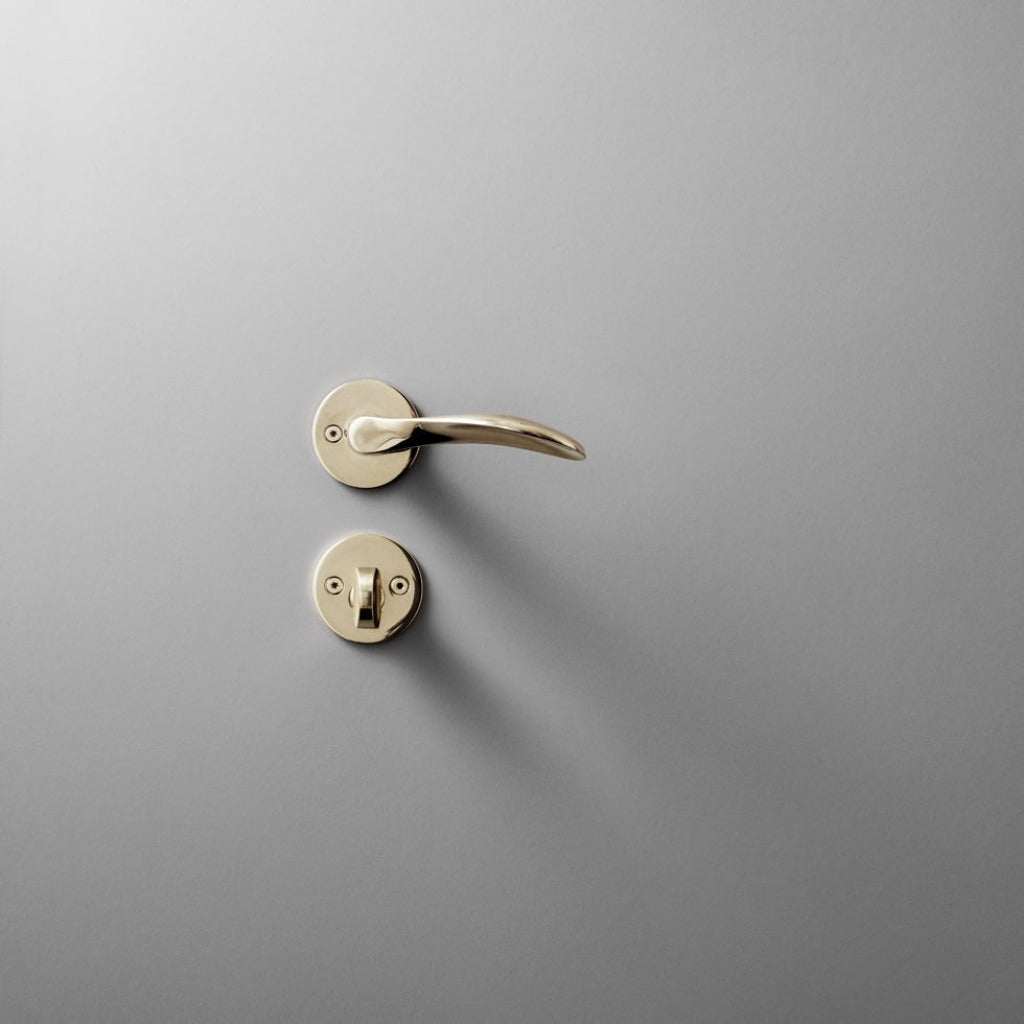

- Polished Stainless Steel

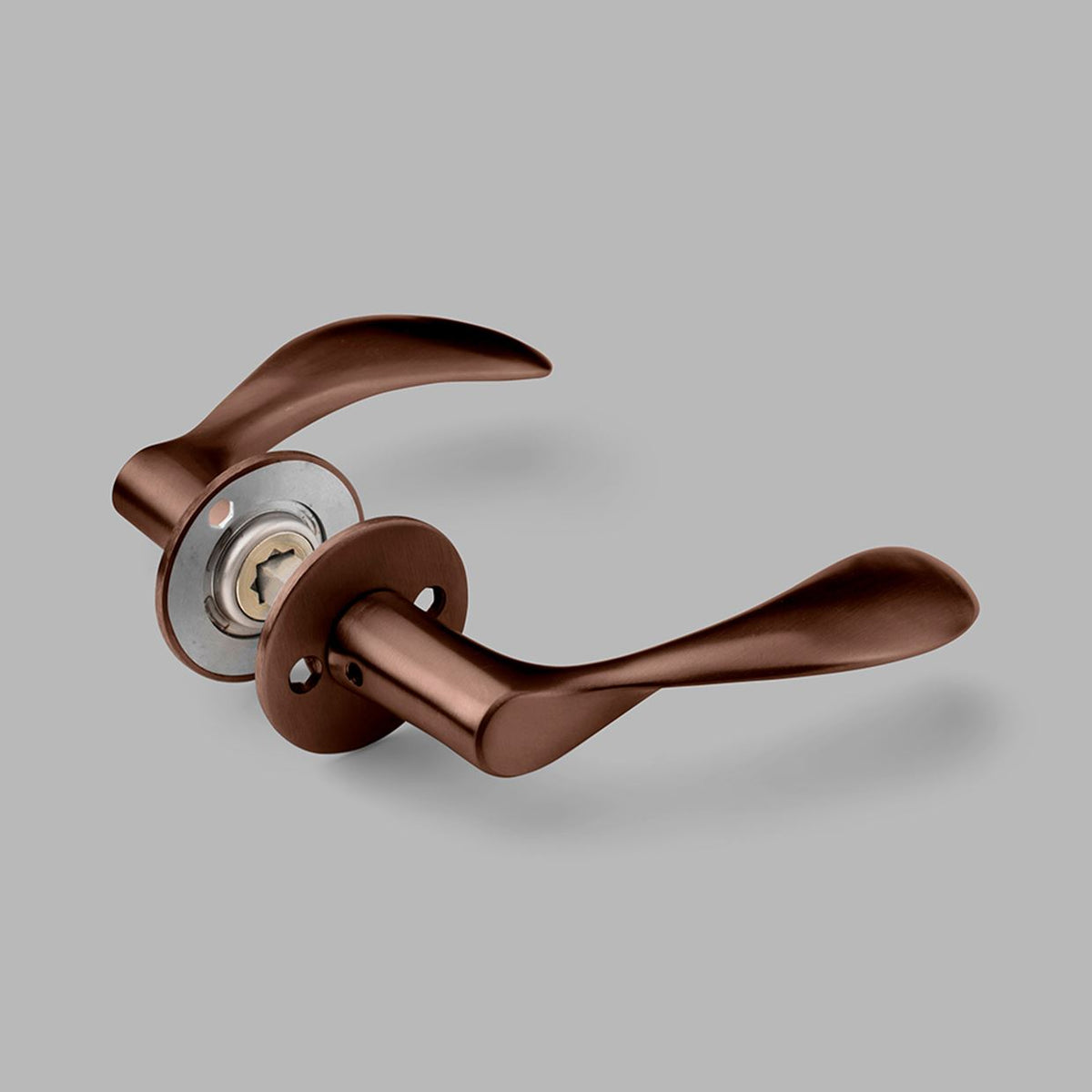

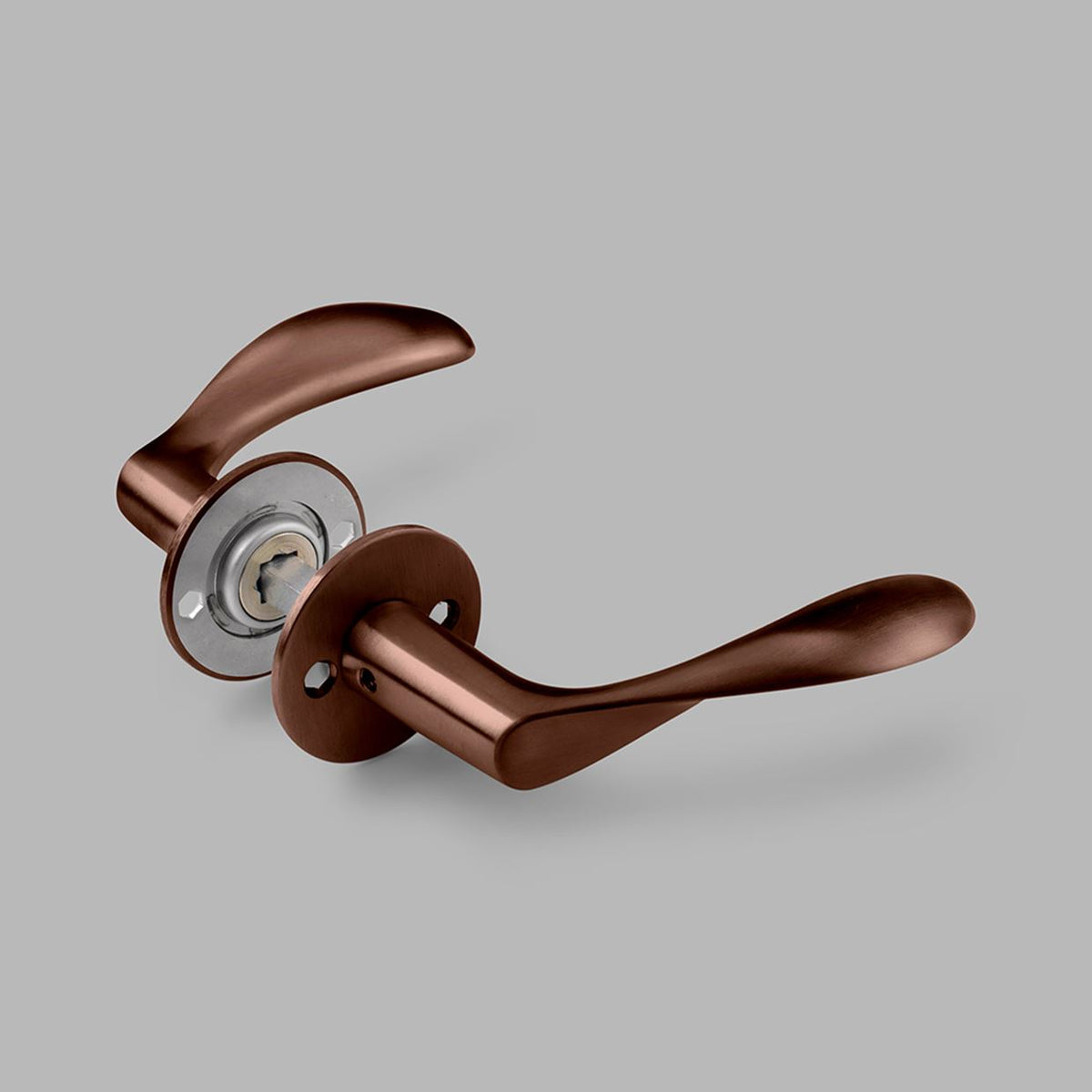

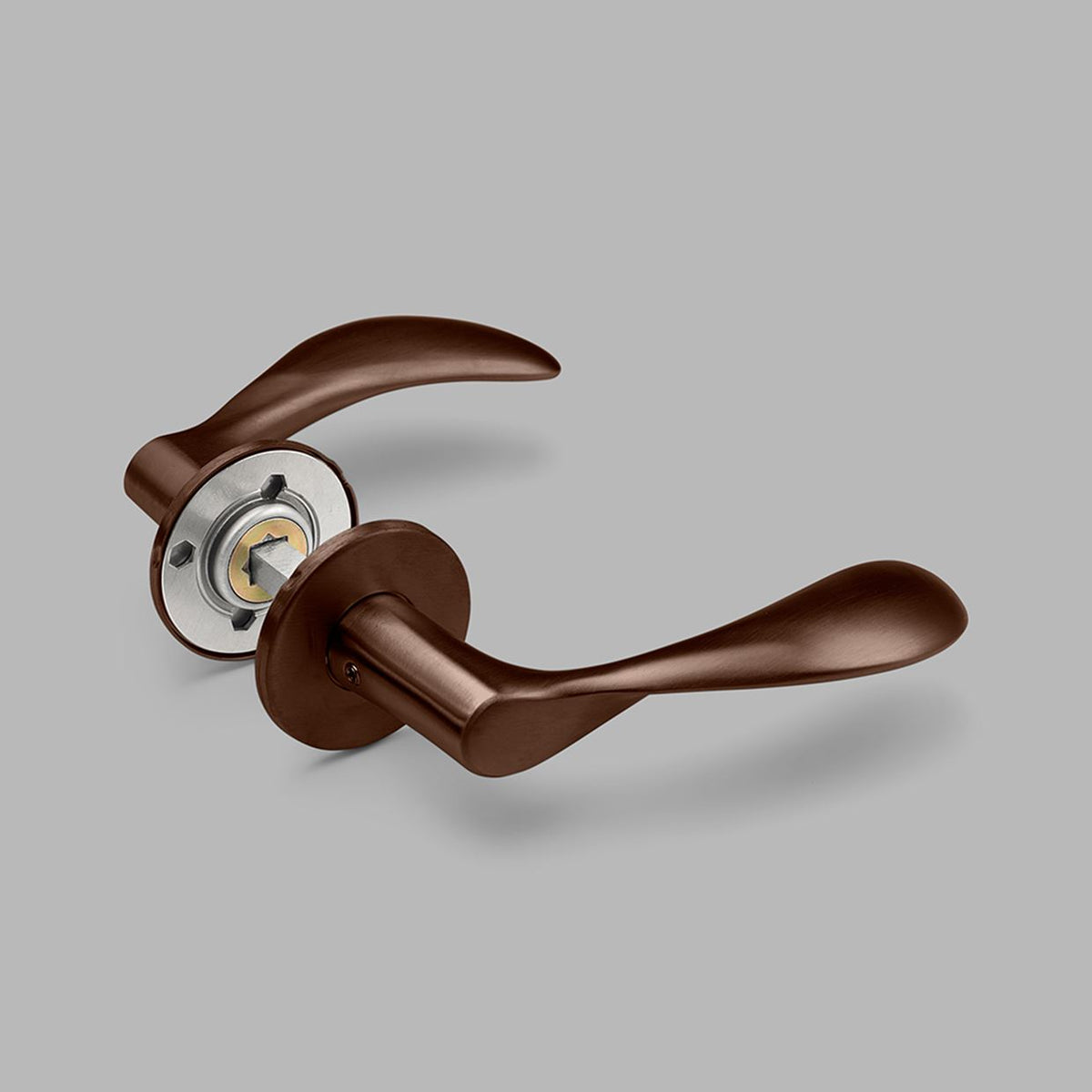

- PVD coated Copper, Brass, or Charcoal on brushed or polished Stainless Steel

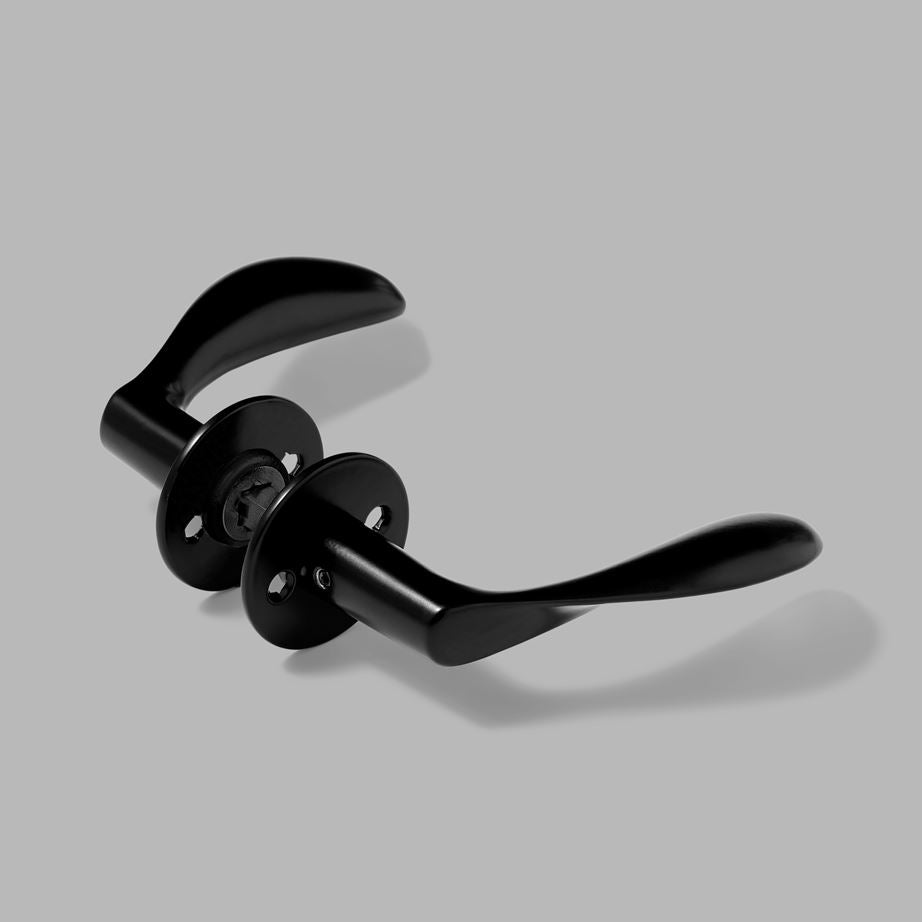

- Powder coated RAL 9005 Black on Stainless Steel
- X-BAC antimicrobial coating and finishes available upon request
2023 Updated d line finish swatches:
- AISI 316 Satin Stainless Steel
- AISI 316 Polished Stainless Steel
- PVD Brass

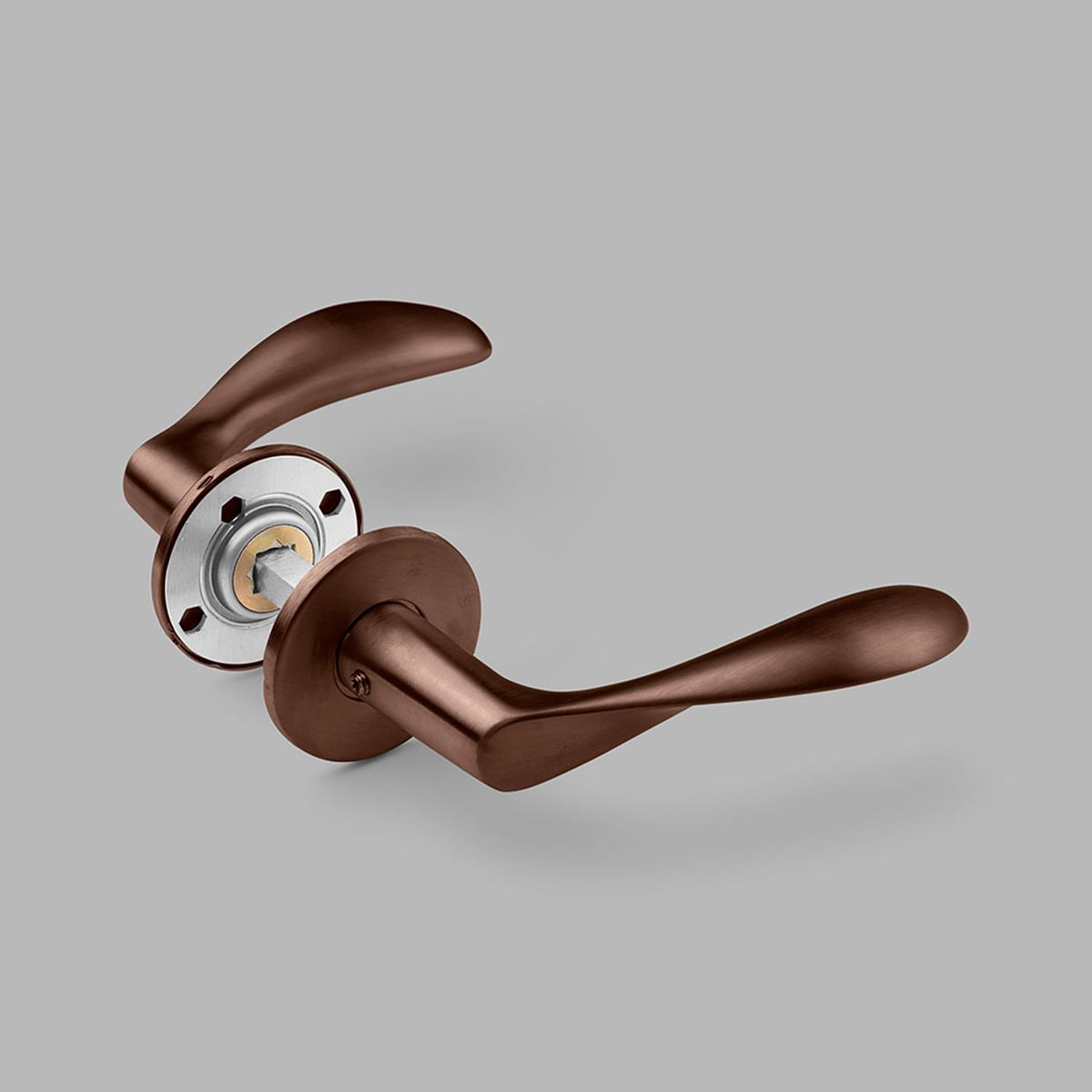

- PVD Copper

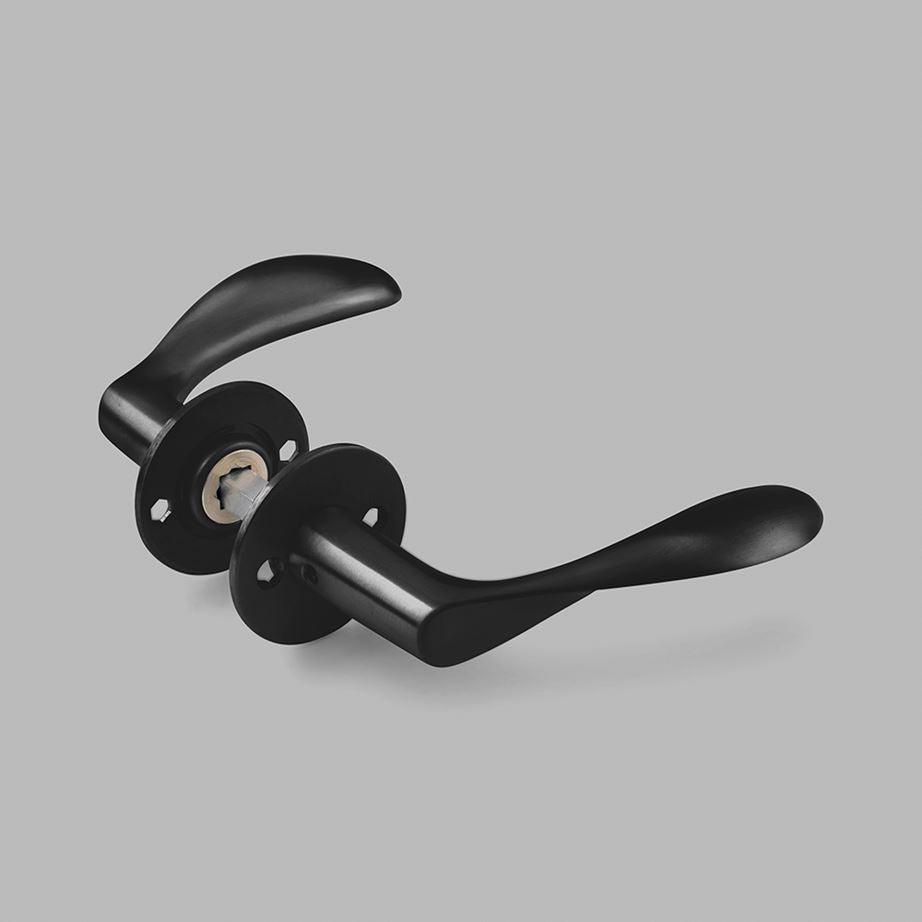

- PVD Charcoal
- Powder Coated RAL Black 9005
Shop finish samples HERE.
Ensure your lever handle functions seamlessly with the essential components listed below.

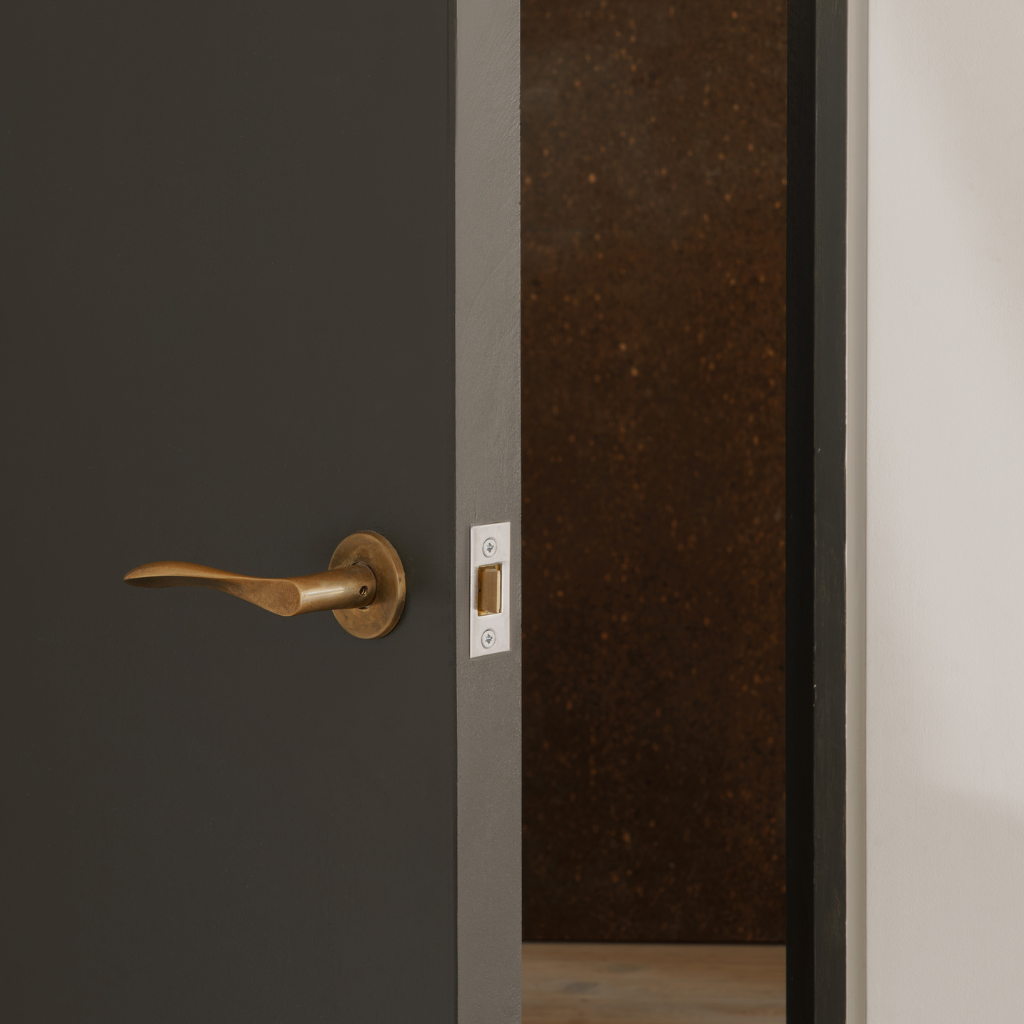

Passage Door
Passage doors do not have an internal locking mechanism, making them ideal for bedrooms, kitchens, and living rooms.
Our custom built sets require:
Lever / Knob + Euro Mortise Passage Latch Lock (60mm backset) + Spindle.
For tubular latch sets, we offer the Baton Tubular Passage Latch in 2 3/8" or 2 3/4" backset options. Ready-to-buy sets are available from the
AHI Hardware collection.
Select Passage Mortise

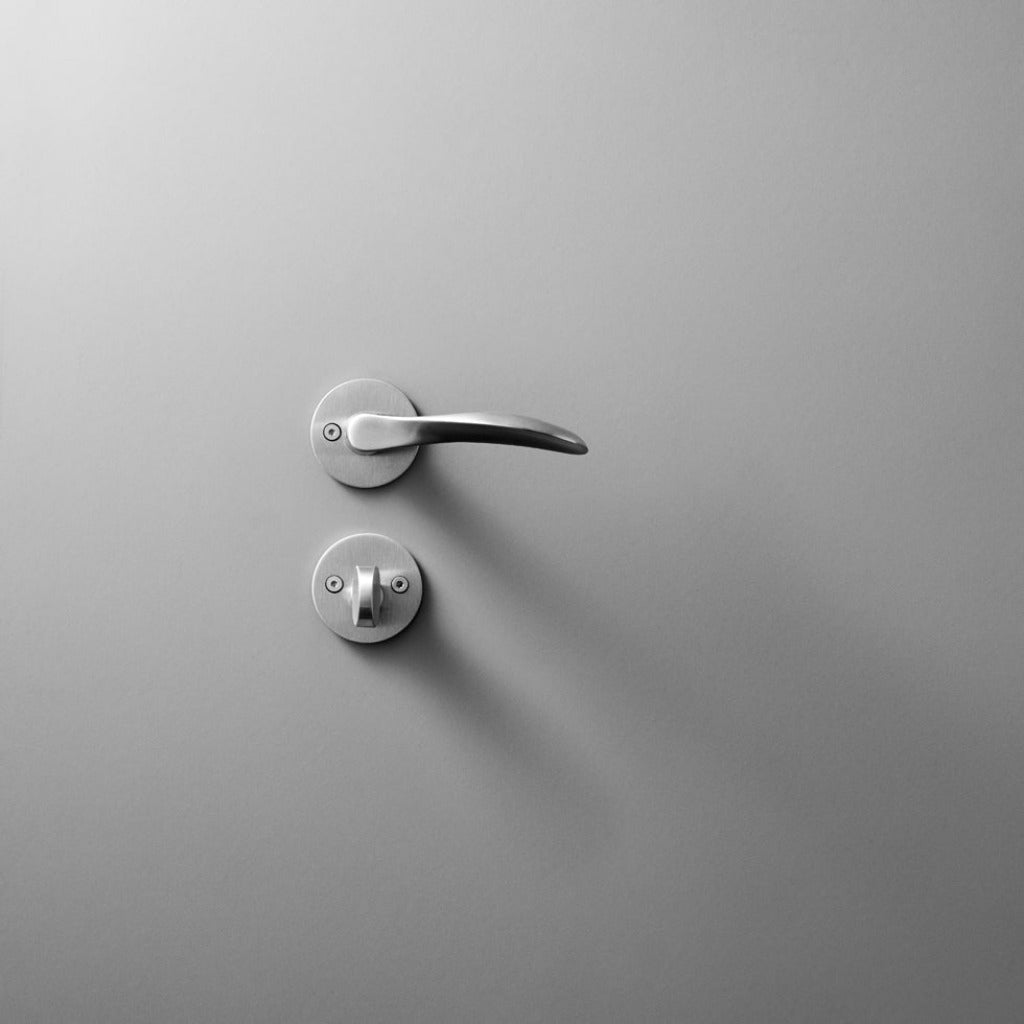

Privacy Door
Privacy doors provide additional security with interior latches that lock without a key, perfect for bathrooms.
Our custom built sets require:
Lever / knob + thumb turn + Euro Mortise Bolt (60mm backset) + Spindle.
For tubular lock sets, we offer the Baton Tubular Latch and bolt in 2 3/8" or 2 3/4" backset options. Ready-to-buy sets are available from the
AHI Hardware collection.
Select Privacy Mortise
Select Thumb Turn
Keyed Entry Door
Keyed entry door hardware is designed for exterior doors, providing secure access to buildings and homes.
Our custom built sets require:
Lever / Knob + Euro Mortise Keyed Lock (60mm backset) + 2 x Key Escutcheon + CES key cylinder + Spindle.
Select Keyed Entry Mortise
Select CES Key Cylinder
Select Key Escutcheon
