Charlie Straight Grab Bars
CONTACT TO REQUEST QUOTE
Indicate finish, size, quantity, function or mounting type, and shipping address to receive a quote.
- Estimated Ship Date: 6-10 weeks
Optional Accessories
- Description
- Specifications
- Custom Options
- Material(s)
- Product Downloads
- Finish Overview & Samples

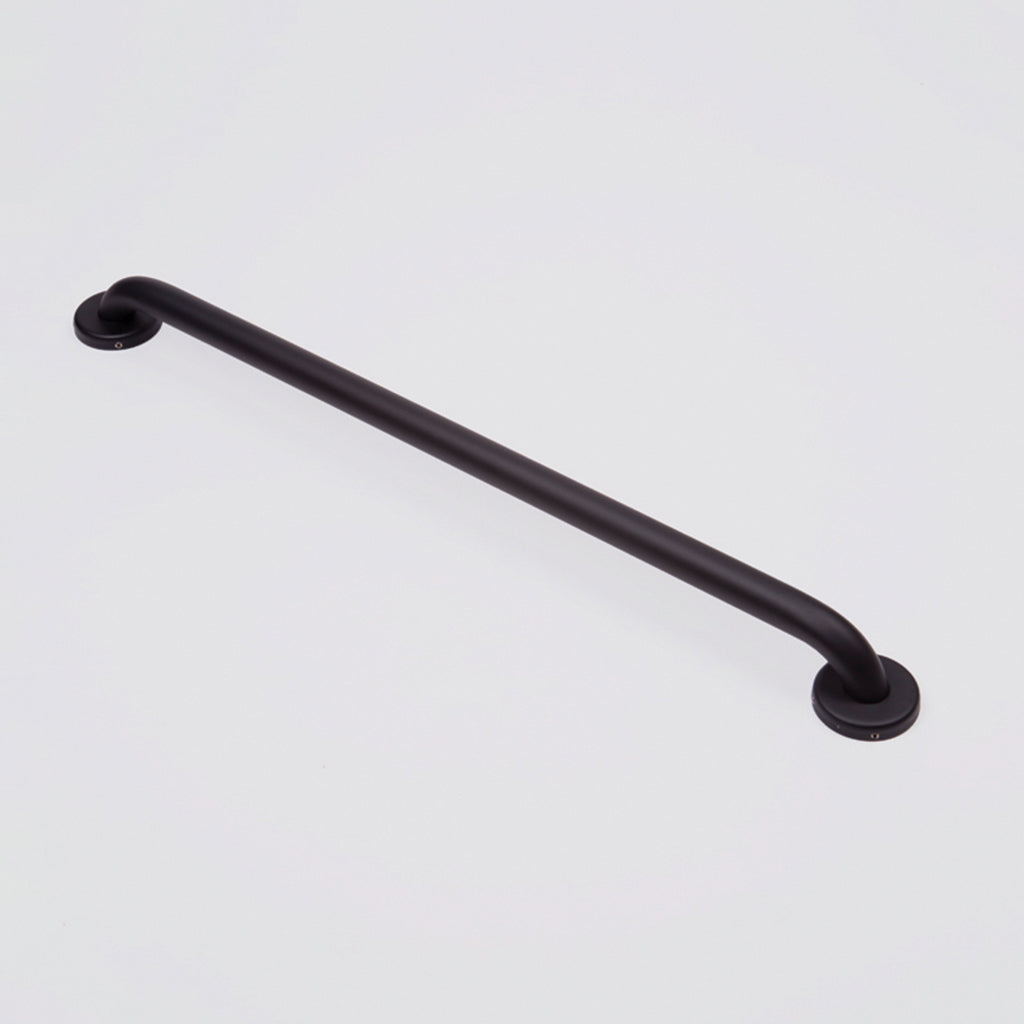

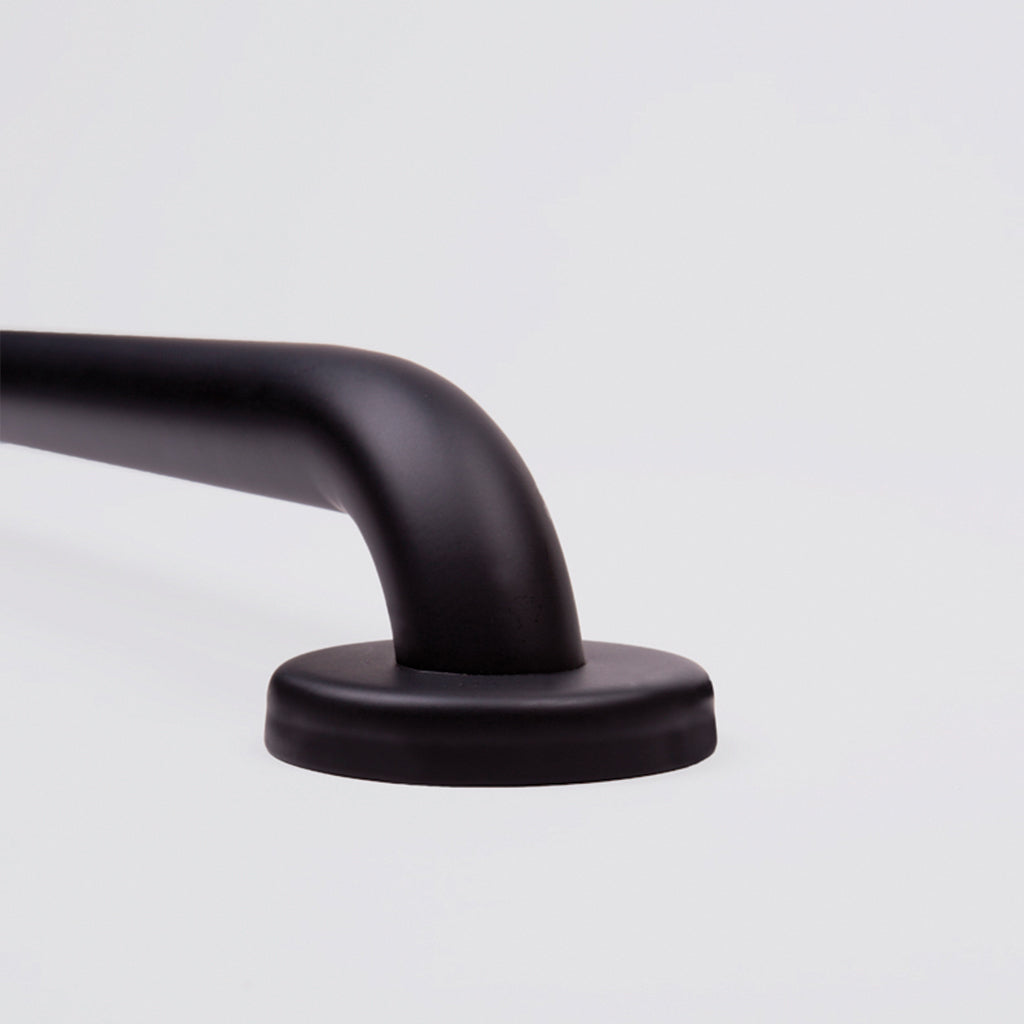

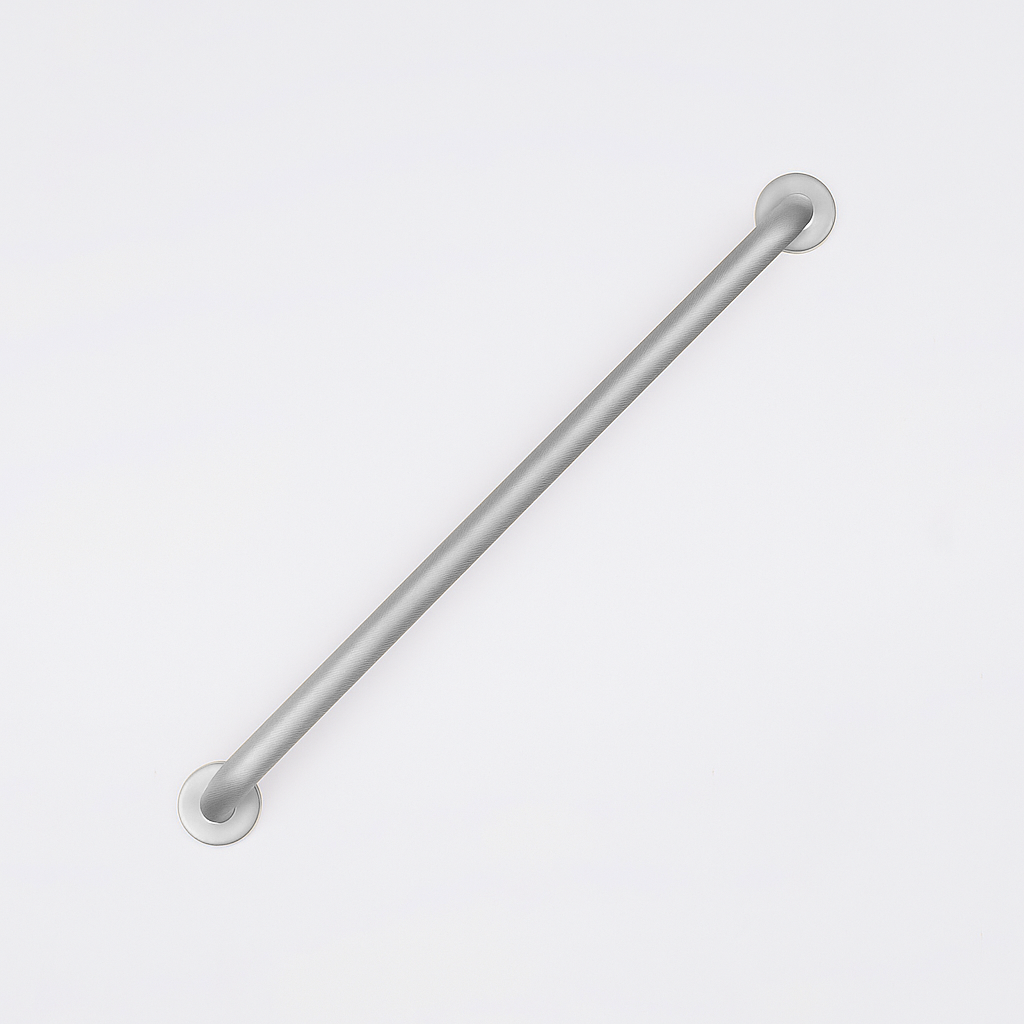

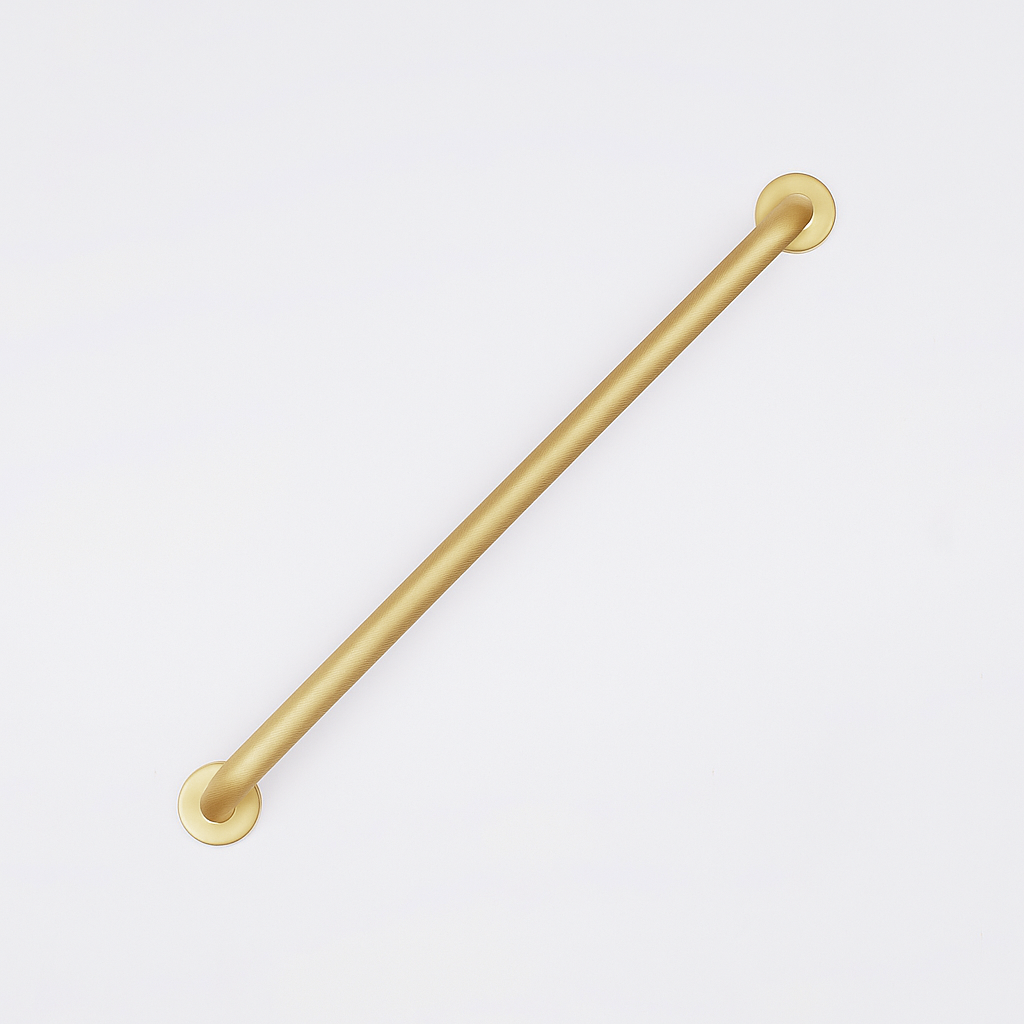

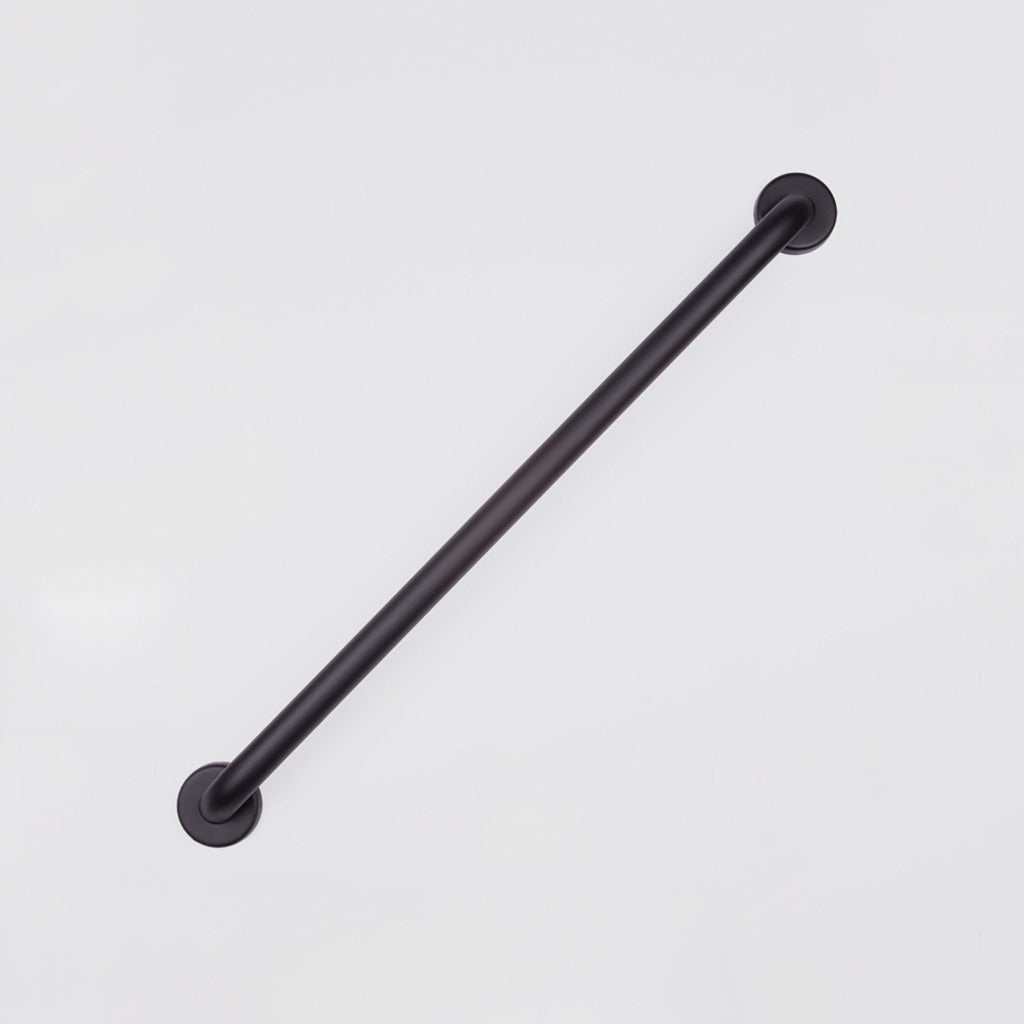

The Charlie Straight Grab Bar is a classic and streamlined safety bar that integrates seamlessly into a variety of settings. Designed with flexibility in mind, this bar is fully customizable and available in multiple lengths, finishes, and configurations—including a knurled version for code-compliant applications.
Choose from two surface options:
-
Smooth – Refined and minimalist; suitable for residential and design-forward spaces.
-
Knurled – A functional, high-grip texture that meets Ontario Building Code (OBC) and ADA requirements for accessibility and safety. Ideal for public or regulated environments where grip resistance is essential.
Find other components in the Charlie collection here.
Made in Canada.
Diameter: 31.75 mm (1.25")
Custom Diameter Available Upon Request:
- 25.4 mm (1")
- 38 mm (1.5") - CODE COMPLIANT SIZE OBC/ ADA
Standoff : H 38 mm (1.5") - from wall to inside surface of grab bar
Flange Options:
- Concealed - only available for 21.75 mm (1.25") diameter options
- Exposed
Mounting hardware included.
Refer to Downloads for further configuration options.
When placing a custom order, please include:
Configuration / Length:
Finish: Stainless Steel / Black
Diameter: 1" / 1.25" / 1.5"
Surface Texture: Smooth or Knurled (Knurled available for 1.5" OBC/ADA only)
Flange: Exposed / Concealed - only available for 1.25" diameter grab bars
Stand off: 1.5" or Other
Please Note:
The smooth version may not meet code requirements for grip in regulated spaces. If your project requires enhanced safety or accessibility compliance, select the knurled variant, which offers increased grip and meets public-use standards.
- Standard finishes: Satin Stainless Steel, Flat Black
- Available in custom finishes: Gloss white, polished stainless steel
- Maximum 36" length finishes: Polished brass, satin brass, antique brass
Material Notes:
- Antique and oxidized finishes are fabricated by hand and result in inconsistent and organic surface textures.
- Lacquered materials have a protective coating to maintain their shine, while unlacquered materials will naturally age and develop a unique patina over time. For maintenance tips, refer to our care guide.
- Most finishes are initially lacquered. Satin Nickel, Satin Chrome, and Satin Stainless are unlacquered. Oxidized Bronze is lacquered as standard but can be provided unlacquered upon request.
CBH offers a range of finishes as part of their standard Charlie collection. Most finishes are coatings applied over a base material, such as brass, bronze, stainless steel, or aluminum. Base material may vary by product type.
See Base Material Chart
| Finish | Base Material |
|---|---|
| Satin Stainless Steel | Stainless Steel |
| Polished Stainless Steel | Stainless Steel |
| Satin Aluminum | Aluminum |
| Satin Chrome | Brass |
| Polished Chrome | Brass |
| Satin Nickel | Brass |
| Polished Nickel | Brass |
| Lacquered Satin Brass | Brass |
| Unlacquered Satin Brass | Brass |
| Lacquered Polished Brass | Brass |
| Unlacquered Polished Brass | Brass |
| Satin Bronze | Bronze / Brass |
| Polished Bronze | Bronze / Brass |
| Oxidized Bronze | Bronze / Brass |
| Antique Brass | Brass / Bronze |
| Antique Bronze | Bronze / Brass |
| Antique Nickel | Brass |
| Antique Copper | Brass |
| Gloss White | Stainless Steel |
| Matte Black | Stainless Steel |
Antique finishes are hand-applied and may show variation in tone and texture. Finish availability may vary by item — refer to the product variant selection for details.
Most finishes are sealed with a clear protective coat. To maintain finish quality, clean with a soft cloth and water or mild ammonia-based cleaner. Avoid acid-based cleaners. For full care details, visit our Finish Care Guide.
Shop Finish Samples
