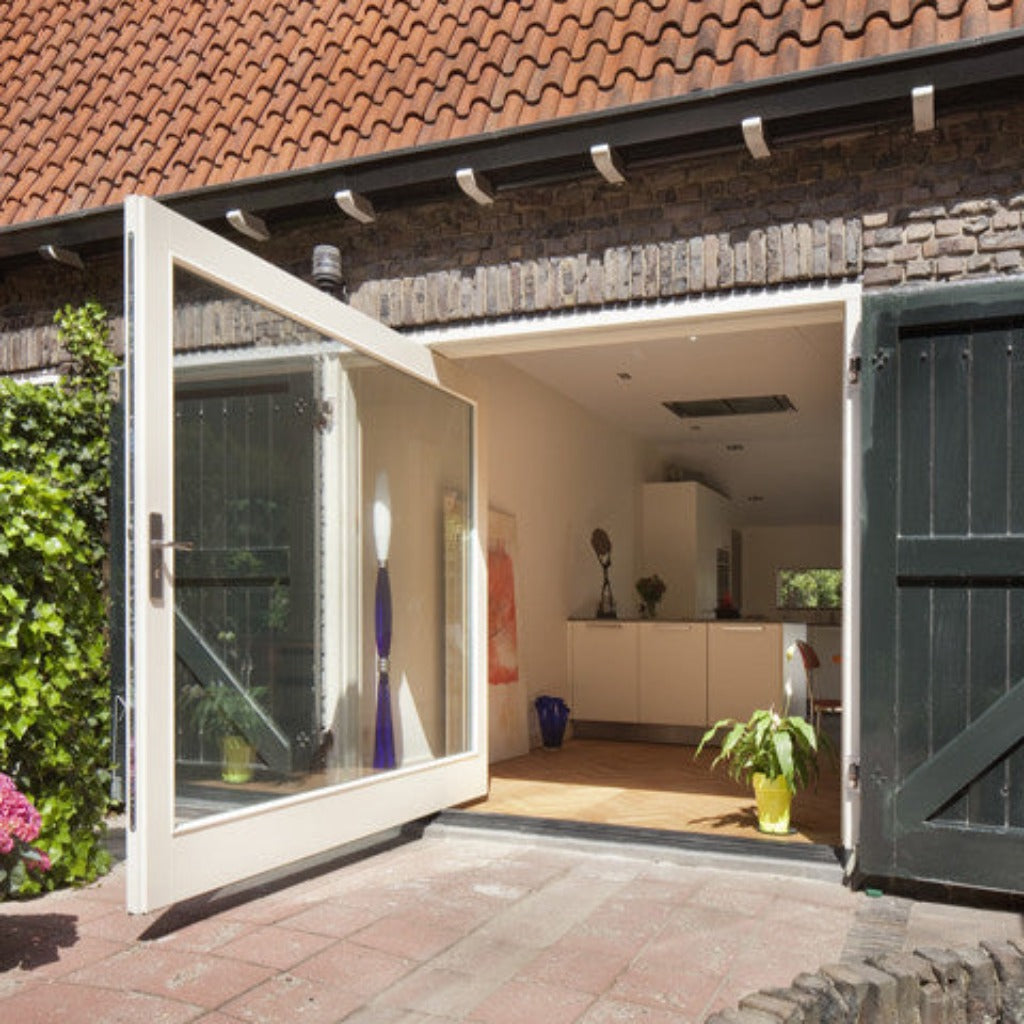

Outdoor Fritsjurgens pivot hinge

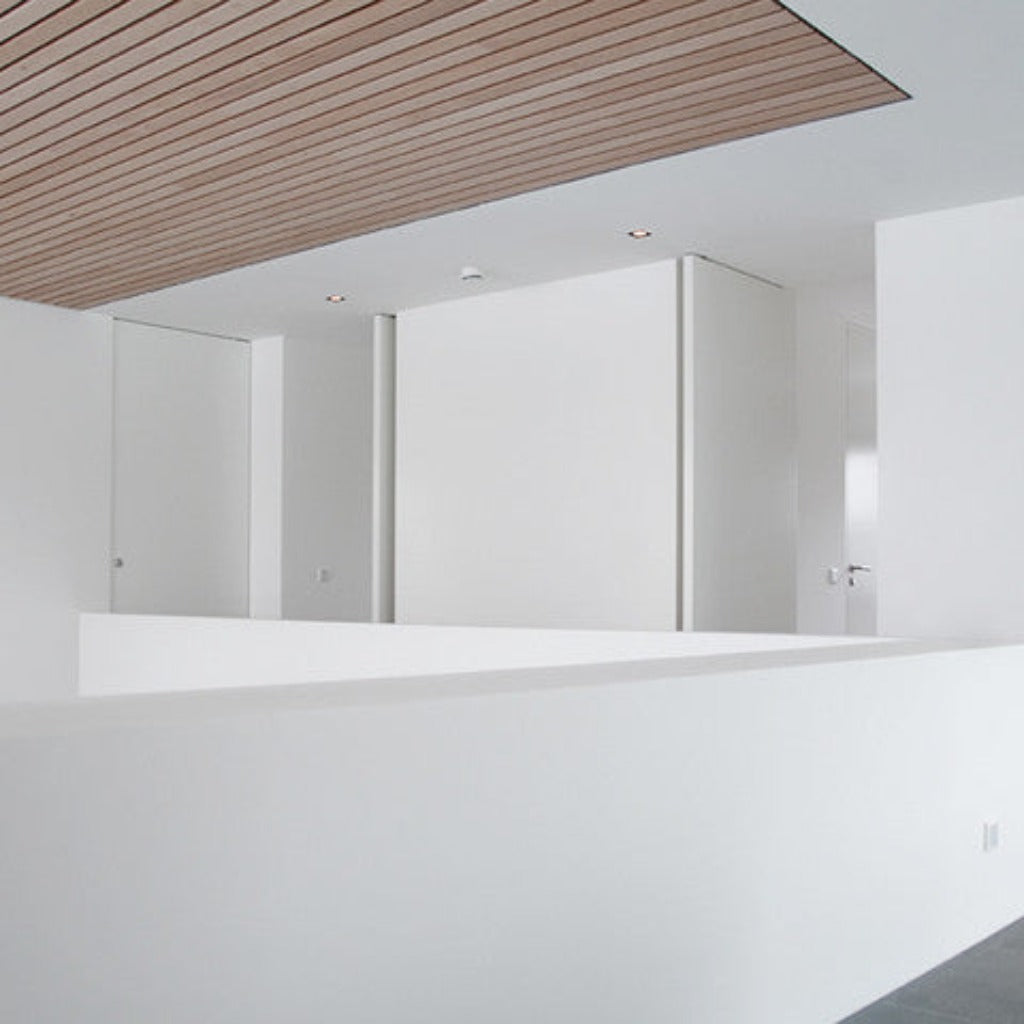

Minimal flush Fritsjurgens pivot hinge

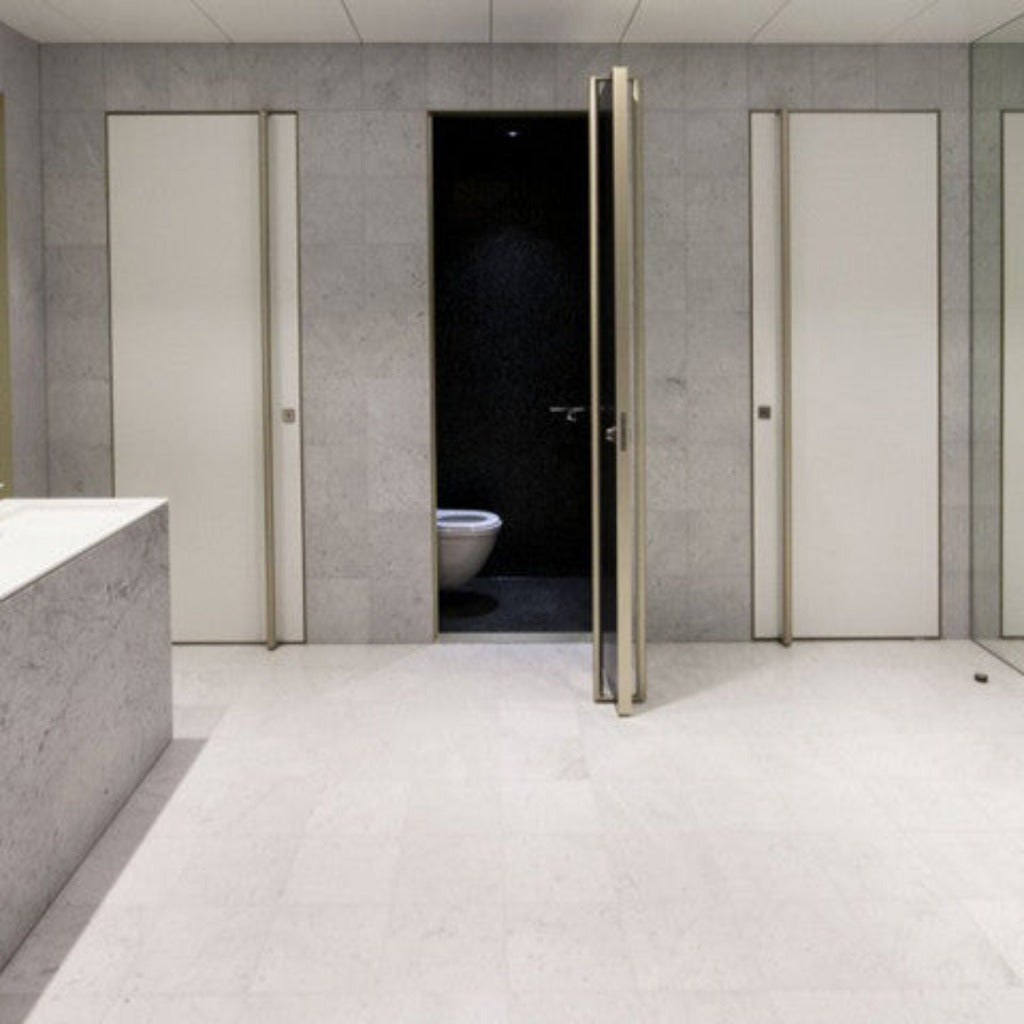

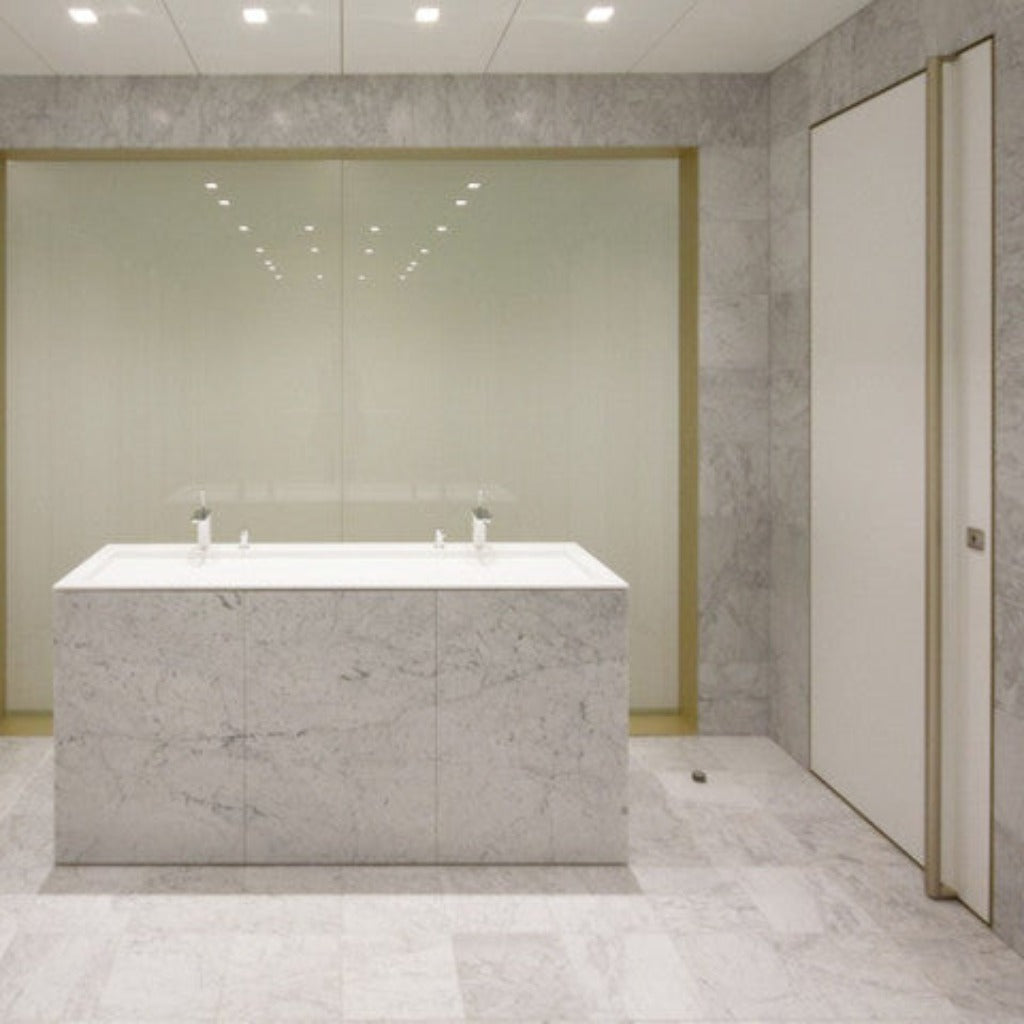

Bathroom door pivot hinge by Fritsjurgens
Bathroom door pivot hinge by Fritsjurgens
A room with a FritsJurgens Pivot Door Hinge System 3 and two chairs in it.

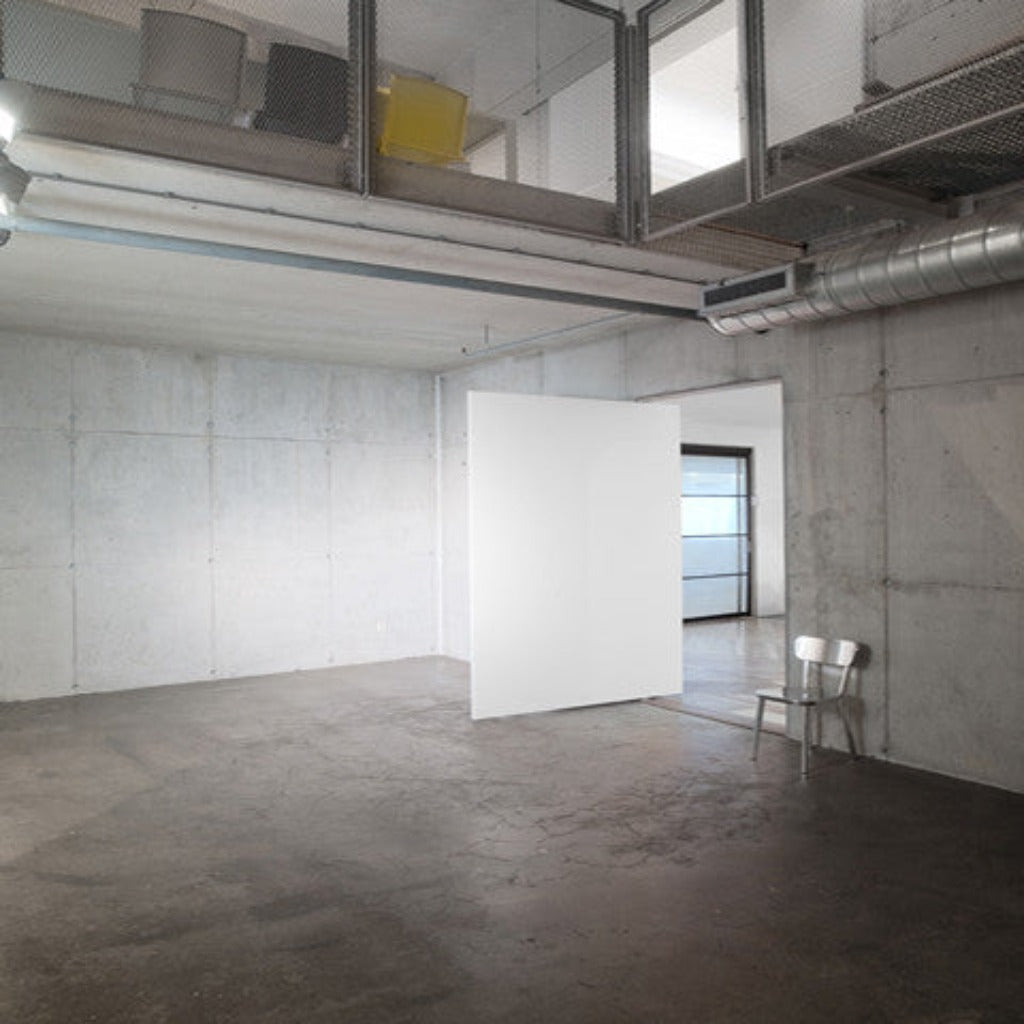

An empty room with a white wall and a FritsJurgens Pivot Door Hinge System 3 chair.
FritsJurgens Pivot Door Hinge System 3

FritsJurgens Pivot Door Hinge System 3


Weight Class
Plate Shape
Top Pivot

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

  • Estimated Ship Date: 3-5 weeks

System 3 from FritsJurgens is a 360° rotating pivot hinge system designed for exclusive use with turnstile doors or movable wall systems. System 3 is not intended for use in a doorway that has a frame stop or limited opening.

The patented System 3 model features all around 360 rotation while integrating features like self-closure and hold positions. System3 can turn through 360º and is characterized by a hold position at 0º, 90º, 180º and 270º. This means that the spring-loaded door turns from each 45º in both directions and stops in the desired direction. The door needs only a little force to start moving, then it continues to rotate by itself thanks to the patented spring construction. Thanks to precise damping the door comes to rest in the hold position after two movements. Learn the basics about FritsJurgens systems here.

Weight class is determined by size and thickness of door, please use the online selector here or contact us for a quote.

FristJurgens offers configurations for a variety of other door features, to explore the full lineup, use the online selector here.

Manufactured in the Netherlands.

System 3 comes in 4 different types, all specifically designed for your pivot door weight and dimensions.

Use online selector here to calculate the weight class for System M: Class AA, Class A, Class B, Class C.

Complete set includes: Top Pivot, Ceiling Plate, System 3 Pivot, Floor Plate and Mounting Package.

  • Bearing capacity 350 kg
  • 360º rotation
  • Minimum door thickness 40 mm
  • Hold positions at 0º, 90º, 180º and 270º
  • Self-opening
  • Self-closing
  • Patented spring system

Standard Pivot Door: Top Pivot Point 70 mm - watch video here
Cable Grommet: Top Pivot Point 91 mm, wiring through the door - watch video here

Special Operations

Best suited for large panels with positioning in the center of the door. Not intended for use in a doorway that has a frame stop or limited opening.

Please provide the following details for accurate ordering:

Door Width (1000m to 3800 mm*):
Door Height:
Door Thickness:
Door Material:
Door Weight (40kg to 350 kg*):
Desired Pivot Location: Middle
Interior or Exterior Door:
Finish: Stainless steel

Please note that your specifications may require additional accessories, as to be discussed with your sales agent.

*If you require hardware beyond these requirements, contact us, and we will be able to suggest other options for your space.
