Name: ONEN Door Lever
Brand: d line
SKU: 12413174001
Price: 205.0 CAD
Availability: InStock

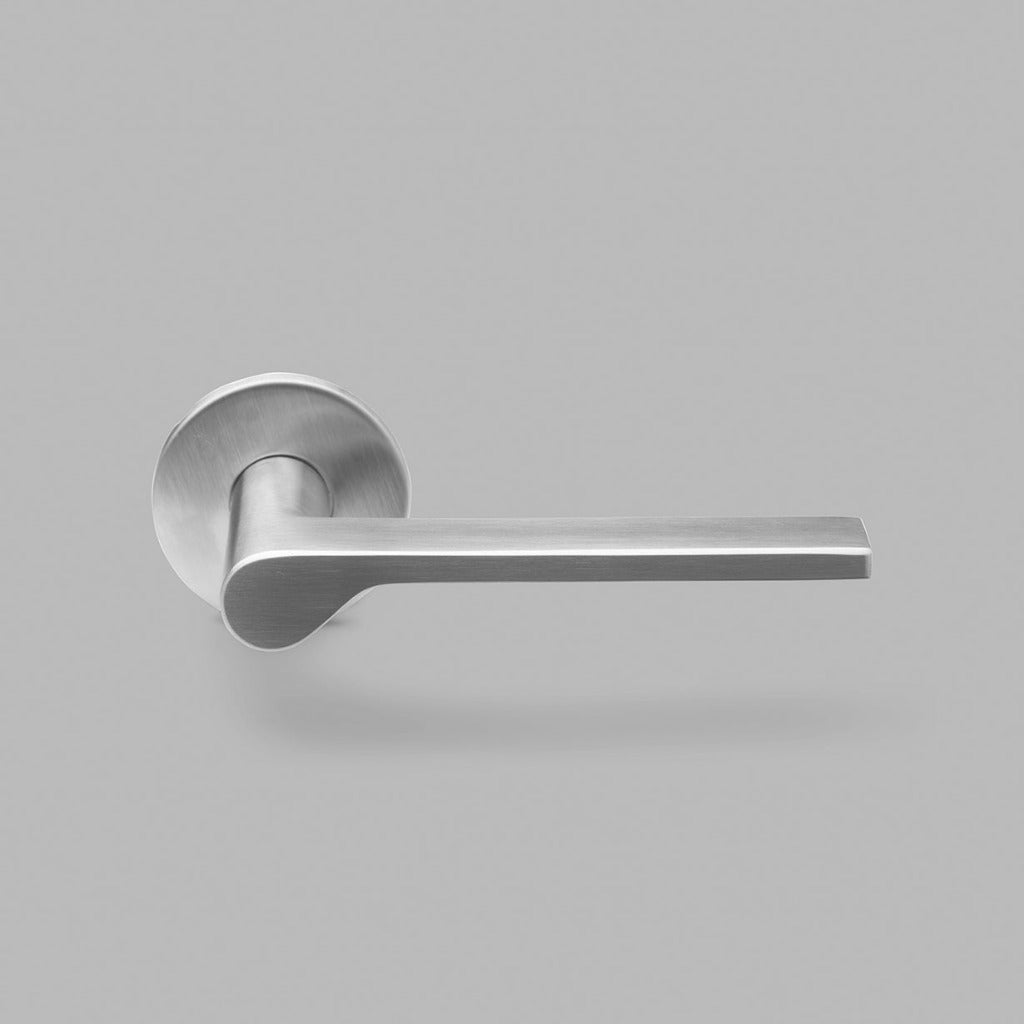

A close up of a d line ONEN Lever door handle on a gray background.

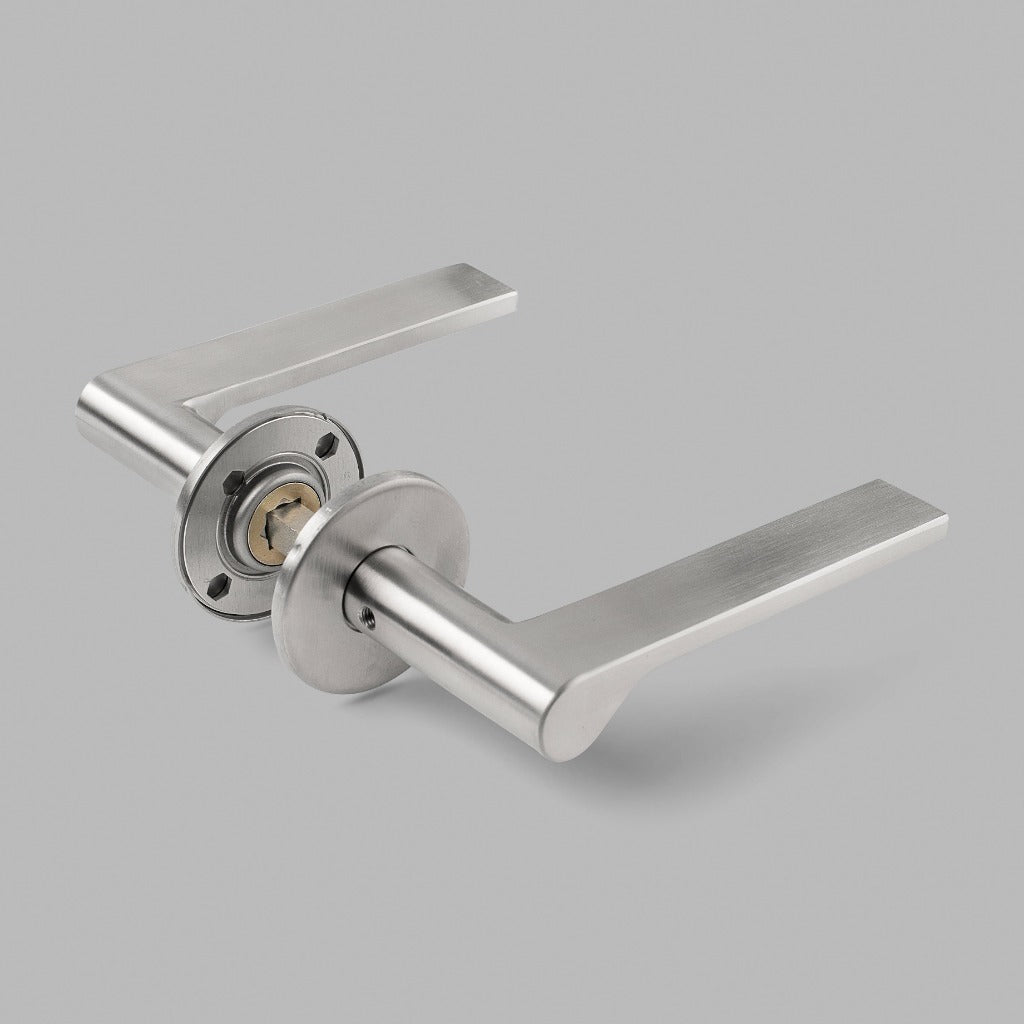

A d line ONEN Lever stainless steel door handle on a grey background.

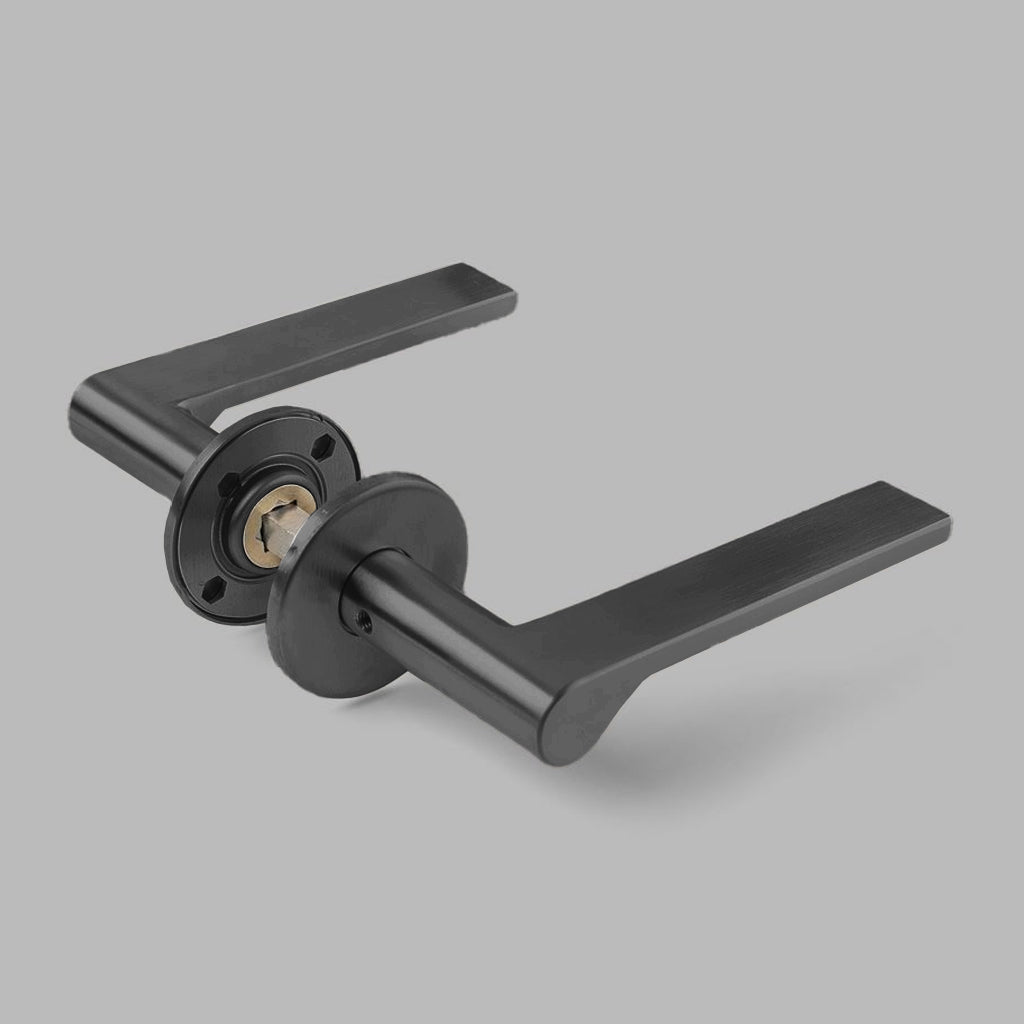

A d line ONEN Lever door handle on a gray background.

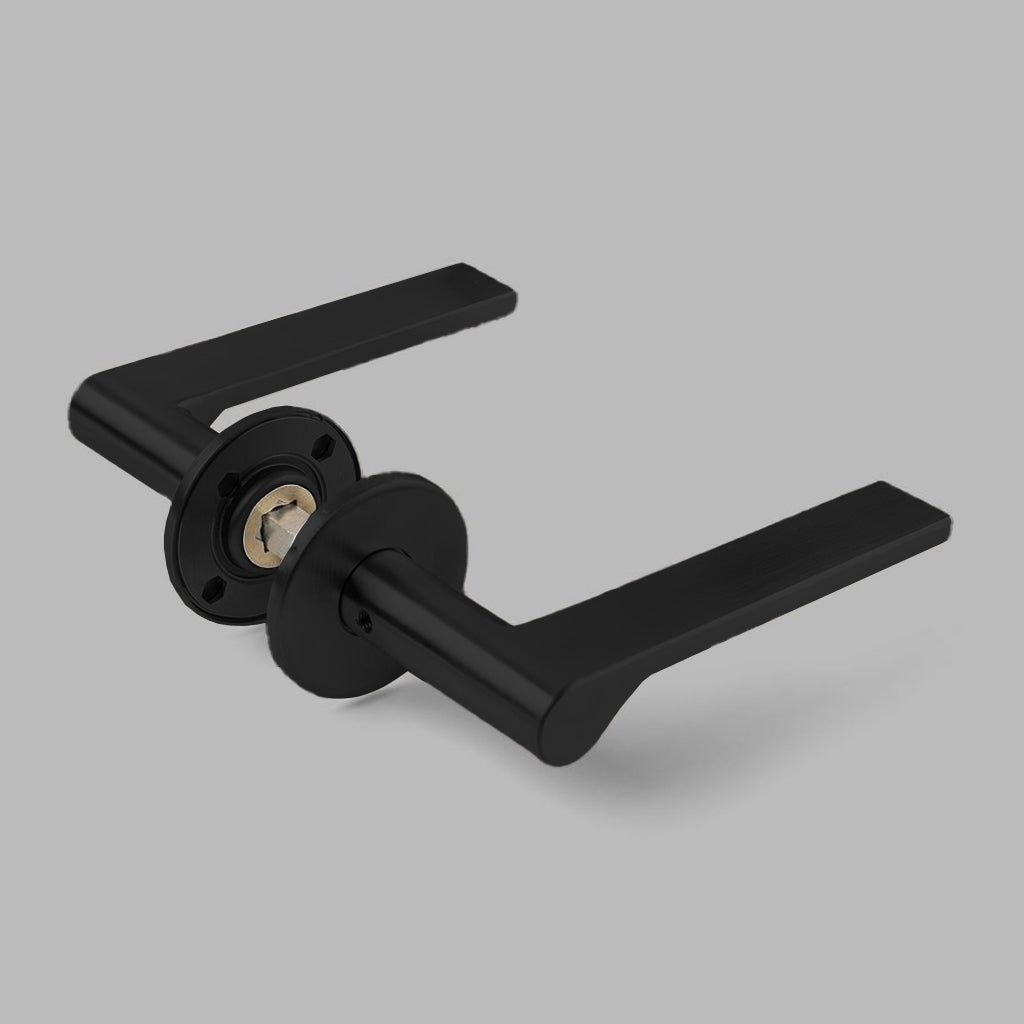

A d line ONEN Lever black door handle on a gray background.

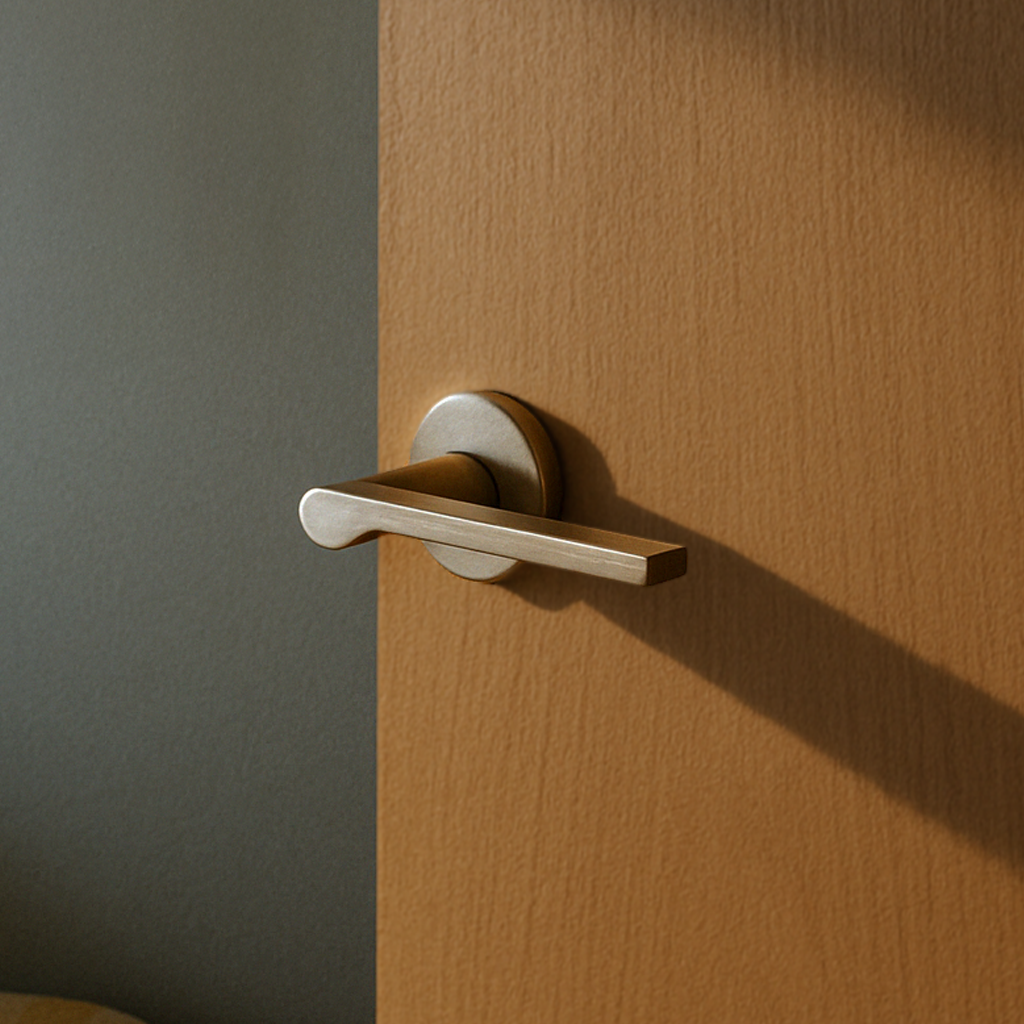

A close up of a d line ONEN Lever door handle on a door.

$205.00

Shipping calculated at checkout.

Finish — Satin Stainless Steel

Satin Stainless Steel

PVD Satin Brass

PVD Satin Copper

PVD Satin Charcoal

Black RAL 9005

Quantity

CONTACT TO REQUEST QUOTE

Indicate finish, size, quantity, function or mounting type, and shipping address to receive a quote.

Estimated Ship Date: 5-8 weeks

Optional Accessories

Description

This lever skillfully combines rounded and flat forms in an elegant, yet simple and uncomplicated design.

The ONEN lever handle was introduced in 2003, designed by Danish architectural firm ONEN. d line hardware is designed for constant use. Each piece is expertly crafted by hand.

Made in Europe.

Specifications

Door Thickness: 33 - 59 mm
Rose: Available with or without
Cover Plate: Available with or without
Bore Hole: Ø25 mm
Certifications: Tested and certified according to EN1906 and EN1634-1

Privacy/Lock Options:
ONEN Thumb Turn
ONEN Toilet Indicator

Areas of application: Commercial, Residential

NOTE: European roses are smaller than standard North American models. Please ensure all dimensions are carefully reviewed as these may not fit existing or pre-bored door holes.

Material(s)

Satin Stainless Steel (AISI 304 with satin grain 320 finish)
PVD coated Copper, Brass, or Charcoal on Stainless Steel
Powder coated RAL 9005 Black on Stainless Steel
X-BAC antimicrobial coating and finishes available upon request

Product Downloads

ONEN Collection Product Sheet

ONEN Lever Handle Drawing

Base Rose Spec Sheet

d line Passage Latch Options

d line Privacy Lock Options

Finish Swatches

2023 Updated d line finish swatches:

d line finish swatch examples

Finish Samples

Shop finish samples HERE.

Additional Components by Function

Ensure your lever handle functions seamlessly with the essential components listed below.

Passage Door

Passage doors do not have an internal locking mechanism, making them ideal for bedrooms, kitchens, and living rooms.

Our custom built sets require:
Lever / Knob + Euro Mortise Passage Latch Lock (60mm backset) + Spindle.

For tubular latch sets, we offer the Baton Tubular Passage Latch in 2 3/8" or 2 3/4" backset options. Ready-to-buy sets are available from the AHI Hardware collection.

Select Passage Mortise

Privacy Door

Privacy doors provide additional security with interior latches that lock without a key, perfect for bathrooms.

Our custom built sets require:
Lever / knob + thumb turn + Euro Mortise Bolt (60mm backset) + Spindle.

For tubular lock sets, we offer the Baton Tubular Latch and bolt in 2 3/8" or 2 3/4" backset options. Ready-to-buy sets are available from the AHI Hardware collection.

Select Privacy Mortise
Select Thumb Turn

Keyed Entry Door

Keyed entry door hardware is designed for exterior doors, providing secure access to buildings and homes.

Our custom built sets require:
Lever / Knob + Euro Mortise Keyed Lock (60mm backset) + 2 x Key Escutcheon + CES key cylinder + Spindle.

Select Keyed Entry Mortise
Select CES Key Cylinder
Select Key Escutcheon
