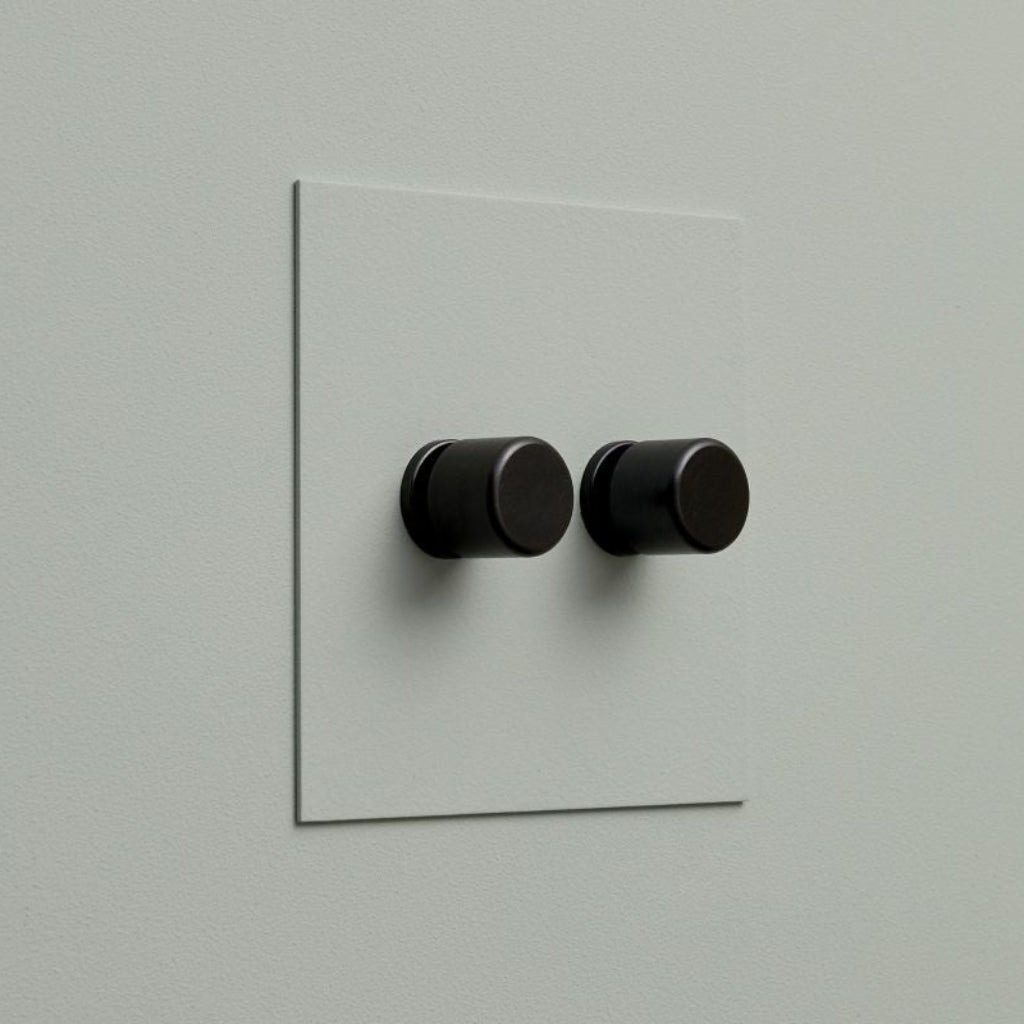

Sage Forbes & Lomax painted switch plate with two black dimmers.

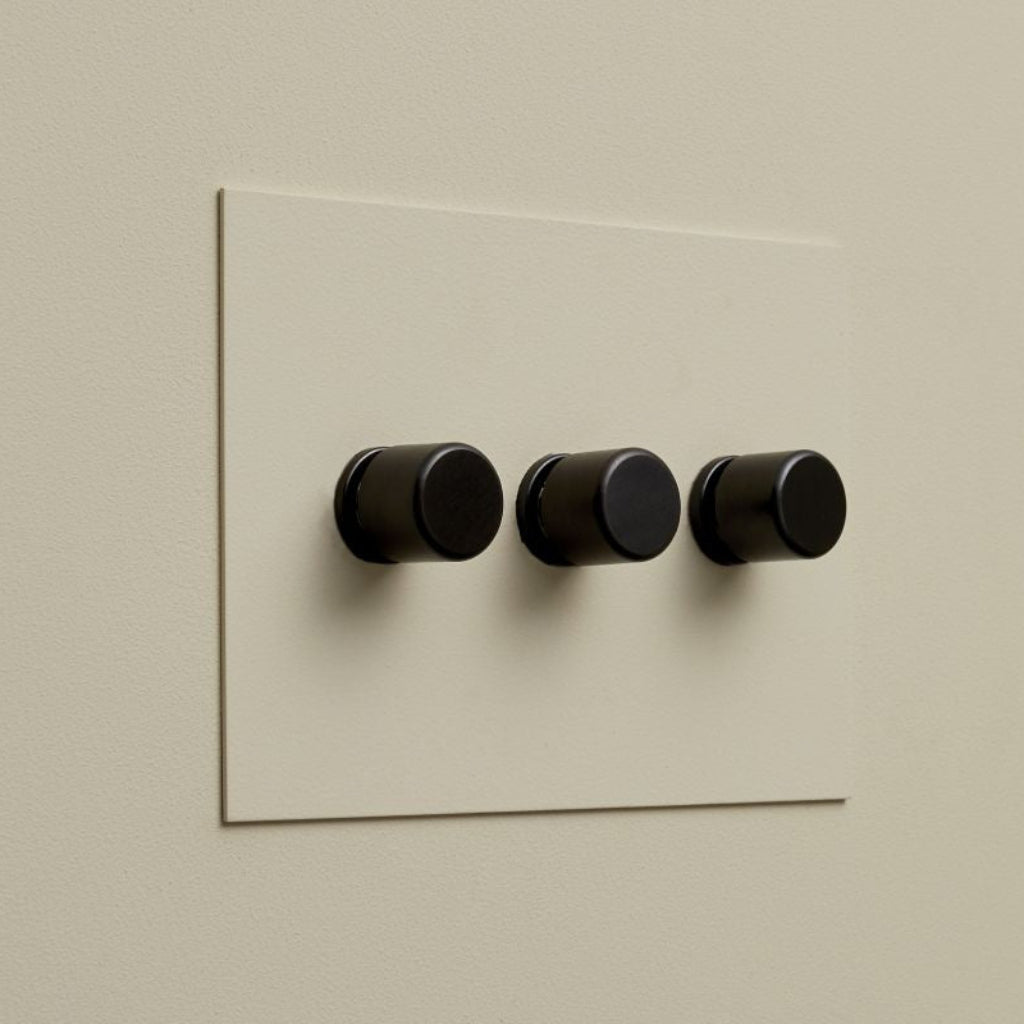

Cream Forbes & Lomax painted switch plate with three black dimmers.

Painted Range Rotary Dimmers by Forbes & Lomax

Name: Painted Range Rotary Dimmers by Forbes & Lomax
Brand: Forbes & Lomax
SKU: 1GR1/USA/SQ
Price: 405.0 CAD
Availability: InStock

01Finish:Unlacquered Polished Brass

Finish

Unlacquered Polished Brass

Antique Bronze

Brushed Stainless Steel

Nickel Silver

Matte Brass

Lacquered Brushed Brass

02Gang:1 Gang

Gang

1 Gang

2 Gang

3 Gang

4 Gang

03Model:LED

Model

LED

Price

Original price$405.00

Shipping calculated at checkout.

Inventory

Ships in

4-6 weeks

Pairs With

Painted Range Rotary Dimmers by Forbes & Lomax

Forbes & Lomax

From $405.00

Description

The Painted Range by Forbes & Lomax provides primed, ready-to-paint plates that sit flush to the wall. Each plate can be painted onsite to match the wall colour for a subtle, unobtrusive look, while the switch mechanism is supplied in the finish of your choice.

Painted rotary dimmers push to switch on/off and rotate to dim and brighten, based on the elegant nickel and brass switches of the 1930s. Can be mixed with Toggle Switches and push buttons on the same plate. 1–4 gang configurations.

Established in 1987, Forbes & Lomax is a UK-based heritage electrical brand recognized by architects and designers for refined switch and outlet design.

Specifications

Knob: Ø 20 mm (0.79")

Plate Sizes

1 Gang: W 70 mm (2.76") x H 115 mm (4.53")
2 Gang: 115 mm (4.53") x 115 mm (4.53")
3 Gang: W 162 mm (6.38") x 115 mm (4.53")
4 Gang: W 210 mm (8.27") x 115 mm (4.53")

Available Configurations

LED: Max. 120 W LED or 300 W Incandescent/Halogen (TRIAC)
0-10 V (Linear): contact us
Non-Dimming: contact us

Installation Notes

Rotary dimmers conform to UL 1472 and are certified to CSA C22.2 No. 184
Supplied as 3-way (can also be used as single pole). Only one dimmer per 3-way or 4-way circuit — other positions require toggle switches
Must be installed by a licensed electrician
Junction boxes must be recessed below the finished wall surface by at least 1/8"

For compatibility with higher wattage lights, transformer/driver-based fixtures, or non-replaceable LEDs, email lighting specifications before purchase. Areas of application: light-duty commercial, residential.

Materials

Available Switch Finishes

Unlacquered Polished Brass
Antique Bronze
Brushed Stainless Steel
Nickel Silver
Matte Brass
Lacquered Brushed Brass

Unlacquered Polished Brass is a living finish that changes colour over time. Lacquered Brushed Brass is a non-living finish and will not change colour. Wipe clean with a dry, non-abrasive microfiber cloth. Avoid chemical or alcohol-based cleaners.

Product Downloads

Painted Switch Product Sheet
Plate Dimensions
Forbes & Lomax Brochure
Forbes & Lomax Care Guide

Installation Notes

Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.

There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.

View Installation Policy
