Description

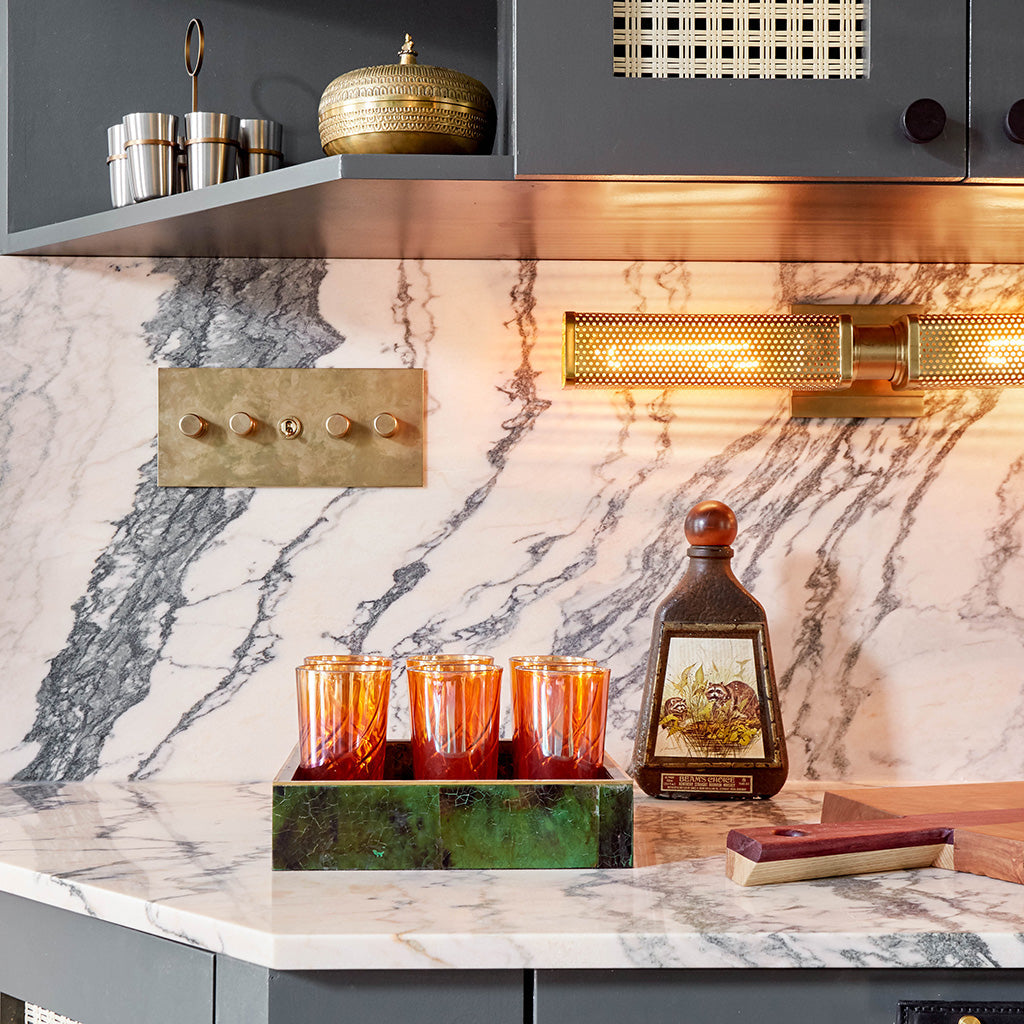

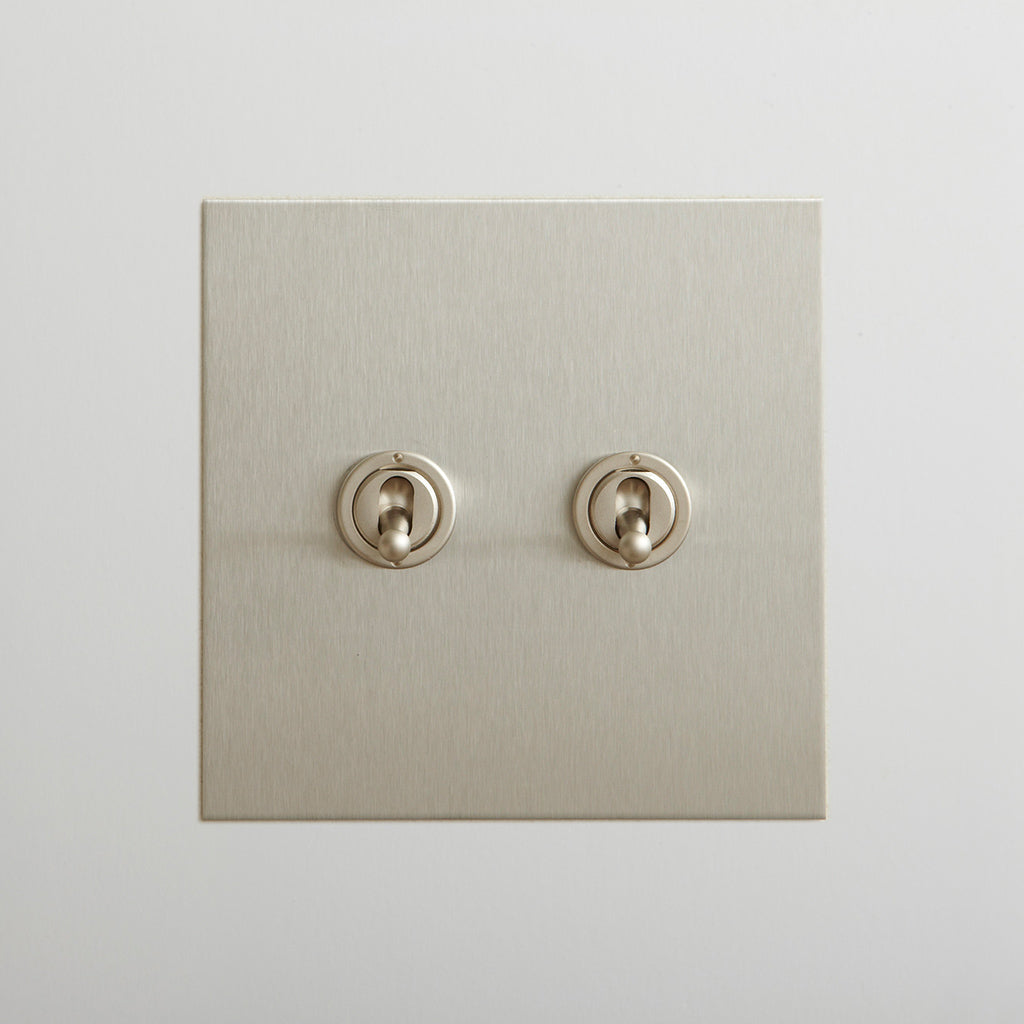

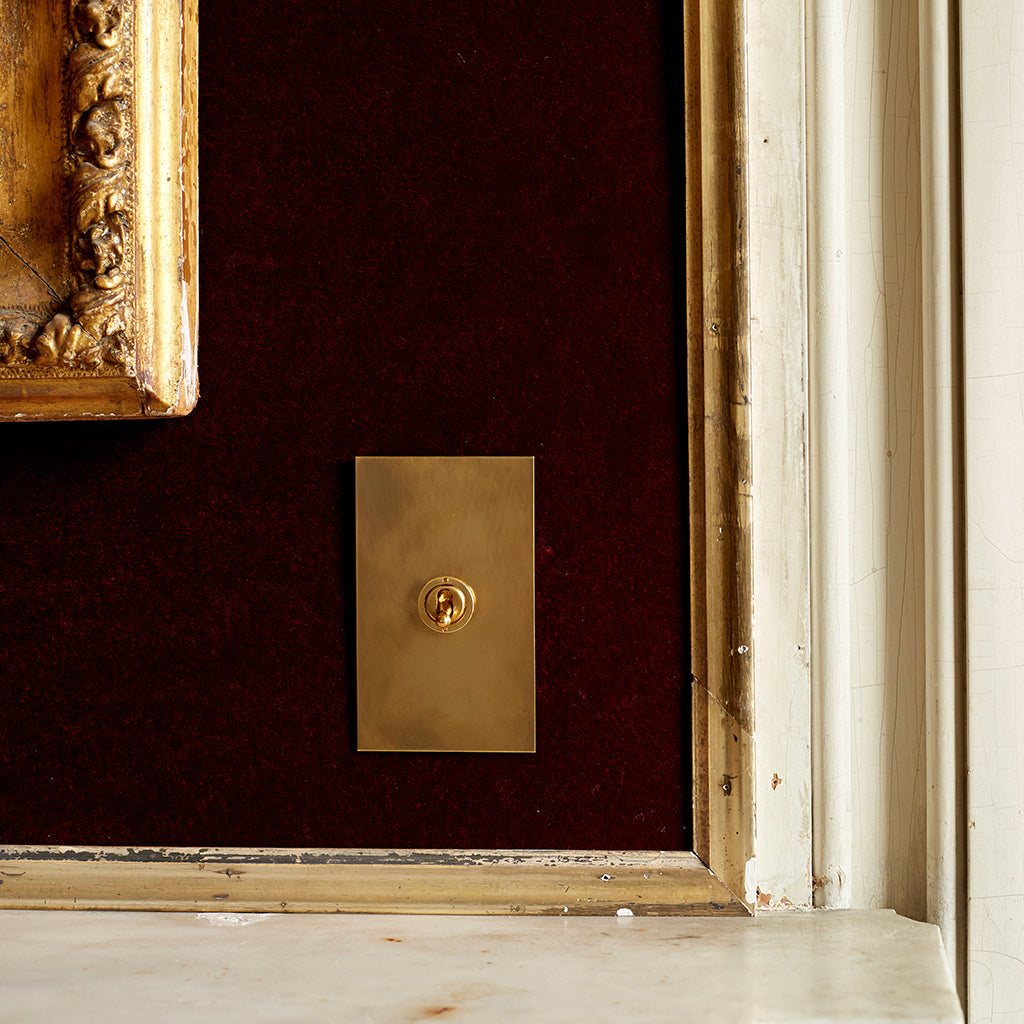

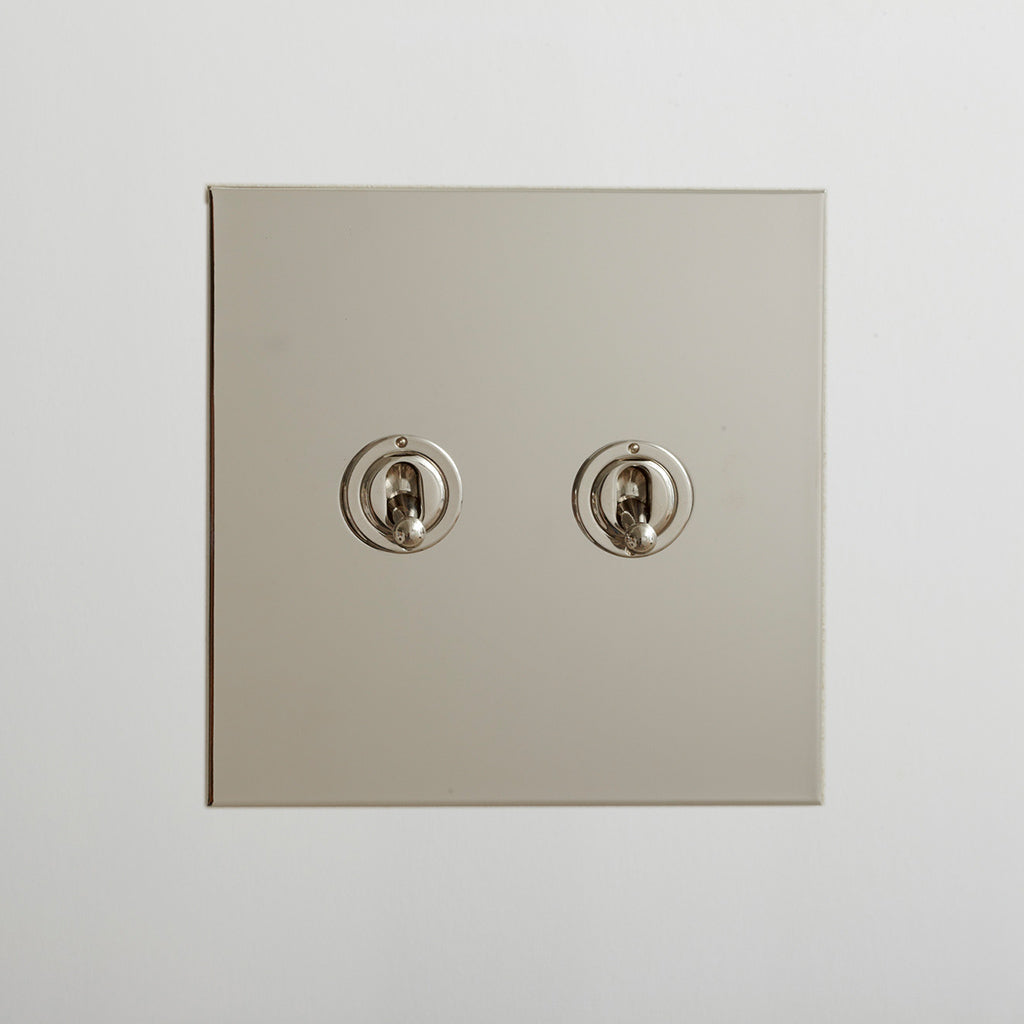

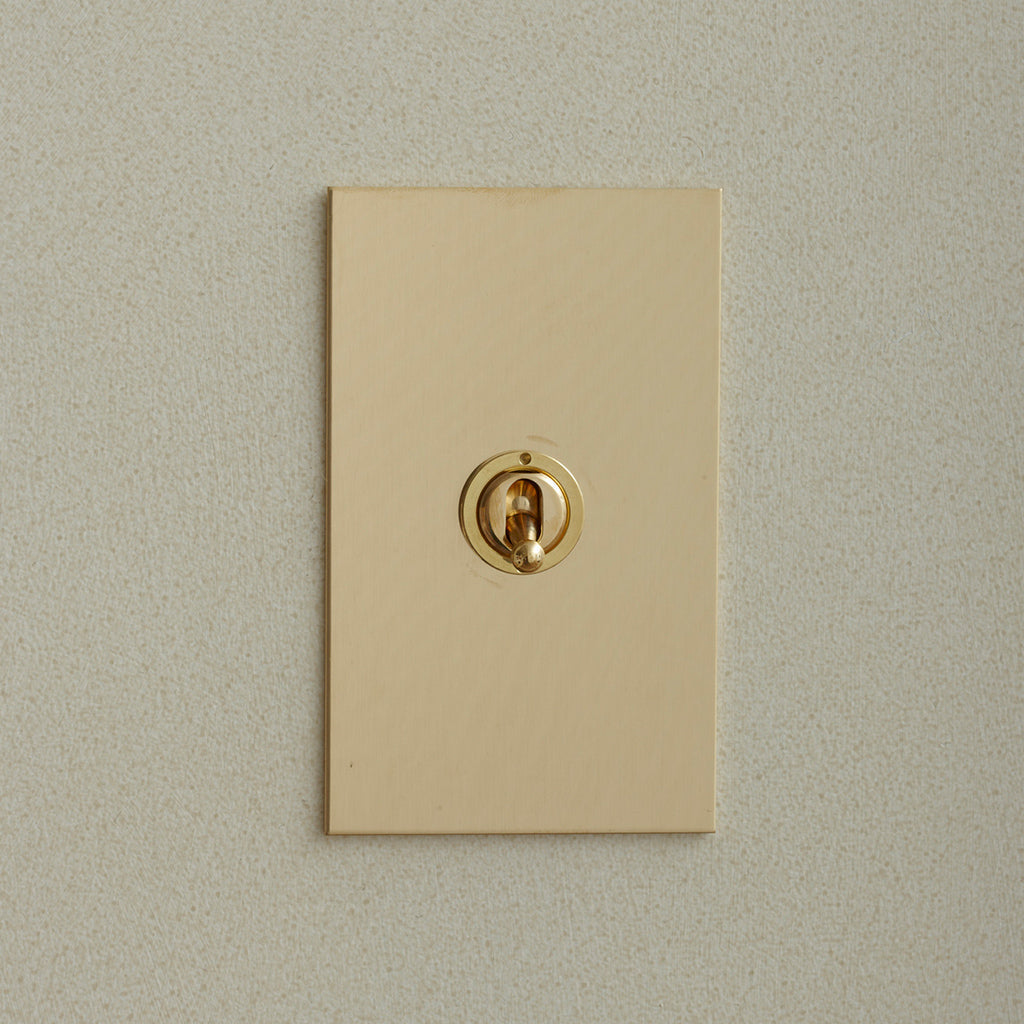

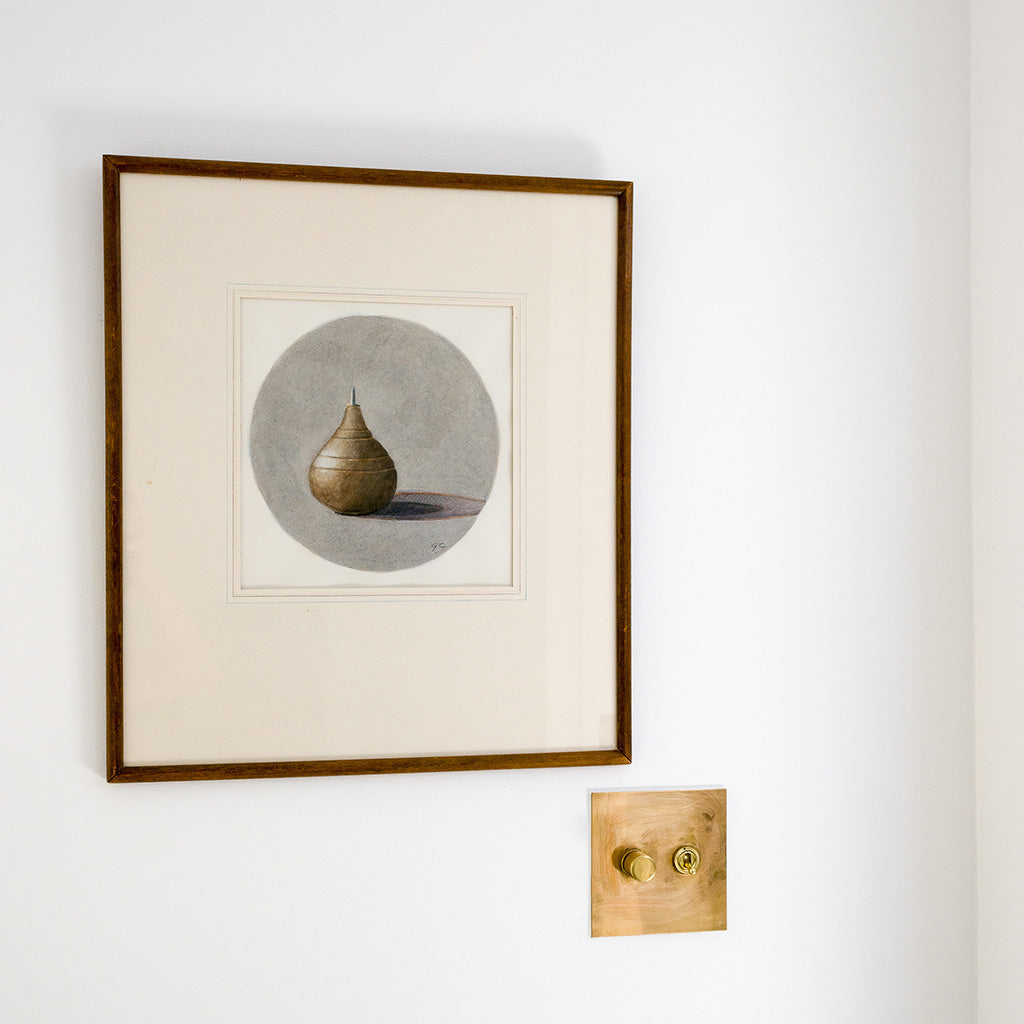

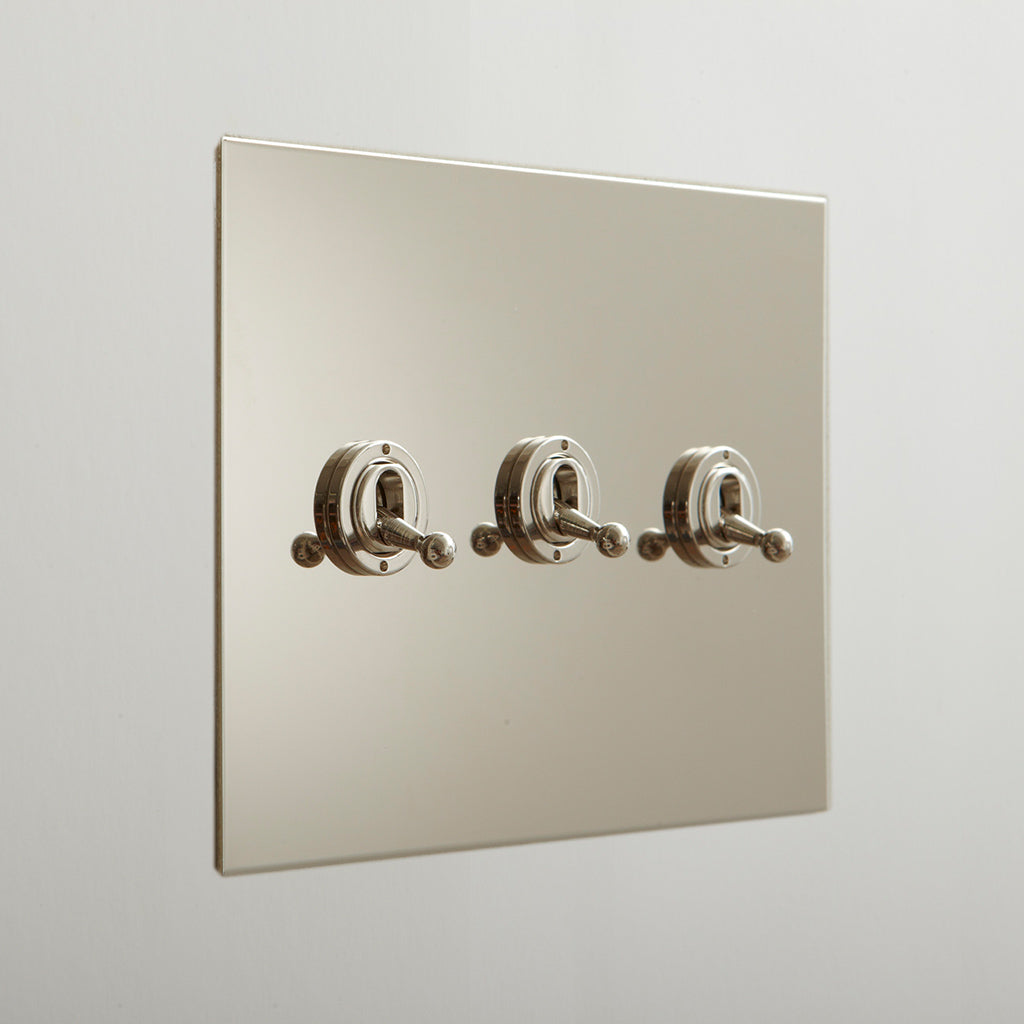

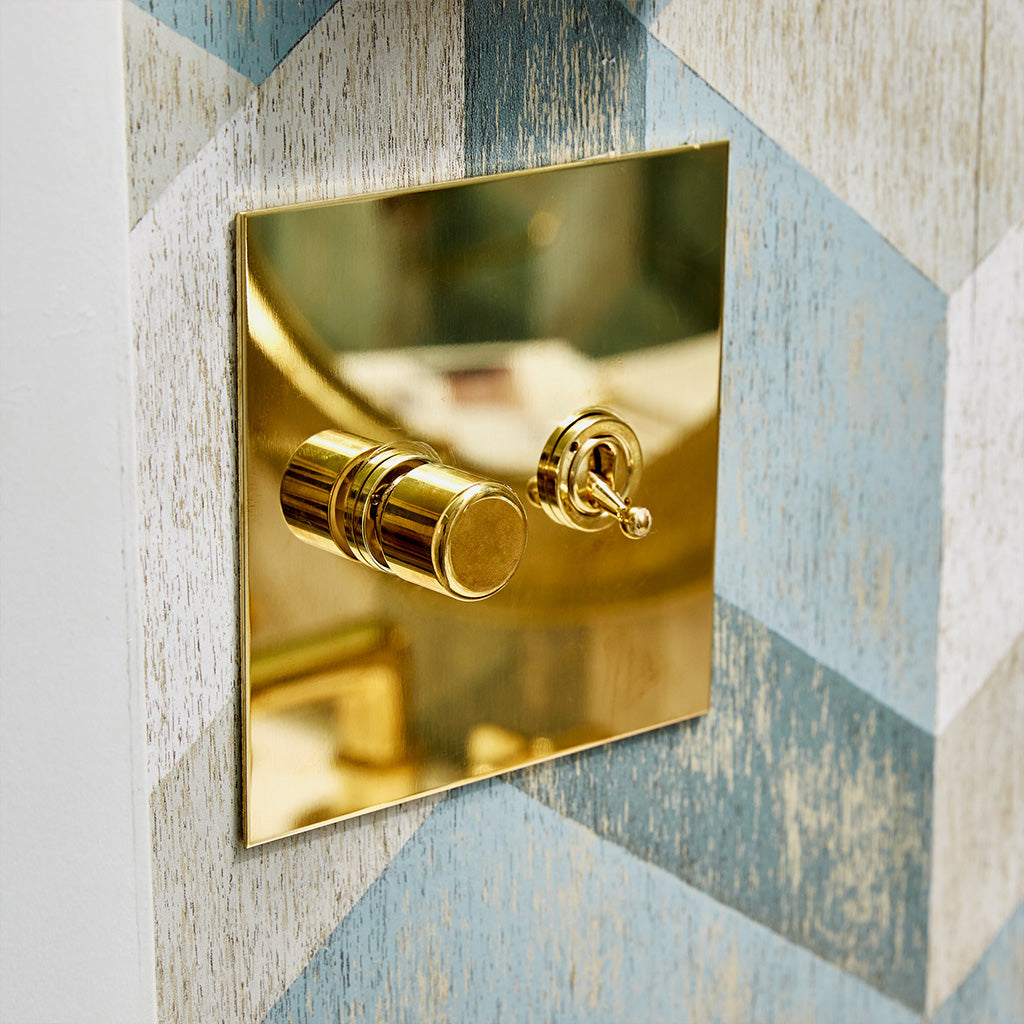

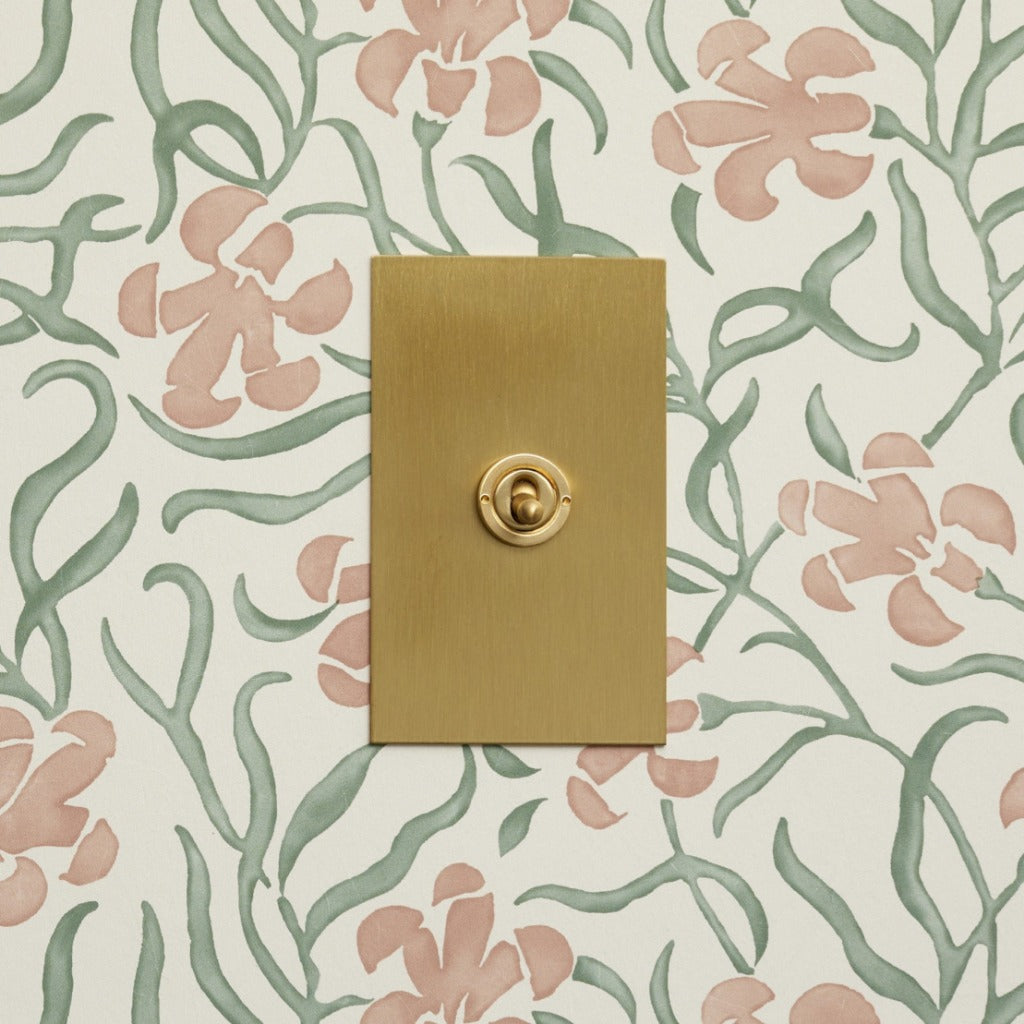

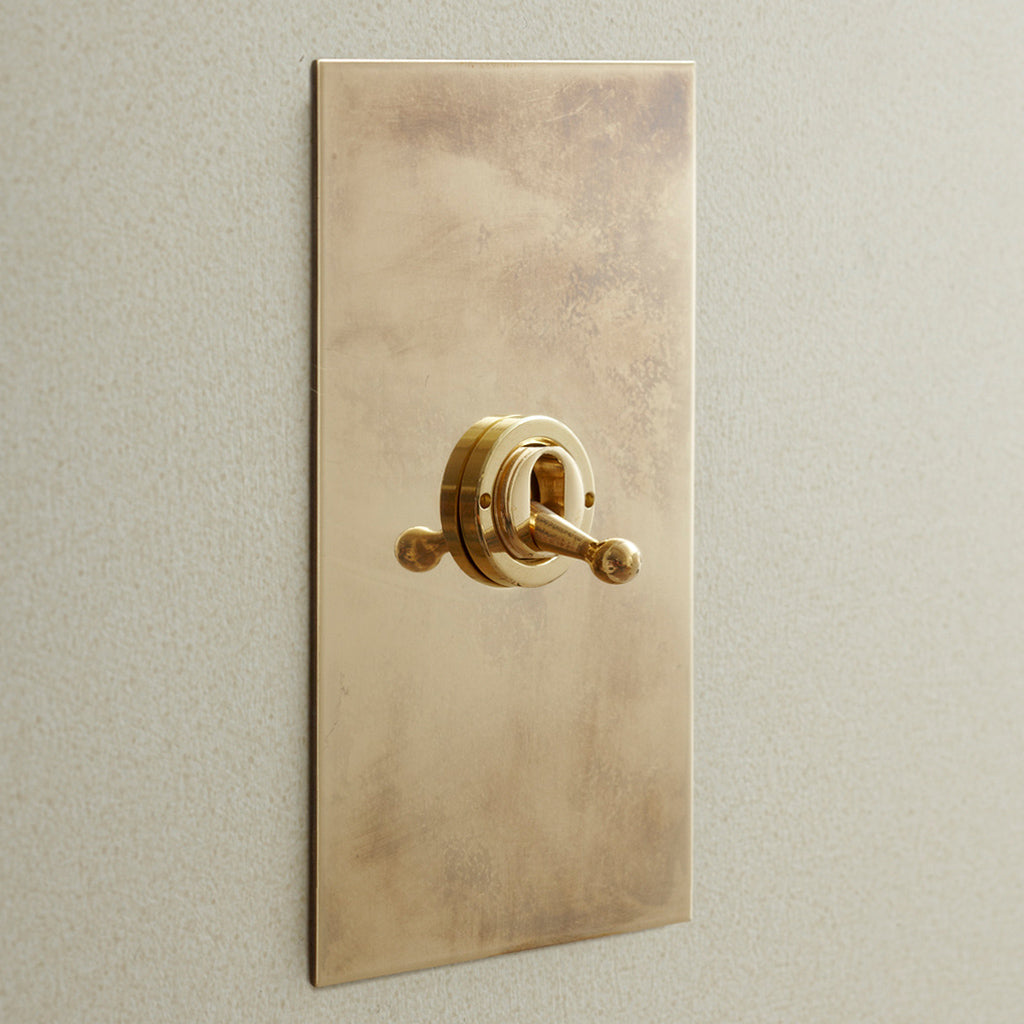

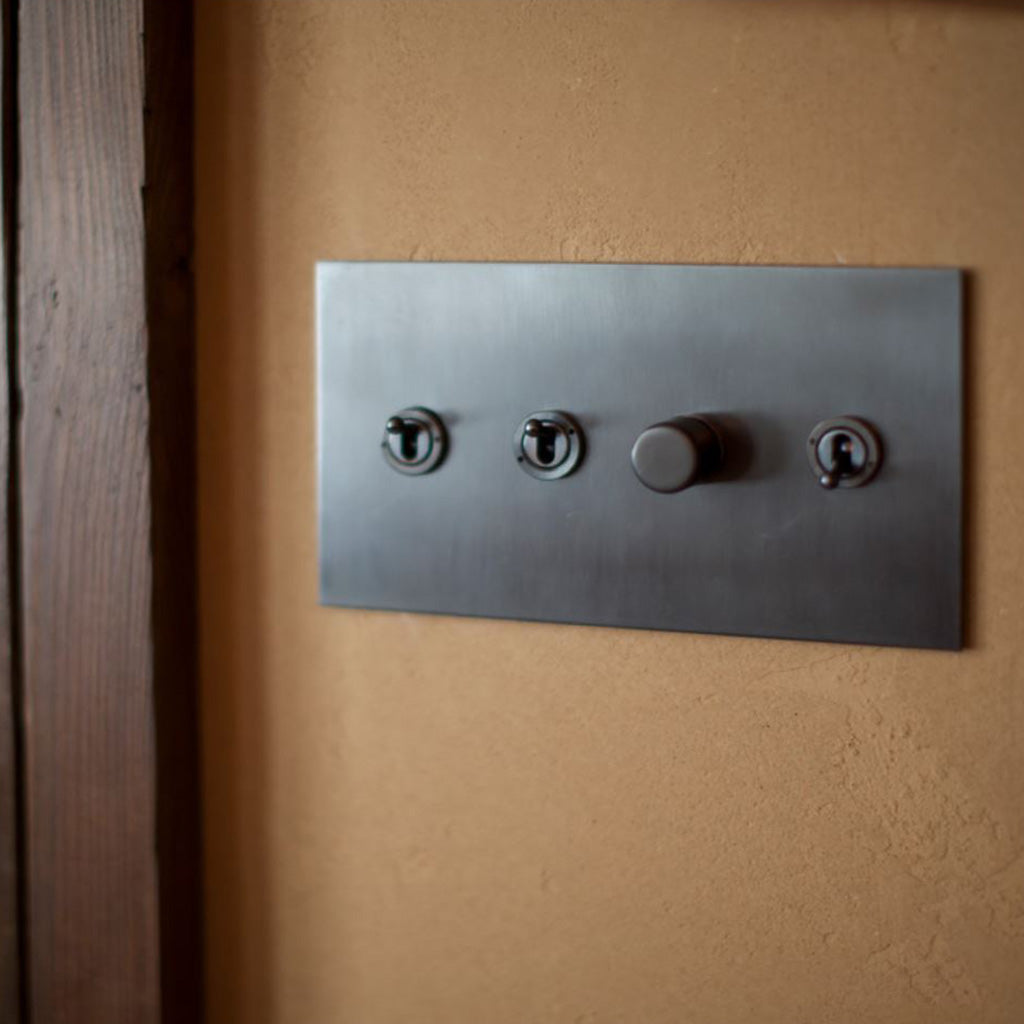

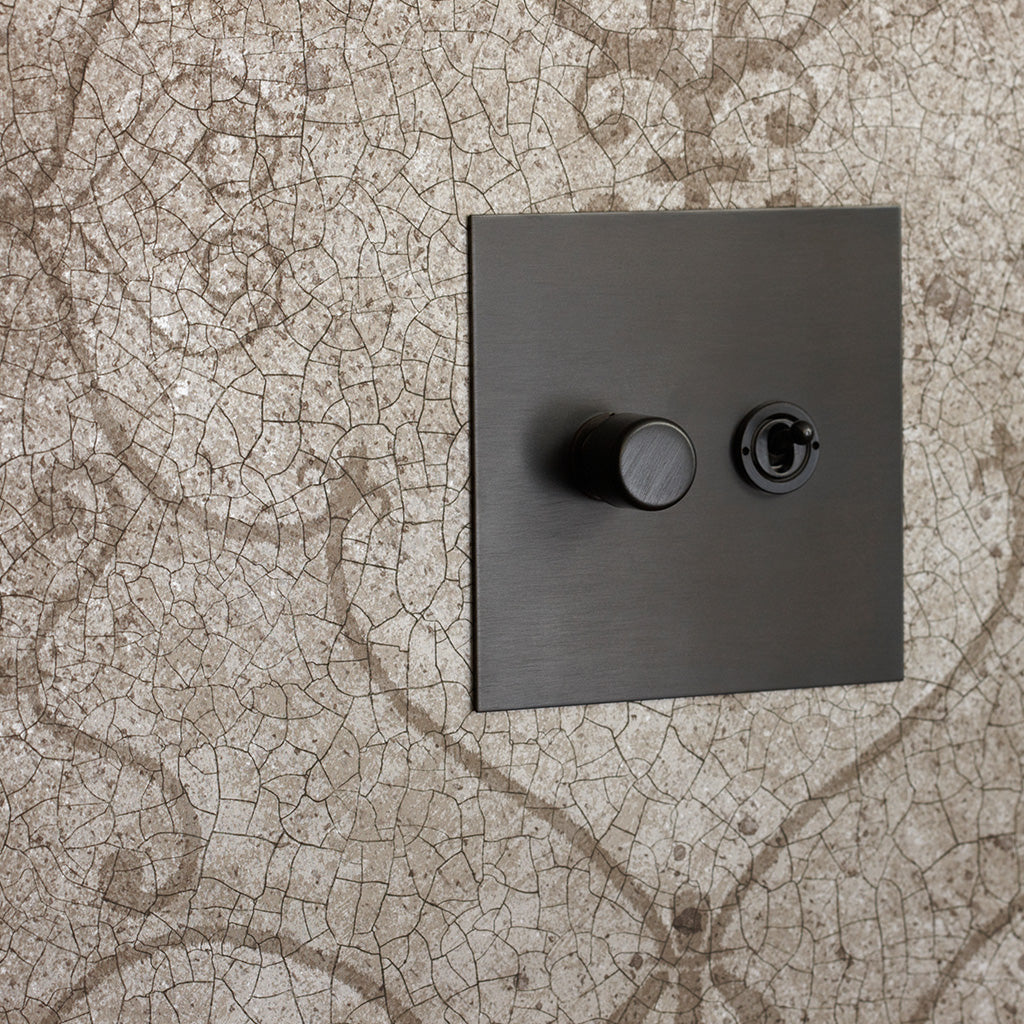

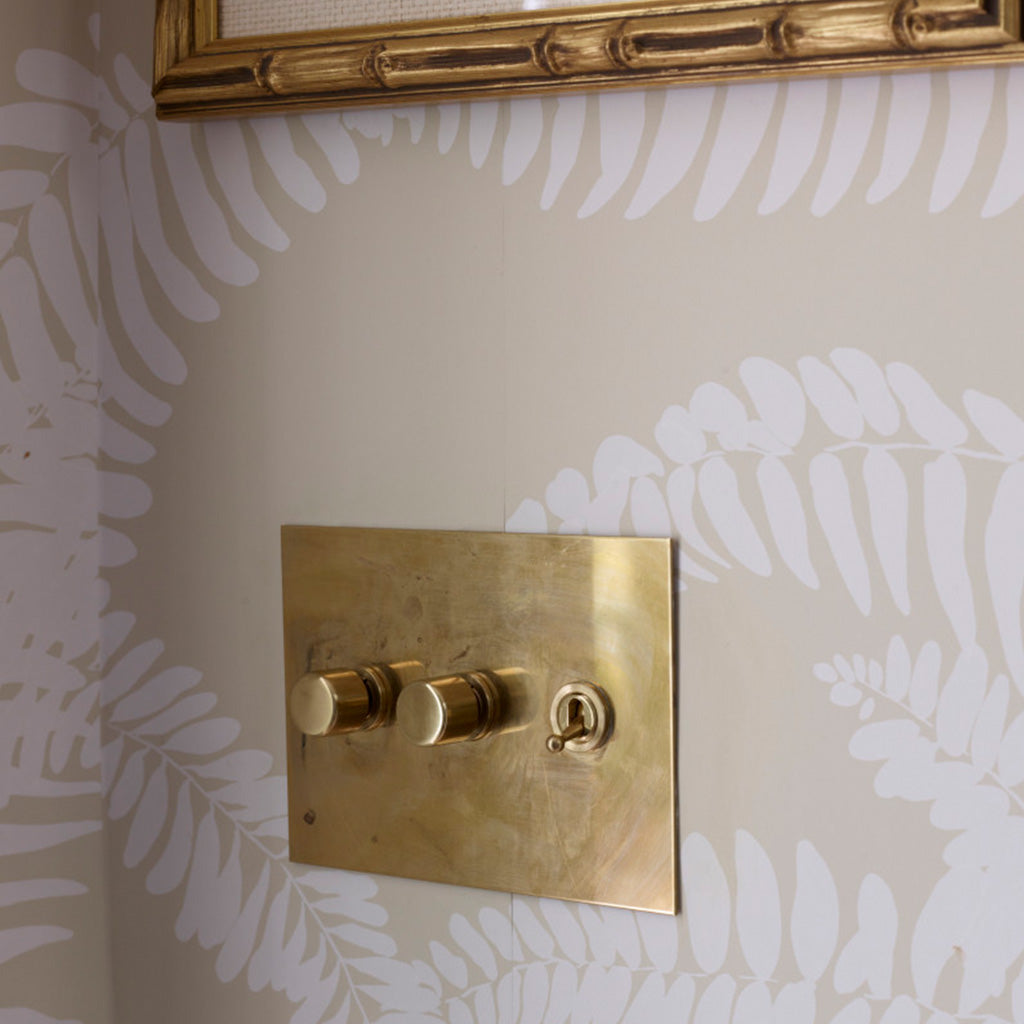

The Toggle Switch by Forbes & Lomax is a line-voltage toggle switch based on the elegant nickel and brass switches of the 1930s. Simple, timeless, and refined. Available in 3-way and 4-way versions (3-way can also be used as single pole). Can be mixed with Rotary Dimmers and push buttons on the same plate. 1–4 gang configurations.
Established in 1987, Forbes & Lomax is a UK-based heritage electrical brand recognized by architects and designers for refined switch and outlet design.
Specifications
- Switch: Ø 20 mm (0.79")
Plate Sizes

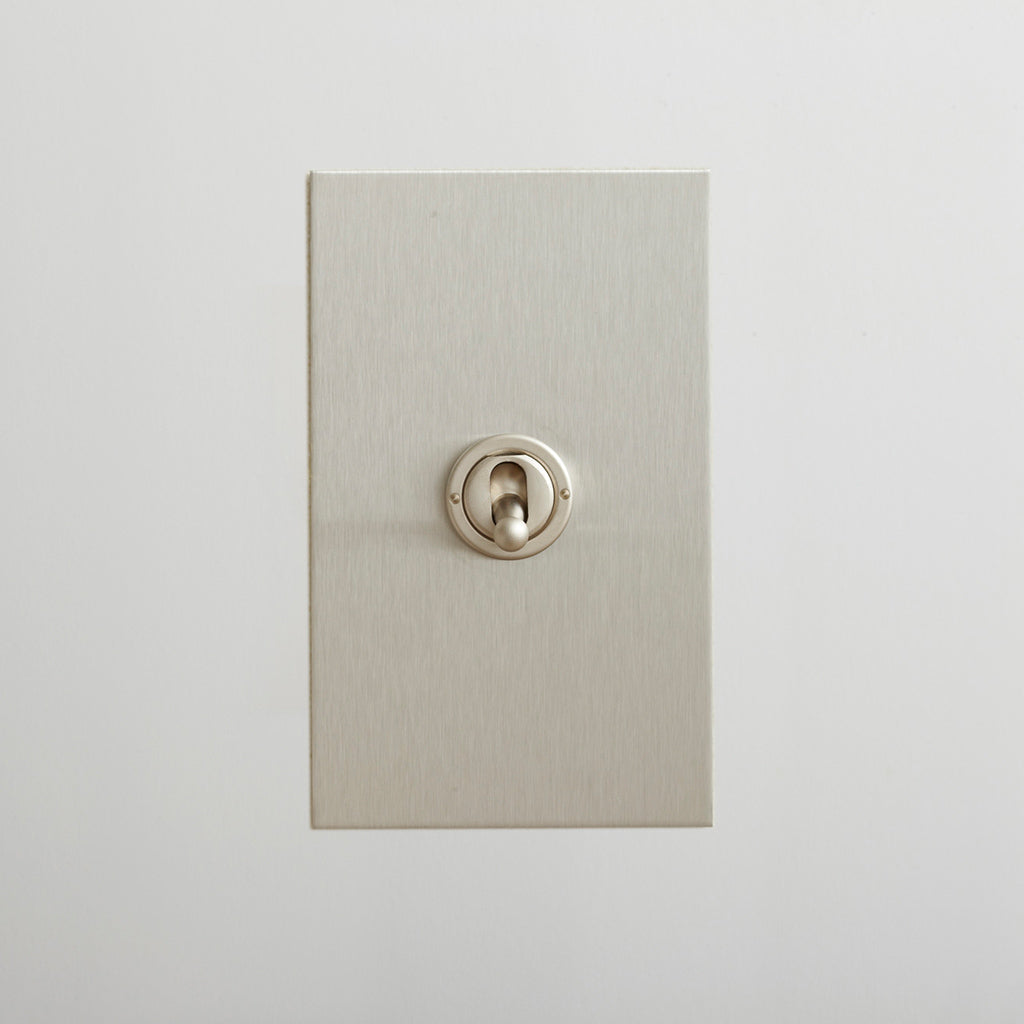

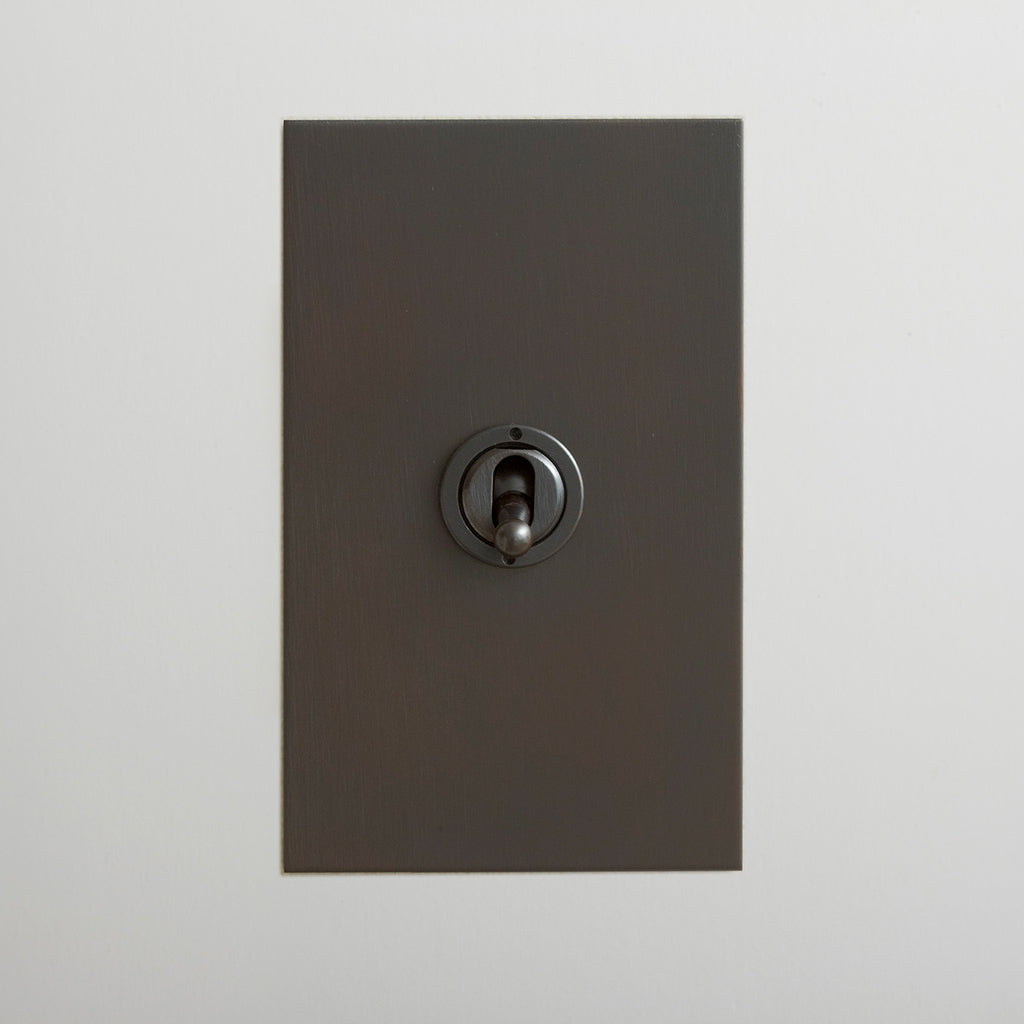

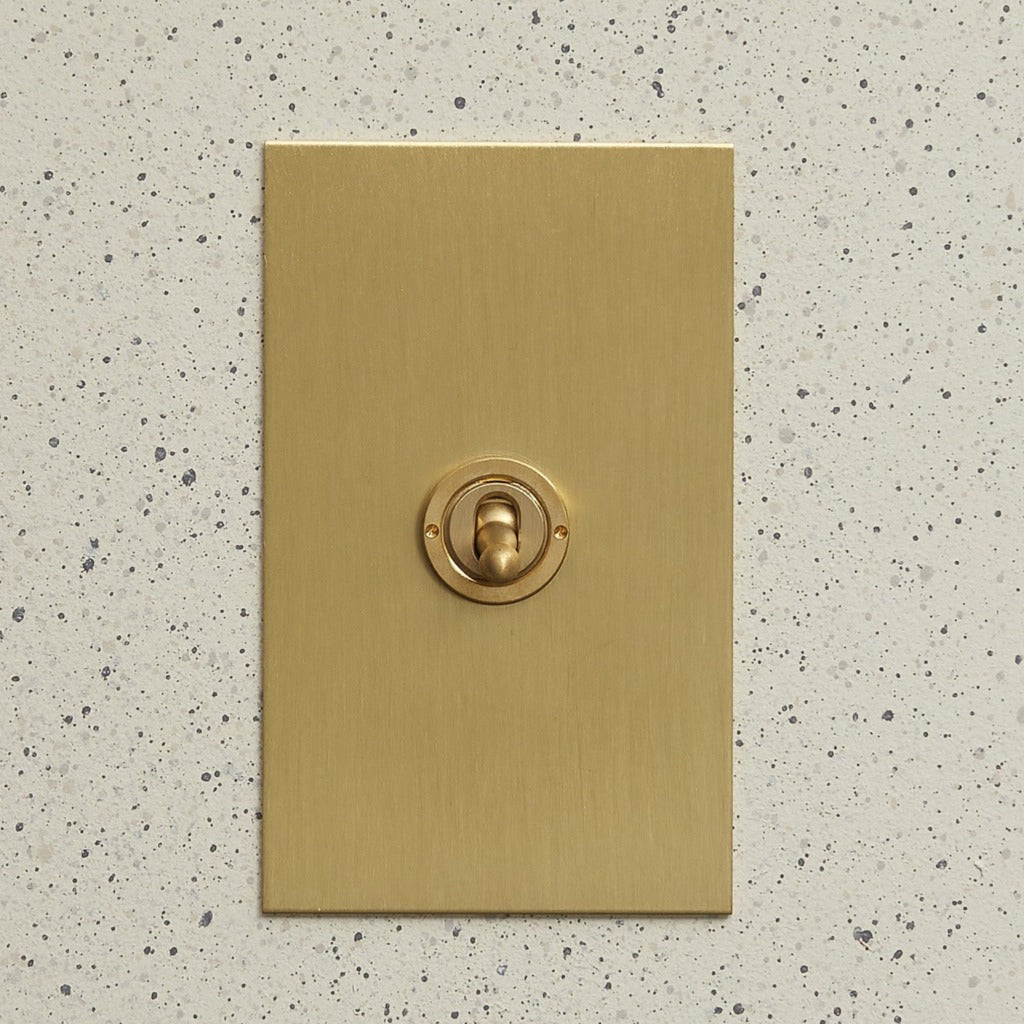

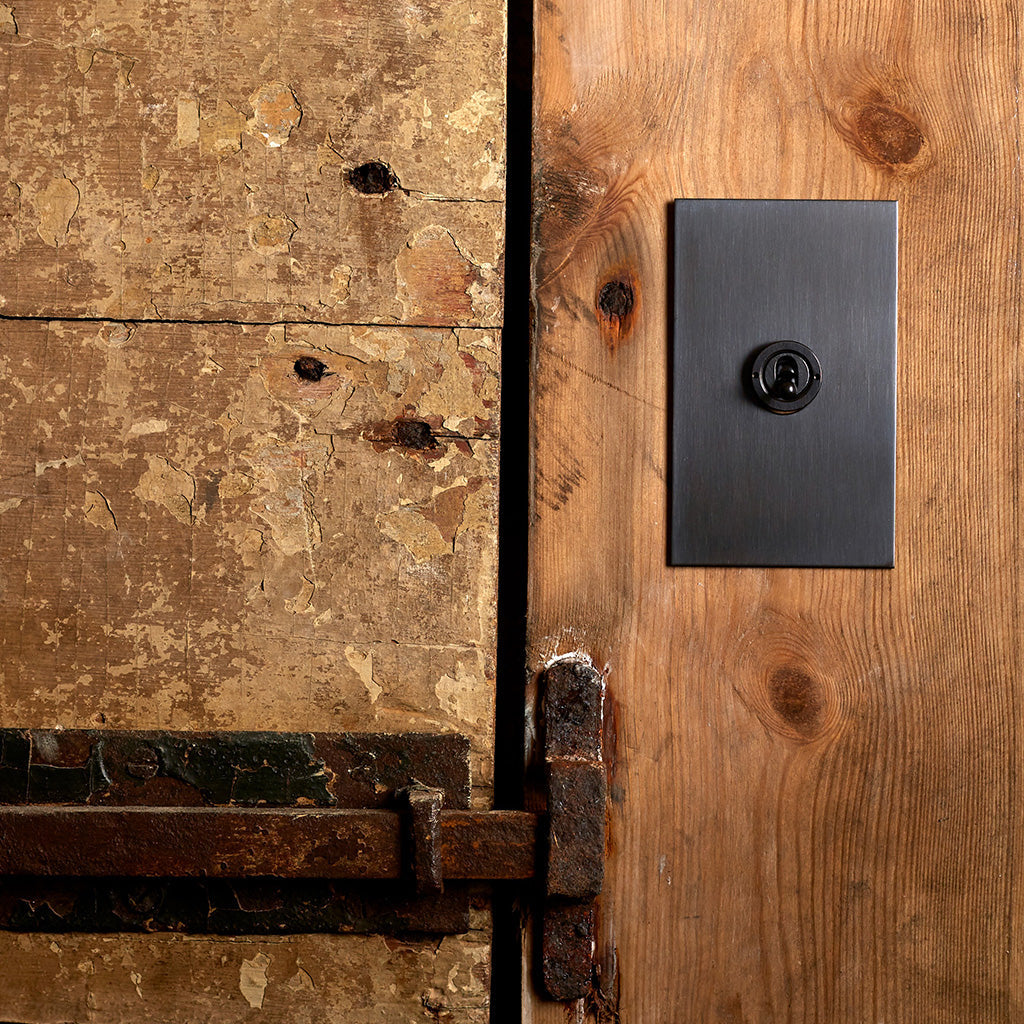

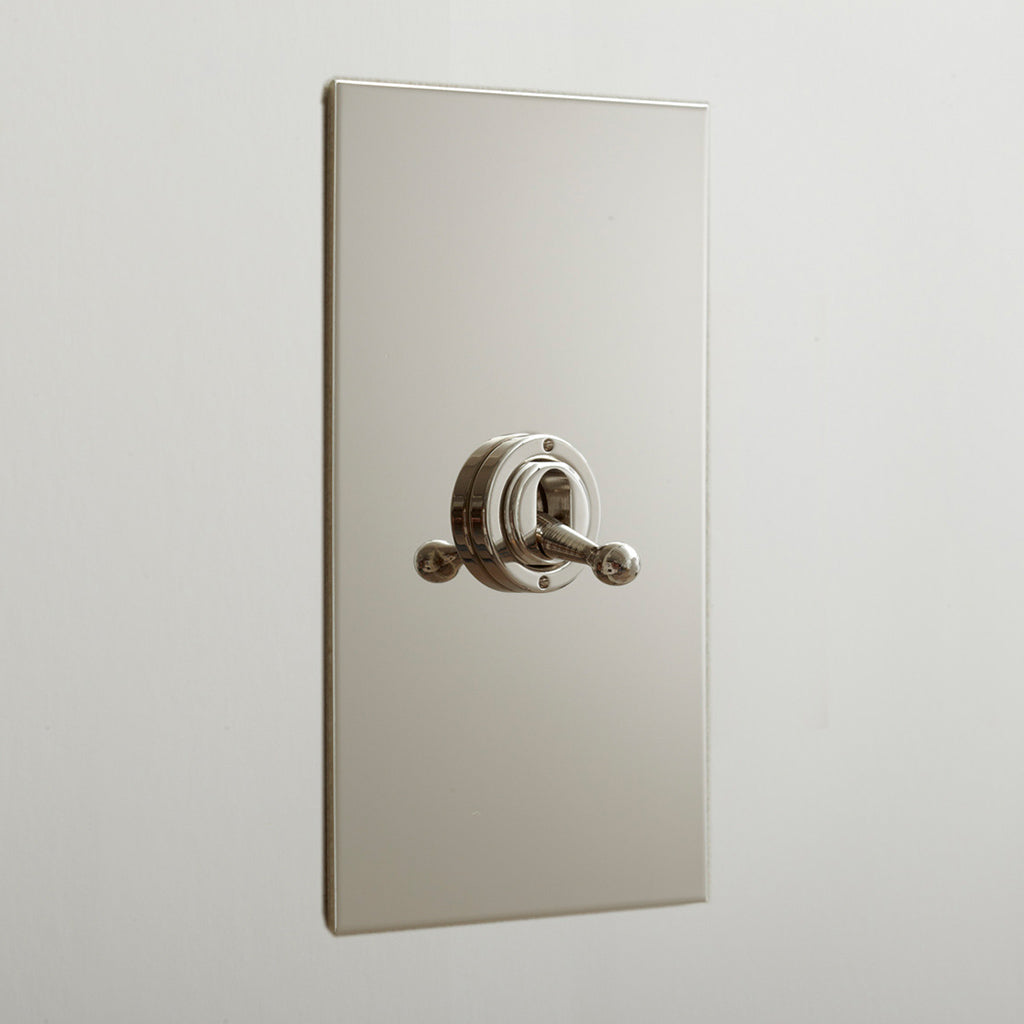

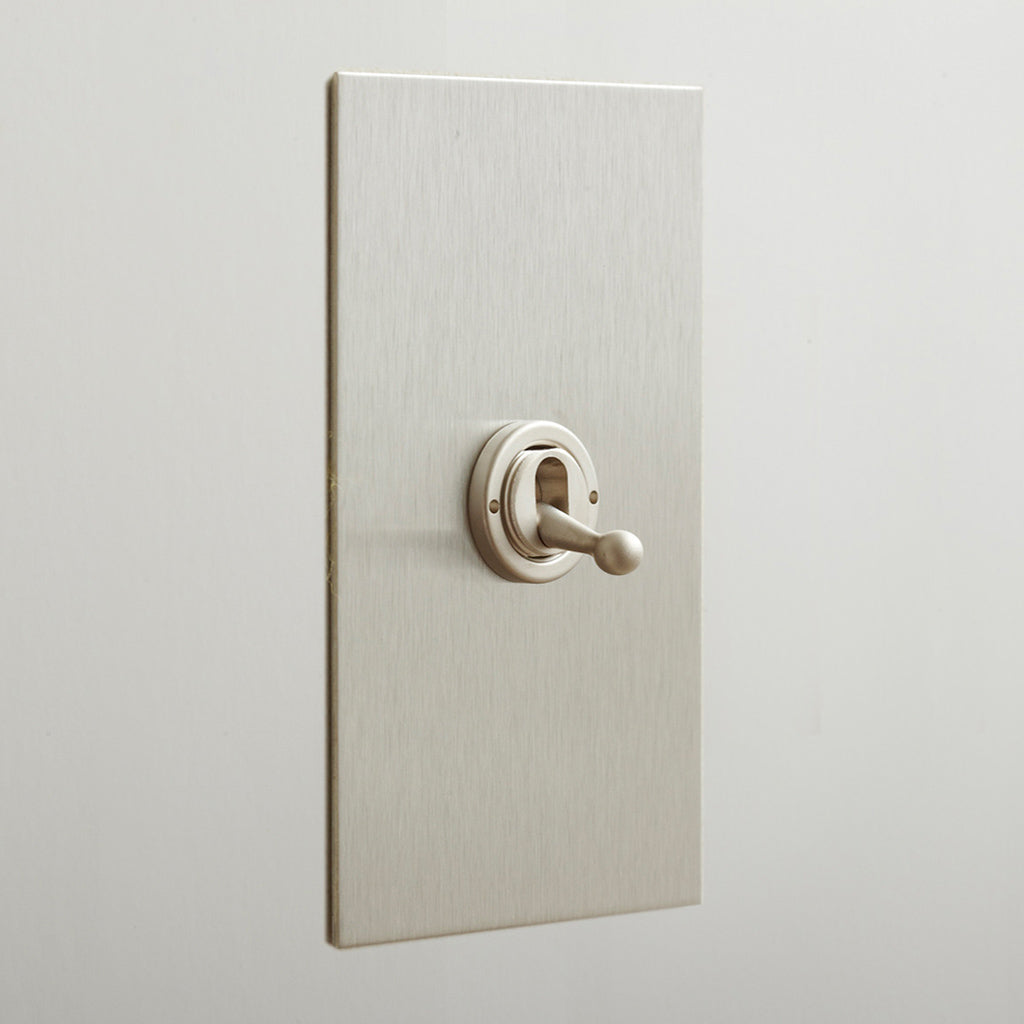

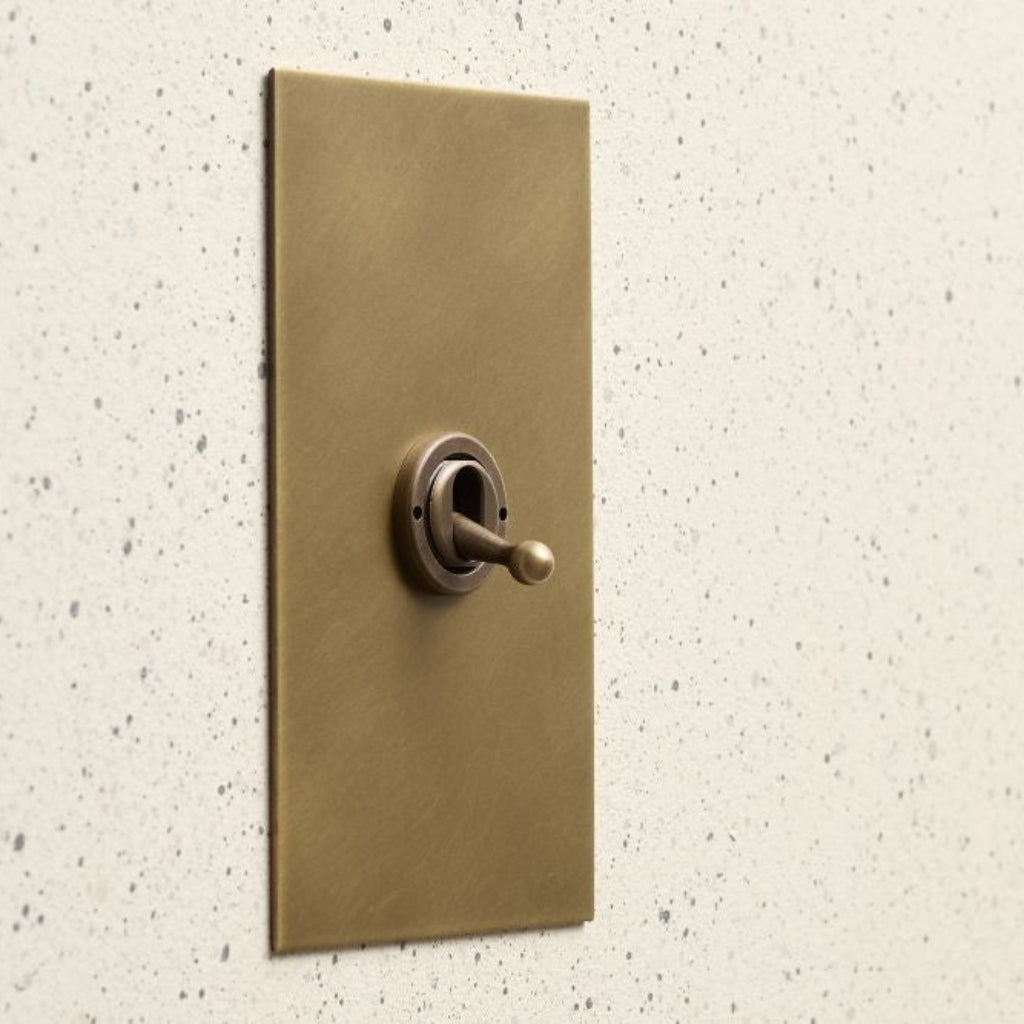

- 1 Gang: W 70 mm (2.76") x H 115 mm (4.53")

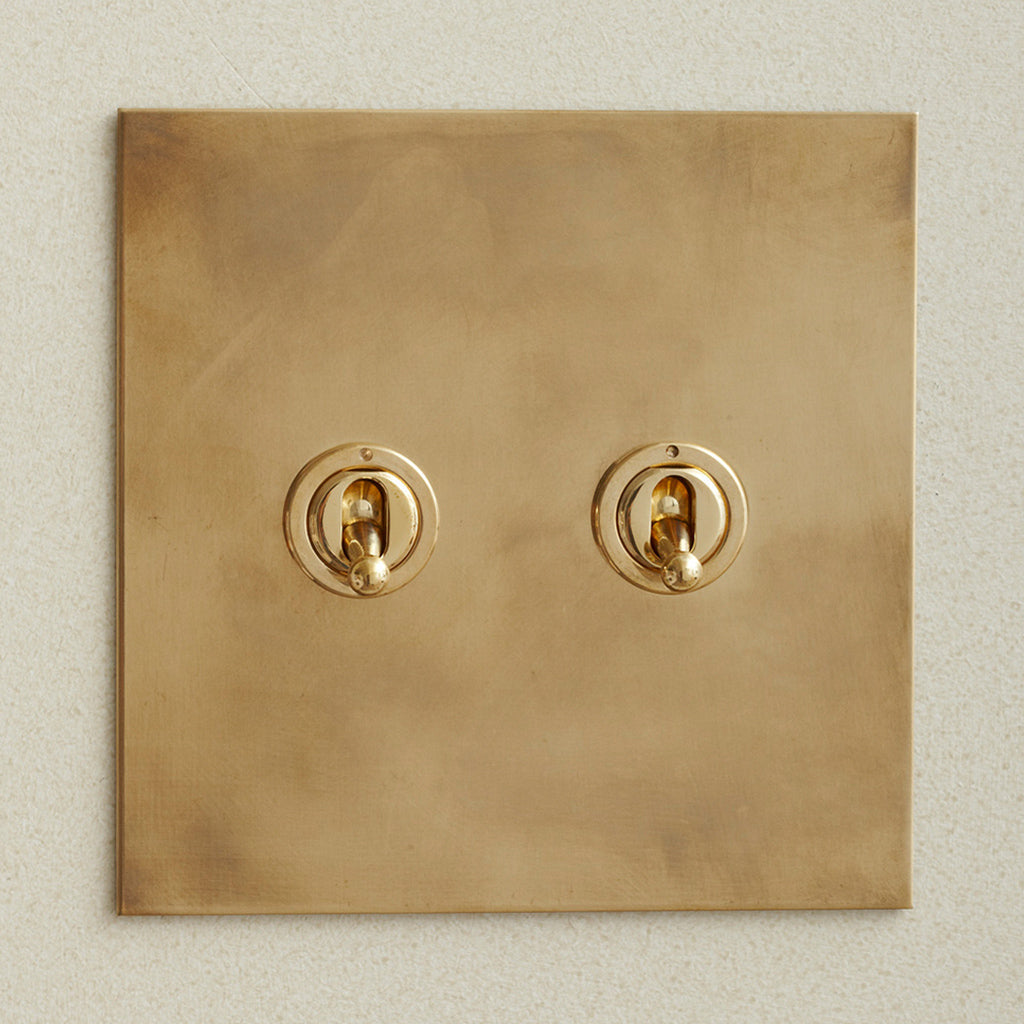

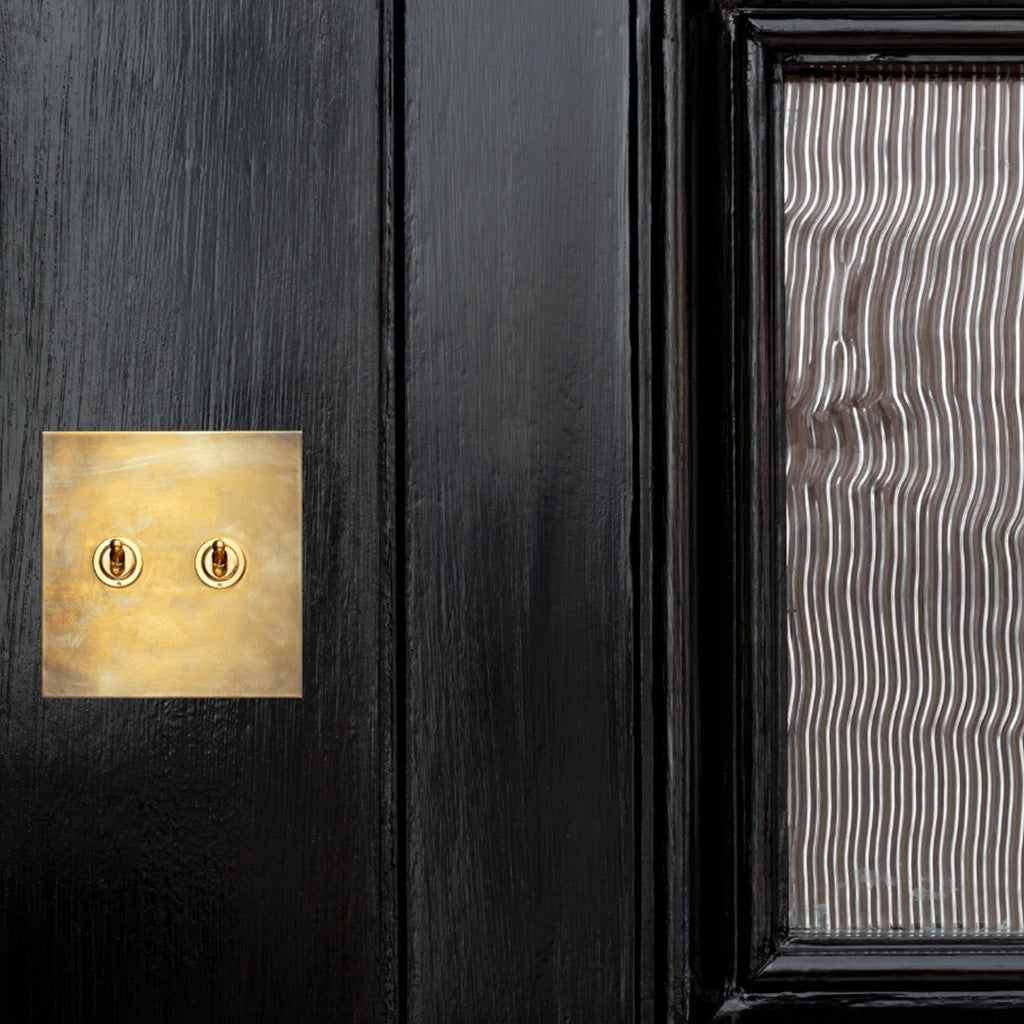

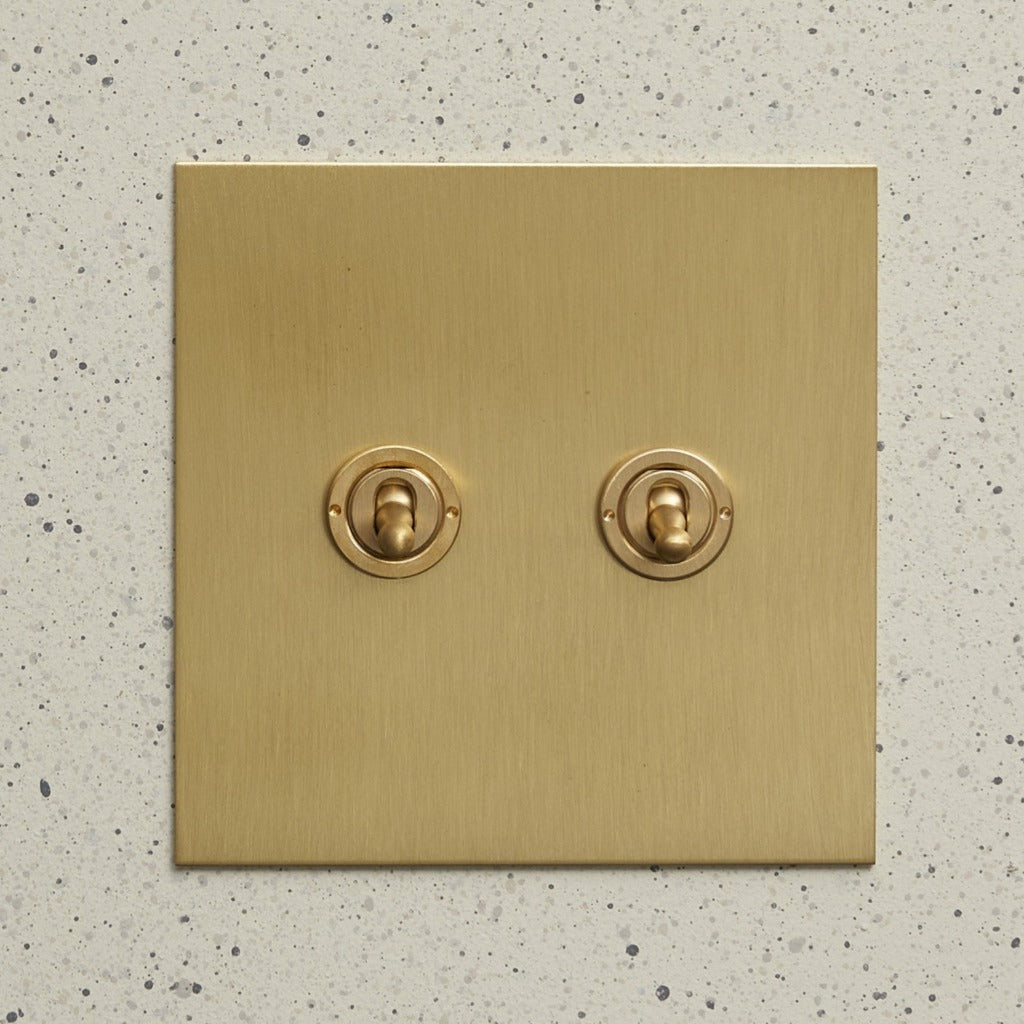

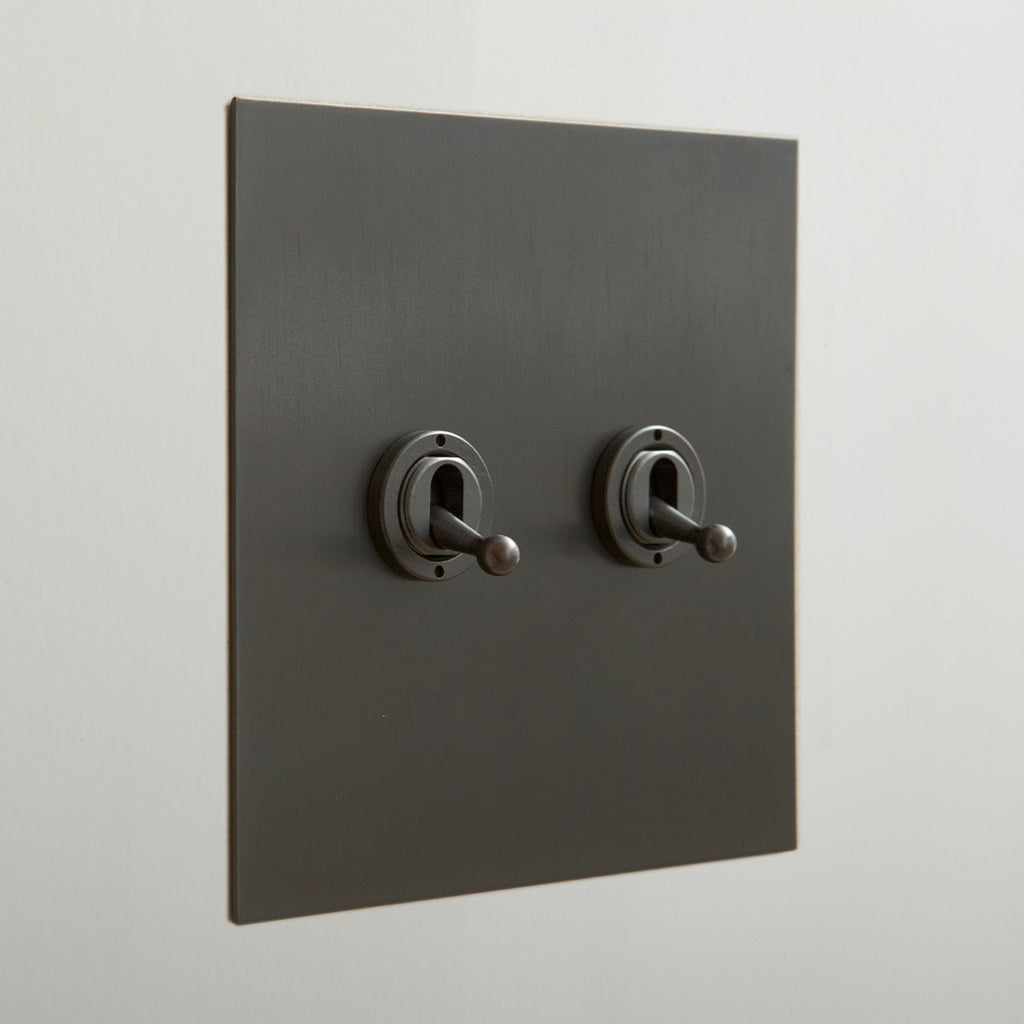

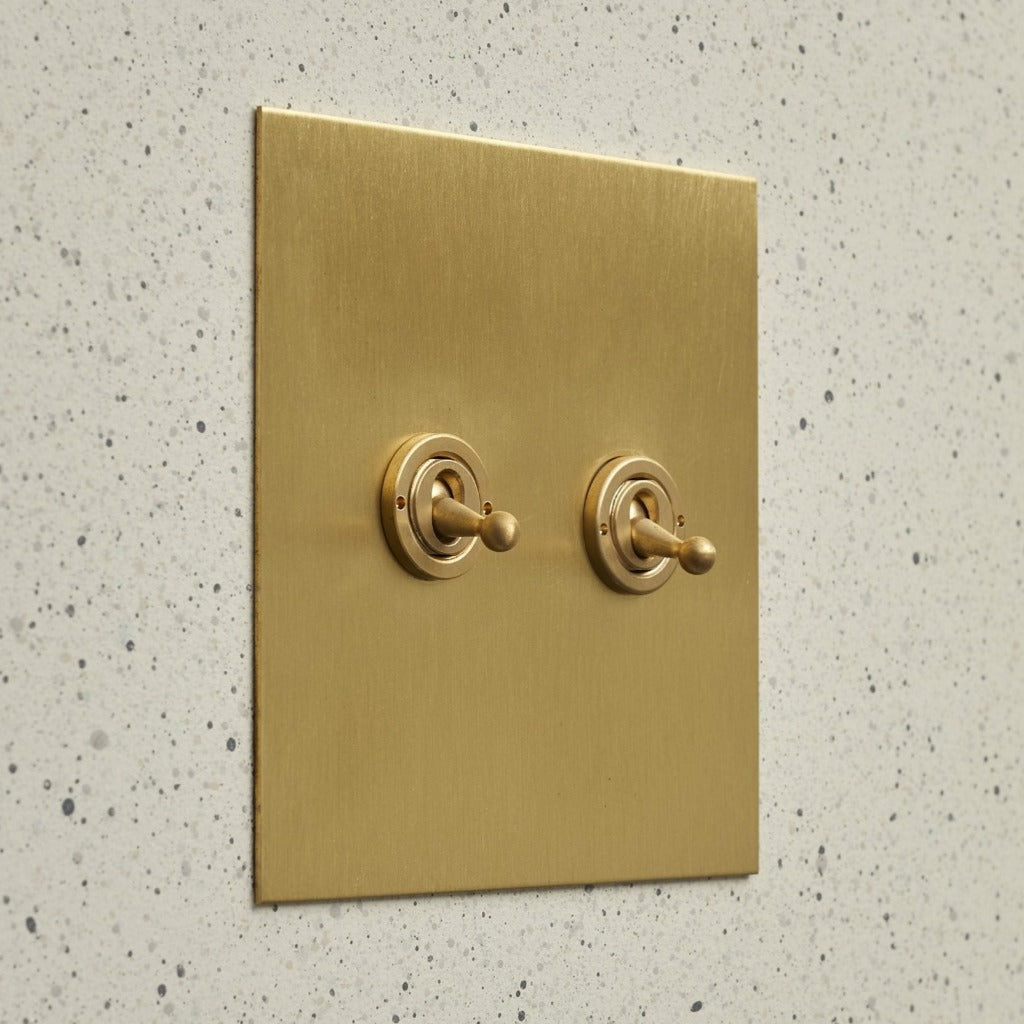

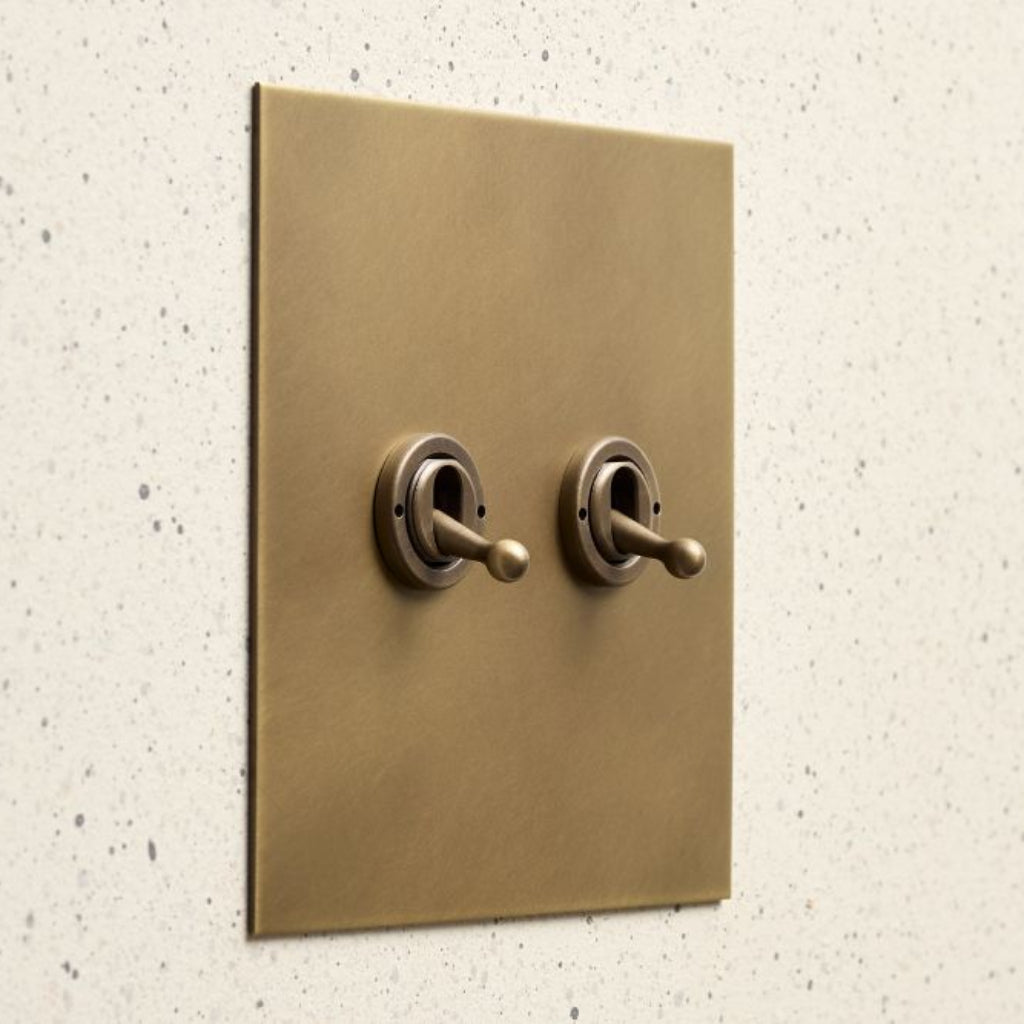

- 2 Gang: 115 mm (4.53") x 115 mm (4.53")

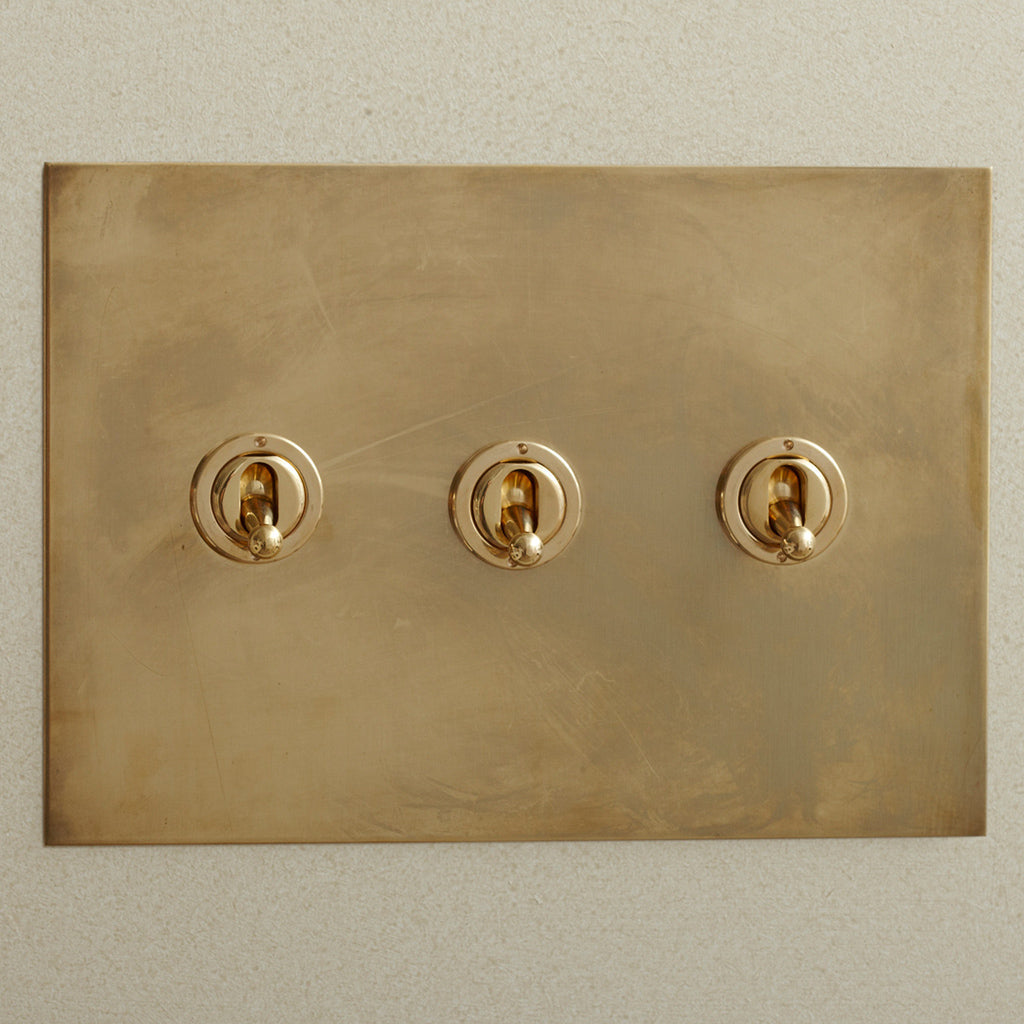

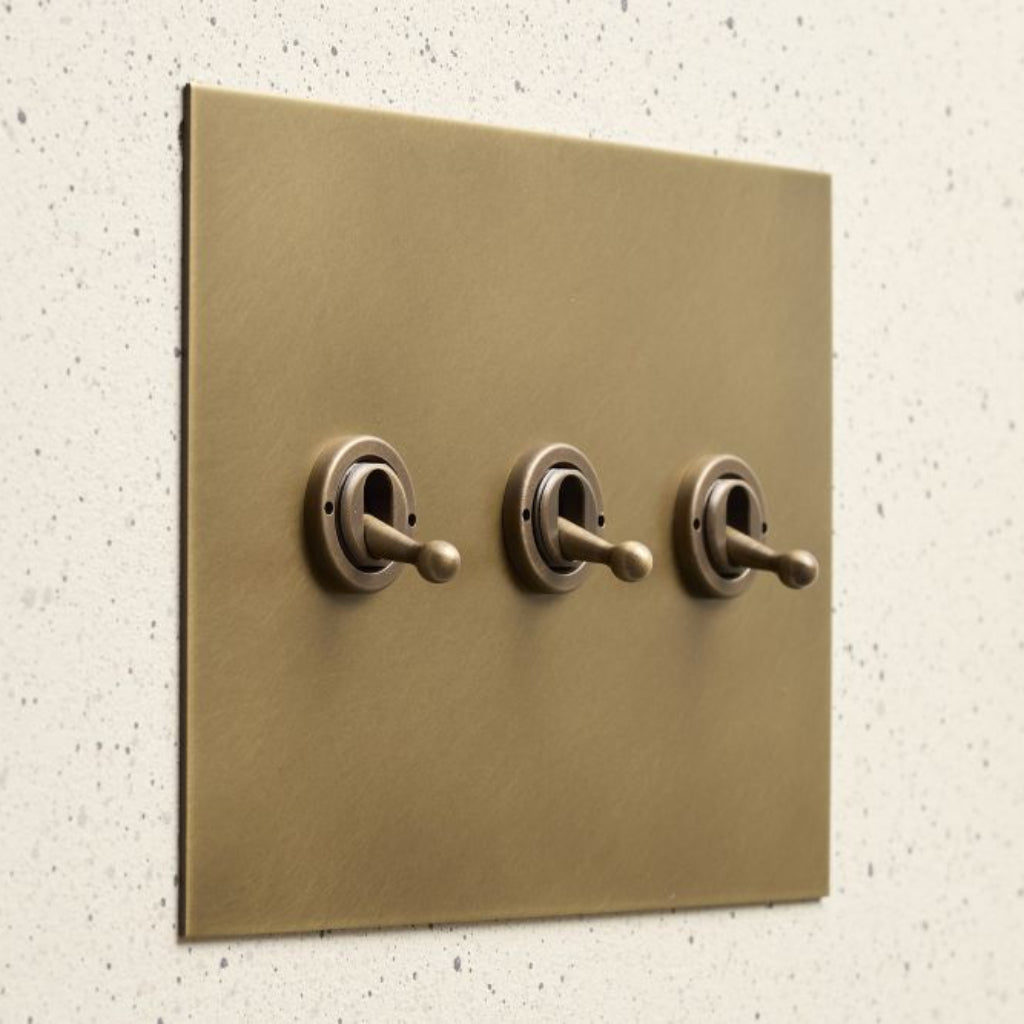

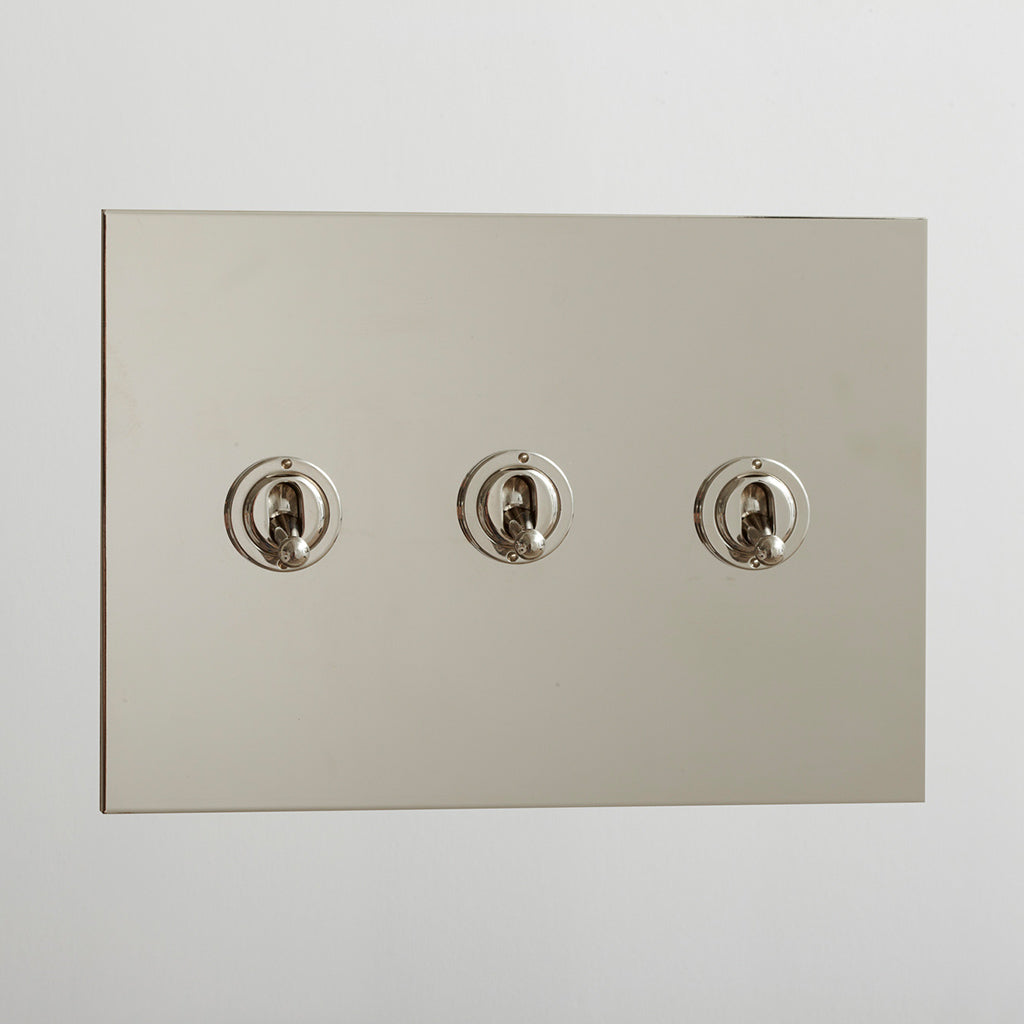

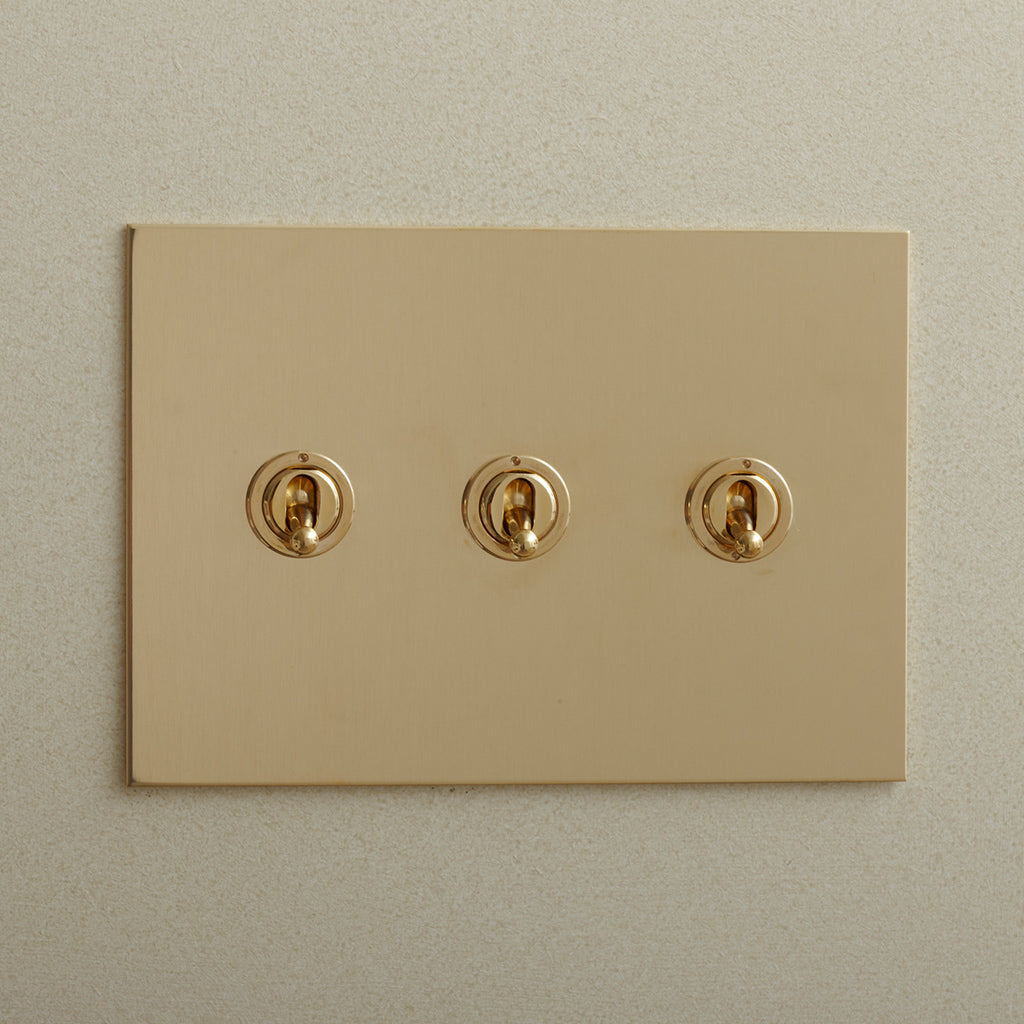

- 3 Gang: W 162 mm (6.38") x 115 mm (4.53")

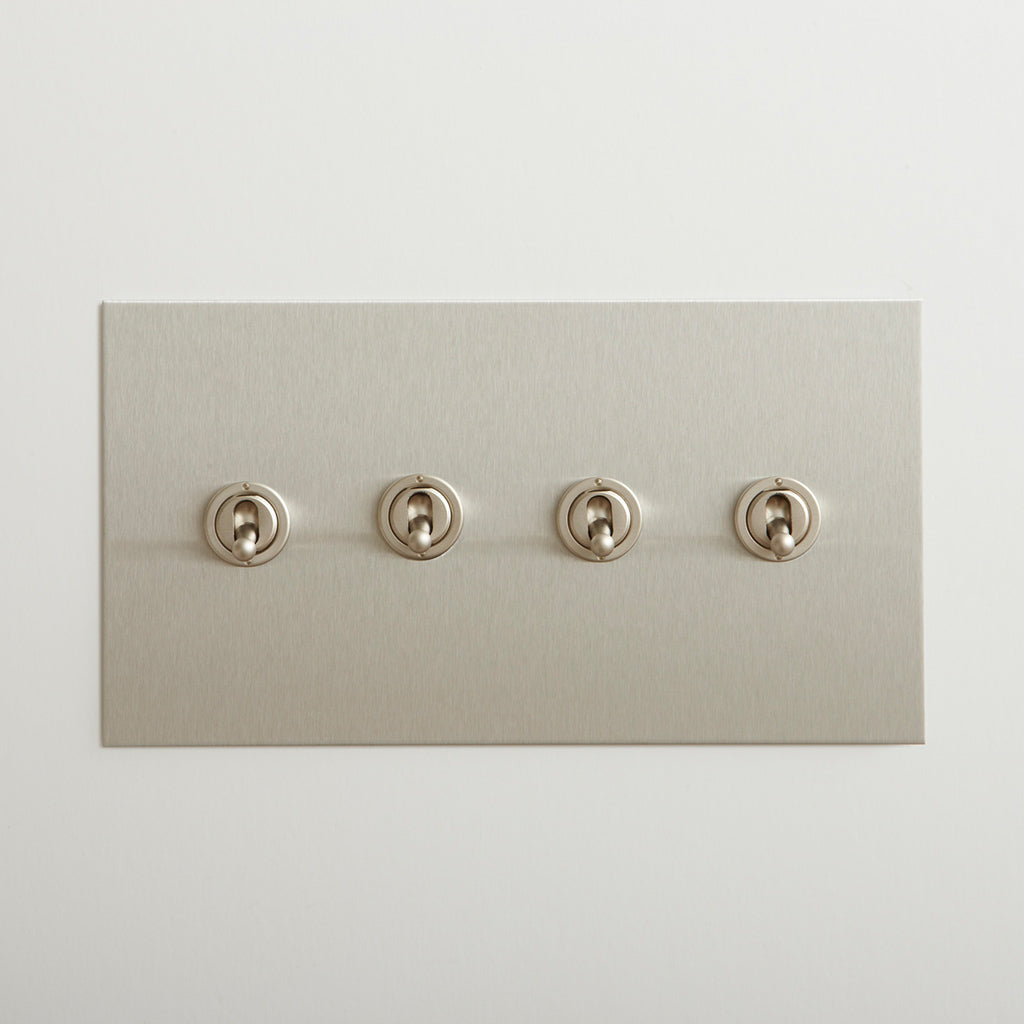

- 4 Gang: W 210 mm (8.27") x 115 mm (4.53")
Available Configurations
- 3-way, 15 A (also works as single pole)
- 4-way, 15 A
Installation Notes
- Toggle switches conform to UL 20 and are certified to CSA C22.2 No. 111
- Must be installed by a licensed electrician
- Junction boxes must be recessed below the finished wall surface by at least 1/8"
Areas of application: light-duty commercial, residential.
Materials

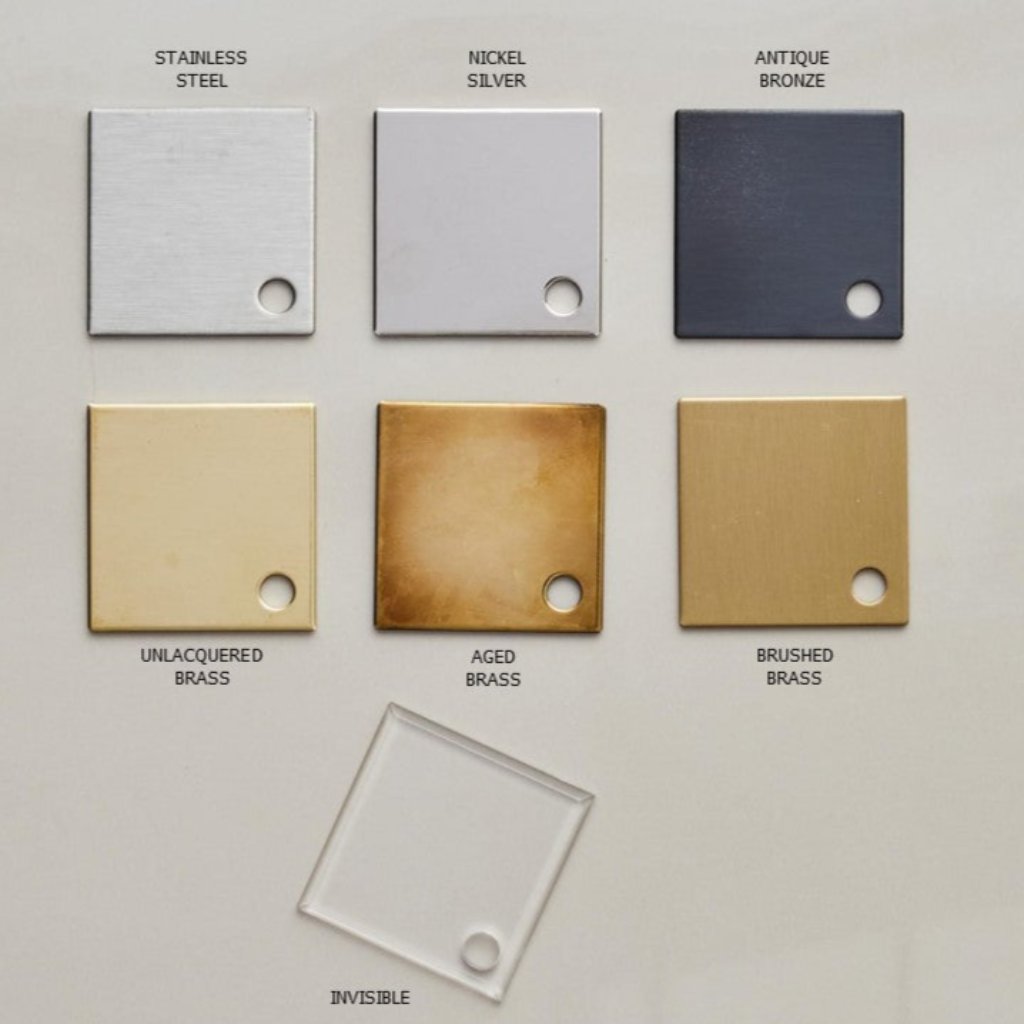

Available Finishes
- Unlacquered Polished Brass
- Aged Brass
- Nickel Silver
- Brushed Stainless Steel
- Antique Bronze
- Lacquered Brushed Brass
- Matte Brass
Unlacquered Polished Brass and Aged Brass are living finishes that change colour over time. Lacquered Brushed Brass is a non-living finish and will not change colour. Wipe clean with a dry, non-abrasive microfiber cloth. Avoid chemical or alcohol-based cleaners.
Certifications & Standards
- Toggle switches conform to UL 20 and are certified to CSA C22.2 No.111.
- Toggle Switches install into standard junction boxes but the boxes must be recessed below the finished wall surface by at least 1/8". Please refer to the Wallbox Assemble Diagram in the Installation Guide below. If you are installing into existing junction boxes, you will probably find the boxes are already recessed by at least this much but please check to make sure before placing an order.
- Toggle Switch Product SheetToggle Switch Installation GuidePlate DimensionsForbes and Lomax BrochureForbes and Lomax Care GuideCircuity Visual Aid
Product Downloads
Product Sheets
Installation & Care
Installation Notes
Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
