Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured. Learn more
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
Casson is not responsible for any damages or inconveniences resulting from the improper installation of the hardware.
Description

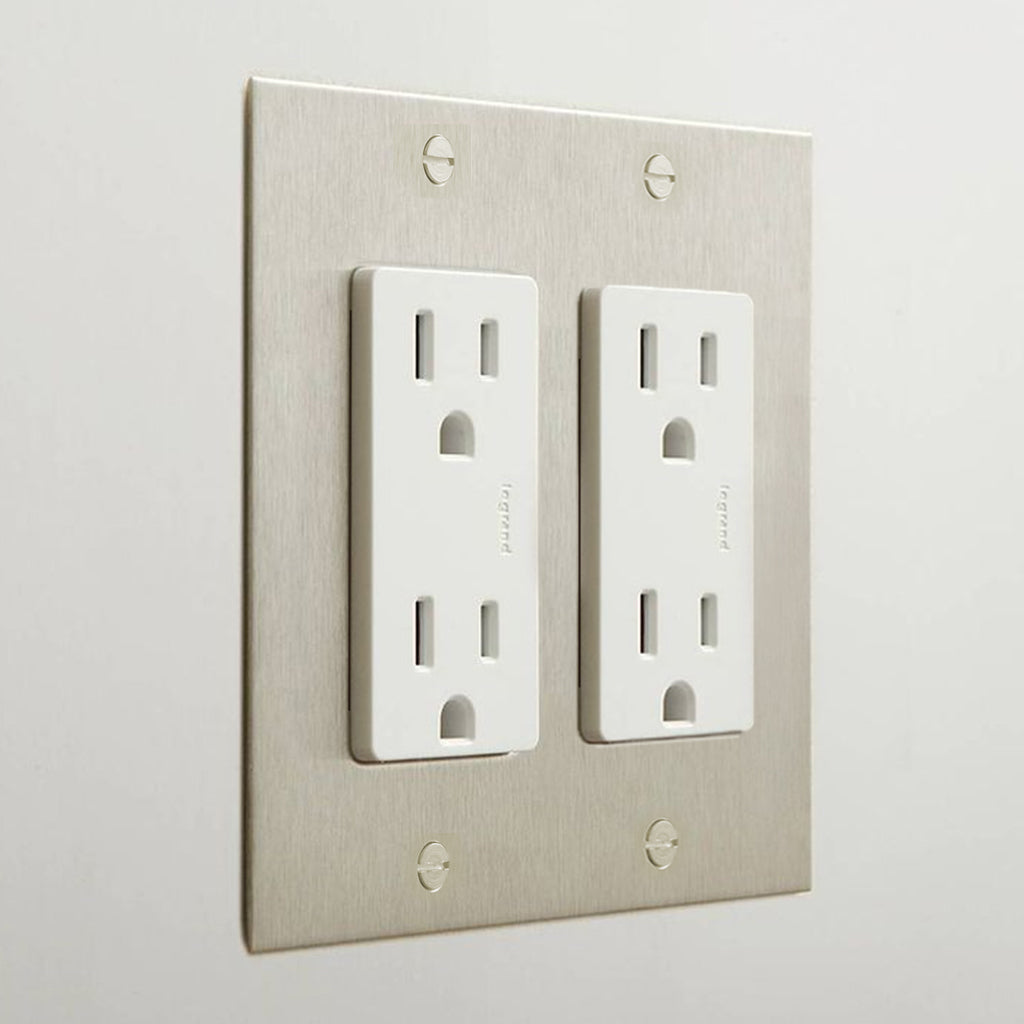

The 2 Gang Outlet by Forbes & Lomax is a 2-gang electrical outlet plate available for duplex, GFCI, USB, phone, data, and cable TV configurations. Outlets can be mixed with toggle switches, rotary dimmers, and push buttons on the same plate — contact us for custom configurations.
Established in 1987, Forbes & Lomax is a UK-based heritage electrical brand recognized by architects and designers for refined switch and outlet design.
Specifications
- 2 Gang Plate: 115 mm (4.53") x 115 mm (4.53")
- Also available: 1 Gang: W 70 mm (2.76") x H 115 mm (4.53")
- 3 Gang: W 162 mm (6.38") x 115 mm (4.53") — contact us
- 4 Gang: W 210 mm (8.27") x 115 mm (4.53") — contact us
Available Configurations
- Duplex (Tamper Resistant)
- Duplex GFCI (Tamper Resistant)
- Duplex with USB (Tamper Resistant)
- Phone (RJ11) — contact us
- Data (Cat 5 or Cat 6) — contact us
- Cable TV (F Type Coax) — contact us
Installation Notes
- Wall-plates conform to UL 514D and are certified to CSA C22.2 No. 42
- Outlets conform to UL498 and certified to CSA C22.2 No. 42
- Must be installed by a licensed electrician
- Rated for 20 amp circuits accommodating standard 15 amp plugs
- Junction boxes must be recessed below the finished wall surface by at least 1/8"
Areas of application: light-duty commercial, residential.
Materials

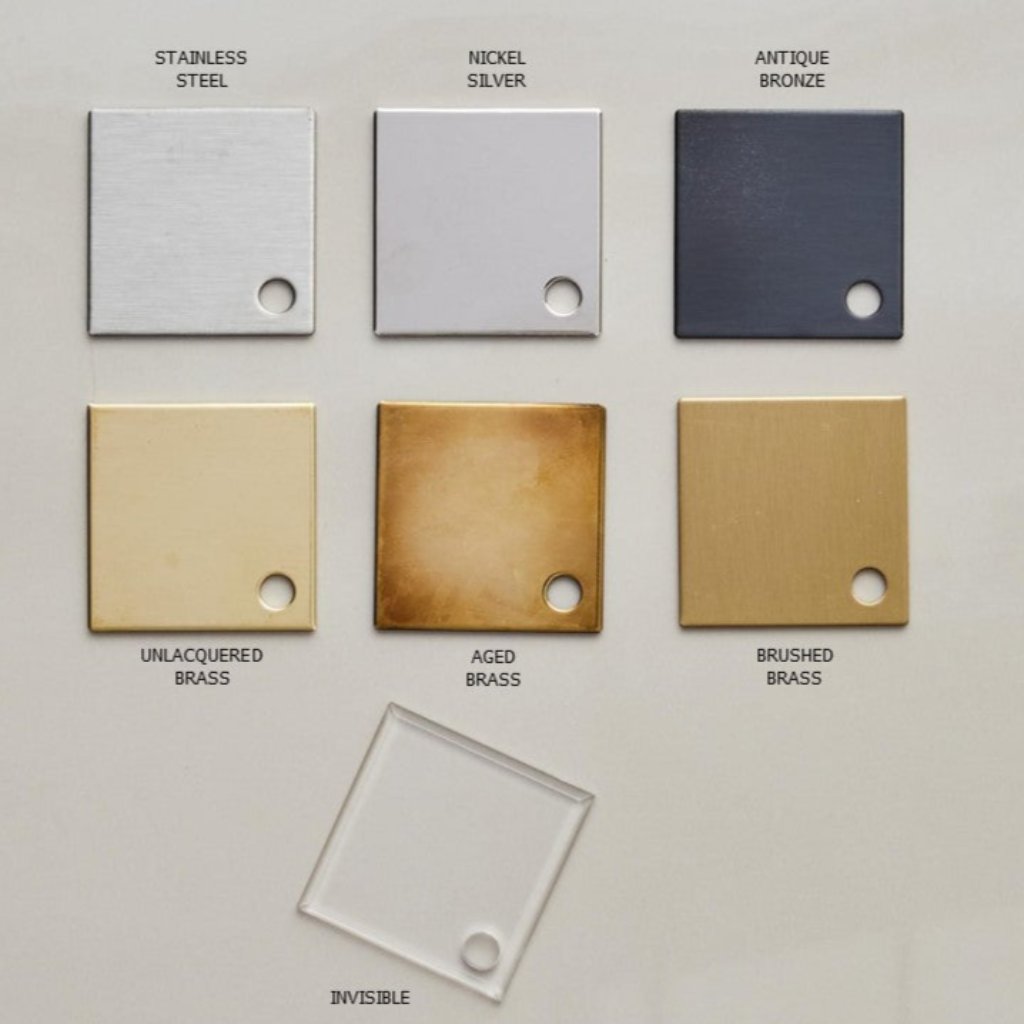

Available Finishes
- Unlacquered Polished Brass
- Aged Brass
- Nickel Silver
- Brushed Stainless Steel
- Antique Bronze
- Lacquered Brushed Brass

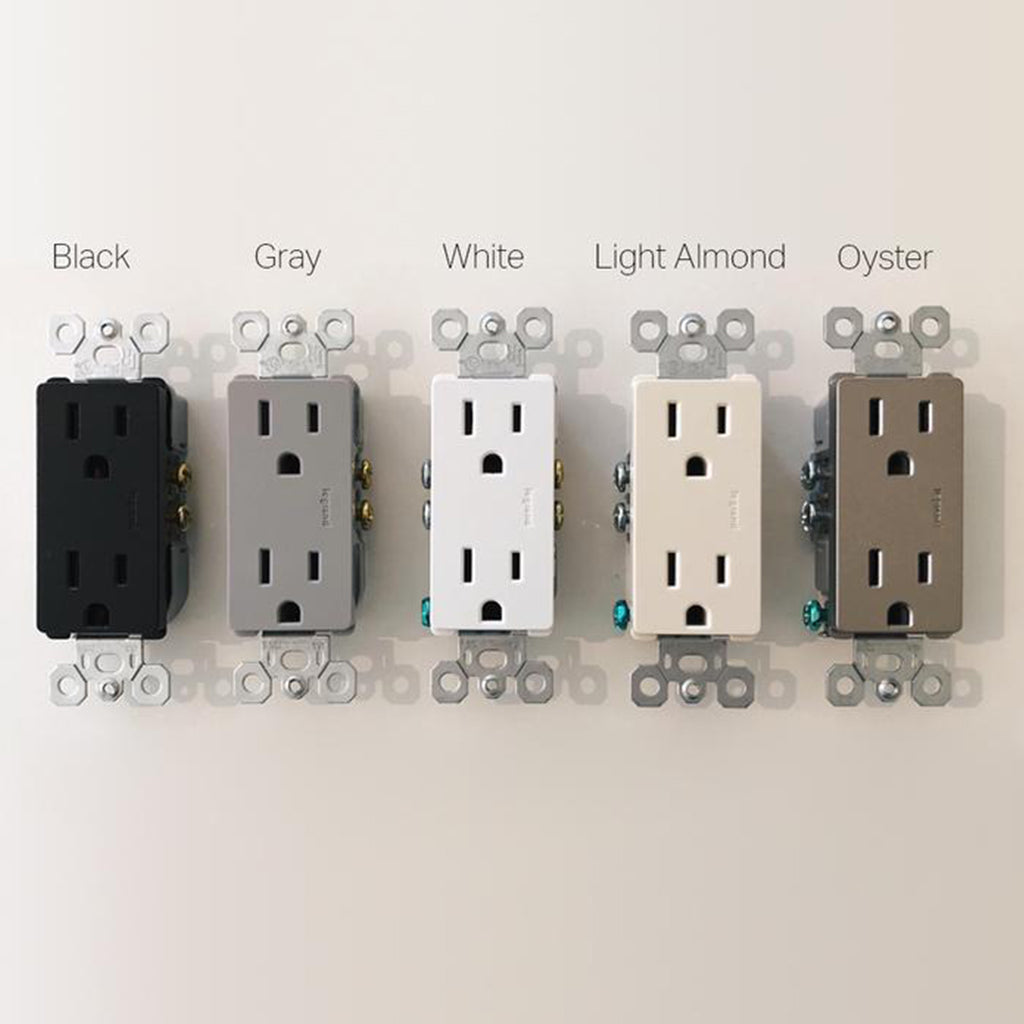

Outlet inserts available in Black, Grey, White, Light Almond, and Oyster.
Unlacquered Polished Brass and Aged Brass are living finishes that change colour over time. Lacquered Brushed Brass is a non-living finish and will not change colour. Wipe clean with a dry, non-abrasive microfiber cloth. Avoid chemical or alcohol-based cleaners.
Related Products
Certifications & Standards
- For optimal performance and compatibility with your lighting setup, we encourage customers to contact us for custom configurations, alternate outlet colors, and to send us their lighting specifications for a compatibility review before purchase.
- Wall-plates conform to UL 514D and are certified to CSA C22.2 No. 42.
- Outlets conform to UL498 and are certified to CSA C22.2 No. 42.
- Ensure that junction boxes are recessed below the finished wall surface by at least 1/8". This detail is crucial for fitting and aesthetics. For guidelines and specific diagrams, refer to the Outlet Installation Guide linked below.
- Outlet Product SheetOutlet Installation GuidePlate DimensionsForbes and Lomax BrochureForbes and Lomax Care Guide
Product Downloads
Product Sheets
Installation & Care
Finish Samples
Shop plate finish samples HERE.
