Invisible Plate Combination Rotary Dimmers and Toggle Switches by Forbes & Lomax
SKU: 2GTR1/USA
Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured. Learn more
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
Casson is not responsible for any damages or inconveniences resulting from the improper installation of the hardware.
Pairs With
Description

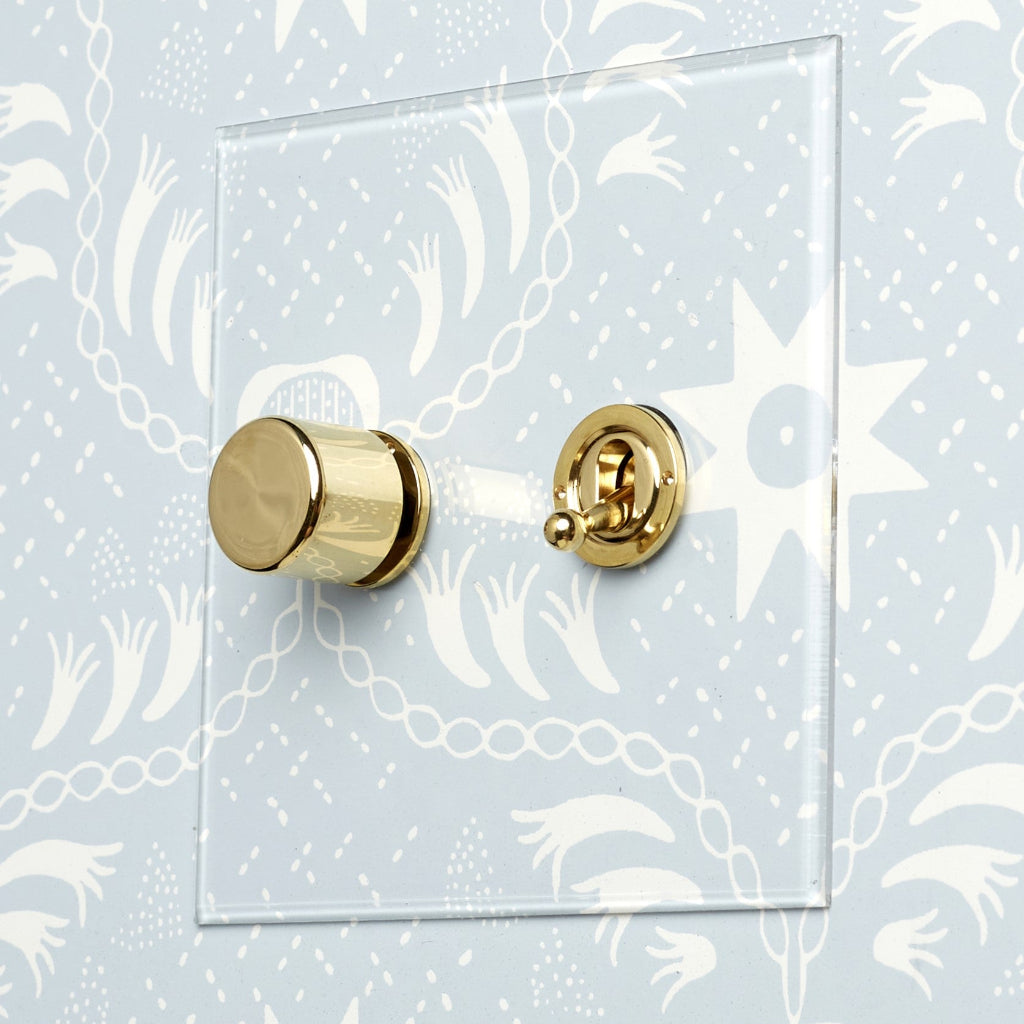

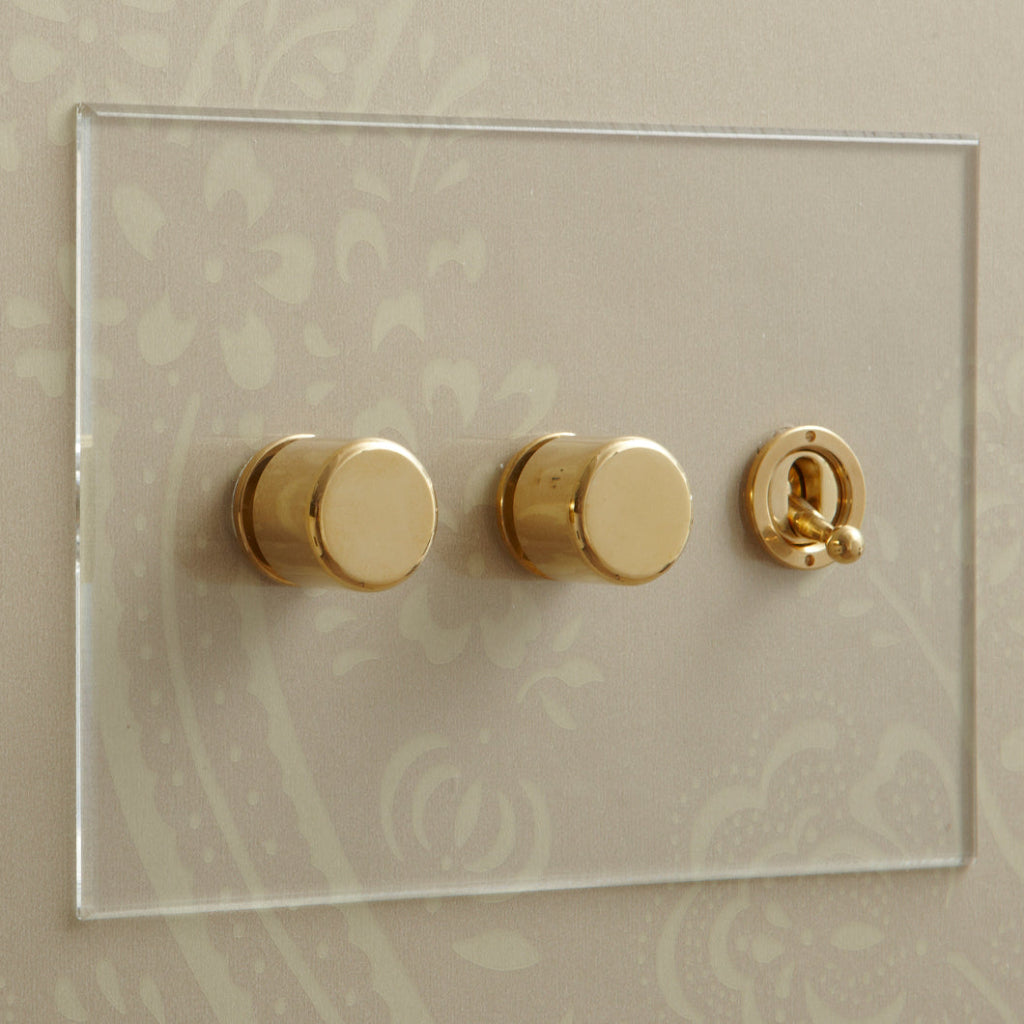

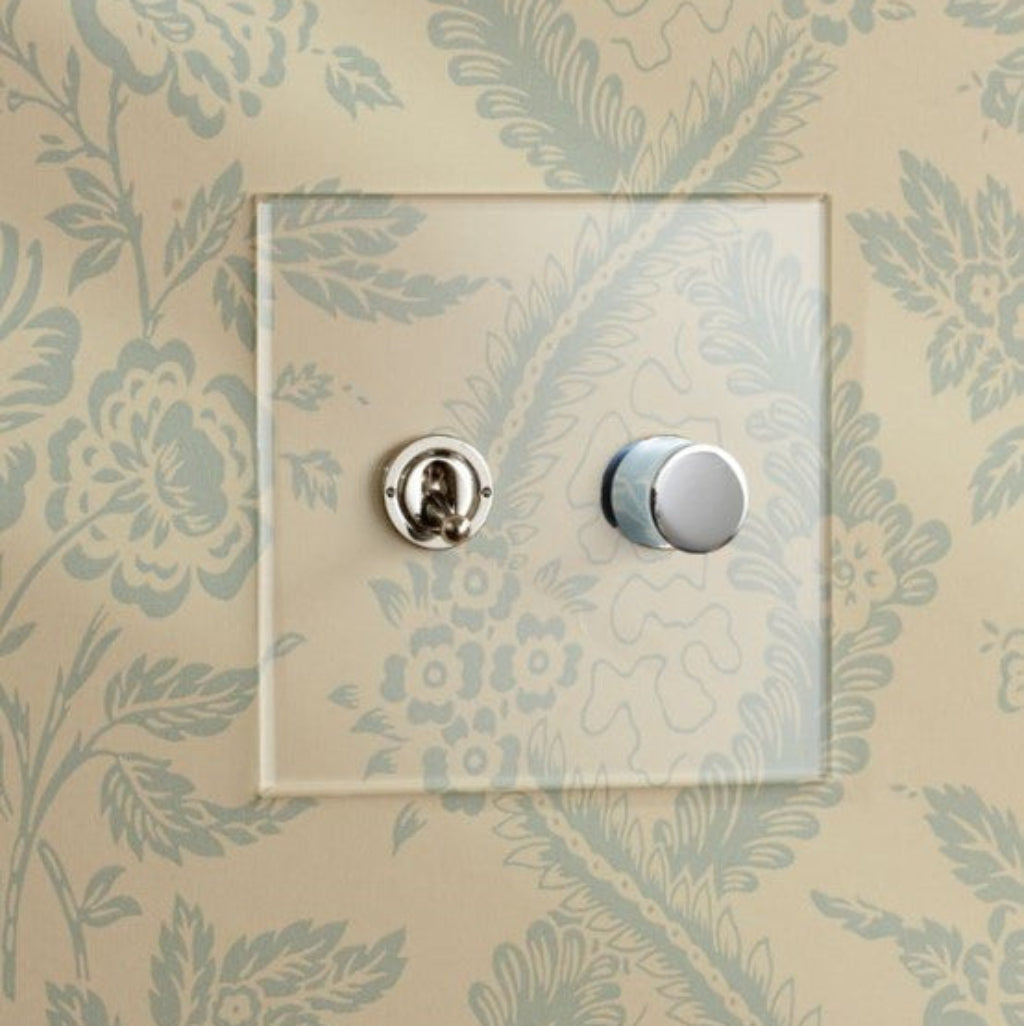

The Invisible Plate Combination by Forbes & Lomax pairs rotary dimmers and toggle switches on a single clear acrylic plate, designed to disappear against the wall surface. Inspired by glass switch plates of the 1930s, the Invisible line is engineered to showcase wall treatments — wallpaper, lime wash, plaster, or paint — while providing precise lighting control for residential and light-commercial interiors.
Each unit ships with two plates: a clear lucite top plate and a white metal backplate. When installed over stone or tile, the white backplate may require faux painting to blend. Rotary dimmers, toggle switches, and push buttons can be configured on the same plate for a fully customized control solution. Established in 1987, Forbes & Lomax is a UK-based manufacturer with a strong reputation among architects and designers for quality electrical hardware.
Specifications
- Switch Diameter: Ø 20 mm (0.79")
- Knob Diameter: Ø 20 mm (0.79")
- 1 Gang Plate: W 70 mm (2.76") × H 115 mm (4.53")
- 2 Gang Plate: 115 mm (4.53") × 115 mm (4.53")
- 3 Gang Plate: W 162 mm (6.38") × H 115 mm (4.53")
- 4 Gang Plate: W 210 mm (8.27") × H 115 mm (4.53")
Electrical Rating
- Line Voltage (conventionally wired installations)
- 3-way, 15A (also functions as single-pole)
- LED: Max. 120W LED or 300W Incandescent/Halogen
Custom Quote Options
- Incandescent: Max. 500W Incandescent/Halogen
- 0-10V (Linear): Max. 20 0-10V Dimmable Drivers
- Non-Dimming: Max. 720W any load types (ON/OFF only)
For plates combining toggle switches and rotary dimmers, the layout of elements can be adjusted on-site during installation.
Important Notes
- Toggle switches conform to UL 20 and are certified to CSA C22.2 No.111.
- Rotary dimmers conform to UL 1472 and are certified to CSA C22.2 No.184.
- LED dimmers are Forward Phase Triac dimmers, rated for up to 120W LED or 300W incandescent.
- Toggle switches install into standard junction boxes — boxes must be recessed below the finished wall surface by at least 1/8".
- Please review and ensure all certifications are applicable for your local code.
- To guarantee compatibility with higher wattage, transformer-driven, or non-replaceable LED fixtures, please email or upload light specifications before purchase.
- Must be installed by a licensed electrician.
Areas of application: Light-duty Commercial, Residential
Materials
Acrylic plate with metal toggle/dimmer components.
Available Finishes
- Unlacquered Polished Brass
- Nickel Silver
- Brushed Stainless Steel
- Antique Bronze
- Lacquered Brushed Brass
Unlacquered Polished Brass is a living finish that changes colour over time with a high-shine, polished look. Lacquered Brushed Brass is a non-living finish and will not change colour.
Care
Wipe clean with a dry, non-abrasive microfiber cloth. Avoid chemical or alcohol-based cleaners. Refer to the care guide below for best practices.
Product Downloads
- Toggle Switch Product Sheet (PDF)
- Toggle Switch Installation Guide (PDF)
- Rotary Dimmer Product Sheet (PDF)
- Rotary Dimmer Installation Guide (PDF)
- Plate Dimensions (PDF)
- Forbes and Lomax Brochure (PDF)
- Forbes and Lomax Care Guide (PDF)
- Optimizing The Performance Of Your Triac LED Dimmers (PDF)
- Circuitry Visual Aid (PDF)
Finish Samples
Shop plate finish samples HERE.
