Custom Bocci 22: Double Alternate Material Universal Router Template
REQUIRED TOOLS
- Description
- Additional Components
- Product Downloads
- Order Guide
- Finish Samples

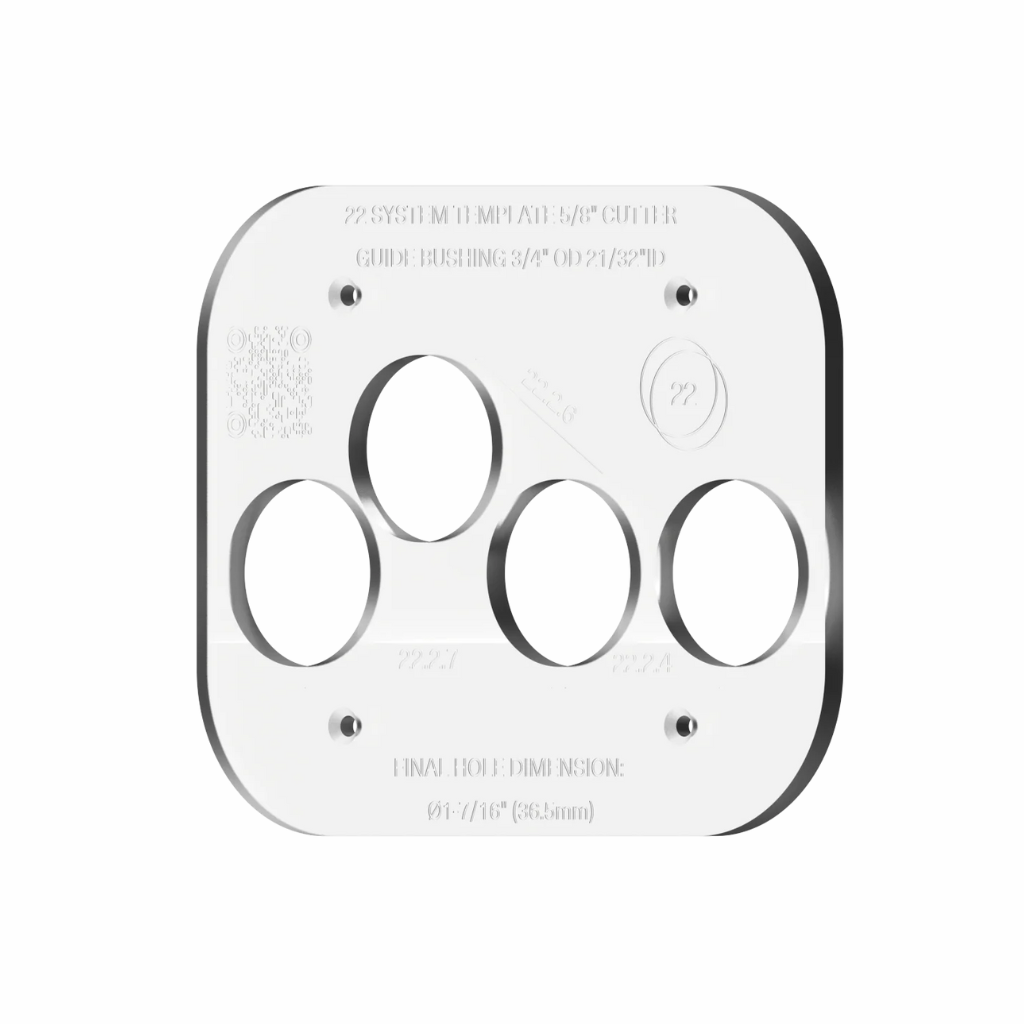

The Bocci double gang router template is tailored for the 22 System Ø35 double kits, accommodating a variety of alternate materials such as millwork, glass, stone, tile, and more. Designed for both linear and diagonal installations, it is versatile for double gang applications. The template caters to a broad spectrum of finish material thicknesses, ensuring compatibility and precision for diverse installation environments. It is a practical and reliable tool for professionals engaged in electrical and networking installations, allowing for seamless integration with any of the 22 System Ø35mm devices.
Bocci Router Templates are sold individually to build your own package. Find individual components separately here.
*FAQ & ORDER GUIDE TABS AT THE BOTTOM OF THE PAGE*
Find individual components separately here.
22.3.2 On/off switch, regular barrel only
22.3.3 RJ12 Telephone, regular barrel
22.3.3M RJ12 Telephone, medium barrel
22.3.3L RJ12 Telephone, long barrel
22.3.5 F connector (cable), regular barrel
22.3.5M F connector (cable), medium barrel
22.3.5L F connector (cable), long barrel
22.3.6 Intelligent control, regular barrel only

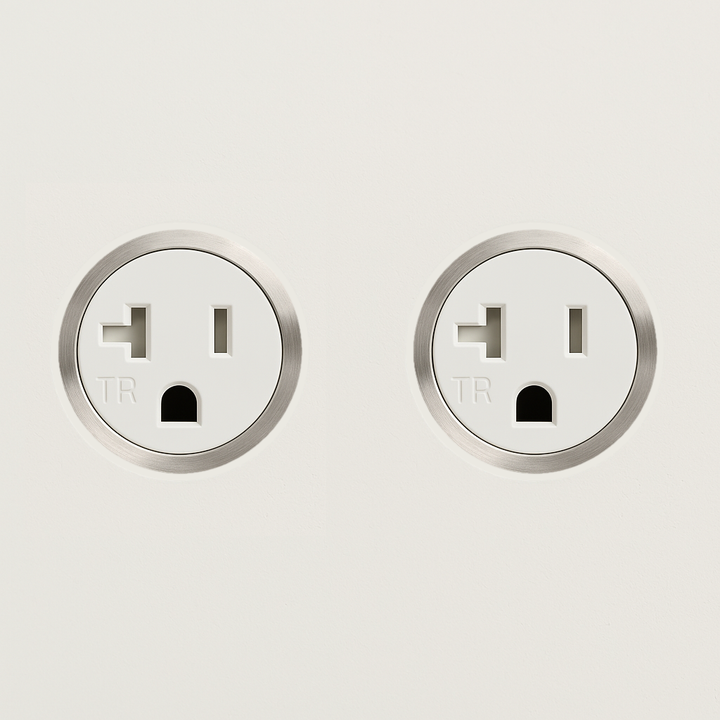

22.3.7 Outlet 15A 120V, tamper resistant, regular barrel
22.3.7M Outlet 15A 120V, tamper resistant, medium barrel
22.3.7L Outlet 15A 120V, tamper resistant, extended barrel
22.3.8 Outlet 20A 120V, tamper resistant, regular barrel
22.3.8M Outlet 20A 120V, tamper resistant, medium barrel
22.3.8L Outlet 20A 120V, tamper resistant, extended barrel
22.3.9 CAT6 (data), regular barrel
22.3.9M CAT6 (data), medium barrel
22.3.9L CAT6 (data), long barrel
22.3.10 USB, regular barrel
23.3.10L USB, long barrel
22.3.12 HDMI, regular barrel
22.3.12M HDMI, medium barrel
22.3.12L HDMI, long barrel
To determine which Bocci items are best for your application, please review the following questions and watch these videos for both Drywall and Alternate Installation:
1. WHERE IS IT BEING INSTALLED?
2. WHAT TYPE OF MOUNTING PLATE DO YOU WANT?
- Single
- Double Linear: For vertical or horizontal mounting
- Double Random: Set on an angle
3. WHICH COMPONENT DO YOU NEED?
- Amp 15A or 20A (confirm with your electrician if you're unsure)
- If going into an alternate (ex. stone) substrate, which length do you need? Read this chart to help you determine which length is right for your project All found on the product page and linked here
- Select Finish (black/white/almond)
4. DO YOU WANT TO BUY AS A FINISHED KIT OR INDIVIDUALLY AS PARTS?
- Kit
- Parts
- Additional Components Sold Separately
- Plaster or Tile Trim Cap: Required for installation in wet material (plaster, concrete tile/grout, mortar, etc.)
- Removal Tool: Required for all Bocci 22 installations
- Double Alternate Material Universal Router Template: Optional for Alternate Material installations when using a router to fabricate both linear and diagonal Bocci layouts.
Shop finish samples HERE.
