Pairs With
Description

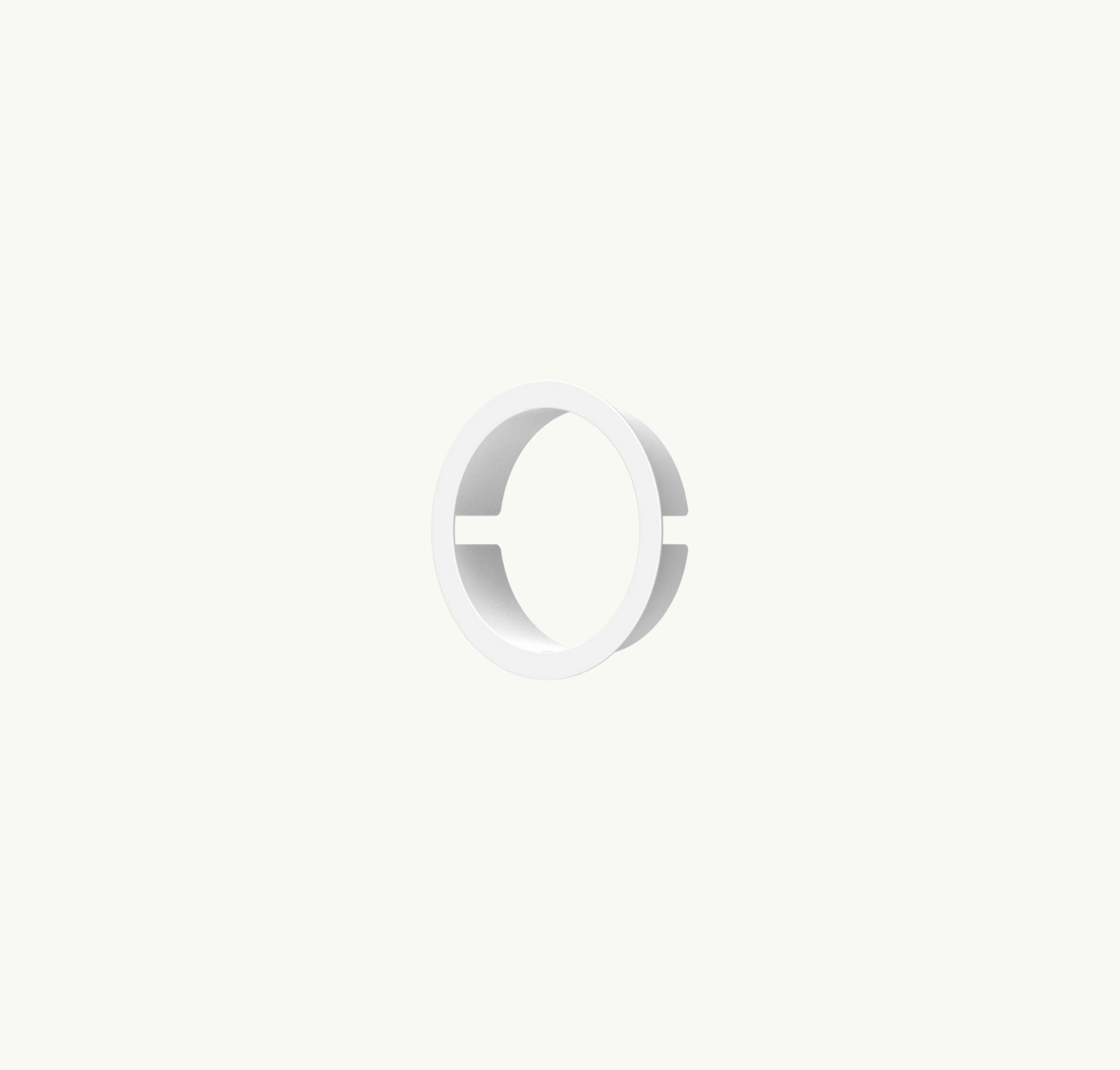

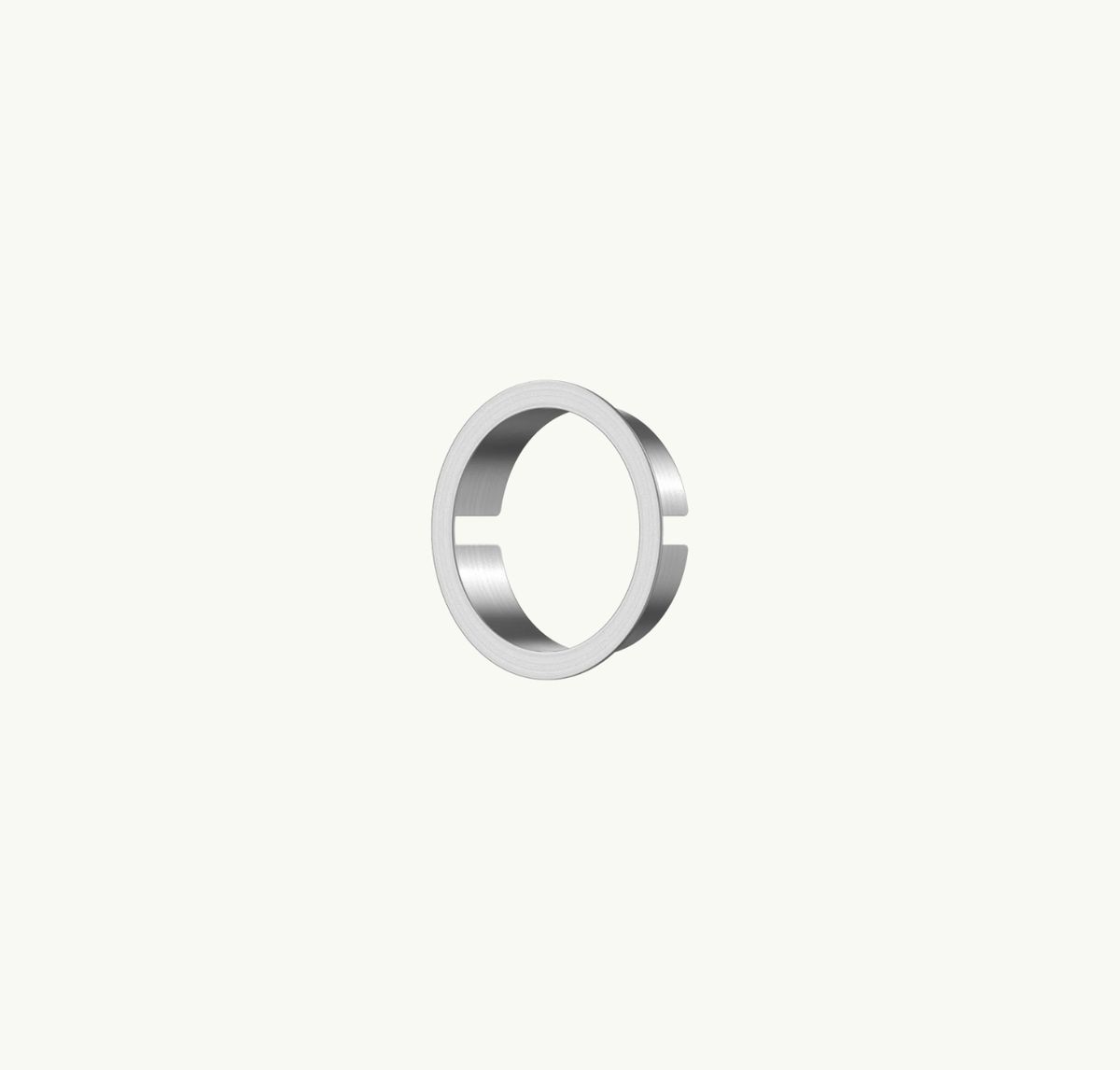

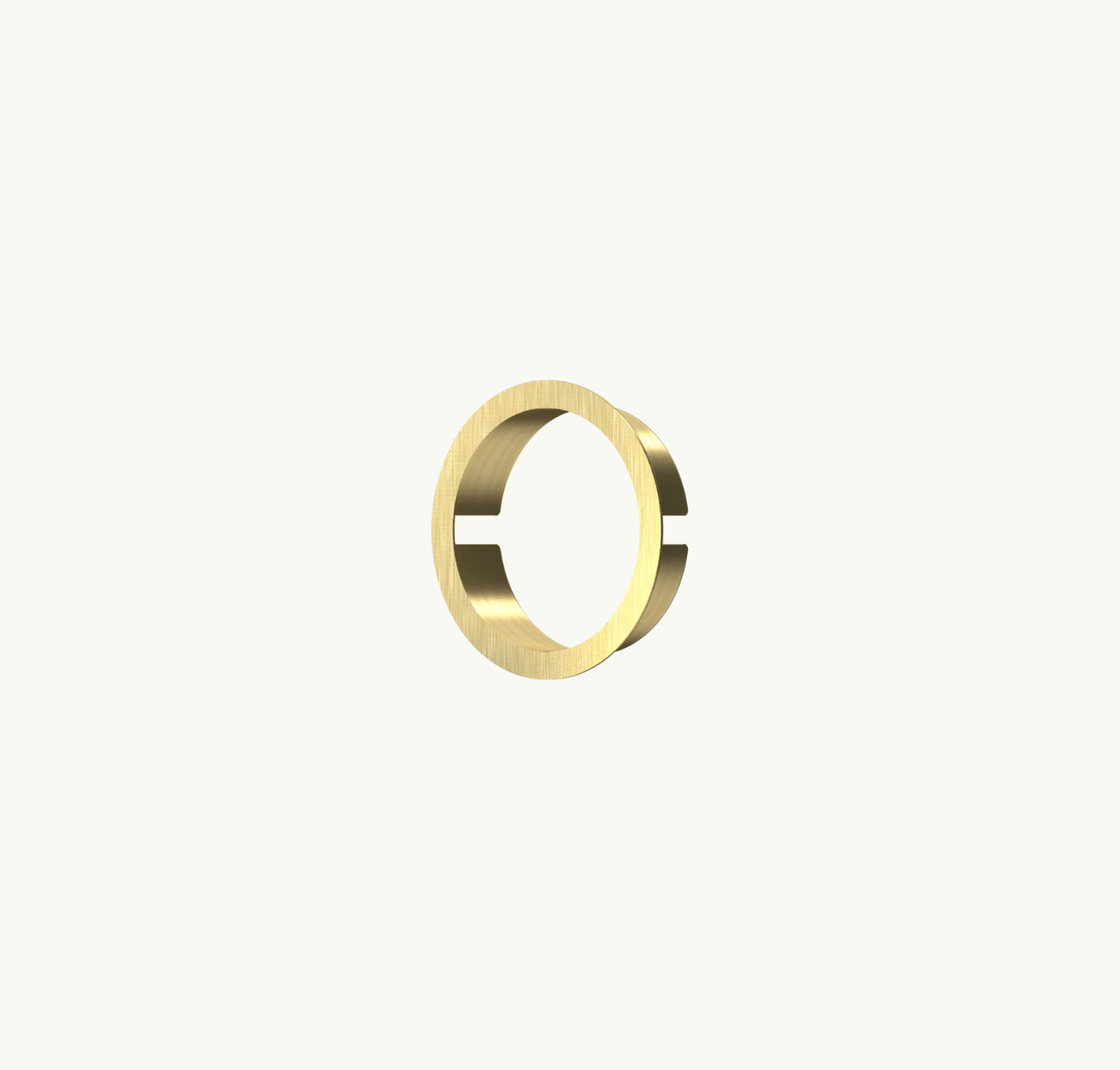

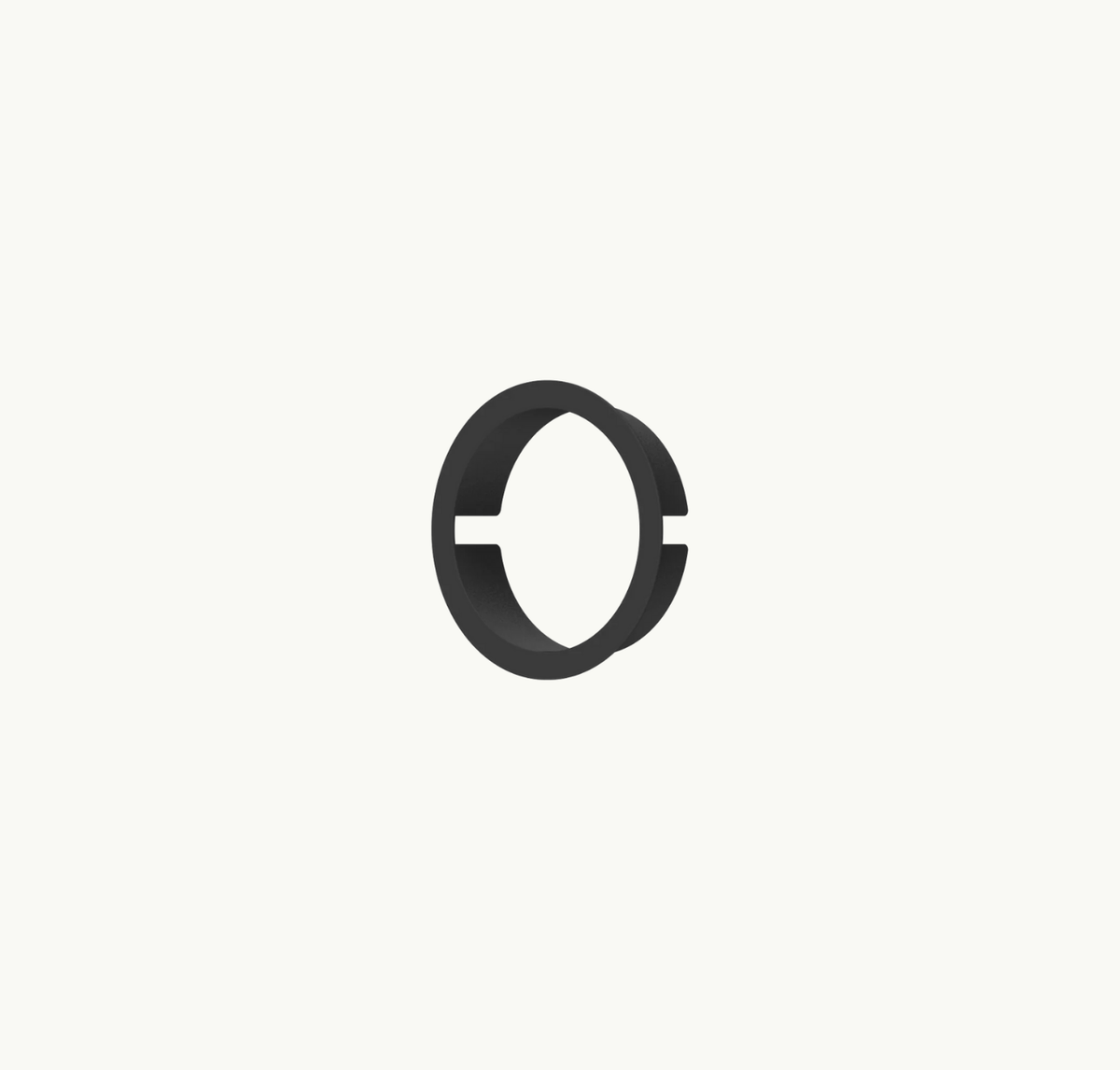

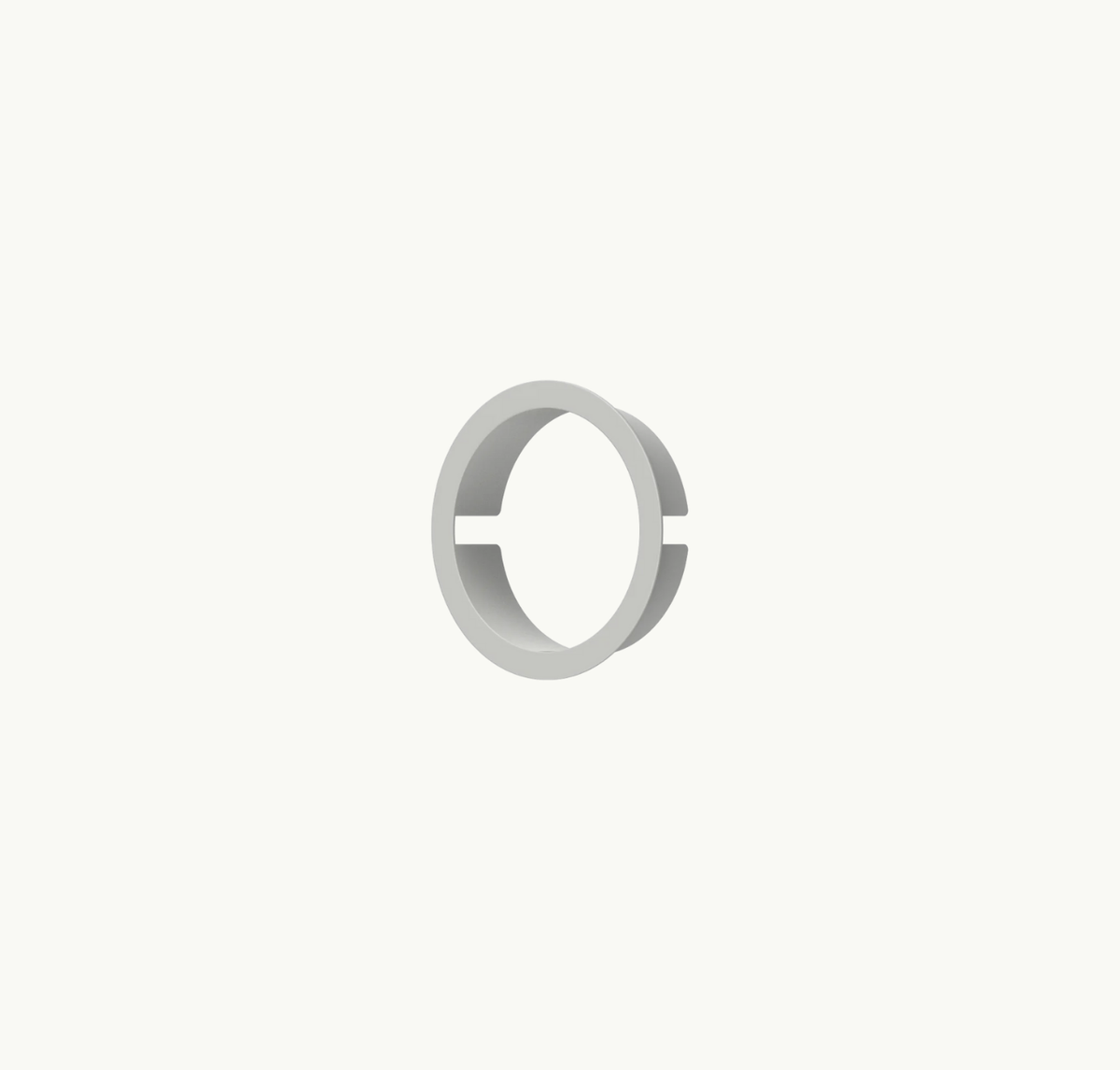

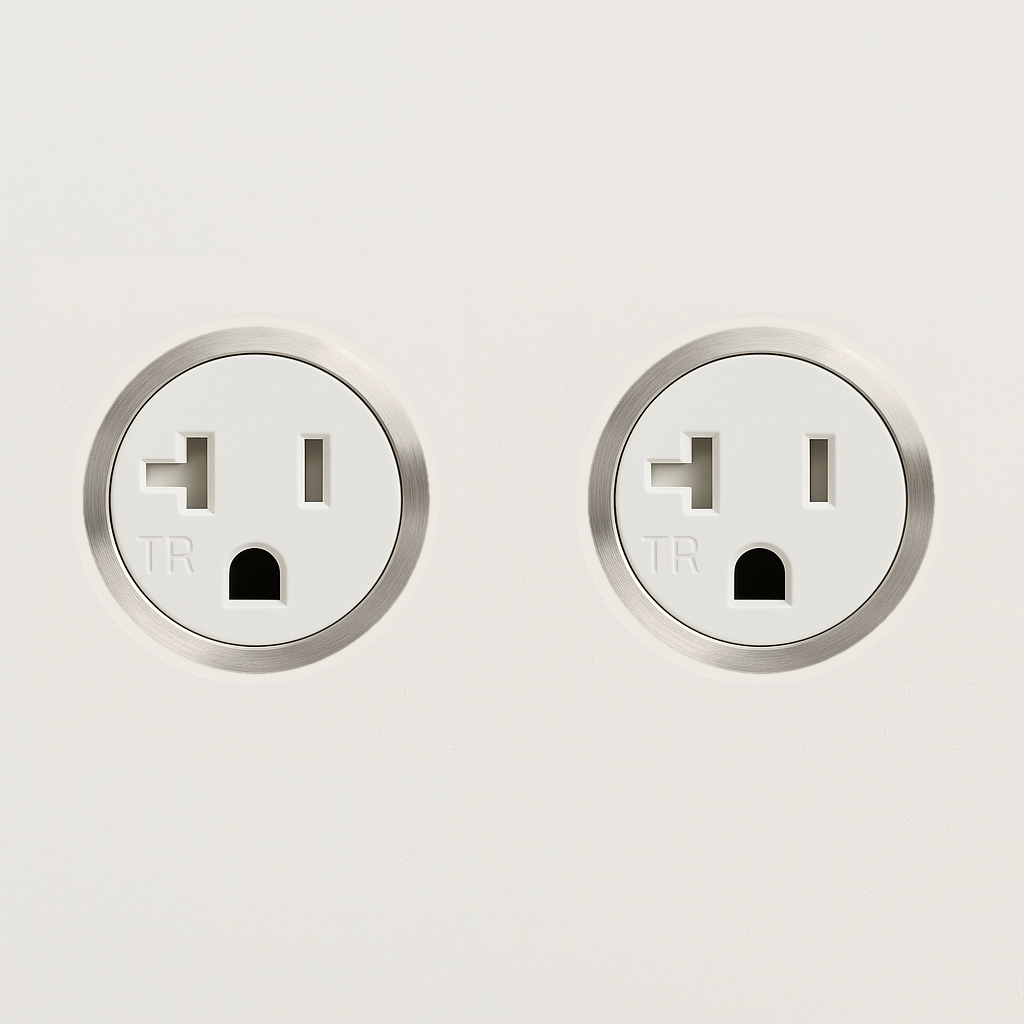

The Ø35 ring trim cover is an optional accessory designed to conceal the reveal and provide a refined finishing touch to Ø35 devices. It is part of the 22 System, a suite of flush electrical accessories and plates that create an ultra-minimal, seamless look for walls—ideal for design connoisseurs who appreciate precision and detail.
The 22 System mounting plates and devices are compatible with conventional junction boxes and wiring. Cylindrical devices lock securely into a receiving system, which is either mudded directly into drywall or set into a sheet of finish material. The result is a fully integrated assembly with no visible cover plates, ensuring a clean, uninterrupted flush wall surface.
Specifications
Ø 35 mm (1.3")
Product Downloads
Bocci 22 Brochure
Bocci 22 Barrel Depth Selection Guide (use this guide to help select barrel length)
Bocci 22 CAD Files
Bocci 22 3DM Files
Bocci 22 SKP Files
Bocci 22 FAQ
Order Guide
To determine which Bocci items are best for your application, please review the following questions and watch these videos for both Drywall and Alternate Installation:
1. Where is it being installed?
2. What type of mounting plate do you want?
- Single
- Double Linear: For vertical or horizontal mounting
- Double Random: Set on an angle
3. Which component do you need?
- Amp 15A or 20A (confirm with your electrician if you're unsure)
- If going into an alternate (ex. stone) substrate, which length do you need? Selection guide here
- Select Finish (black/white/almond)
4. Do you want to buy as a finished kit or individually as parts?
- Kit: Drywall | Alternate
- Parts: Mounting Plate | Components
- Additional: Plaster/Tile Trim Cap | Removal Tool (required for all installations)
FAQ
How do I Install?
View our Drywall installation video or Alternate installation video or download the installation instructions in the Product Downloads Section above.
Is the Bocci 22 System UL approved?
Yes, the 22 System is CE compliant and UL certified, designed following UL standards 498 and 514D and the National Electrical Code (NEC 2020, NFPA 70). View UL certification.
What surfaces can I install into?
Any surface: drywall, millwork, concrete, tile, stone, glass, etc. There are two assembly options, one for drywall and one for all other surfaces.
What colour options are available?
White, almond, and black. View colour options.
Custom colours?
For larger volumes, Bocci can sometimes work on custom colours or finishes. Please contact us for more information.
Are the outlets tamper resistant?
Yes, 22 System outlets are tamper resistant and bear the "TR" marking on the outlet face.
What junction box should I use?
Standard depth junction boxes are compatible. Must have two screw holes in the middle plane, spaced 83 mm (+/- 0.5 mm) apart.
Which component size for alternate materials?
See the alternate selection chart.
Is there a GFI/GFCI outlet?
Bocci 22 does not offer a GFCI outlet directly. Code can be met using the TR outlet with an independently sourced GFCI installed remotely in the panel. Consult a certified electrician.
Do I need the removal tool?
Yes, required for all 22 System installations to access junction box wiring. Compatible with all component depths.
Can I mix line voltage and low voltage on one plate?
Yes, if your junction box has a permanent barrier or listed divider with separated raceway. See NEC 2008: Article 800.133 Exception #1 and Article 620.36.
What is the 22.3.6 Keypad Control for?
A minimalist keypad for smart home systems, programmable via CAT5 connection.
Is there a dimmer?
Not currently, but the 22.3.6 keypad can be programmed to control dimming through a smart home system.
Installation Notes
Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
