Bocci 22: Flush Outlet System

Select your mounting surface, device configuration, and outlet type. Your setup will determine the required components to complete your set — accessories can be added as needed.


Final price is shown below once all components are selected.



This quantity reflects the number of complete sets being added to your cart.

Original price$0.00
/
Shipping calculated at checkout.
  • Estimated Ship Date: 1-2 weeks

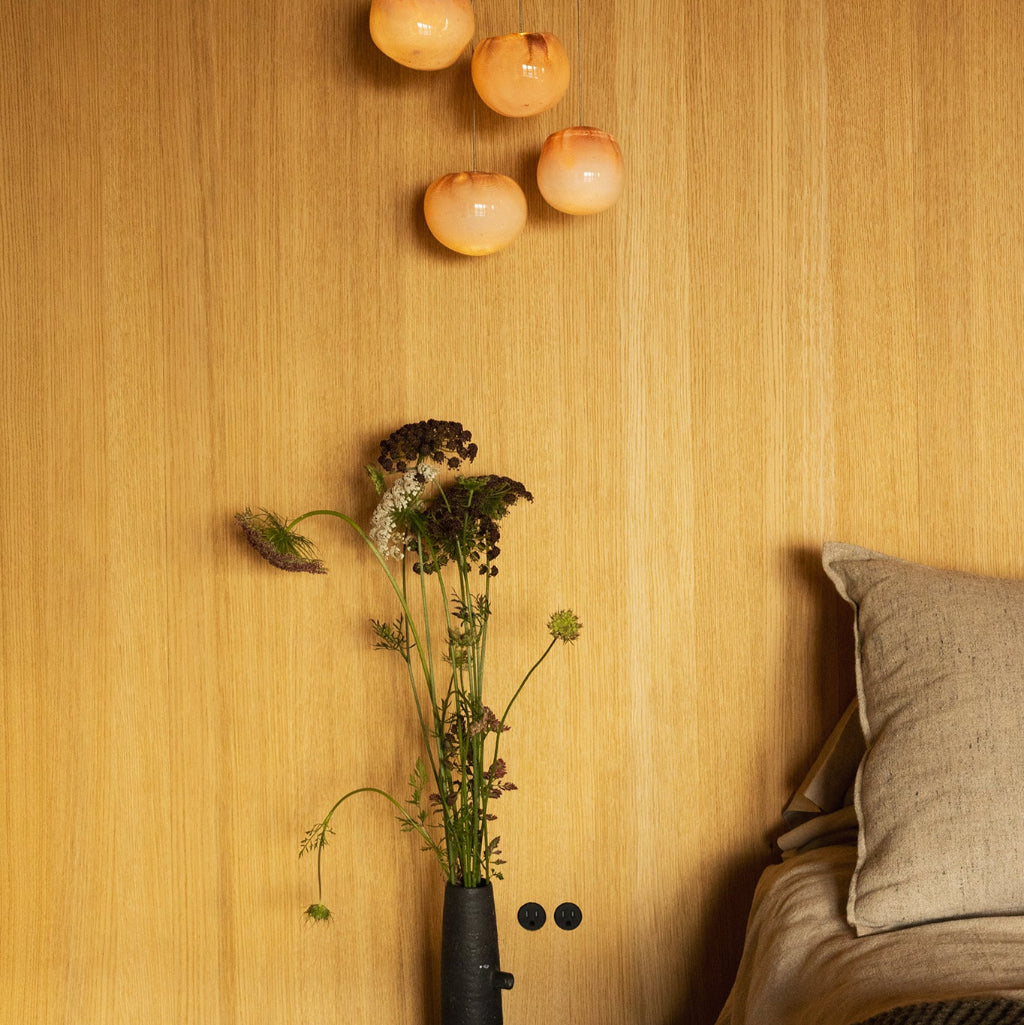

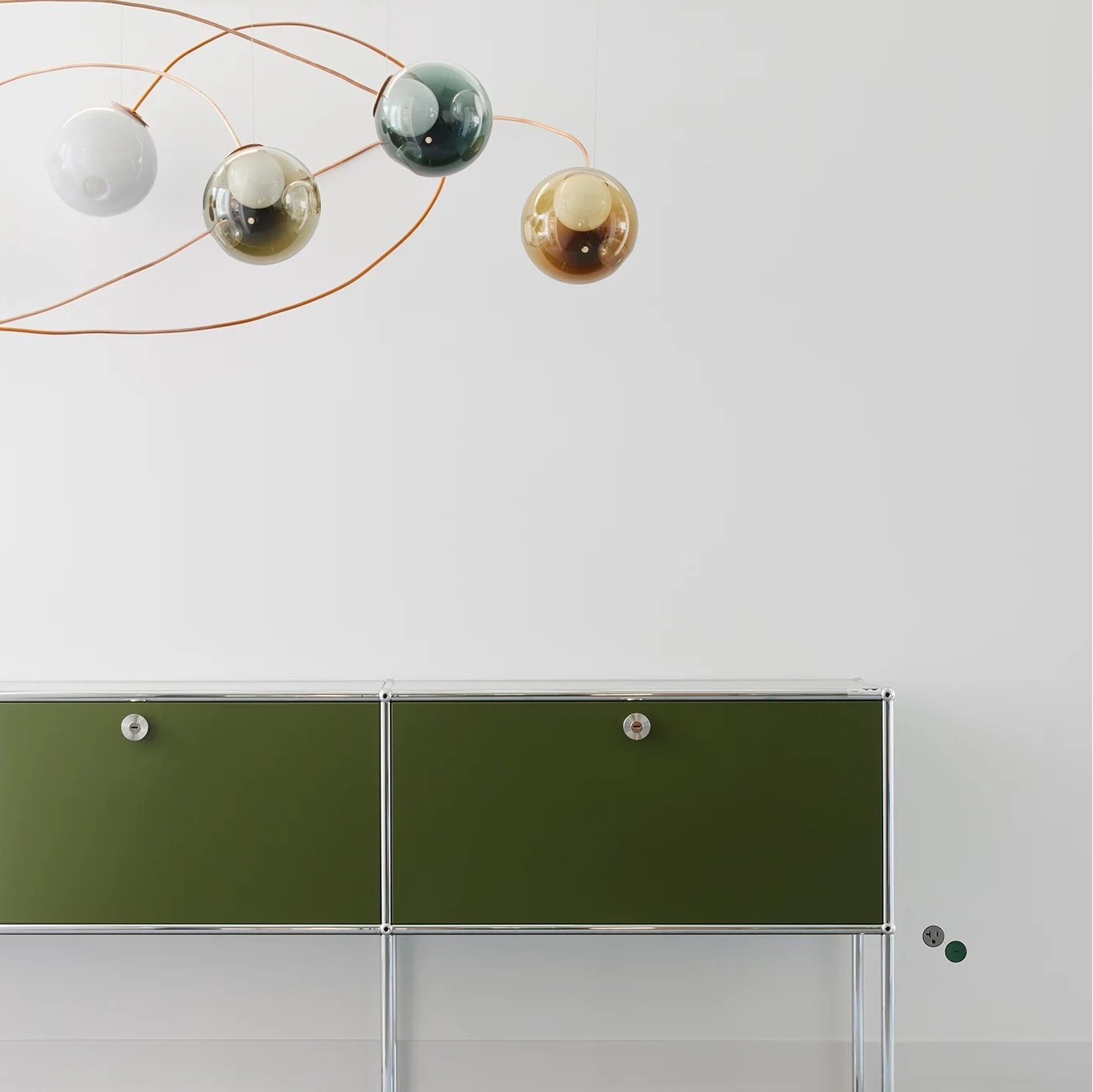

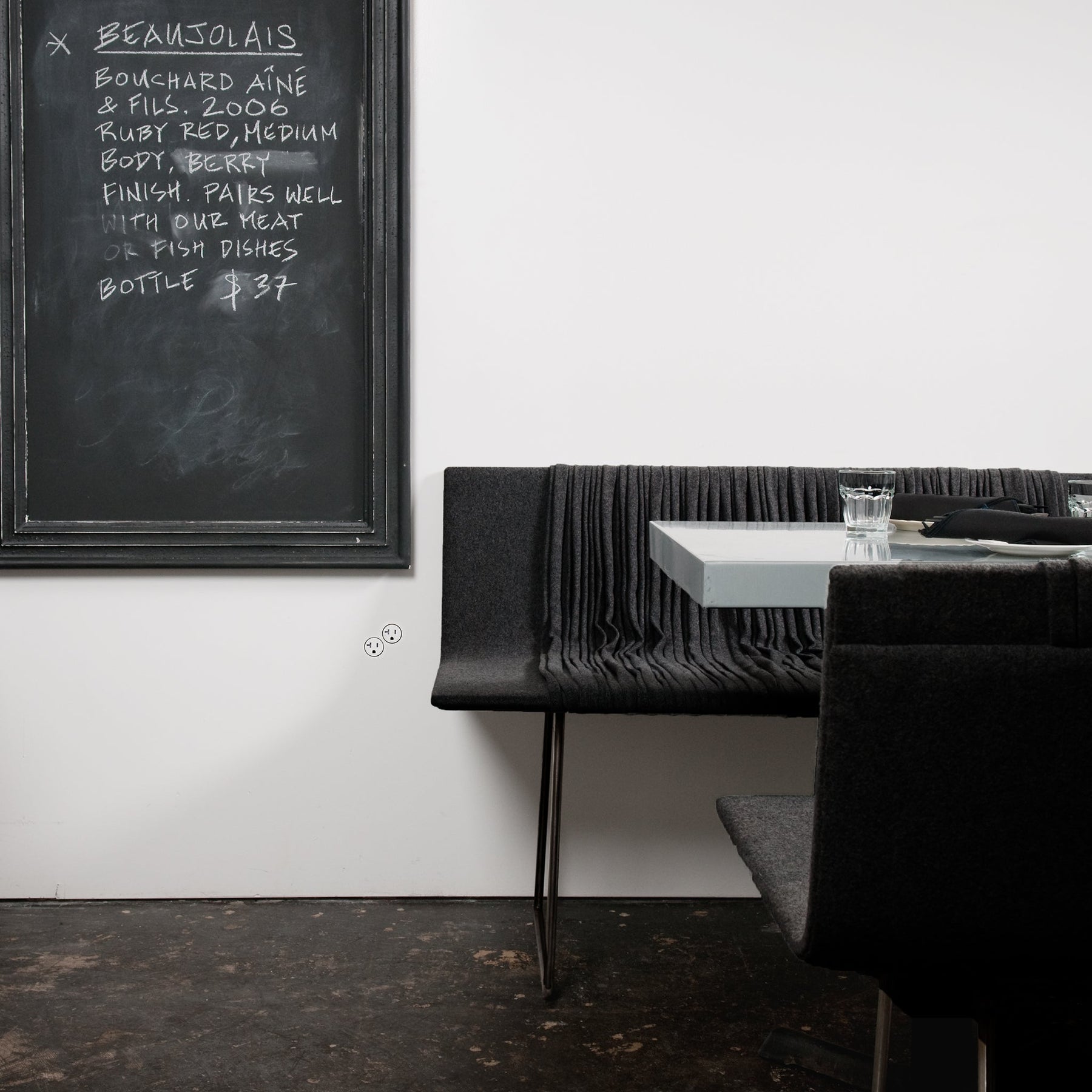

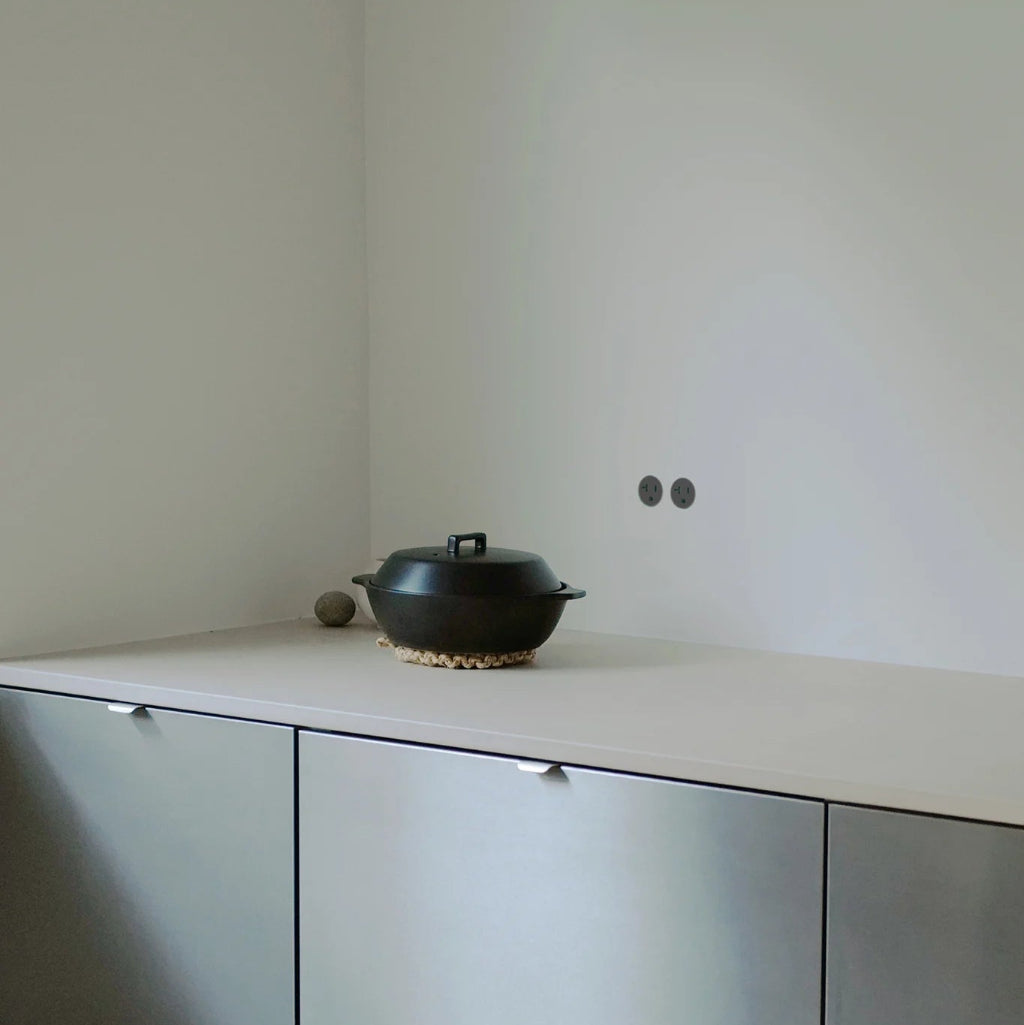

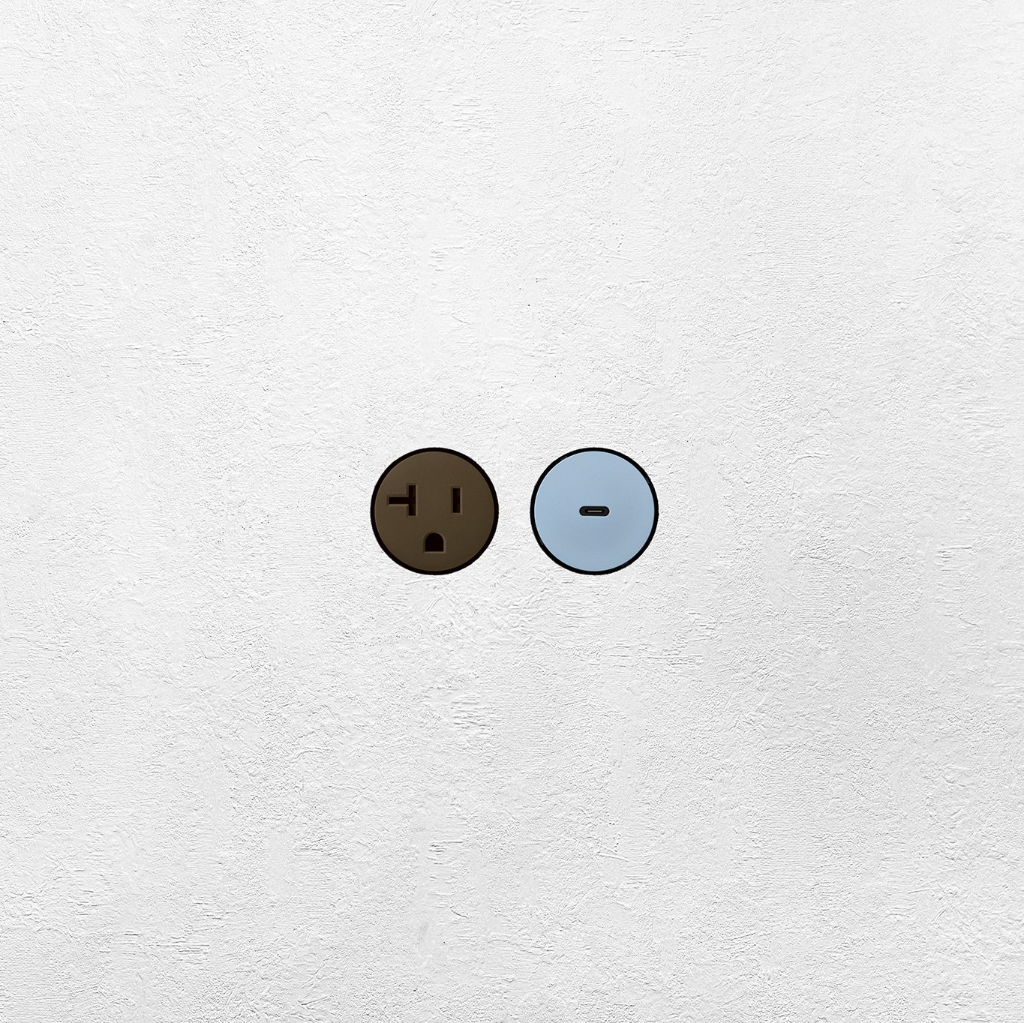

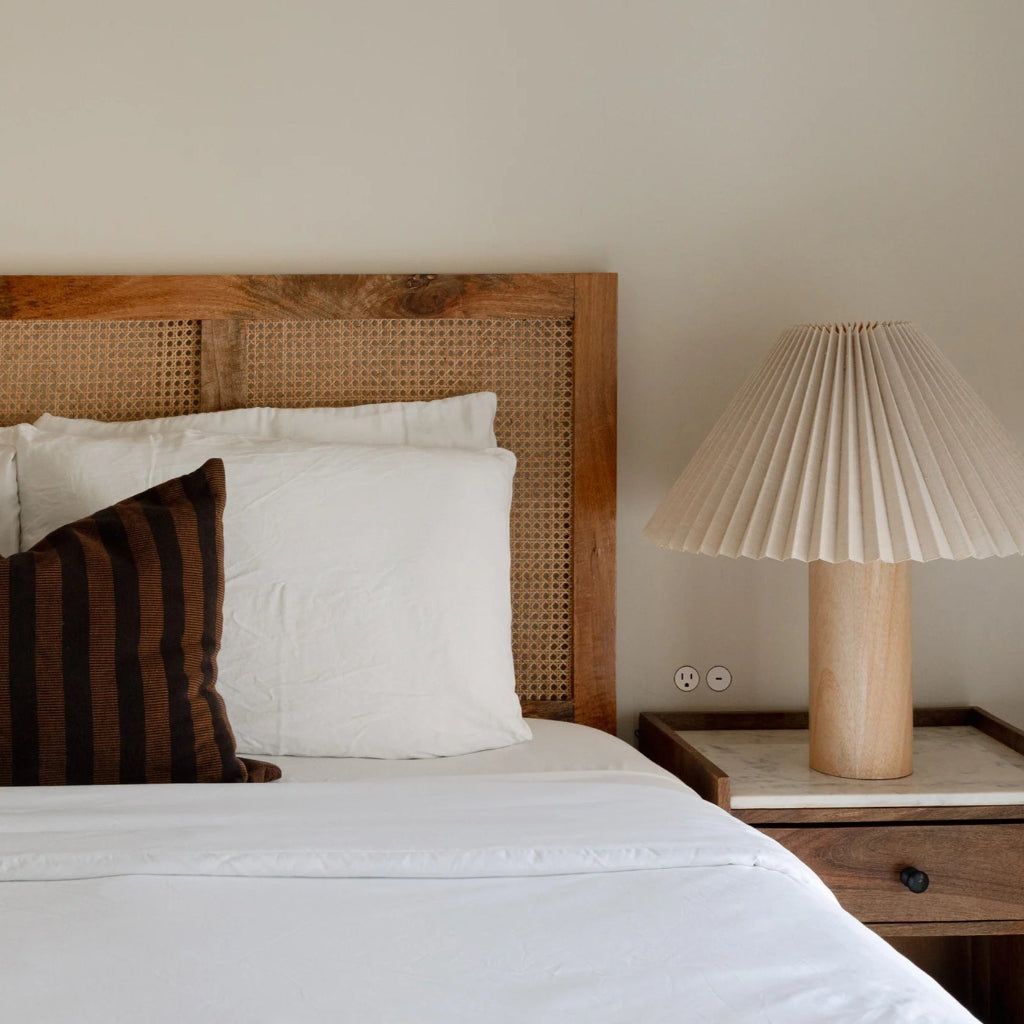

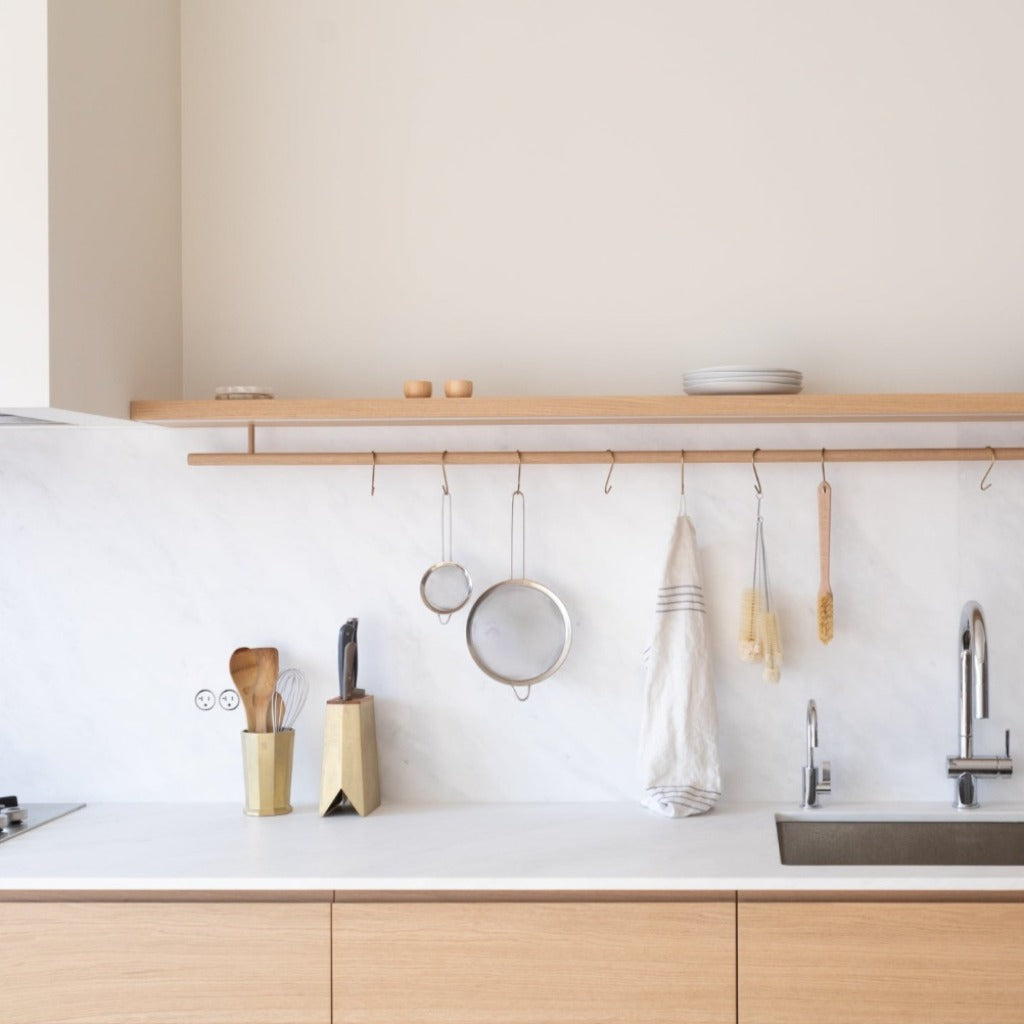

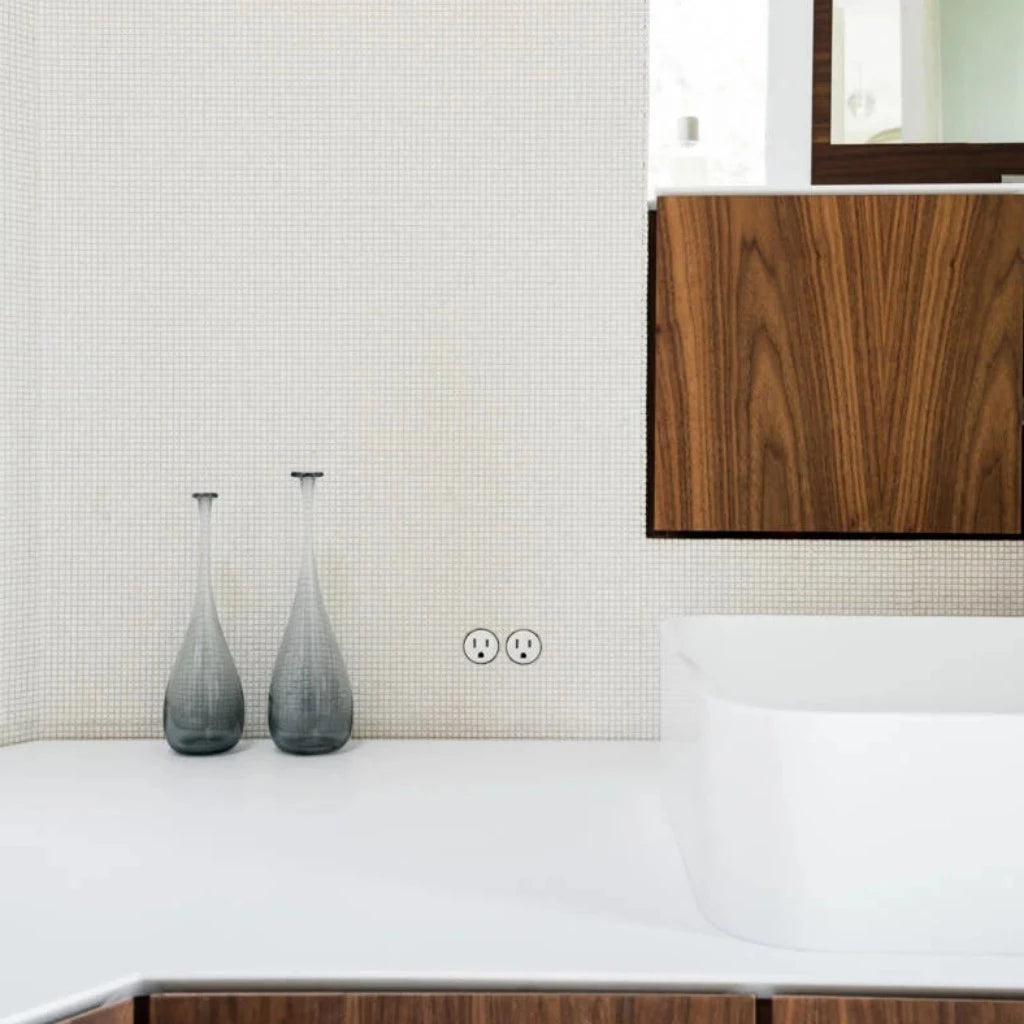

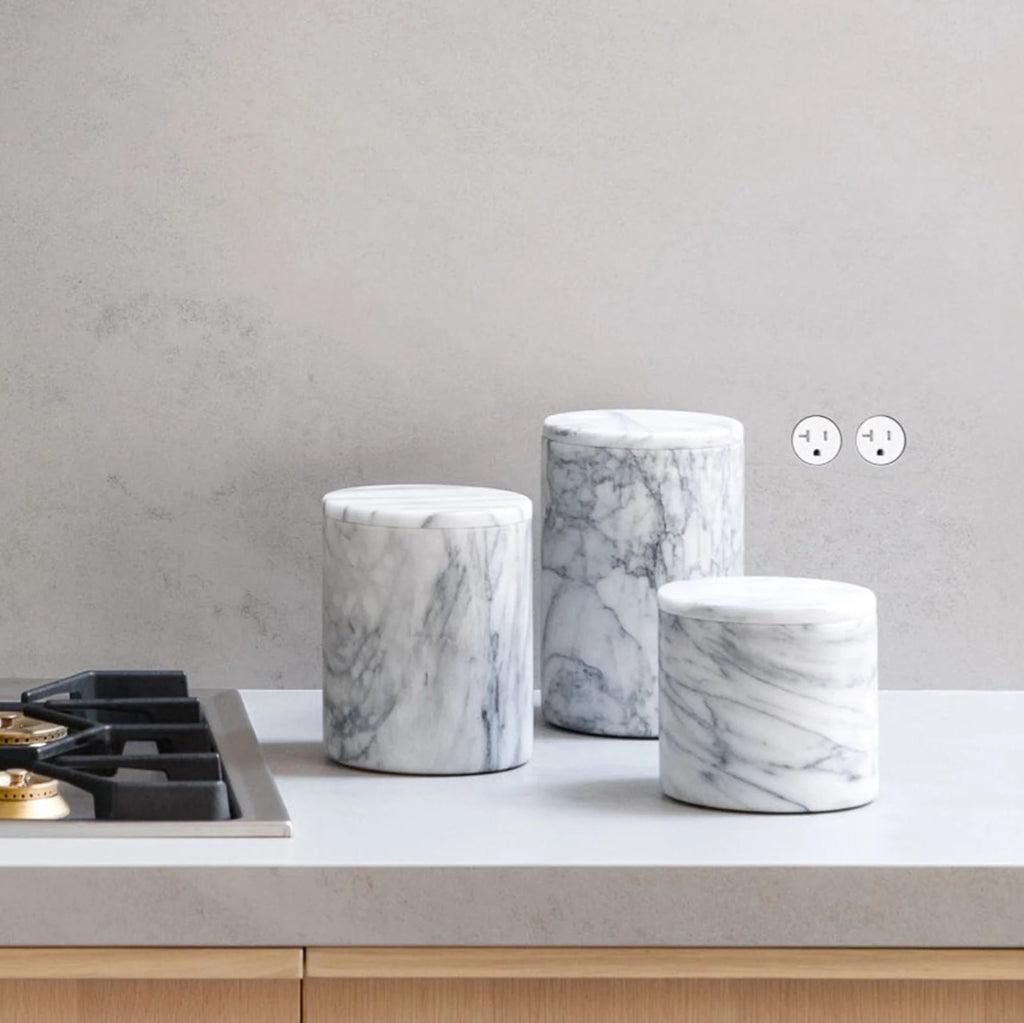

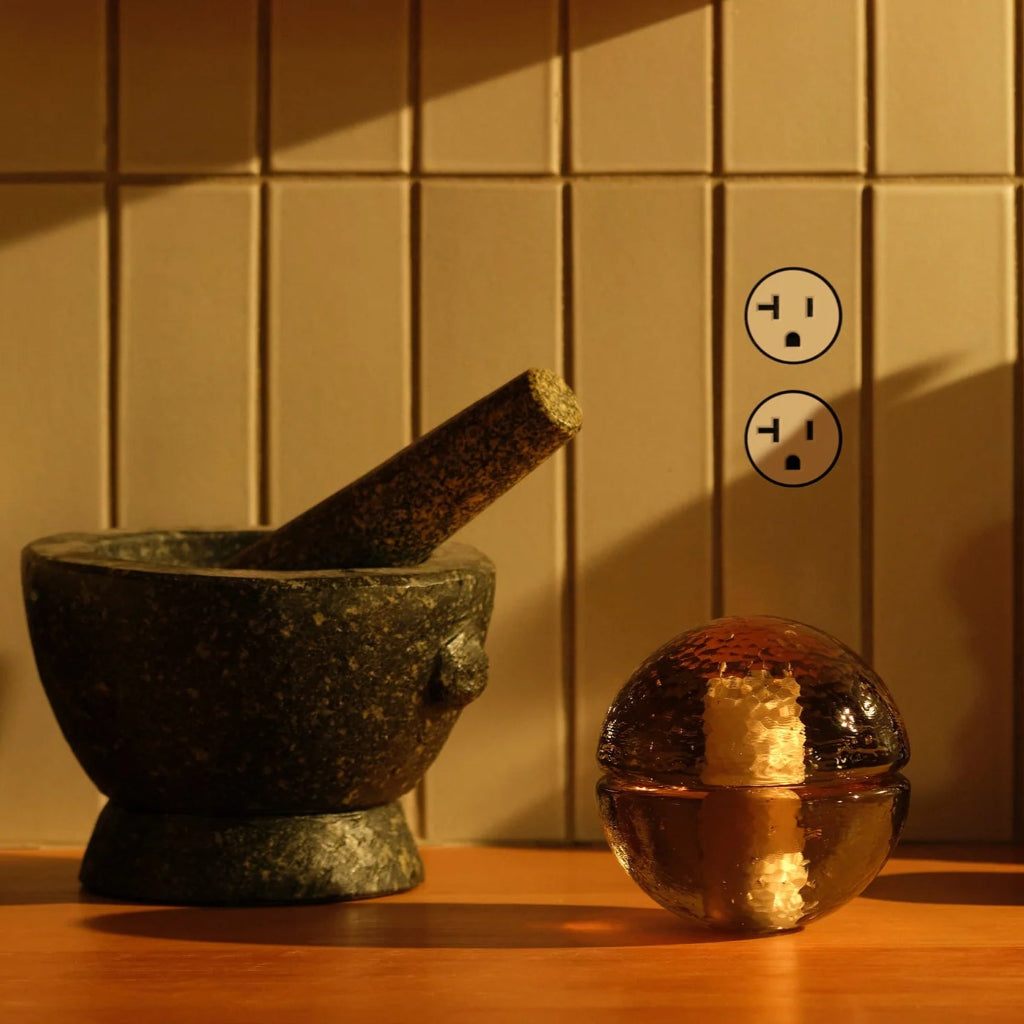

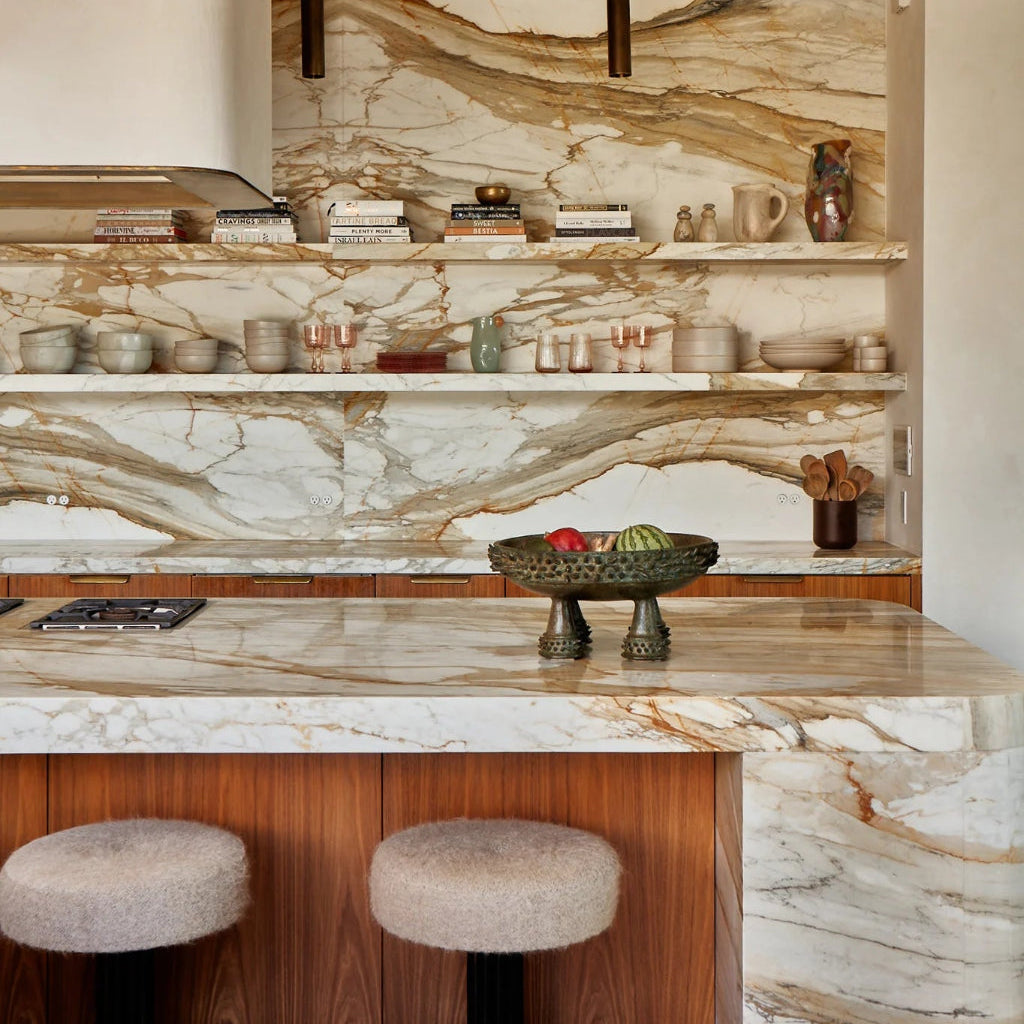

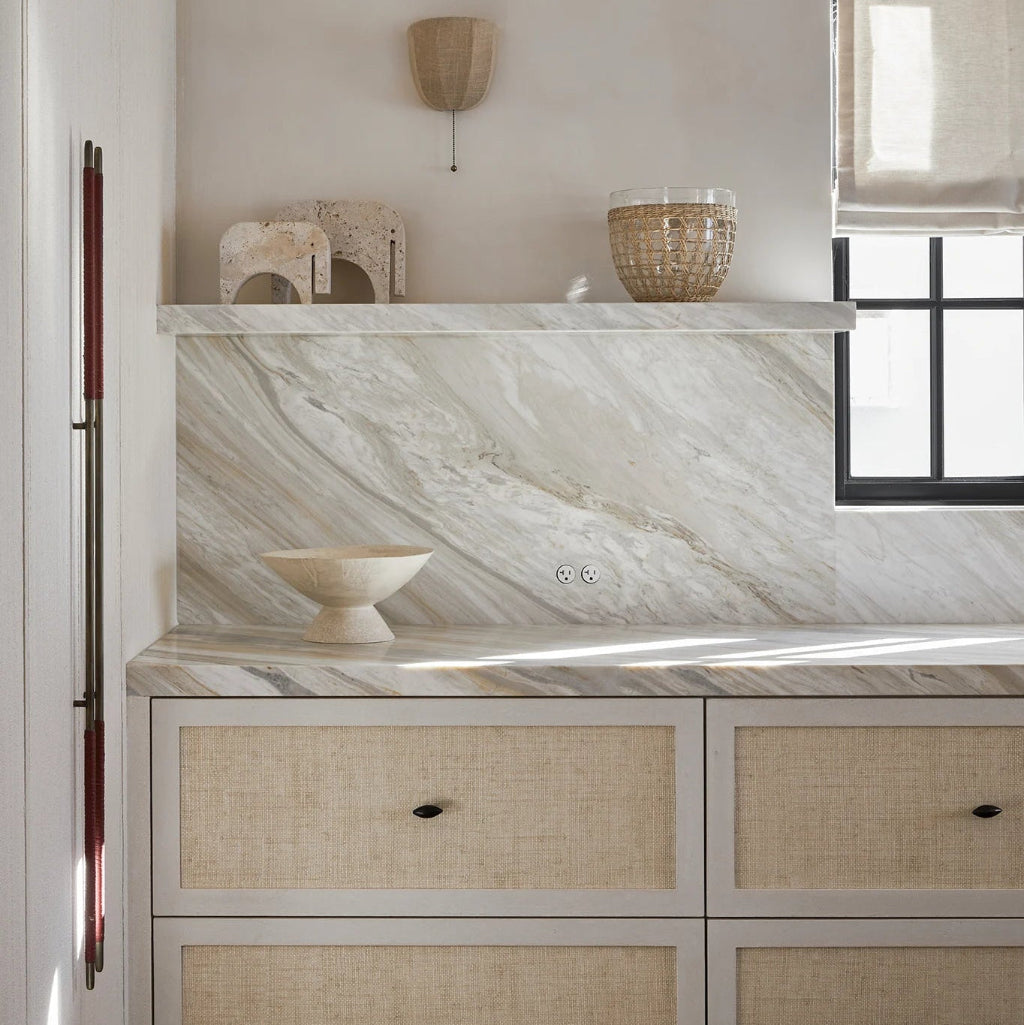

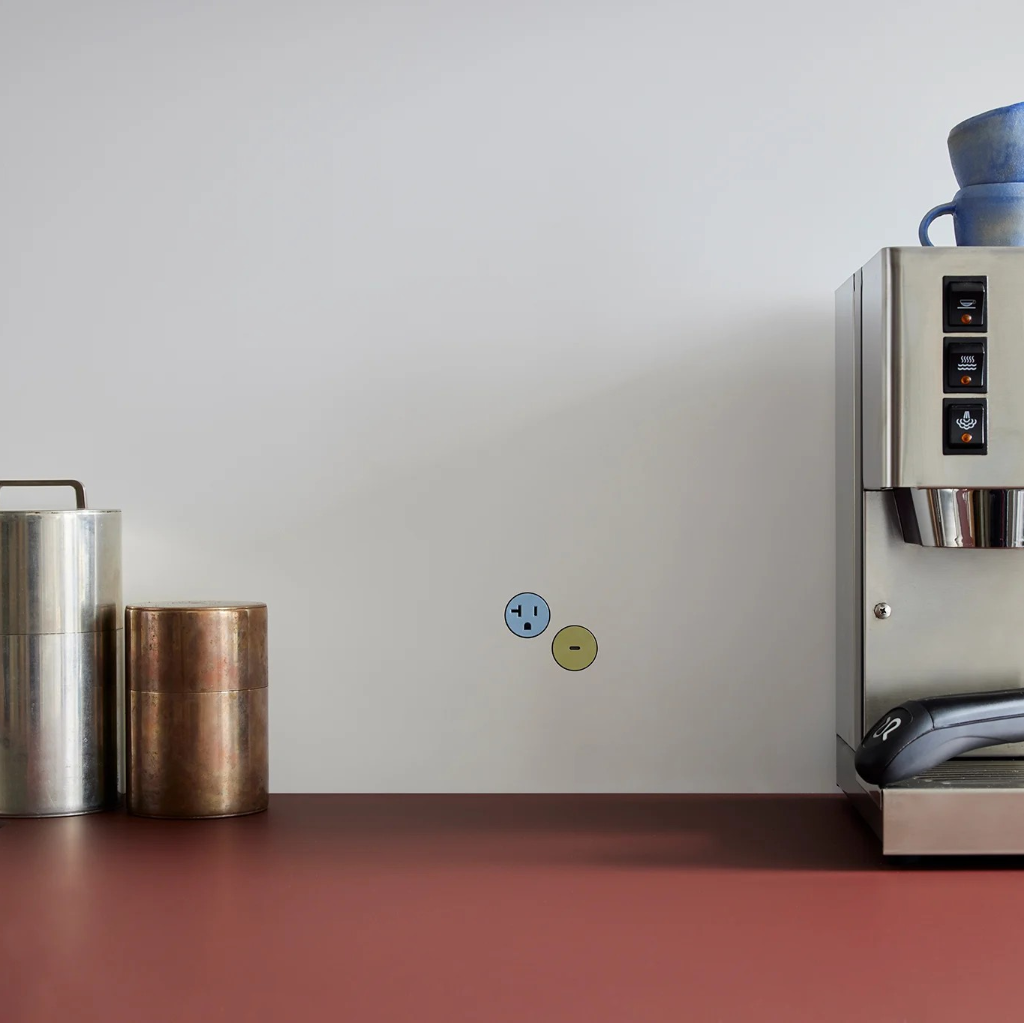

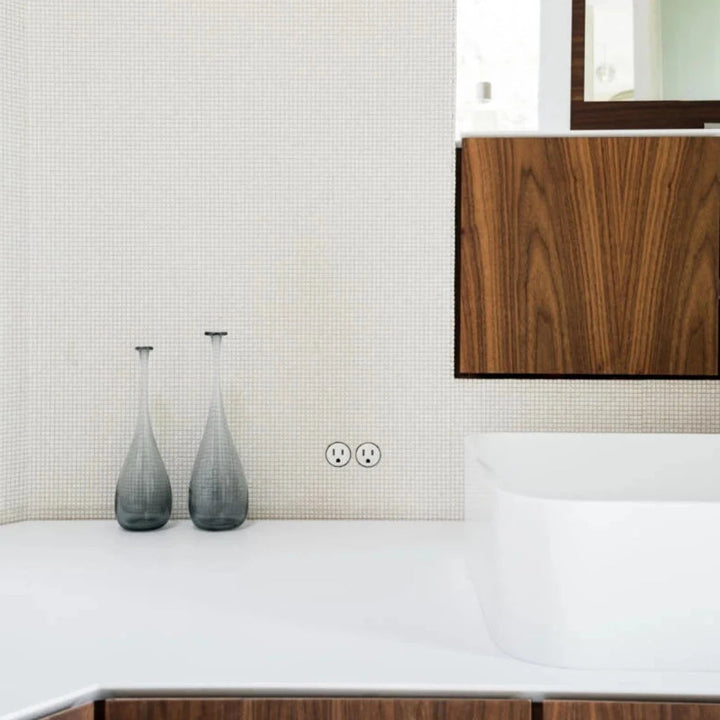

The Bocci 22 System is a modular flush-mounted solution for power and data that sits cleanly within your surface, eliminating visible cover plates for a completely seamless look. Designed with precision and minimalism in mind, each component locks into a cylindrical mounting plate that installs directly into drywall, tile, wood, or other finish materials.

This product listing supports all installation types. The configurator below will walk you through selecting the correct combination of components for your specific surface, layout, and device needs.

The Bocci 22 System is a modular flush-mounted solution for power and data that sits cleanly within your surface, eliminating visible cover plates for a completely seamless look. Designed with precision and minimalism in mind, each component locks into a cylindrical mounting plate that installs directly into drywall, tile, wood, or other finish materials.

This product listing supports all installation types. The configurator below will walk you through selecting the correct combination of components for your specific surface, layout, and device needs.

1. Mounting Surface:
Drywall

2a. Device Configuration:
Single or Double Device

2b. Device Orientation:

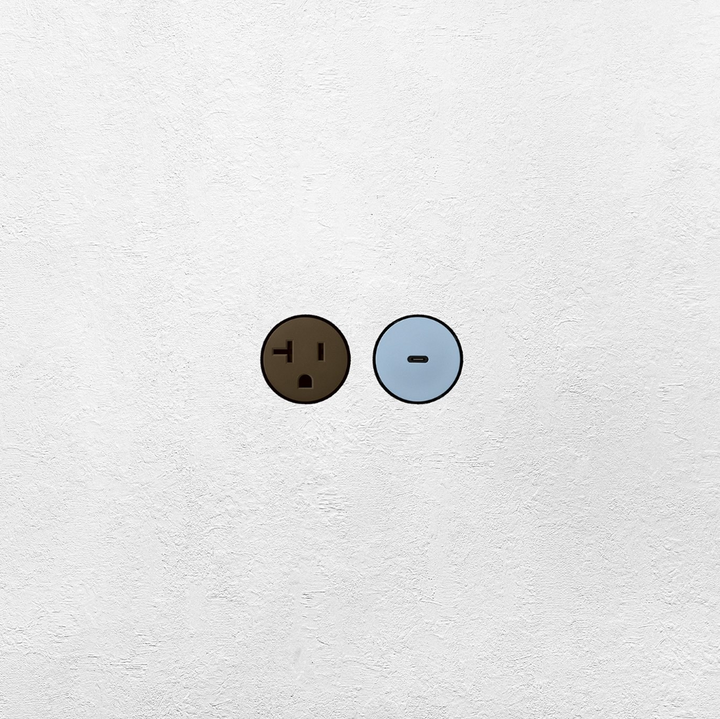

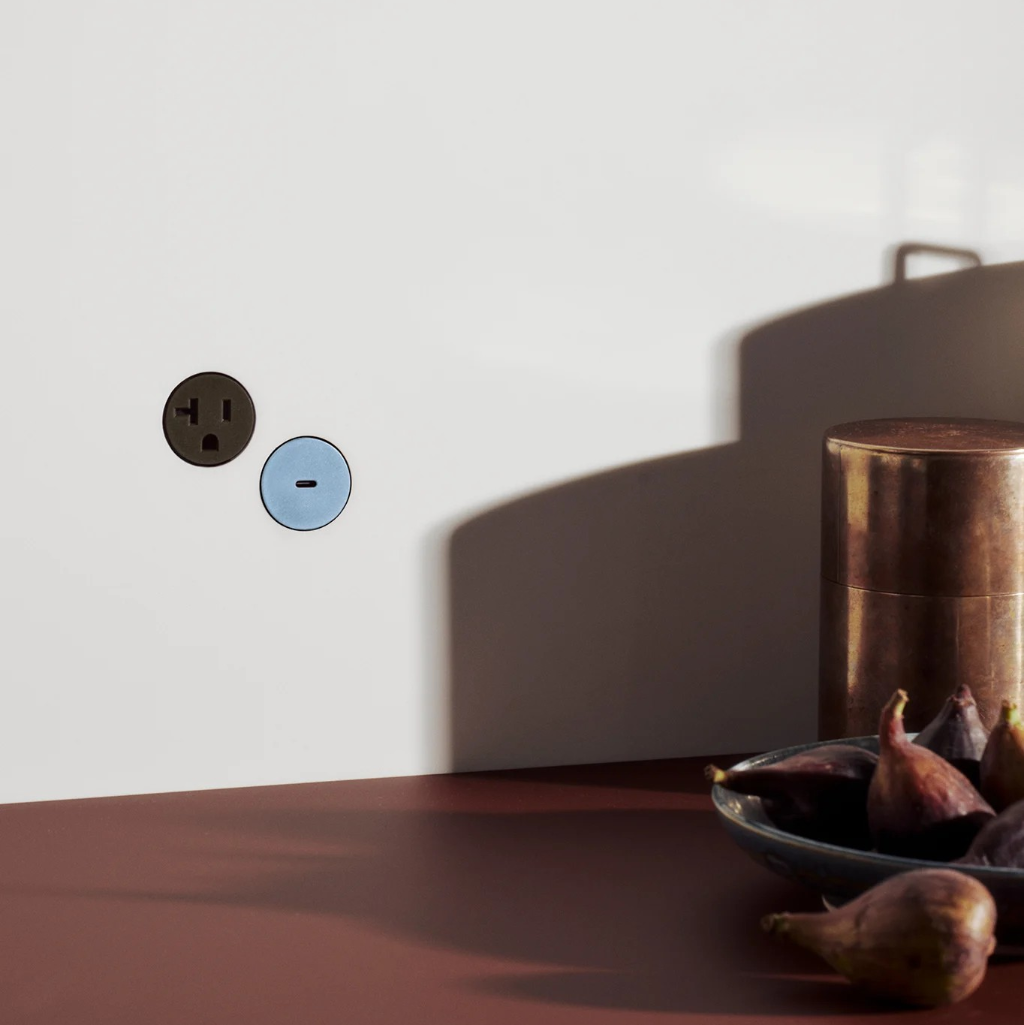

Side-by-side Narrow / Wide / Diagonal

3. Faceplate Colour:
White / Almond / Grey / Black

4. Device Type:

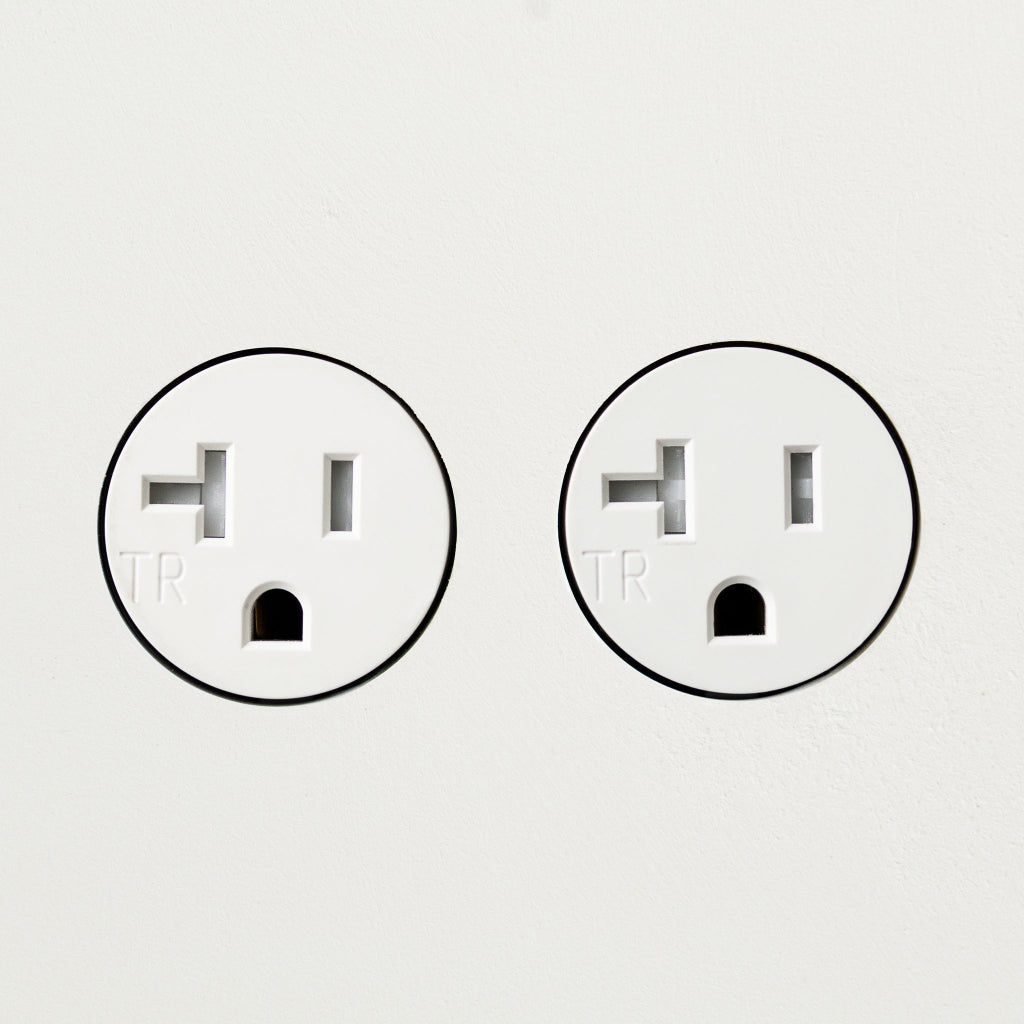

  • Outlets: 15A (120V), 20A High Amperage (120V)
  • USB / Media: USB-A, USB-C, HDMI
  • Data & Control (Request Quote): RJ45 CAT6A, RJ12, F Connector, Smart Home Keypad

1. Mounting Surface:

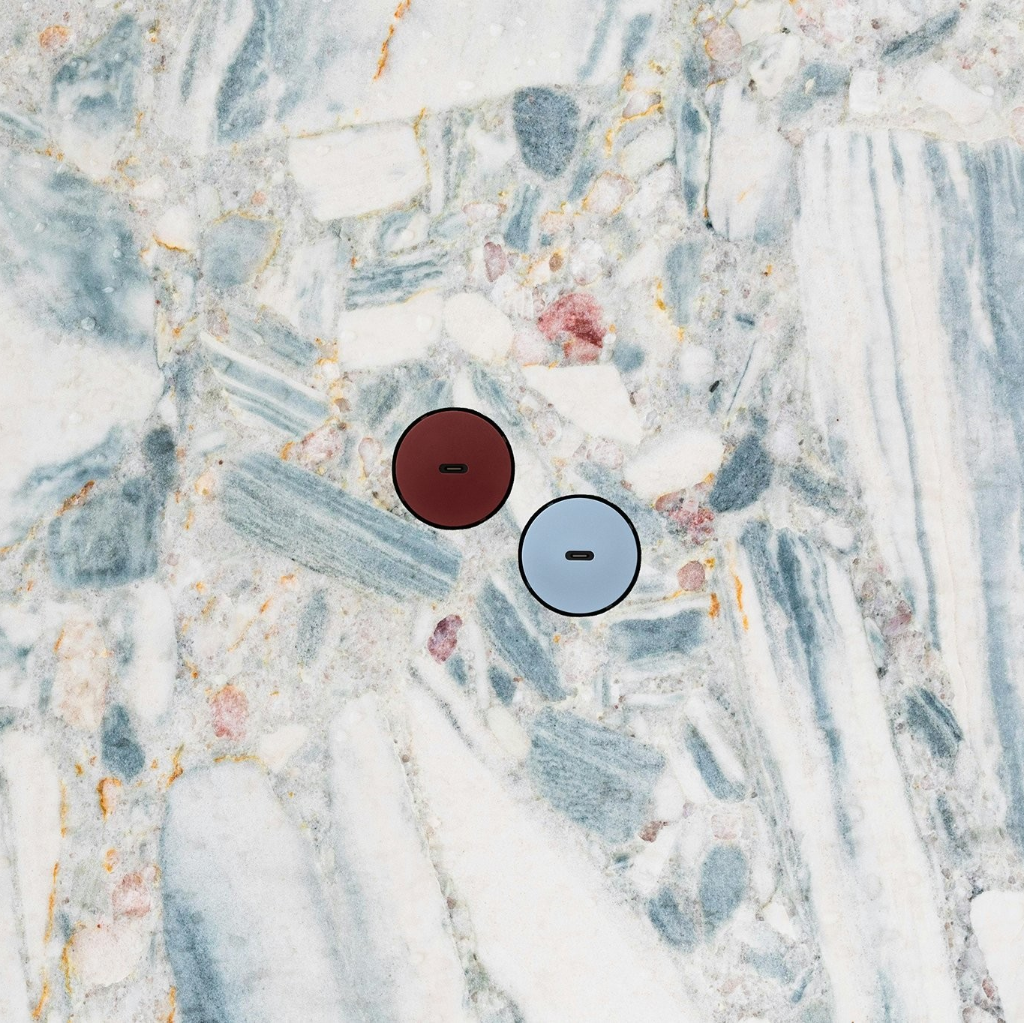

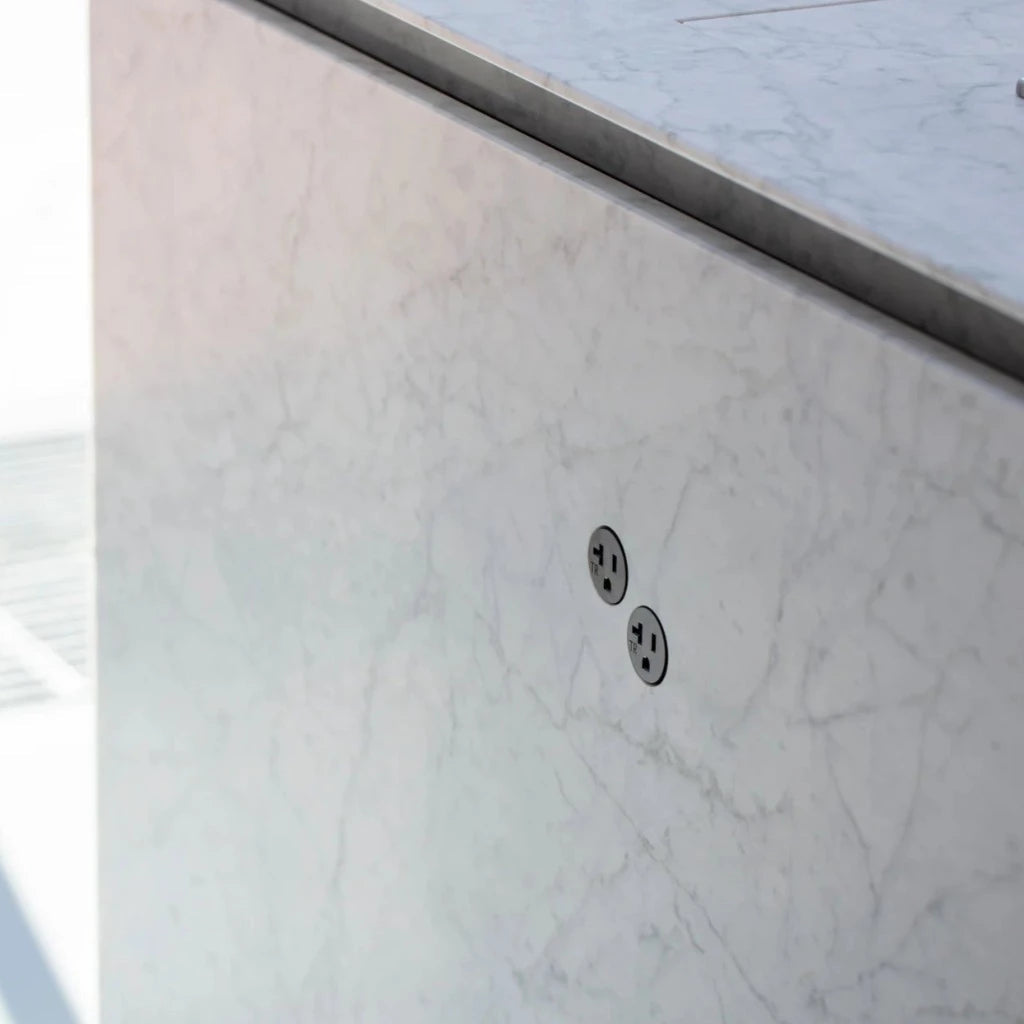

Wood / MDF / Corian / Stone / Tile / Plaster

2a. Device Configuration:
Single or Double Device

2b. Device Orientation:
Side-by-side Narrow / Wide / Diagonal


3. Mounting Surface Thickness (Required for non-drywall only)

  • Short (6.35mm – 12.7mm): Mounting plate must be set 12.7mm behind the surface
  • Medium (12.7mm – 19.05mm): Mounting plate must be set 19.05mm behind the surface
  • Long (19.05mm – 31.75mm): Mounting plate must be set 31.75mm behind the surface

Tip: Measure from the finish face to the back of the substrate. If unsure, round up. View Barrel Depth Guide (PDF)


4. Faceplate Colour:
White / Almond / Grey / Black

5. Device Type:

  • Outlets: 15A (120V), 20A High Amperage (120V)
  • USB / Media: USB-A, USB-C, HDMI
  • Data & Control (Request Quote): RJ45 CAT6A, RJ12, F Connector, Smart Home Keypad

Tools & Accessories:

  • Removal Tool (Required: 1 per project)
  • Wood / MDF / Corian / Stone: Router Template for Double Device
  • Tile / Plaster: Trim Cap (1 per device)
  • Ø 34 mm (1.3")
  • Certified: cUL to comply with CSA standards
  • GFCI Code Requirements: To comply with GFCI code, a GFCI breaker must be installed elsewhere along the circuit in an accessible, hidden location. This breaker must be purchased independently.
  • Tamper Resistant: Designed to enhance safety and prevent unauthorized access or interference
  • Finishes: White (RAL 9016), Black (RAL 9017), Almond (RAL 1013) and Grey (RAL 7038)
General Information


Certification


Installation Instructions


Planning Guides


Technical Drawings


Component Data Sheets

Mounting Plates: Drywall

Mounting Plates: MDF / Wood / Stone / Tile / Corian

Devices: Standard

Devices: Request Quote


Tools & Accessories

Multi-Material Install
Step-by-step guide for tile, plaster, Corian, or other mixed surfaces.

Drywall Install
Clean installation into drywall using standard Bocci 22 components.

Shop finish samples HERE.


This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

This is a precise architectural product, and support is available. If you're unsure what to order, use the form above or email contact@cassonhardware.com — our team is happy to help.
