Painted Plates by Forbes & Lomax

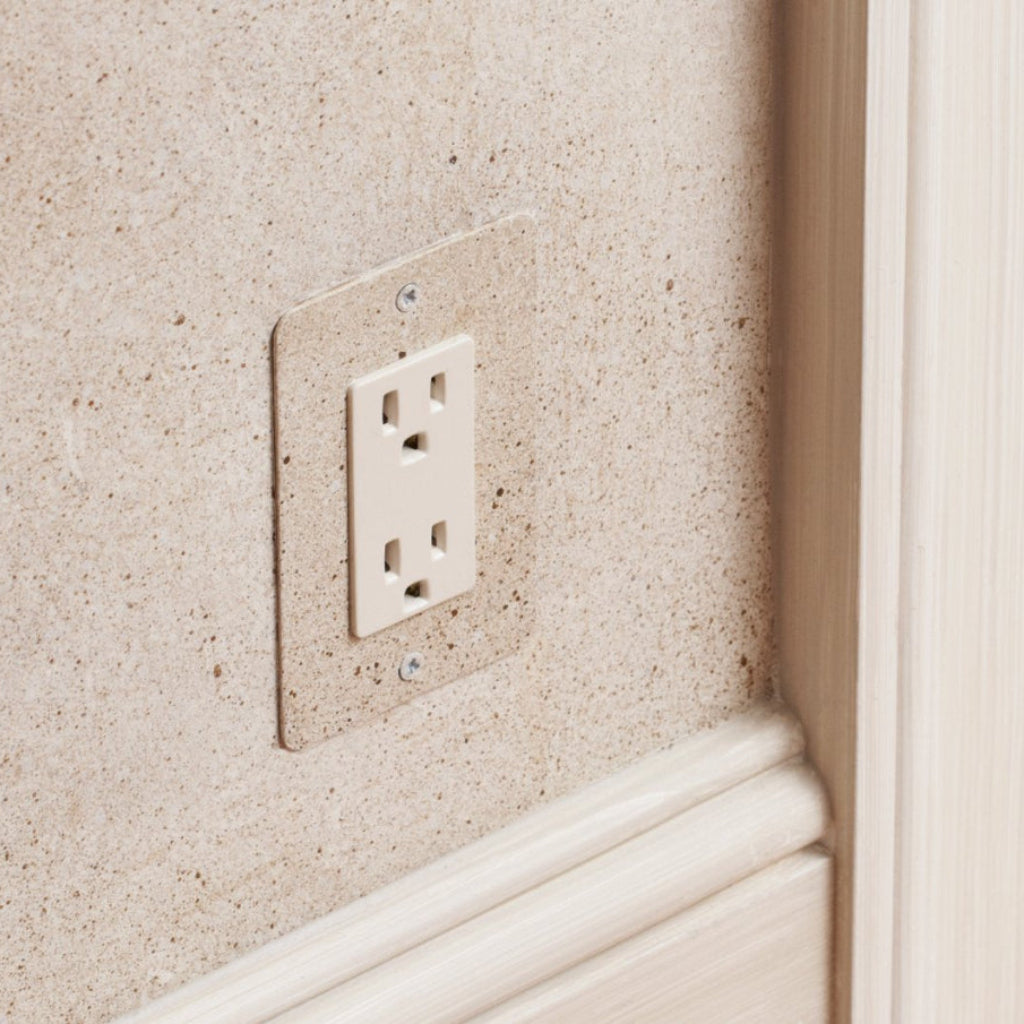

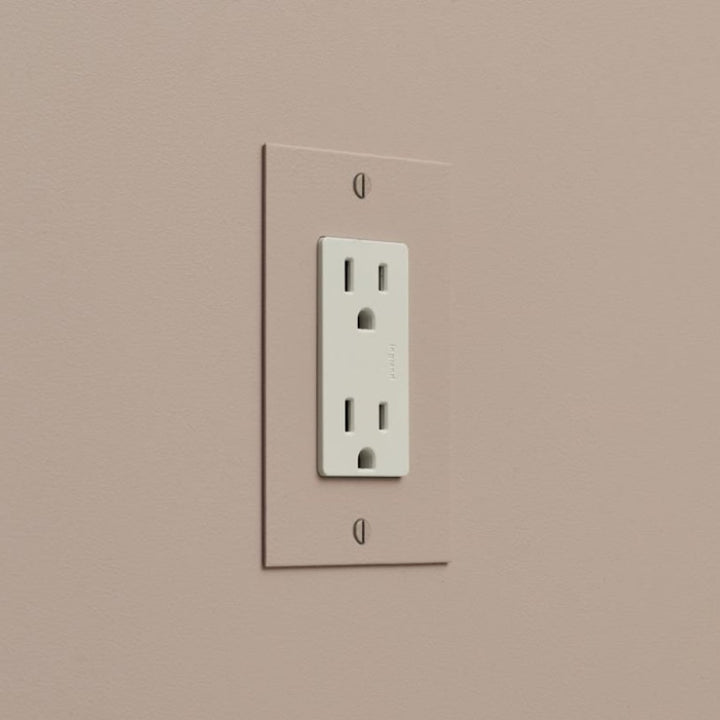

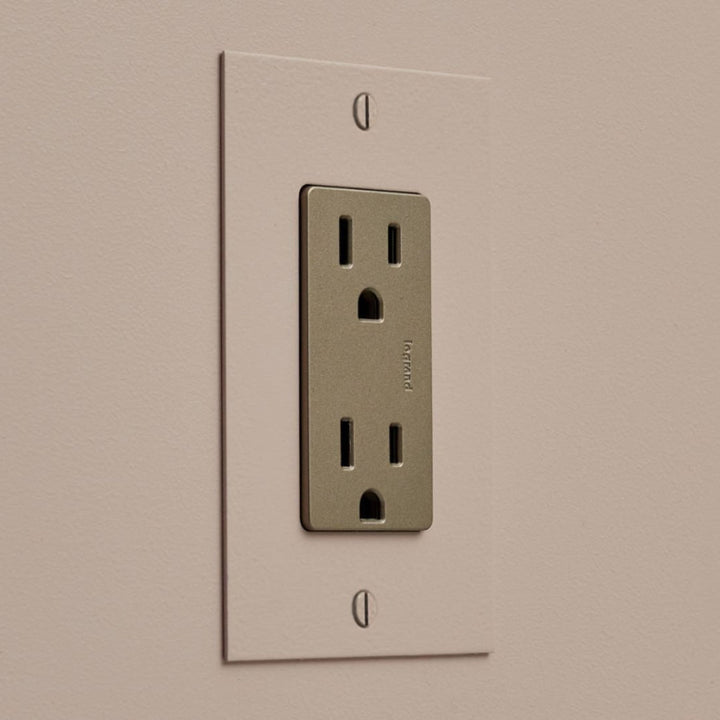

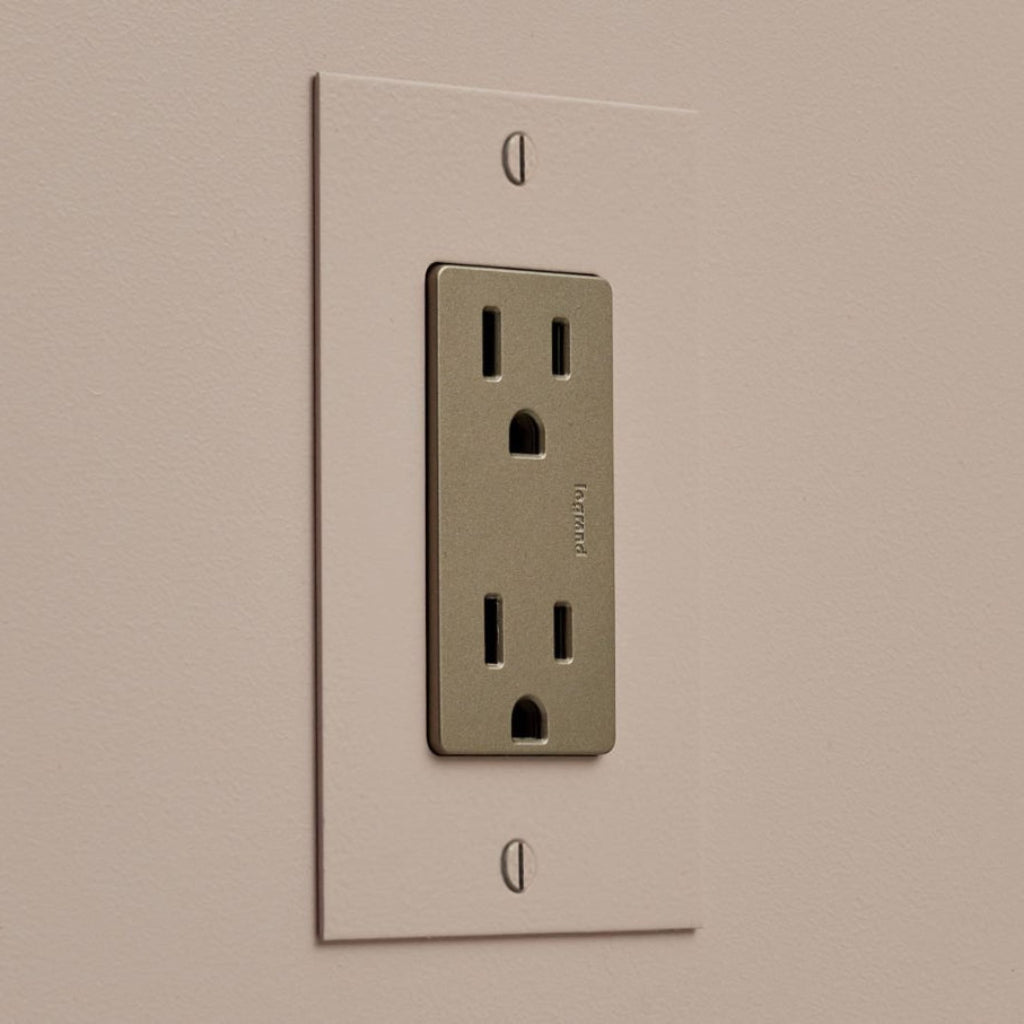

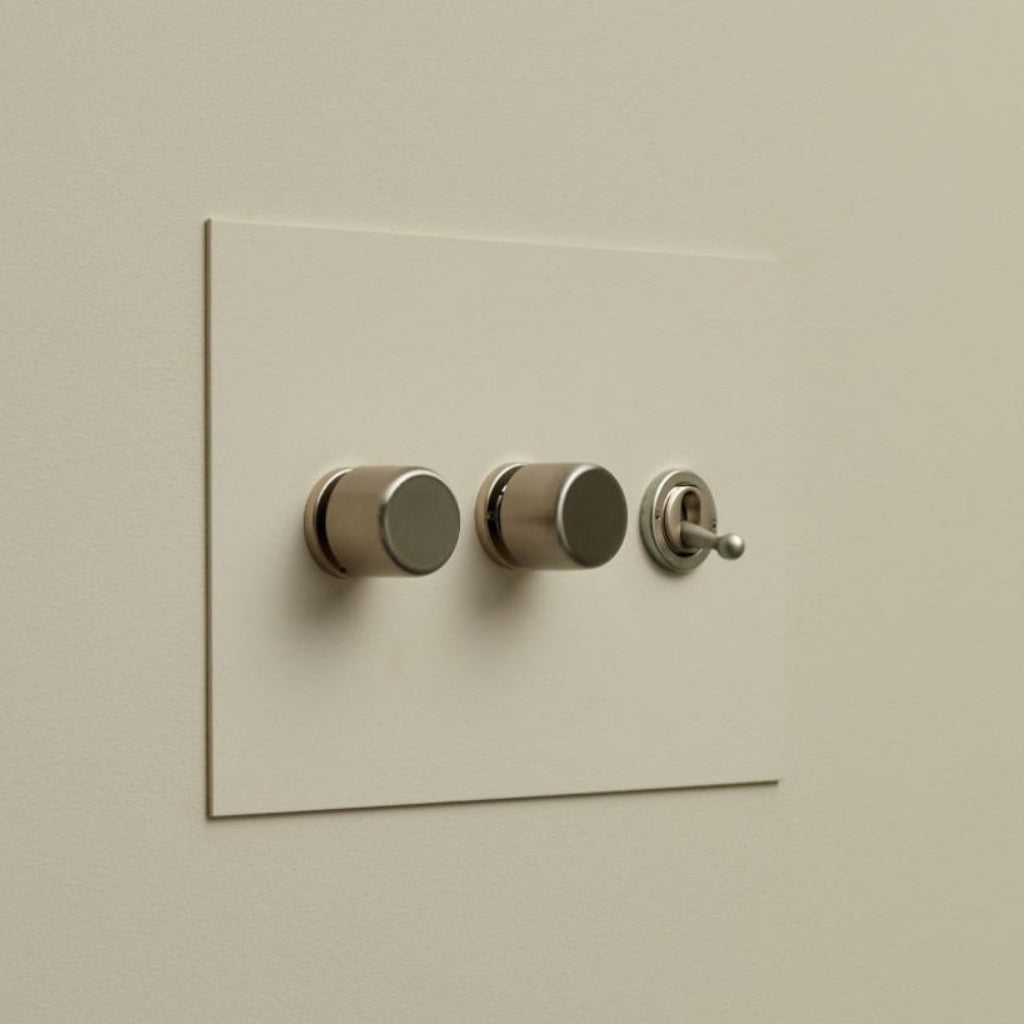

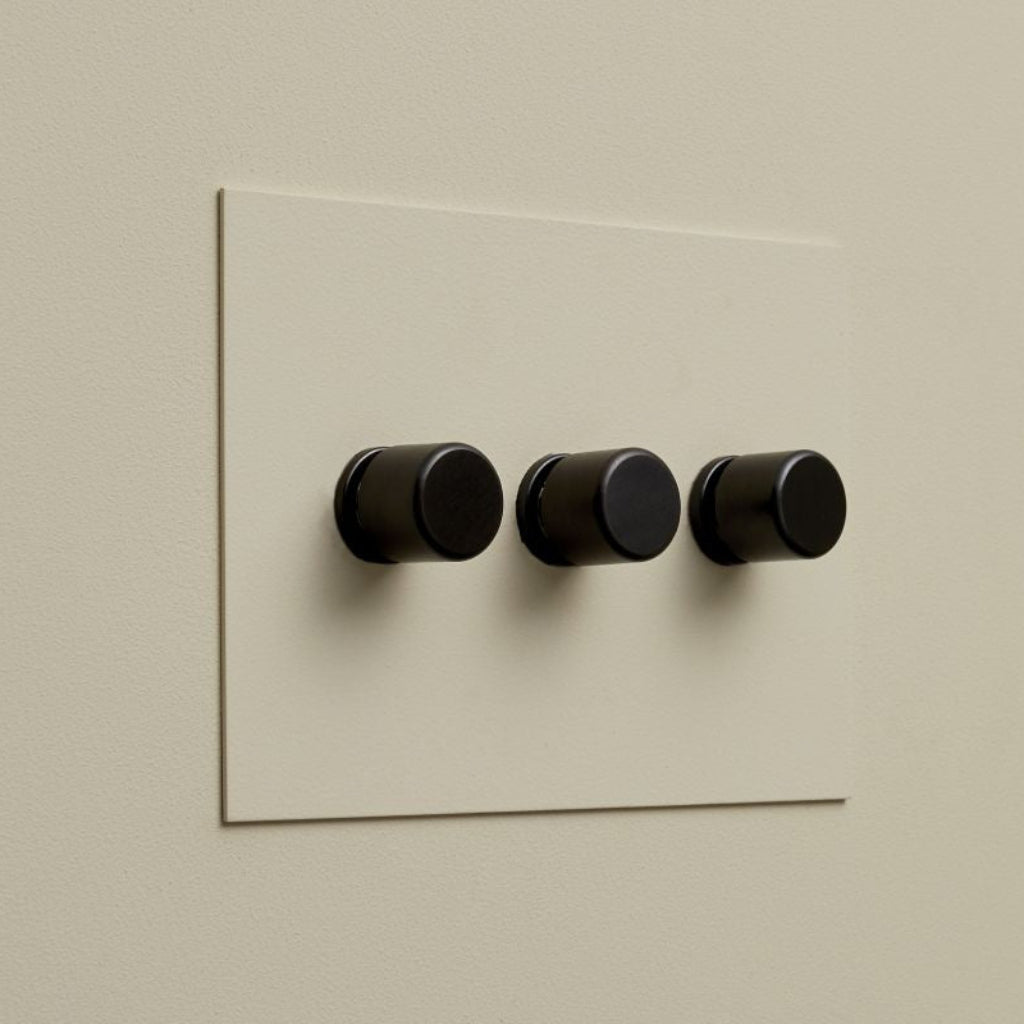

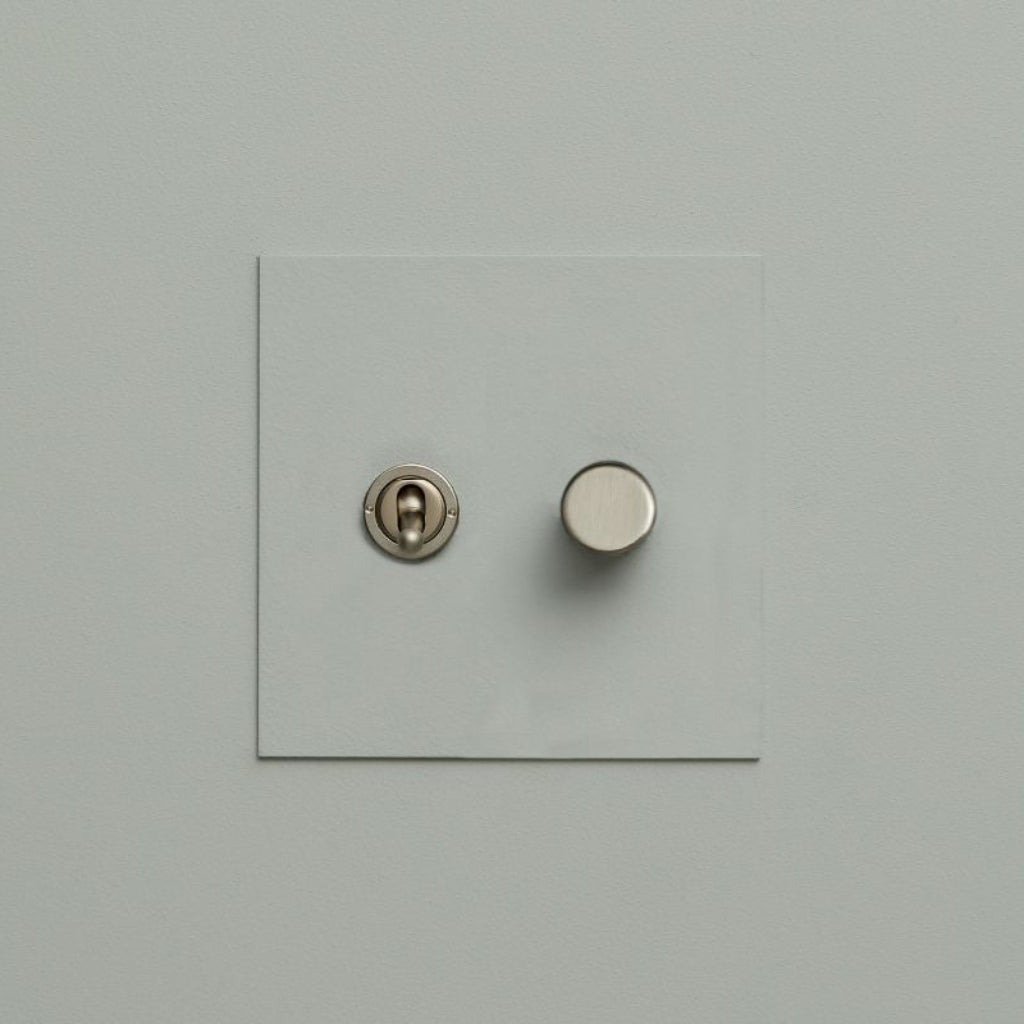

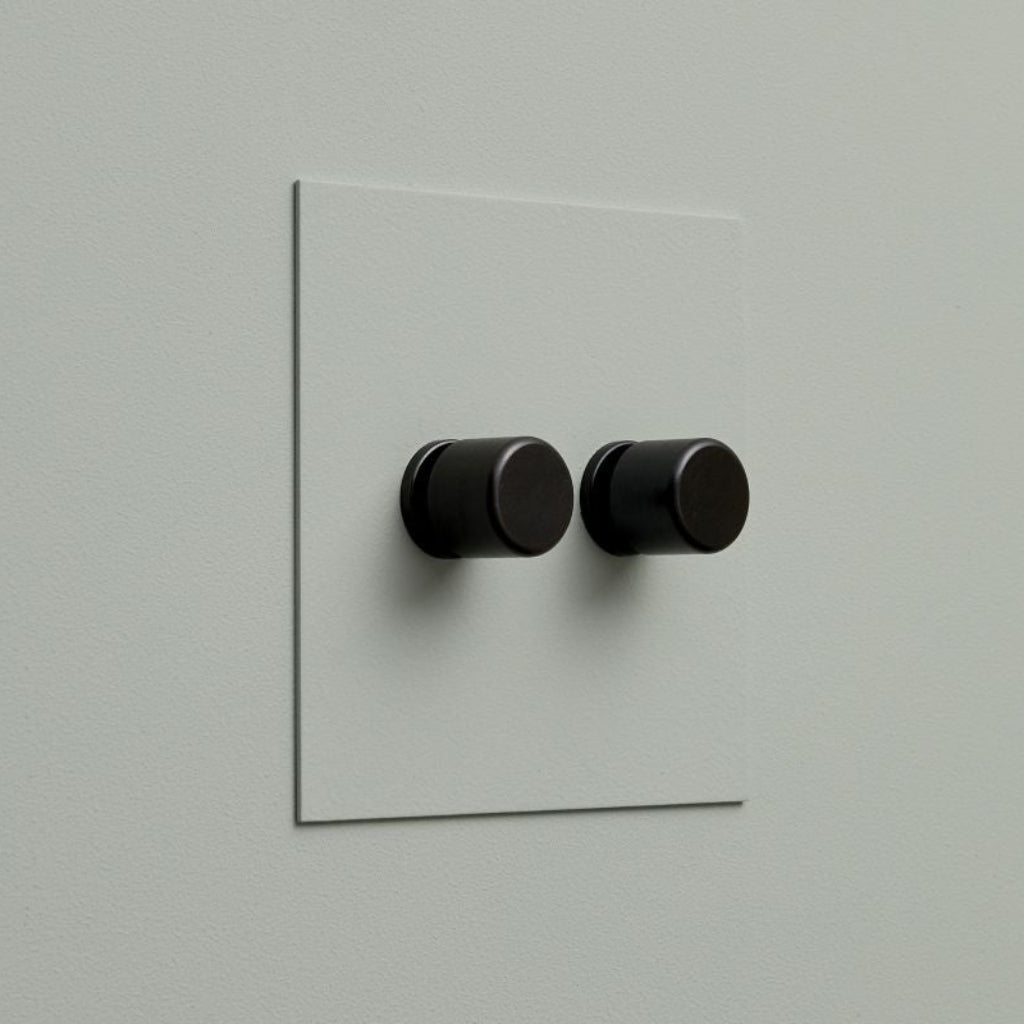

The Painted Range provides primed ready-to-paint plates that sit flush to the wall. Each plate can be painted onsite to match the wall colour, for a subtle and unobtrusive look.

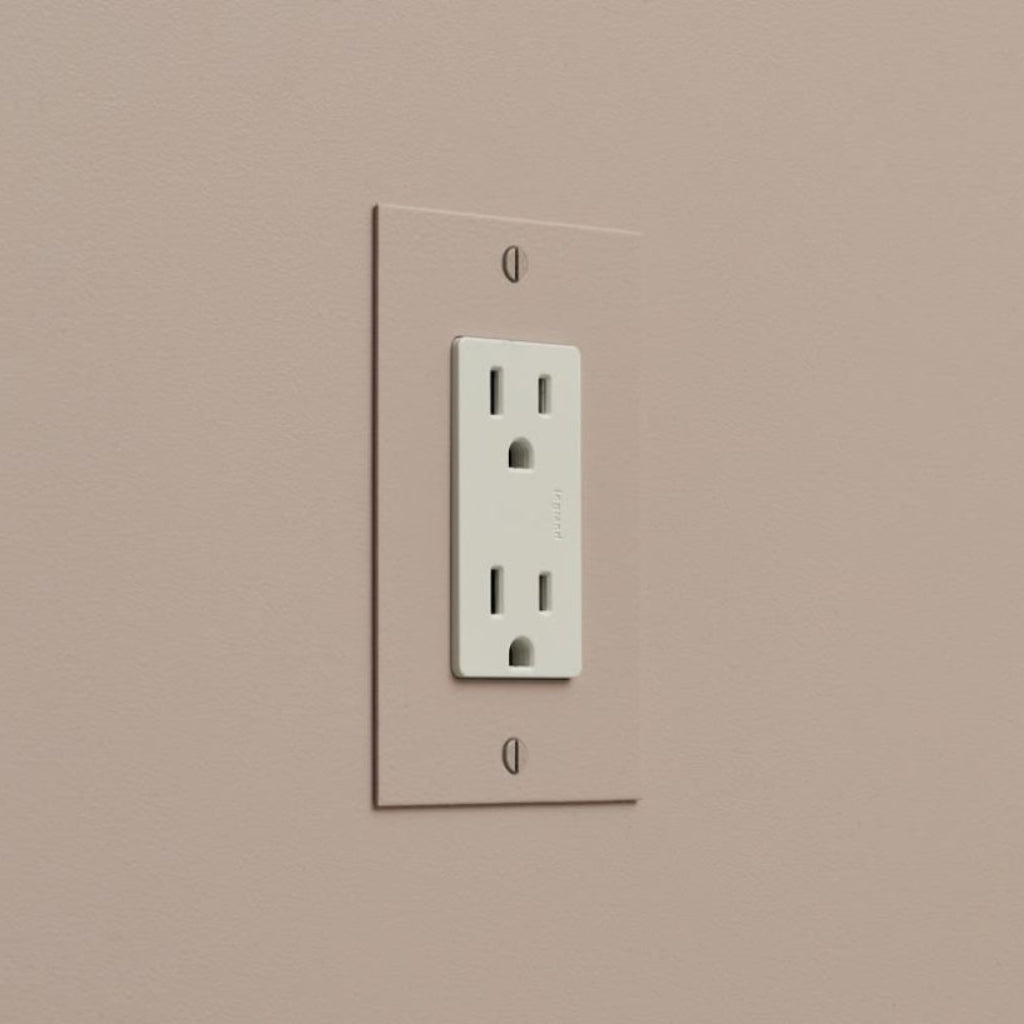

Painted Outlet plates are available with either square or radius corners. When pairing them with the painted light switch range, we recommend square corners to match the corners of the switch plates. If you are pairing them with other finishes, you can choose whether you prefer the softer more traditional look of the radius corners, or the more defined square corners.

Established in 1987, Forbes & Lomax is a UK-based heritage electrical brand recognized by architects and designers for refined switch and outlet design.

Outlets

• 1 Gang: W 70 mm (2.76") x H 115 mm (4.53")

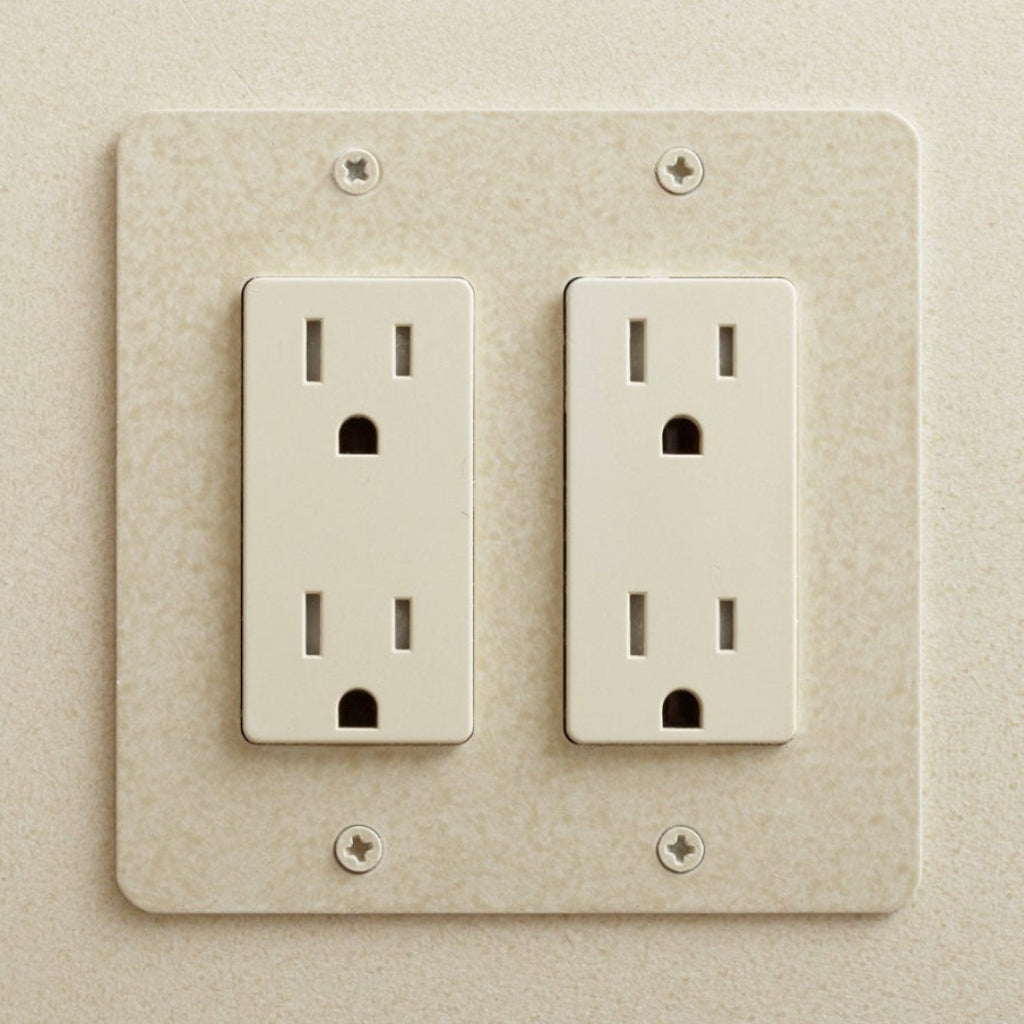

• 2 Gang: 115 mm (4.53") x 115 mm (4.53")
• 3 Gang: W 162 mm (6.38") x 115 mm (4.53")
• 4 Gang: W 210 mm (8.27") x 115 mm (4.53")

Available Configurations

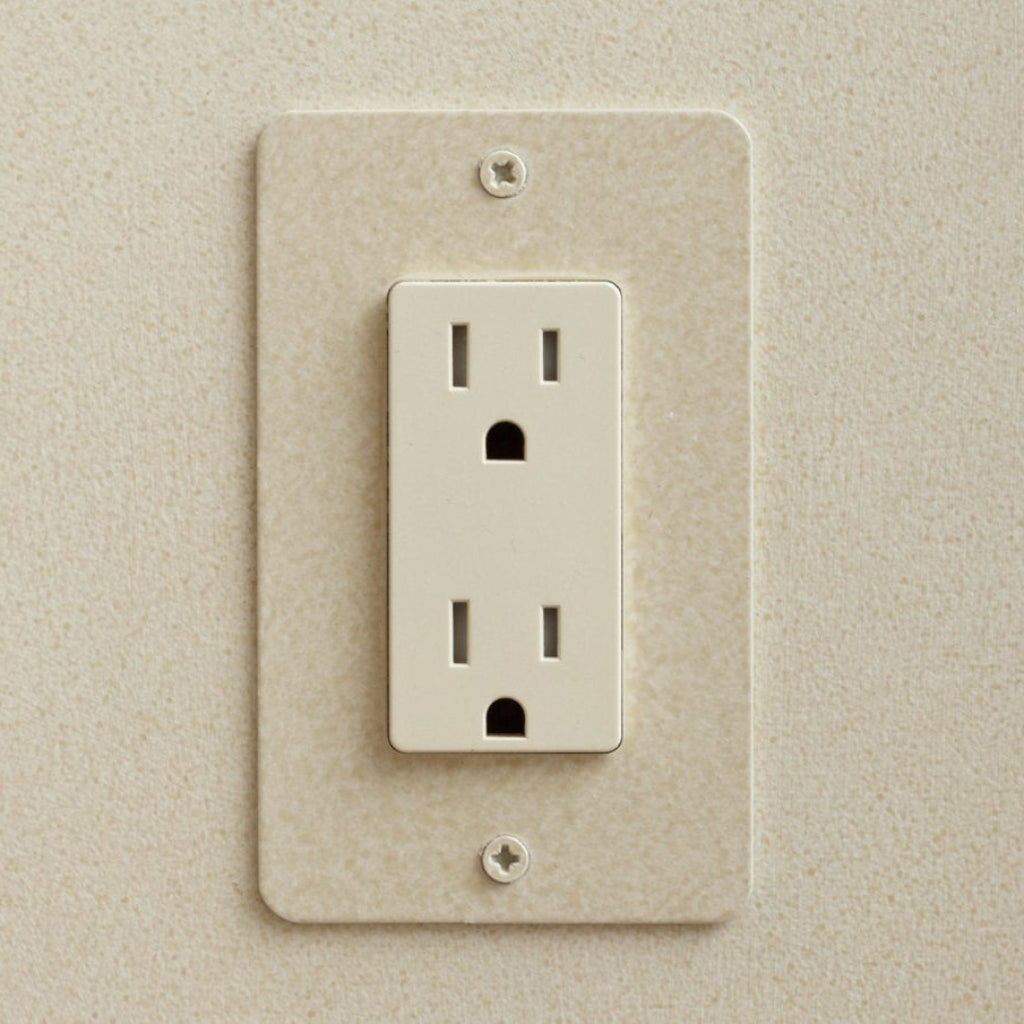

• Duplex (Tamper Resistant)
• Duplex GFCI (Tamper Resistant)
• Duplex with USB (Tamper Resistant)

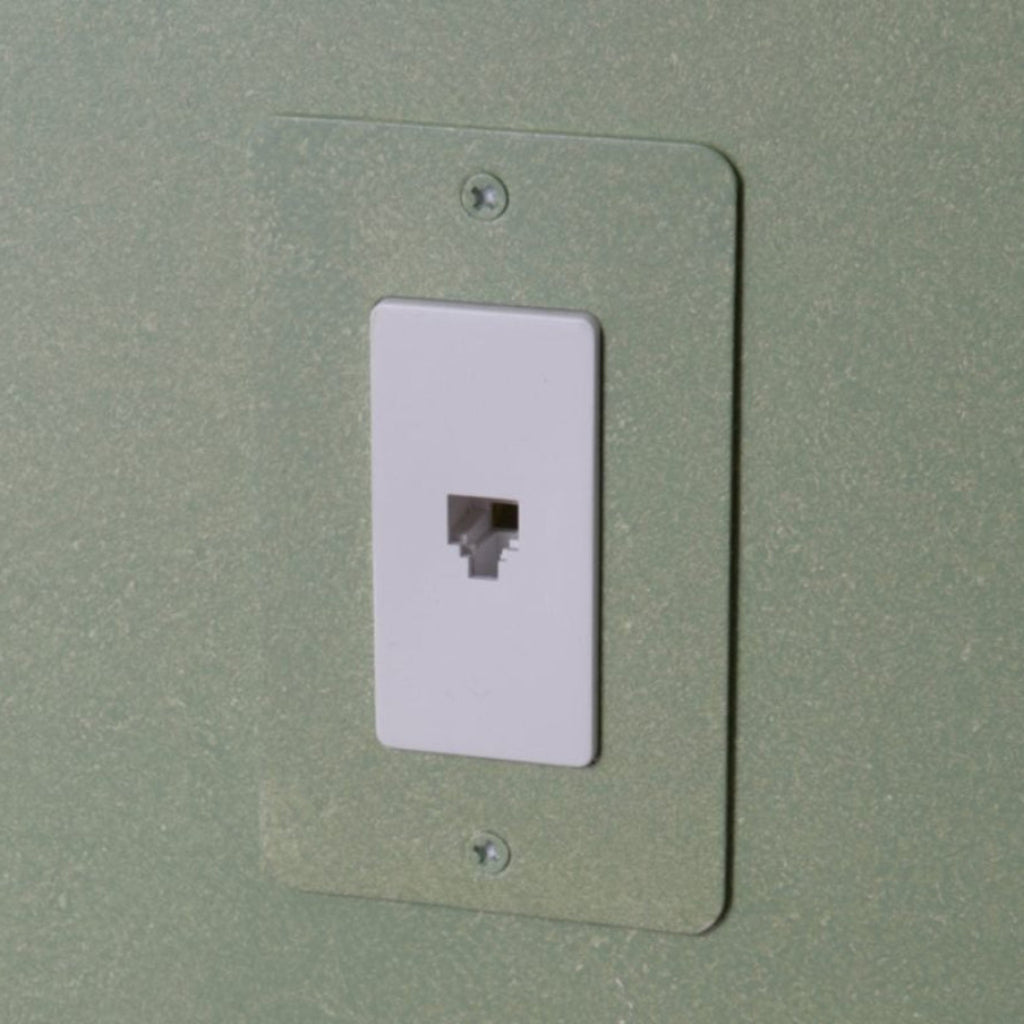

• Phone (RJ11)
• Data (Cat 5 or Cat 6)
• Cable TV (F Type Coax)

Outlet inserts available in Black, Grey, White, Light Almond, and Oyster.

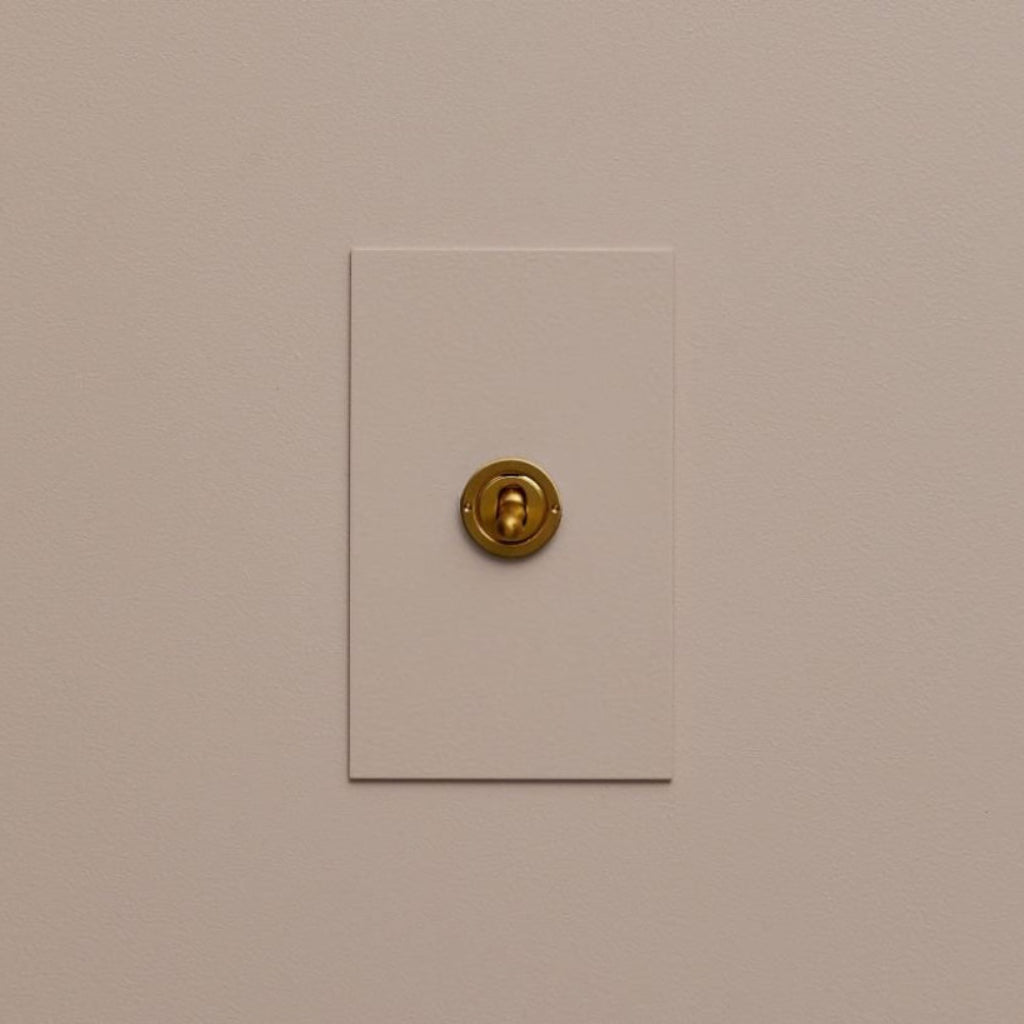

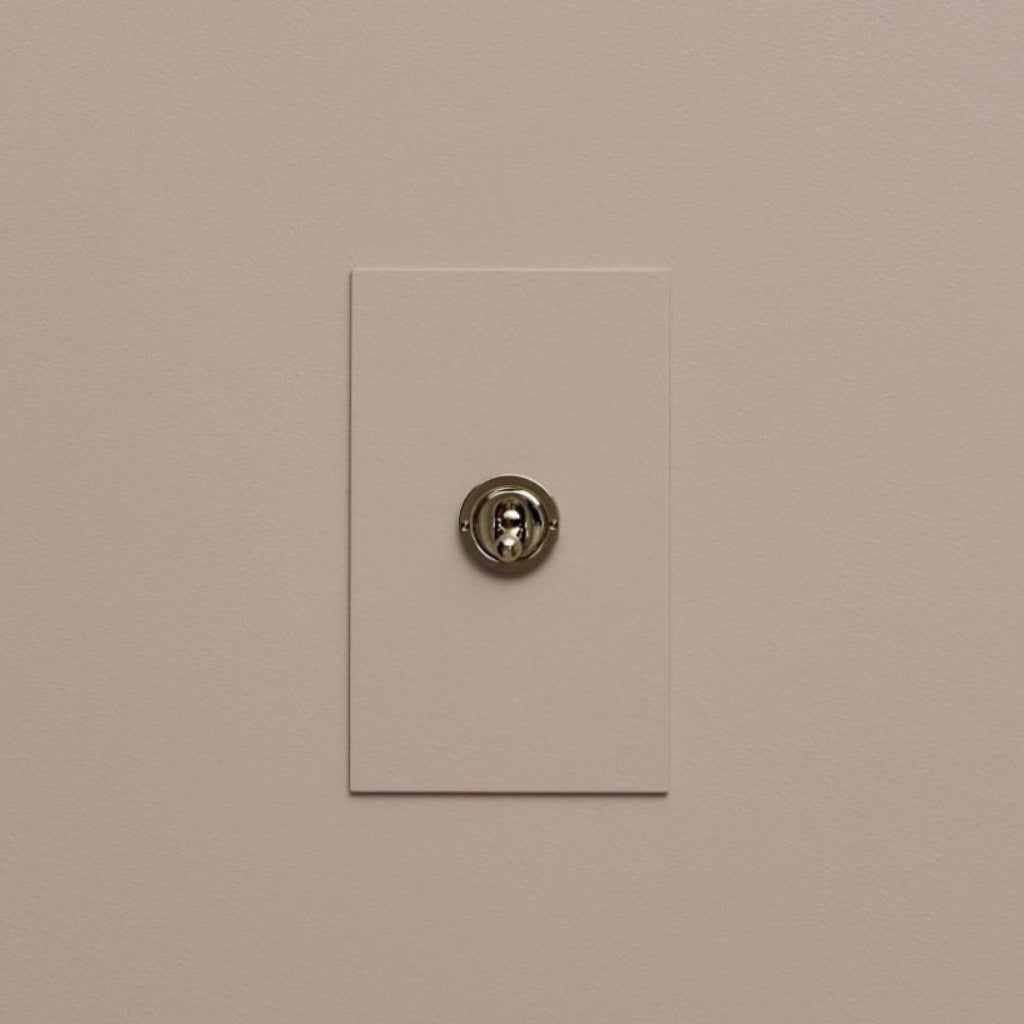

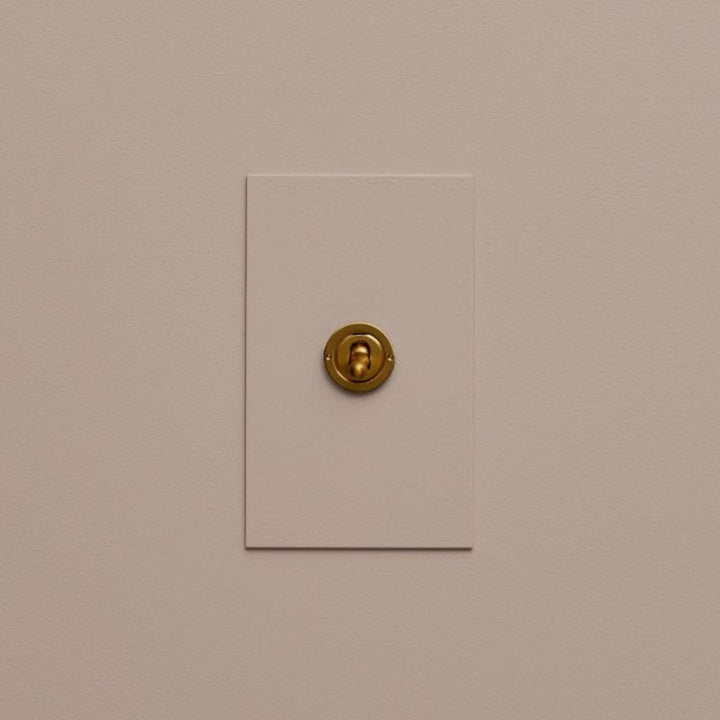

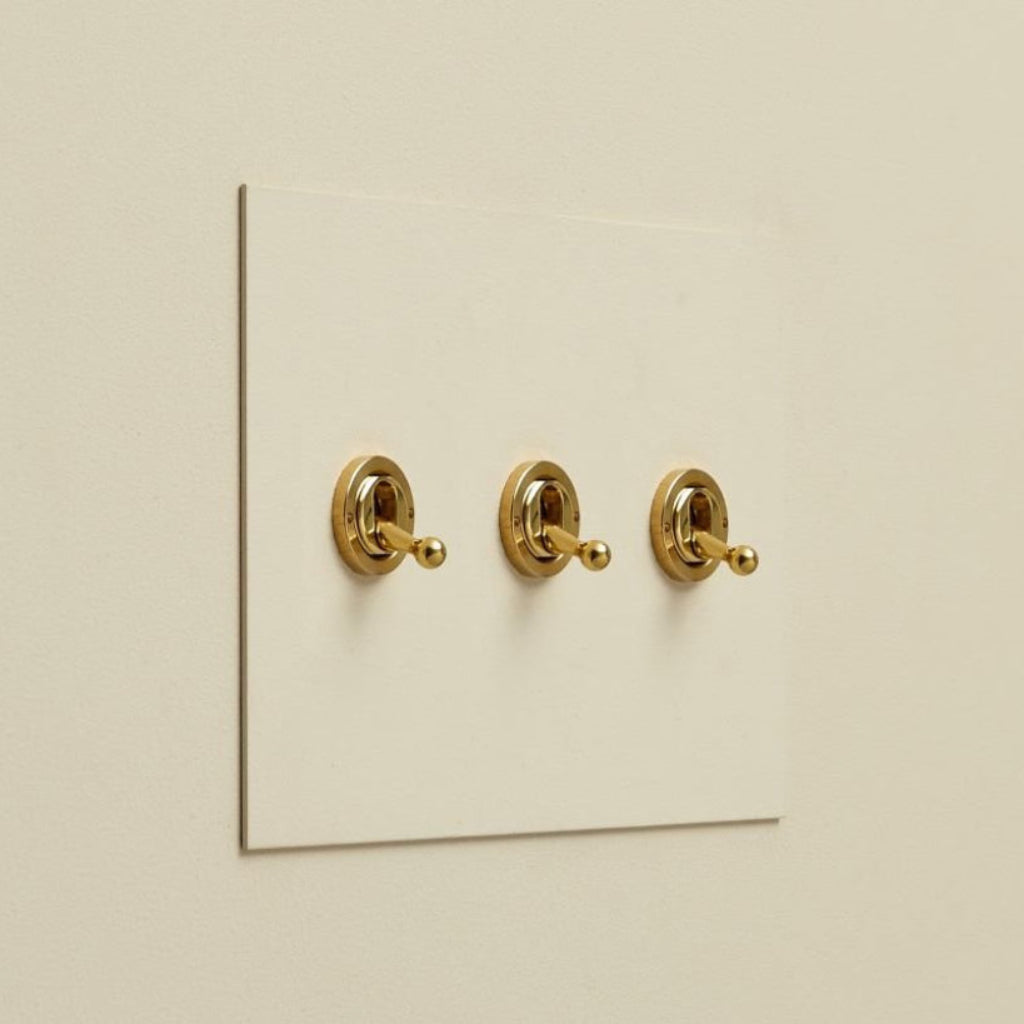

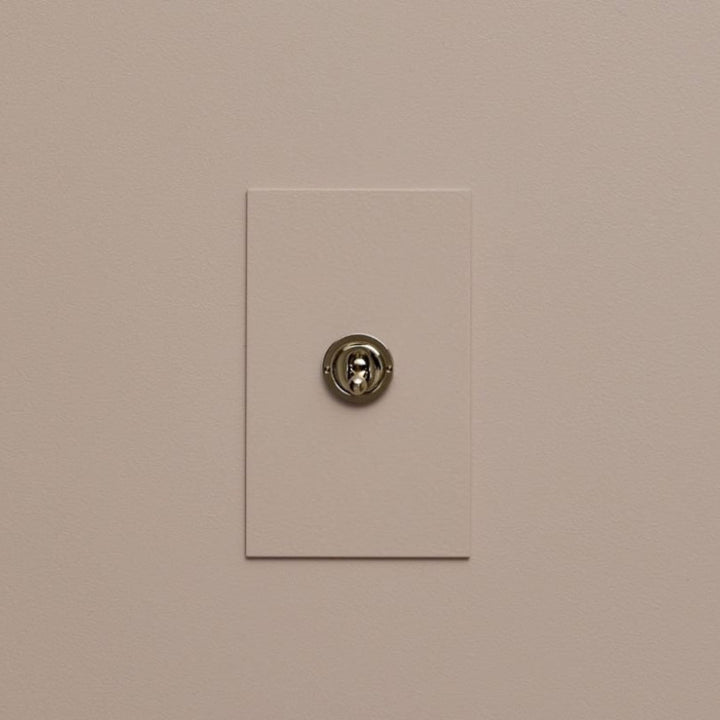

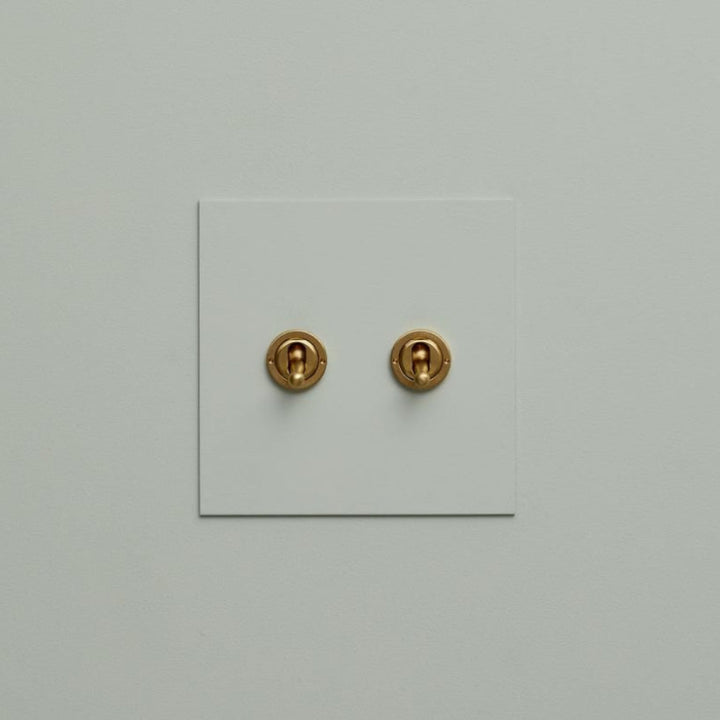

Switches

• Switch: Ø 20 mm (0.79")

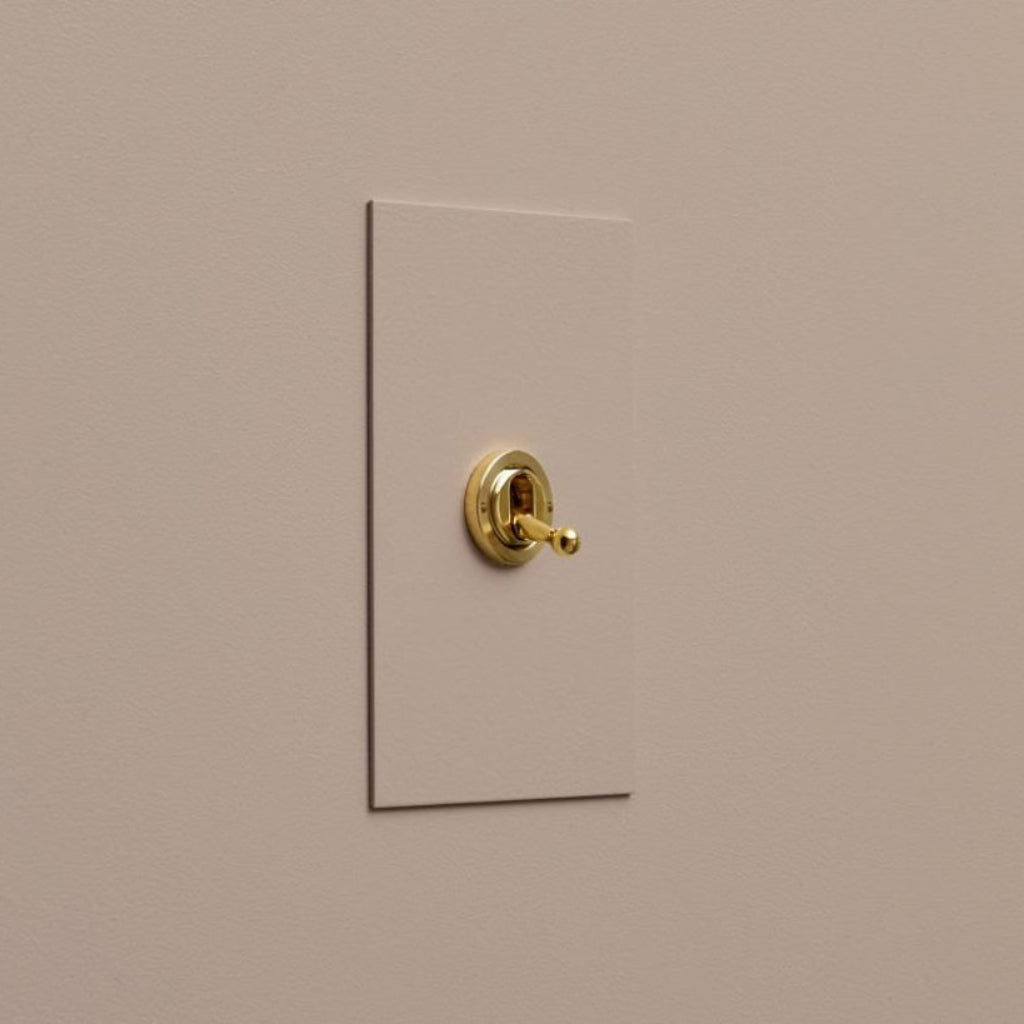

• 1 Gang: W 70 mm (2.76") x H 115 mm (4.53")

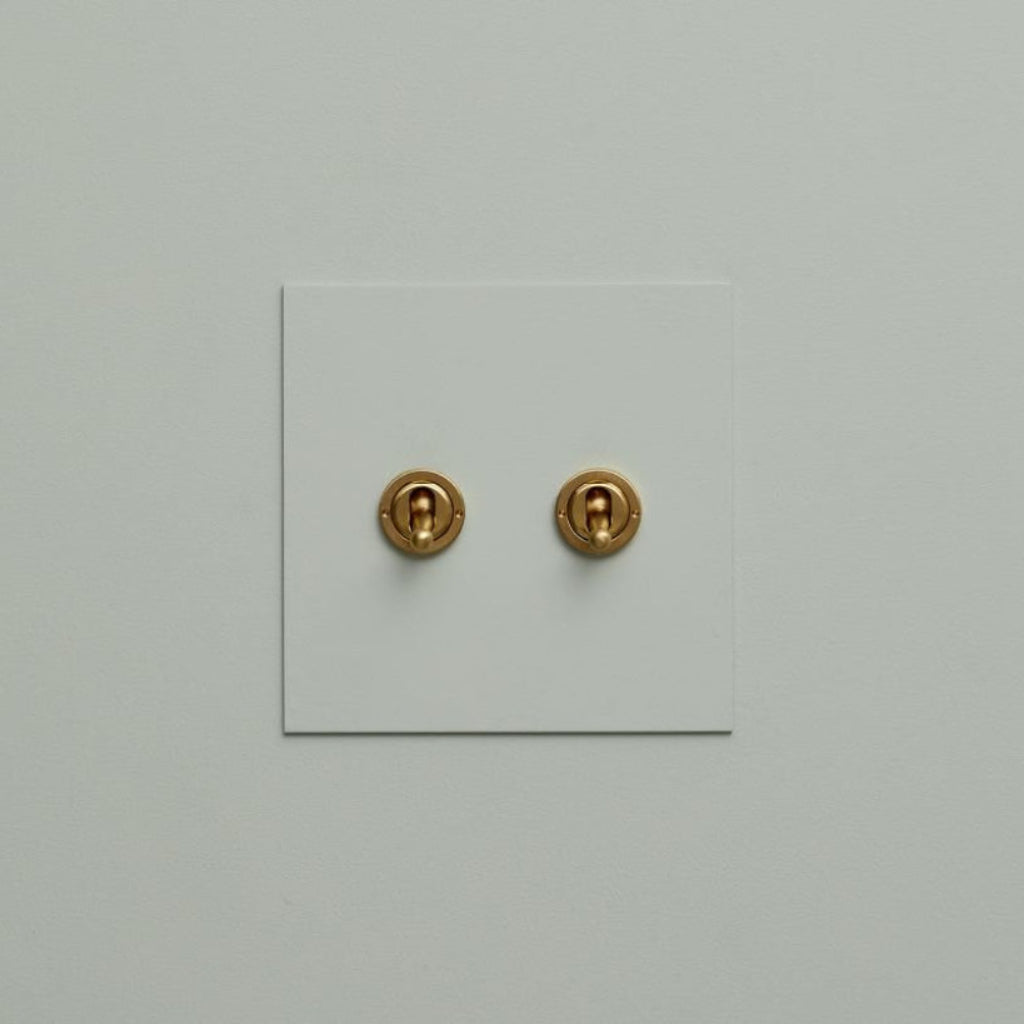

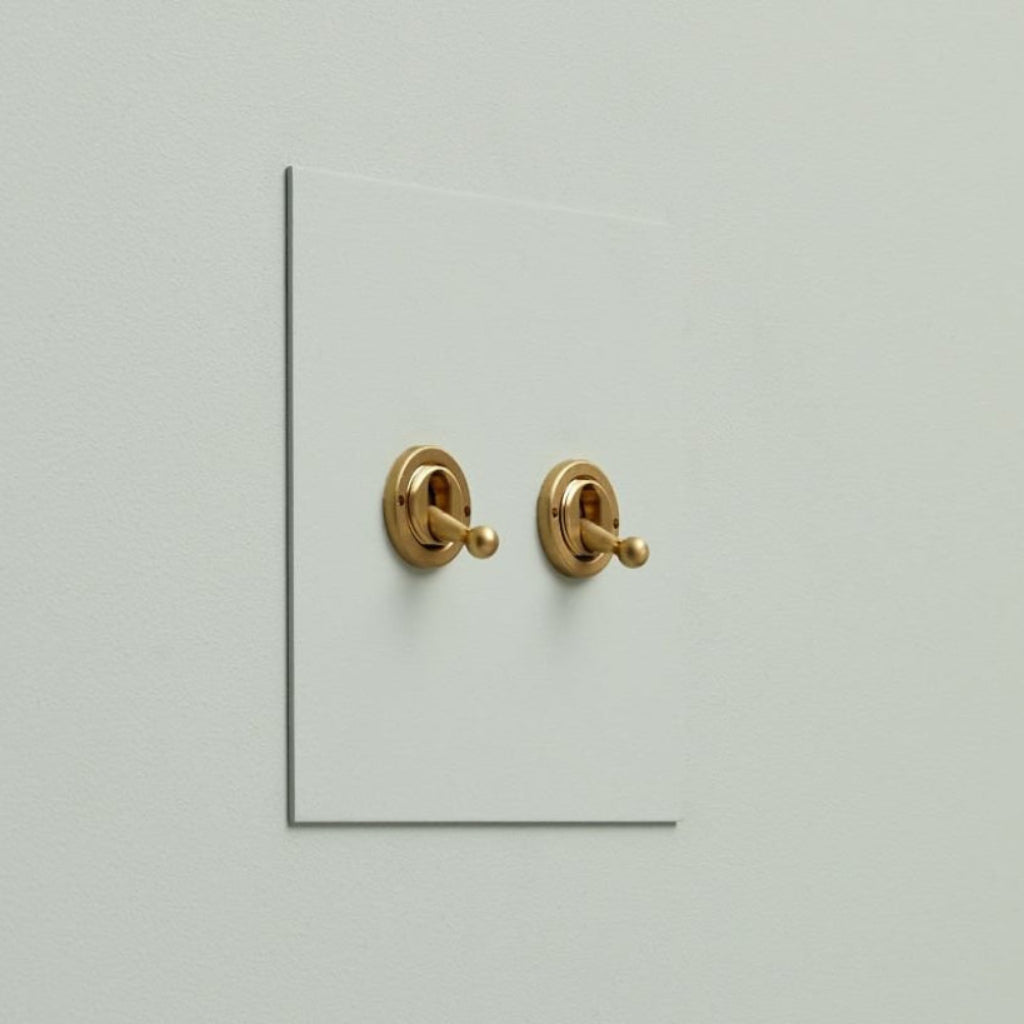

• 2 Gang: 115 mm (4.53") x 115 mm (4.53")

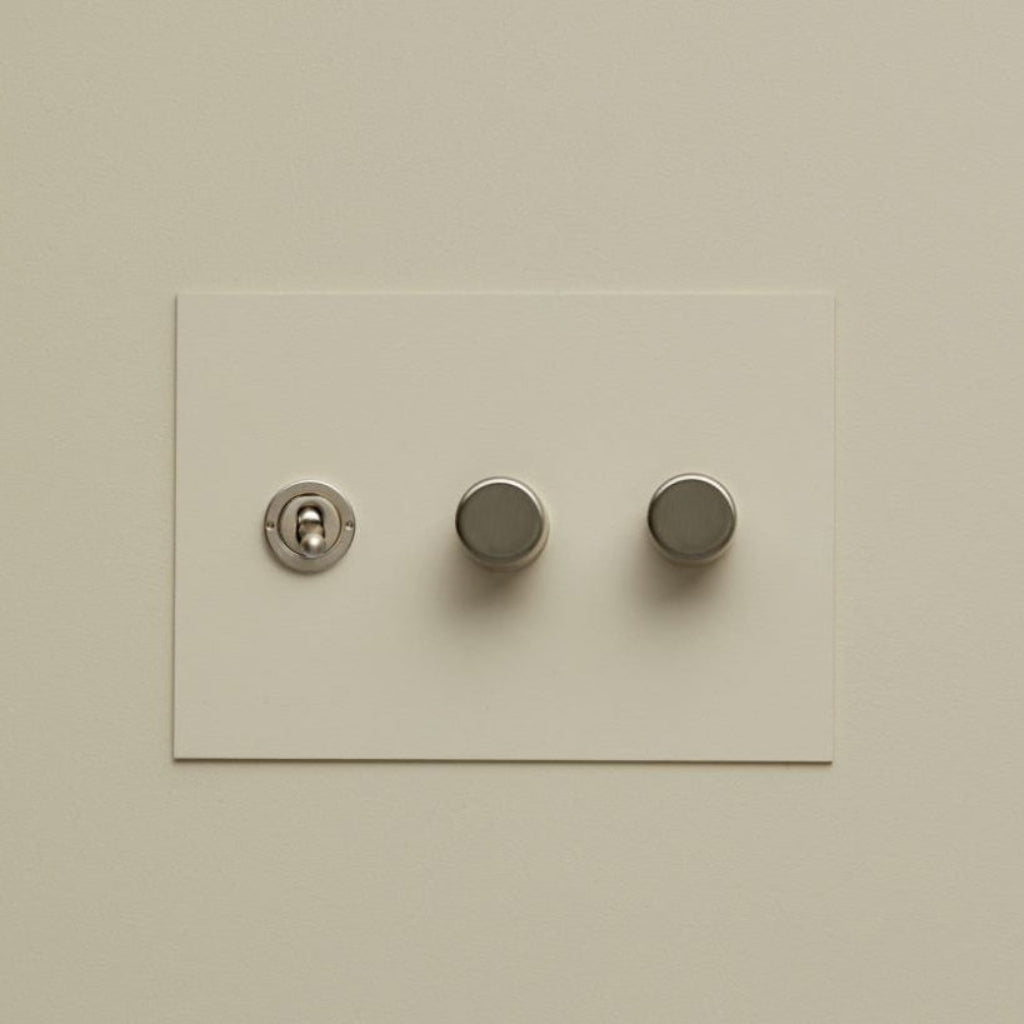

• 3 Gang: W 162 mm (6.38") x 115 mm (4.53")

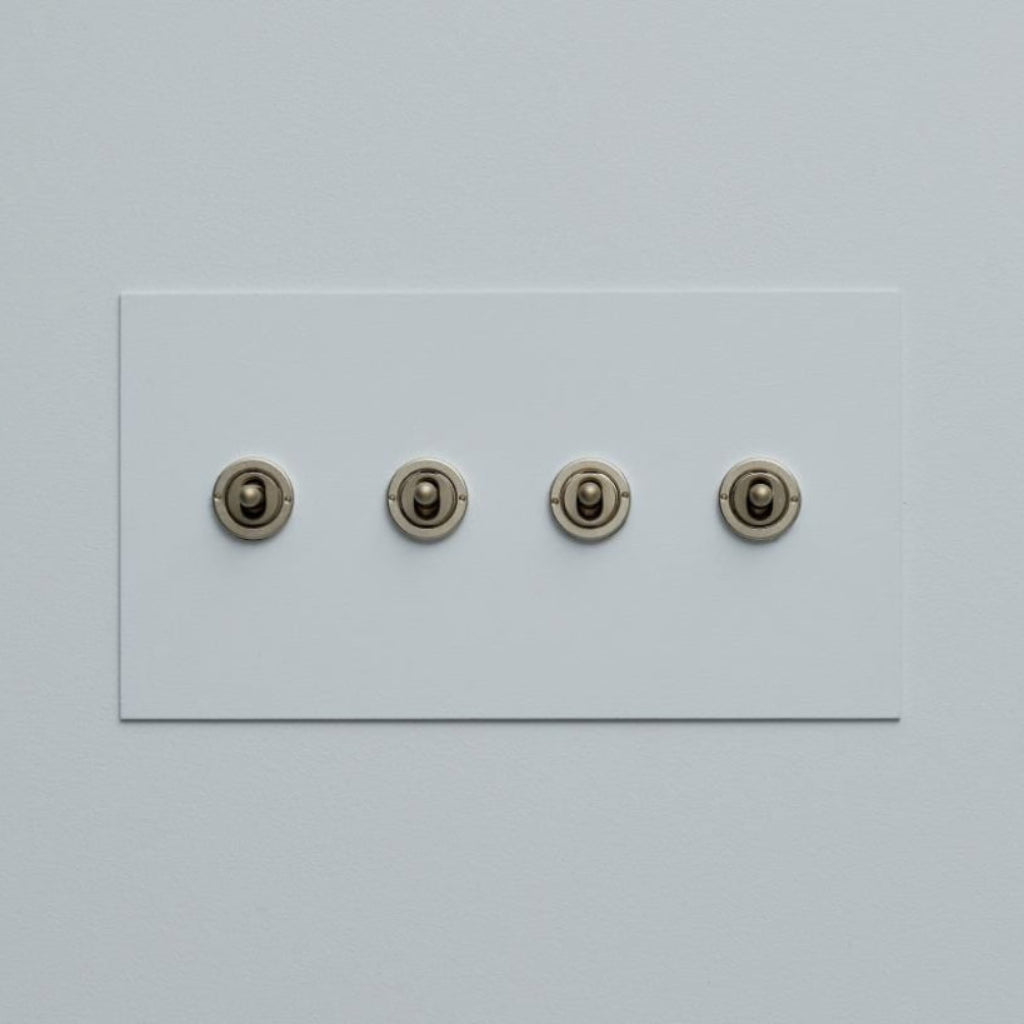

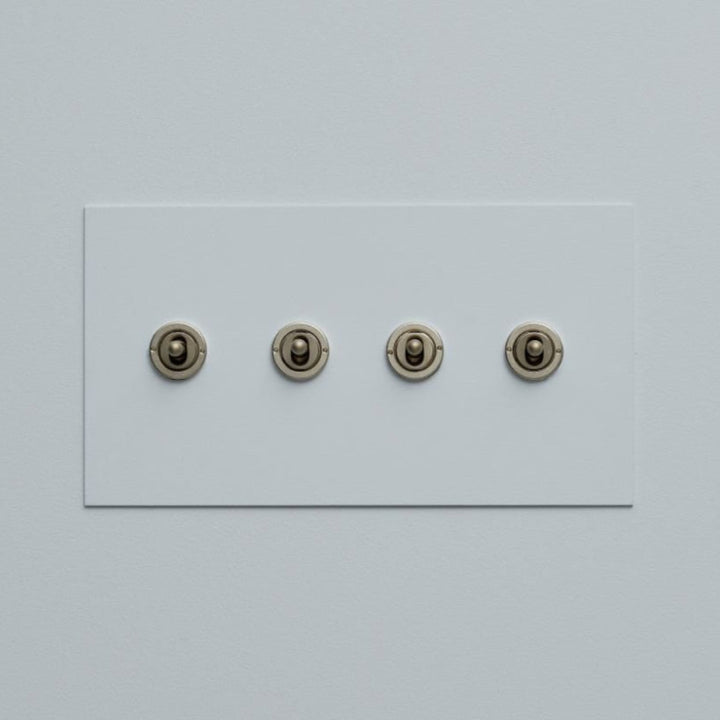

• 4 Gang: W 210 mm (8.27") x 115 mm (4.53")
• Available Configurations
• 3-way, 15A (also works as single-pole)
• 4-way, 15A
• Certifications
• Toggle switches conform to UL 20
• Certified to CSA C22.2 No. 111
• Must be installed by a licensed electrician. Units install into standard junction boxes — boxes must be recessed below the finished wall surface by at least 1/8". Verify recess depth before ordering.
• Areas of application: light-duty commercial, residential.

Available Finishes

• Unlacquered Polished Brass
• Aged Brass
• Nickel Silver
• Brushed Stainless Steel
• Antique Bronze
• Lacquered Brushed Brass
