Bocci 22: Removal Tool
- Estimated Ship Date: 1-2 weeks
OPTIONAL TOOLS
Additional tools may be needed based on installation material. Please review here.
Need Help?
See the guide for optimal material depth selection here.
- Description
- Important Notes
- Specifications
- Product Downloads
- Order Guide
- FAQ
- Finish Samples
The removal tool is designed to eject all operative components from mounting plates without disturbing the wall finish. Simply insert, turn and pull, and it will disengage the locking tabs and allow the operative component to be removed. Required for all 22 installations. Sold individually.
Removal Tool is utilized for both standard and long barrel component removal.
Bocci 22 is a suite of electrical wall accessories designed as an alternative to the ubiquitous cover plate model.
22 System mounting plates and devices work with conventional junction boxes and wiring systems. Cylindrical devices lock securely into a receiving system mudded directly into drywall, or set into a sheet of finish material. The complete assembly results in operative components that sit flush with the surrounding wall surface, without visible cover plates.
*FAQ & ORDER GUIDE TABS AT THE BOTTOM OF THE PAGE*
- A single universal removal tool is required for all installations and is sold separately
- If you are mounting into drywall please select from our Bocci 22: Drywall Mounting
- If you are mounting into Wood, MDF, Corian etc. select from our Bocci 22: Multi-Material Material Mounting
- If you are mounting into plaster, concrete, tile/grout, mortar etc. select from our Bocci 22: Wet Material Mounting
- To reach GFCI code, a GFI breaker would simply be placed elsewhere along the circuit in an accessible, but hidden location. This breaker would be purchased independently.
Removal Tool for all Bocci 22 installations. Purchase one tool when purchasing the Bocci 22 line.
To determine which Bocci items are best for your application, please review the following questions and watch these videos for both Drywall and Alternate Installation:
1. WHERE IS IT BEING INSTALLED?
2. WHAT TYPE OF MOUNTING PLATE DO YOU WANT?
- Single
- Double Linear: For vertical or horizontal mounting
- Double Random: Set on an angle
3. WHICH COMPONENT DO YOU NEED?
- Amp 15A or 20A (confirm with your electrician if you're unsure)
- If going into an alternate (ex. stone) substrate, which length do you need? Read this chart to help you determine which length is right for your project All found on the product page and linked here
- Select Finish (black/white/almond)
4. DO YOU WANT TO BUY AS A FINISHED KIT OR INDIVIDUALLY AS PARTS?
- Kit
- Parts
- Additional Components Sold Separately
- Plaster or Tile Trim Cap: Required for installation in wet material (plaster, concrete tile/grout, mortar, etc.)
- Removal Tool: Required for all Bocci 22 installations
- Double Alternate Material Universal Router Template: Optional for Alternate Material installations when using a router to fabricate both linear and diagonal Bocci layouts.
How do I Install?
View our Drywall installation video or Alternate installation video or download the installation instructions in the Product Downloads Section above.
Is the Bocci 22 System UL approved?
Yes, the 22 System is CE compliant and UL certified. The 22 System is designed following UL standards 498 and 514D and the National Electrical Code (NEC 2020, NFPA 70).
Please view the 22 System UL certification here.
What surfaces / materials can I install the Bocci 22 System in to?
Any surface; from drywall to millwork, concrete, tile, stone, glass, etc. There are two assembly options, one appropriate for drywall and one appropriate for all other surfaces.
What colour options do they come in?
Bocci 22 System comes in white, almond and black. View colour options
Do they come in custom colours?
For larger volumes, Bocci can sometimes work on custom colours or finishes to match your surface. Please contact us for more information.
Are the outlets tamper resistant?

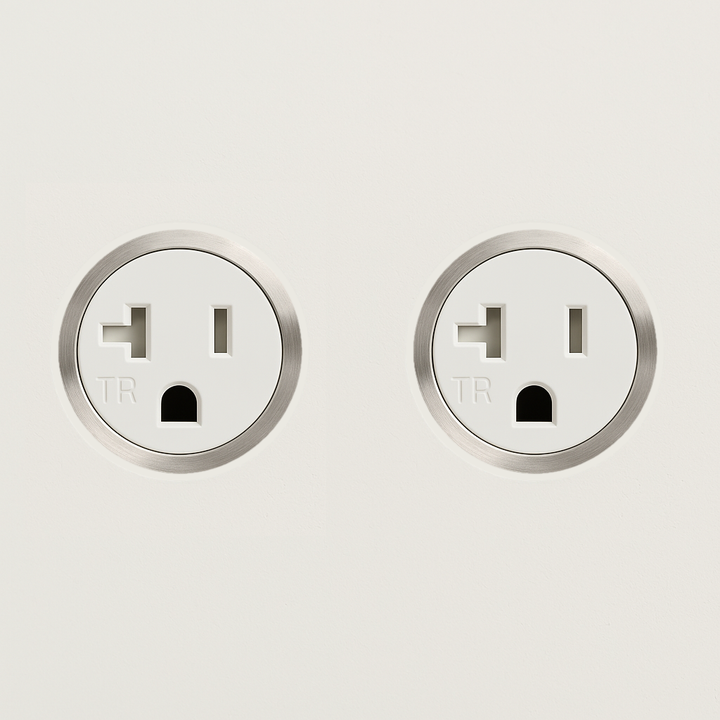

Yes, 22 System outlets are tamper resistant and bear the "TR" marking on the outlet face.
What junction box should I use?
Standard depth junction boxes are compatible with 22 System mounting plates. Junction boxes must have two screen holes (one at the top and one at the bottom) in the middle plane from the two edges. The spacing between these two screw holes should be 83 mm (+/- 0.5 mm).
Which component size do I choose for installation into alternate materials?
Please see the alternate selection chart to guide you through determining which option would work best for your individual site needs.
Does Bocci have a GFI/GFCI outlet?
While we Bocci 22 does not offer a GFCI outlet, code can be reached by using the TR outlet in conjunction with an independently sourced GFCI remotely installed in the panel. Please consult with a certified electrician for more information.
Do I need an installation (removal) tool?
Yes, an installation tool is required for all 22 System installations to access the junction box wiring. Our 22.1 installation tool is compatible with all component depths.
Can I combine a line volatage and low voltage components on the same mounting plate?
You can mix the components as long as your junction box is equipped with a “permanent barrier” or listed divider. The raceway system to access the junction box should also be separated. For more information please refer to the National Electric Code (NEC 2008: Article 800.133 Exception #1 and Article 620.36).
What do I use the 22.3.6 Keypad Control for?
This is a minimalist keypad control for use with smart home systems, performing functions as programmed through your home automation system via a CAT5 connection.
Does the Bocci 22 collection have a dimmer?
While a dimmer is not offered at this time, our 22.3.6 keypad can be programmed to control the dimming function in conjunction with a smart home system.
Shop finish samples HERE.
