Original price$235.00
/
Shipping calculated at checkout.

Finish
Gang
Model
  • Estimated Ship Date: 6-8 weeks

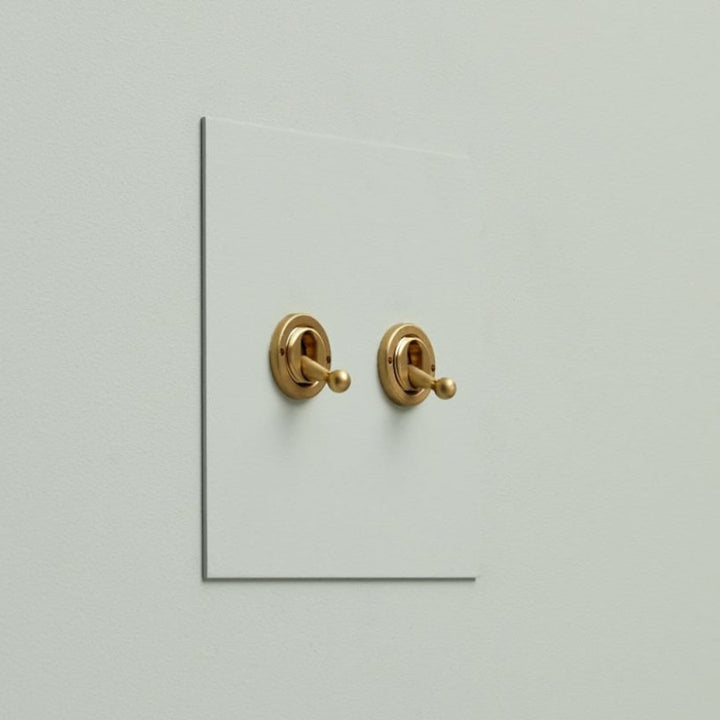

Forbes & Lomax’s Toggle Switches are based on the elegant nickel and brass light switches of the 1930s. These simple, timeless switches are a refined detail in any interior.

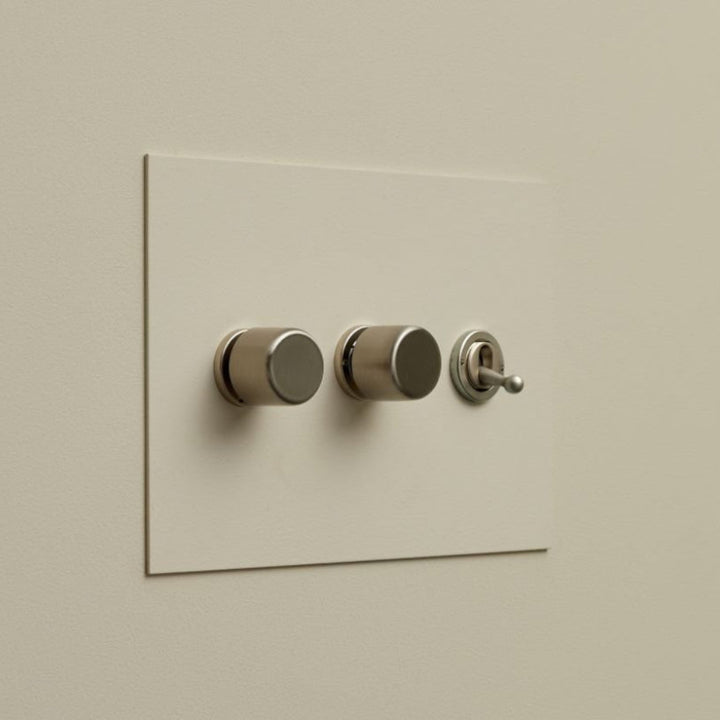

Toggle Switches are rated at 15 amps and come in 3-way and 4-way versions. 3-way switches can also be used as single pole switches. Toggle Switches can be mixed with Rotary Dimmers and push buttons on the same plate. Contact us for custom configurations.

Established in 1987, Forbes & Lomax is a UK based company with a reputation for high quality design amongst architects and designers.



Switch: Ø 20 mm (0.79”)

1 Gang Plate: W 70 mm (2.76”) X H 115 mm (4.53”)
2 Gang Plate: 115 mm (4.53”) X 115 mm (4.53”)
3 Gang Plate: W 162 mm (6.38”) X 115 mm (4.53”)
4 Gang Plate: W 210mm (8.27”) X 115 mm (4.53”)

Available for:

Line Voltage (For use in conventionally wired installations)

  • 3-way, 15A (also works as Single-Pole)
  • 4-way, 15A (contact us)

Low Voltage: For use on Class 2 Circuits only

  • 2-Position Momentary Dry Contact Toggle (contact us)
  • 3-Position Momentary Dry Contact Toggle (contact us)
  • 3-Position Latching Dry Contact Toggle (contact us)

See full Technical Specification sheets below.

Important Notes:

  • Toggle switches conform to UL 20 and are certified to CSA C22.2 No.111.
  • Please review and ensure all certifications are applicable for your local code.
  • If unsure, please send our Sales Team full SPECS of lighting for a compatibility review.
  • Must be installed by a licensed electrician.
  • Toggle Switches install into standard junction boxes but the boxes must be recessed below the finished wall surface by at least 1/8". Please refer to the Wallbox Assemble Diagram in the Installation Guide below. If you are installing into existing junction boxes, you will probably find the boxes are already recessed by at least this much but please check to make sure before placing an order.

    Areas of application: Light-duty Commercial, Residential

    • Unlacquered Brass
    • Aged Brass
    • Nickel Silver
    • Brushed Stainless Steel
    • Antique Bronze
    • Lacquered Brushed Brass

    Note: materials will slowly age or oxidize over time. Wipe clean with a dry, non-abrasive microfiber cloth. Avoid use of chemical or alcohol based cleaners. Refer to the care guide below for best practices.
