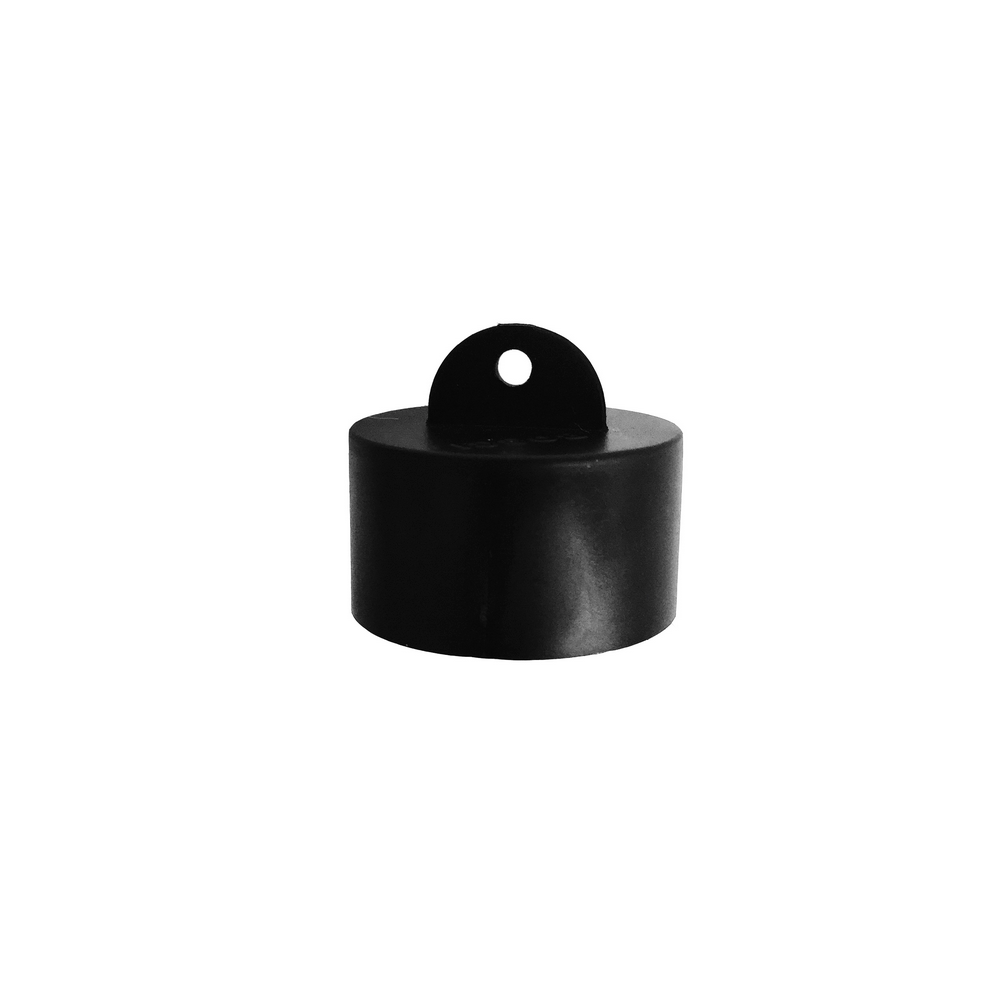

Bocci 22 Component: Plaster or Tile Trim Cap

The Bocci 22 Trim Cap is a protective cap required when installing Bocci 22 components into wet materials — plaster, concrete, tile grout, or mortar. One trim cap is required per component; a 2-gang outlet in tile, for example, requires 2 trim caps.

Part of the Bocci 22 Series — a refined, modular suite of flush-mounted interior accessories that rethinks the traditional cover plate. Each piece integrates seamlessly into drywall, tile, wood, or stone for a clean, minimalist finish. Designed and manufactured in Vancouver.

• Diameter: Ø34 mm (1.3")
• Quantity Required: One trim cap per Bocci 22 component
• Application: Wet material installations — plaster, concrete, tile grout, mortar
• Certification: cUL certified to CSA standards; tamper resistant
• GFCI: A GFI breaker can be placed elsewhere on the circuit in an accessible but concealed location (purchased independently)
• Note: For drywall installations, use the Bocci 22 Drywall Mounting plates instead

Precision-machined protective cap designed to shield Bocci 22 components during wet material installation. Compatible with the full Bocci 22 component range. A removal tool is required for all installations and is sold separately.

• Bocci 22 Pre-Configured Sets
• Bocci 22 Mounting Plates
• Bocci 22 Individual Components
• Bocci 22 Removal Tool (required for all installations, sold separately)

• Bocci 22 Brochure (PDF)
• Bocci 22 Barrel Depth Selection Guide
• Bocci 22 FAQ (PDF)
• Bocci 22 CAD / 3DM / SKP Files (ZIP)

To determine which Bocci items are best for your application, please review the following questions and watch these videos for both Drywall and Alternate Installation:

1. Where is it being installed?

• Drywall or
• Alternate (stone, tile, etc)

2. What type of mounting plate do you want?

• Single
• Double Linear: For vertical or horizontal mounting
• Double Random: Set on an angle

3. Which component do you need?

• Amp 15A or 20A (confirm with your electrician if you're unsure)
• If going into an alternate (ex. stone) substrate, which length do you need? Selection guide here
• Select Finish (black/white/almond)

4. Do you want to buy as a finished kit or individually as parts?

• Kit: Drywall | Alternate
• Parts: Mounting Plate | Components
• Additional: Plaster/Tile Trim Cap | Removal Tool (required for all installations)

How do I Install?

View our Drywall installation video or Alternate installation video or download the installation instructions in the Product Downloads Section above.

Is the Bocci 22 System UL approved?

Yes, the 22 System is CE compliant and UL certified, designed following UL standards 498 and 514D and the National Electrical Code (NEC 2020, NFPA 70). View UL certification.

What surfaces can I install into?

Any surface: drywall, millwork, concrete, tile, stone, glass, etc. There are two assembly options, one for drywall and one for all other surfaces.

What colour options are available?

White, almond, and black. View colour options.

Custom colours?

For larger volumes, Bocci can sometimes work on custom colours or finishes. Please contact us for more information.

Are the outlets tamper resistant?

Yes, 22 System outlets are tamper resistant and bear the "TR" marking on the outlet face.

What junction box should I use?

Standard depth junction boxes are compatible. Must have two screw holes in the middle plane, spaced 83 mm (+/- 0.5 mm) apart.

Which component size for alternate materials?

See the alternate selection chart.

Is there a GFI/GFCI outlet?

Bocci 22 does not offer a GFCI outlet directly. Code can be met using the TR outlet with an independently sourced GFCI installed remotely in the panel. Consult a certified electrician.

Do I need the removal tool?

Yes, required for all 22 System installations to access junction box wiring. Compatible with all component depths.

Can I mix line voltage and low voltage on one plate?

Yes, if your junction box has a permanent barrier or listed divider with separated raceway. See NEC 2008: Article 800.133 Exception #1 and Article 620.36.

What is the 22.3.6 Keypad Control for?

A minimalist keypad for smart home systems, programmable via CAT5 connection.

Is there a dimmer?

Not currently, but the 22.3.6 keypad can be programmed to control dimming through a smart home system.
